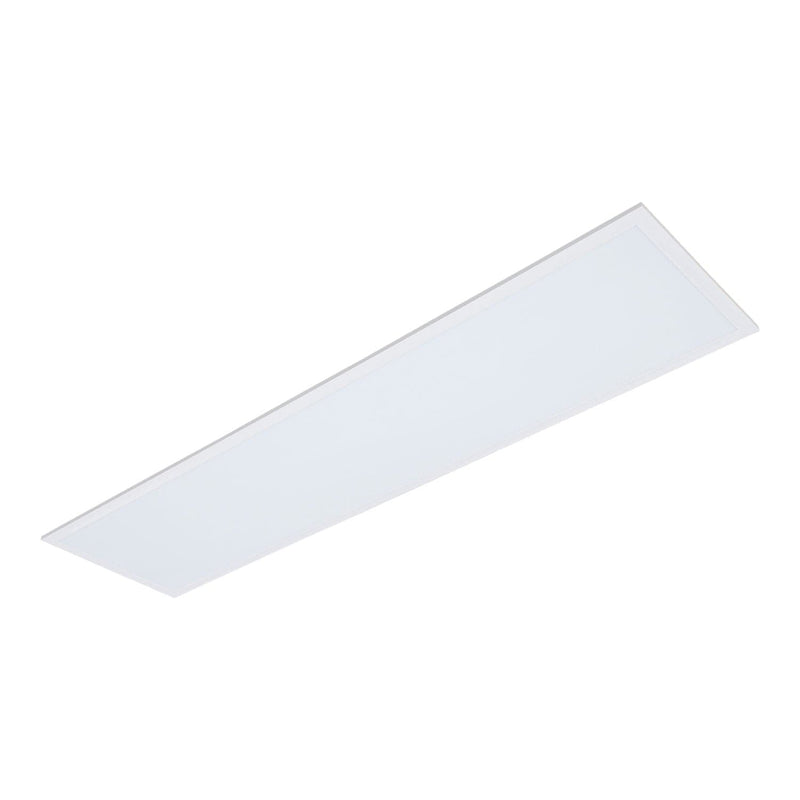

Domus PANEL-BLT-312 Backlit Panel Troffer Light

The Domus PANEL-BLT-312 is a 1,200 × 300 mm backlit LED panel drawing 36 W, with a flicker-free driver and switchable 3000 K / 4000 K / 5700 K, in Trio or DALI.

The 1200 × 300 format, and what it is for

• It replaces a standard fluorescent troffer — the twin-tube batten fitting that sits in most older commercial ceilings.
• ✅ It drops straight into a T-bar grid in place of a 1,200 × 300 mm module, or goes into plasterboard with an optional trim kit, or surface-mounts or wire-suspends with another kit.
• ✅ 3,415 lumens at 4000 K from 36 W — about 95 lm/W, and comfortably more light than the twin 36 W fluorescent it replaces at half the power.
• ⚠ It is 32 mm deep. In a grid ceiling that is irrelevant; in a shallow plasterboard void, check it.

Backlit, not edge-lit — and on a long panel it matters more

• The LEDs sit behind the diffuser across the whole area, rather than around the rim firing sideways into a light guide.
• ✅ On a 1,200 mm panel that is the difference that shows. An edge-lit panel this long has to push light the full length from its ends, so the centre reads dimmer and banding is more visible. A backlit one is even across the whole face.
• ✅ No light guide to yellow over five or ten years, which is what makes old edge-lit panels go warm and dim.
• ✅ It is also more efficient, because the light does not travel across a panel before it escapes.

The flicker-free driver

Domus fits a harmonic filter to reduce total harmonic distortion — the cause of visible strobing and of the eye strain and headaches some people get under cheap LED panels.

• ✅ It matters most in exactly the rooms this panel goes into — offices, classrooms and workshops, where people sit under it for eight hours.
• ✅ And where cameras are used, because flicker shows as banding on video.
• ✅ It is a real specification difference, not a marketing line: standard drivers that are not flicker-free are why panel lighting has the reputation it does.

The numbers

• 3,010 lm at 3000 K, 3,415 lm at 4000 K, 3,200 lm at 5700 K from 36 W.
• 1,195 × 295 × 32 mm, white frame, opal diffuser.
• CRI ≥80, high-efficiency SMD, 40,000 hours, IP20.
• ⚠ Its datasheet carries a warranty disclaimer that is cut off mid-sentence in every copy we hold. The warranty is three years; the condition attached to it we cannot read, so ask us and we will get the full text from Domus.

Choosing the colour

• 4000 K — the default for an office, classroom or corridor, and the brightest setting here.
• 3000 K — reception areas and anywhere the space should feel less clinical.
• 5700 K — workshops and inspection areas.
• ⚠ The Trio's dip switch is attached to the cable of the fitting, so set it before the panel goes into the ceiling.

Where it works

• ✅ Offices, classrooms and workshops — flicker-free matters where people sit for hours.
• ✅ Replacing 1,200 × 300 mm fluorescent troffers in a grid ceiling.
• ✅ Corridors and back-of-house.
• ✅ Spaces with cameras — no banding on video.
• ⛔ IP20 — dry interiors only.
• ⚠ Confirm the DALI variant's dimming behaviour with us before specifying it.

Specifying it

1,195 × 295 × 32 mm backlit LED panel for a 1,200 × 300 mm grid module. 36 W giving 3,010 / 3,415 / 3,200 lm at 3000 K / 4000 K / 5700 K, switchable. High-efficiency SMD, CRI ≥80, 40,000 hrs. ✅ Flicker-free driver with a harmonic filter. 240 V AC, IP20. White frame, opal diffuser. Trio (dip switch on the cable) or DALI. ⛔ The record says not dimmable while offering a DALI variant — confirm before specifying into a control system. Recessed into a grid ceiling, or plasterboard / surface / suspended with optional kits. Warranty 3 years — ⚠ its datasheet's warranty disclaimer is truncated in every copy we hold; ask us for the full condition.

Supplied and supported by Lights For You.
