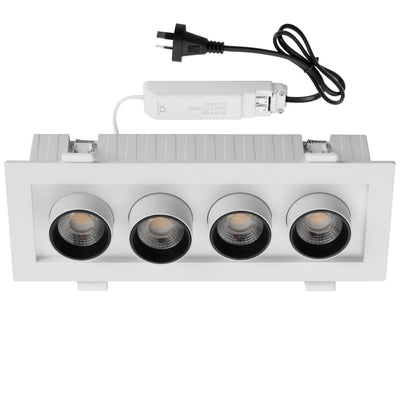

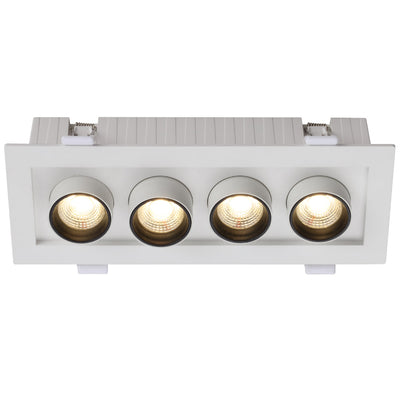

Tilda 4 LED Downlight

The Tilda DL4 is a four-light adjustable LED downlight bar in white — 20 W total giving 1,500 lm, with switchable 2700 K / 3000 K / 4000 K, CRI above 90 and TRIAC dimming — each head pulls out and rotates 360°.

Four aimable heads from one opening

Each head extends down out of the housing and rotates a full circle. Four of them in a 237 mm bar means one recessed fitting can light four different things — a run of artwork, a bench and a splashback, a shelf and a doorway — and be re-aimed later without going back into the ceiling. That is the whole argument for the Tilda over four separate downlights: one hole, one circuit, four directions, and the aiming stays adjustable.

1,500 lumens at 75 lumens per watt

20 W giving 1,500 lm — sound for a fitting holding CRI above 90, and exactly double the two-light Tilda, which is the consistency you want across a range. Enough to light a kitchen run or a gallery wall from a single point.

A warm-shifted colour range

2700 K, 3000 K or 4000 K — warmer throughout than the usual 3000/4000/5000, with no cool setting at all. On a domestic fitting that is the right call: 2700 K is close to a filament lamp, and even the top setting stays neutral rather than clinical. Our datasheet gives the middle figure as 3200 K where the record and page say 3000 K — a small difference, published as 3000.

Class II and IC-4

Double insulated — no earth required, which simplifies the install, and IC-4, so it may be covered by ceiling insulation. It dims from an ordinary TRIAC leading-edge wall dimmer. Body is polycarbonate, 0.5 kg, with a 690 mm tail.

The middle of three

Tilda comes as a two, four and six-light bar, all the same 90 mm width and 70 mm depth, all aimable, all at 75 lm/W. The four is the one that suits a kitchen bench: long enough to cover a working run, short enough not to dominate a ceiling.

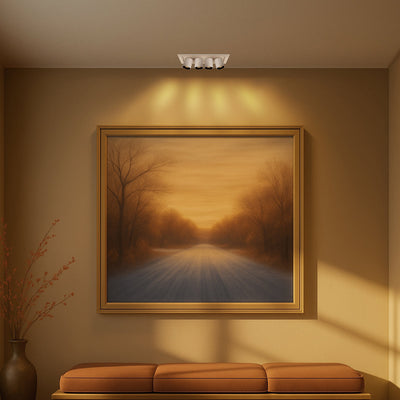

Where it works

• Kitchen benches and splashbacks — four aimable heads over a run.
• Gallery walls and picture runs.
• Anywhere the lighting might be re-aimed later.
• Insulated ceilings — IC-4.
• ⚠ Confirm the cutout with us before anything is cut.

Specifying it

237 mm long, 90 mm wide, 70 mm deep, 0.5 kg, tail 690 mm, in matte polycarbonate. Cutout is NOT recorded — ask us. Four integrated LEDs, 20 W total, giving 1,500 lm, included, with switchable 2700 K / 3000 K / 4000 K, CRI >90, TRIAC dimmable, IC-4, pull-out heads with 360° rotation. 240 V, Class II — double insulated, no earth required, IP20 — indoor and dry locations only. Warranty is three years, as a replacement warranty.

Supplied and supported by Lights For You.

Download Datasheet (PDF)
