3 Years Warranty
Find the right driver for this fitting
Product Description

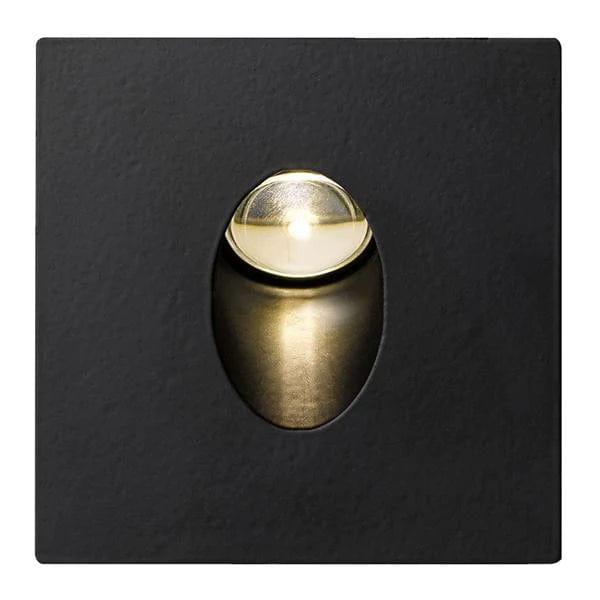

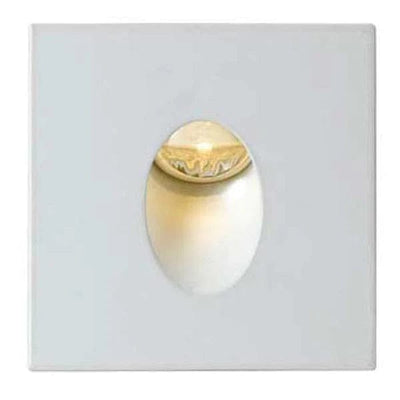

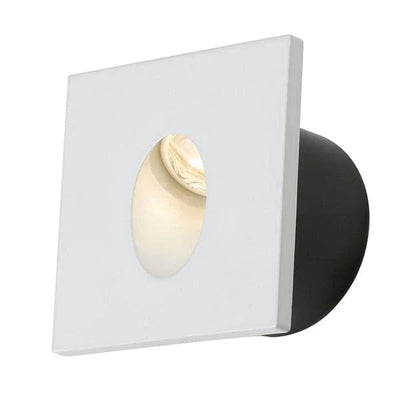

xThe Snap is an 80 mm square recessed step light — 3 W, 240 lm at 4000 K — in black or white, and it needs no driver.
240 V direct — no driver required
This is the practical advantage. Most recessed LED step lights need a driver housed somewhere in the wall cavity; the Snap runs straight off 240 V. That means less to fit into the cavity, one less component to fail, and a simpler install — particularly in a solid or shallow wall where there is nowhere to put a driver.
Only 4 mm proud of the wall
A 4 mm projection is essentially flush. On a stair riser at foot level, a fitting that barely stands proud is far less likely to be scuffed or caught.
Square, and small

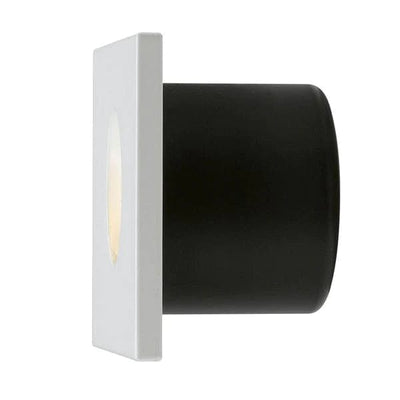

80 × 80 mm with a 45 mm depth. Square suits a stair with orthogonal detailing; the shallow depth means it fits cavities that a deeper fitting will not.
4000 K is neutral, not cool
Worth being precise, because the old copy was not. 4000 K is natural or neutral white — clean without the blue edge of 5000 K. On a stair it reads as clear rather than clinical.
Clear polycarbonate diffuser
Not glass, so it will not shatter if knocked at foot level.
IP20 — indoor and dry locations only. An internal stair light, not rated for an external step.
Where it works
- Internal stair risers, especially in shallow or solid walls.
- Hallways, as low-level guidance.
- Cinema rooms and stepped floors.
- Where there is nowhere to house a driver.
Specifying it
80 × 80 mm, 45 mm deep, 4 mm projection, in aluminium with a clear polycarbonate diffuser. Built-in 3 W LED giving 240 lm at 4000 K, CRI 80. No driver required — 240 V direct. Not dimmable. IP20 — indoor only. Warranty is three years, as a replacement warranty.
Supplied and supported by Lights For You.
Questions
Does it need a driver?
No — it runs straight off 240 V. That means less to fit into the wall cavity, one less component to fail, and a simpler install.
Is 4000 K cool white?
No. 4000 K is neutral or natural white; cool white is 5000 K. An earlier version of this page had that wrong.
How far does it stick out?
4 mm — essentially flush, so it is unlikely to be scuffed or caught at foot level.
How deep a cavity does it need?
45 mm — shallow, and with no driver to house it fits where deeper fittings will not.
Can it go on an outdoor step?
No. It is IP20 — internal stairs only.
Is the diffuser glass?
No, clear polycarbonate — it will not shatter if knocked.
What is the warranty?
Three years, as a replacement warranty.
Product Specifications
xSpecifications
| Brand | Telbix Lighting |
|---|---|
| Model / SKUs | SNAP SQ-BK (Black) · SNAP SQ-WH (White) |
| Type | LED step light — square, recessed |
| Finishes | Black · White, clear polycarbonate diffuser |
| Input Voltage | 240V direct — NO DRIVER REQUIRED |
| Wattage | 3W built-in LED |
| Lumen Output | 240lm |
| Colour Temperature | 4000K — neutral / natural white |
| CRI | 80 |
| Dimming | No |
| IP Rating | IP20 — indoor only |
| Size | 80 × 80mm |
| Depth | 45mm |
| Projection | 4mm |
| Material | Aluminium · polycarbonate |
| Warranty | 3 Years — replacement warranty |
Variant specifications
| Order code | Finish | Size | Depth | Output | Driver |
|---|---|---|---|---|---|
| SNAP SQ-BK | Black | 80 × 80mm | 45mm | 240lm | Not required |
| SNAP SQ-WH | White | 80 × 80mm | 45mm | 240lm | Not required |
