Shea 24V Exterior LED Wall Light

The Shea EX3 is a 110 mm 24 V exterior wall light in black, verde green or rust — 3 W giving 150 lm at 3000 K, on a short 300 mm cable.

The 300 mm cable is the thing to plan first

Our page was cut off just as it said so. The Shea comes with 300 mm of cable — that is 30 centimetres, and on a low-voltage garden run it decides everything: the joiner or connector has to be within 300 mm of the fitting, which usually means behind or immediately below it, in a position that stays dry. Plan the cable route before the wall is finished, not after.

Low voltage is why this is a good exterior fitting

Class III, under 54 V. The 240 V stops at the transformer, so the cable running to each wall light is low voltage — safer around garden work, render and later alterations, and far easier to extend or re-position. An electrician wires the transformer; adding a fitting to the run afterwards does not need one.

150 lumens — a marker on a facade

3 W, and correctly small. At 110 mm tall by 35 mm wide, projecting 71 mm, the Shea is a punctuation mark on a wall, not a light for finding your keys by. Used in a repeated run along a facade, a path wall or a fence line, that is exactly right — a rhythm of small warm points. Used singly beside a door, it will disappoint.

Three finishes, and the two unusual ones are the good ones

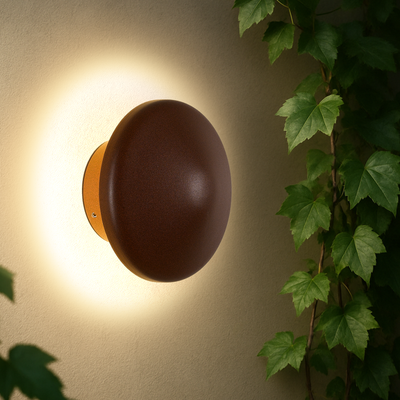

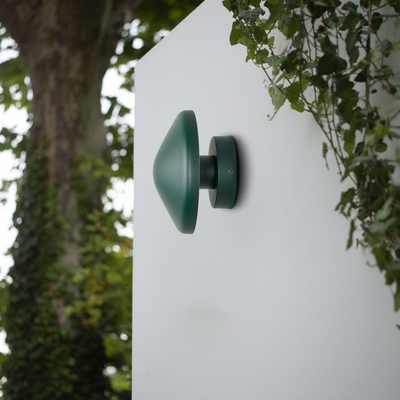

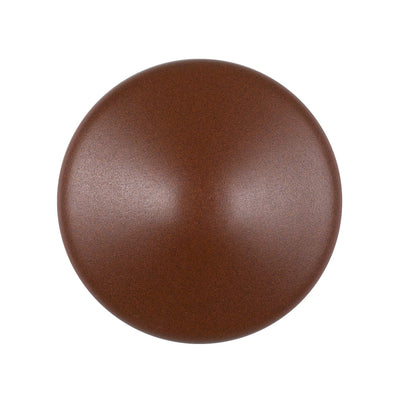

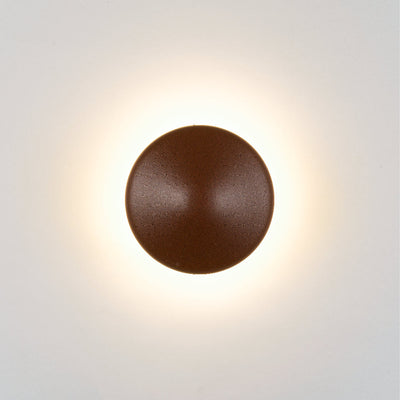

Rust, verde green and black. The rust reads as weathered steel and sits naturally against brick, timber and rendered earth tones; verde green disappears into planting. Both are far less common than black, and on a facade where you want the light and not the fitting, that matters. All three are sand-finished, so they do not show salt or water marks.

Where it works

• Repeated runs along a facade, path wall or fence line.
• Sheltered walls, porches, courtyards and covered entries.
• Low-voltage garden circuits that may be extended later.
• ⚠ Plan around IP54 — ask us before a fully exposed position.
• ⚠ Only 300 mm of cable. Plan the joiner position first.

Specifying it

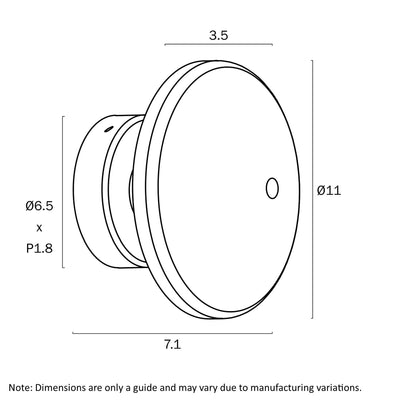

110 mm high by 35 mm wide, projection 71 mm, backplate 65 mm, cable 300 mm, 0.4 kg, in aluminium and polycarbonate, sand finish. Integrated 3 W COB LED giving 150 lm at 3000 K, included, not dimmable, CRI not recorded. 24 V — a transformer is REQUIRED and is not supplied; we stock 60 W and 200 W. Class III low voltage, IP54 as recorded — the datasheet says IP65; plan around IP54 and ask us. Warranty is three years, as a replacement warranty.
