Telbix Lighting
SKU: RAKER G43-BK324

Raker 24V 3W 4 Way Exterior LED Inground Light

3 Years Warranty
3 Years Warranty
IP65 – suitable for outdoors
IP65 – suitable for outdoors
Soft ambient light
18 lm Learn More!!
Colour: Black
$55.95
$71.00
$55.95
Product Description
Product Description
x

The Raker G43 is a ø62 mm four-way inground marker — 24 V, 3 W, CRI above 95, IP65, into a 56 mm cut-out.

This is a marker, not a light. Both our sources record 18 lumens — and even allowing that the figure looks low for a 3 W LED, a four-way fitting splits its output across four small windows by design. Use the Raker to delineate an edge: to show where the path is, where the step starts, where the driveway ends. It will not illuminate any of them. Ask us if you need the output confirmed before specifying a run.

Four ways, and that is the point

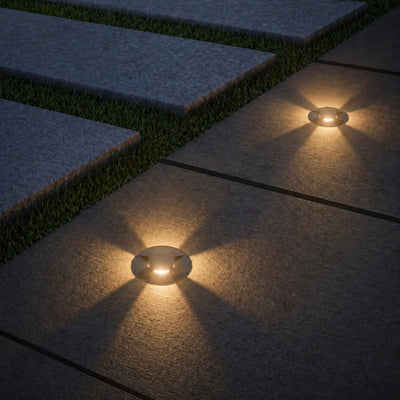

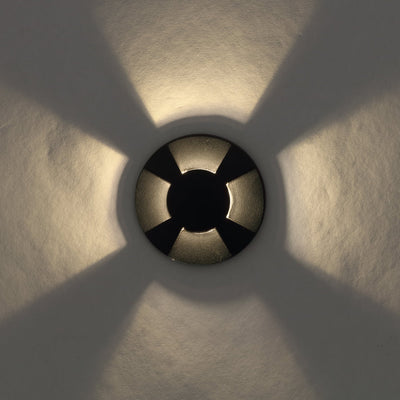

Light leaves through four windows around the fitting rather than straight up. Set into a path it draws four small pools around itself — so a line of Rakers reads as a continuous edge rather than a row of dots, and nothing shines into anyone’s eyes. 1-way and 2-way versions are also made, for when you only want the light going one direction.

CRI above 95, which is extraordinary here

>95 is near-perfect colour rendering — higher than almost anything else in this catalogue, indoor or out. On the paving, timber and planting it is grazing, that is exactly where it shows.

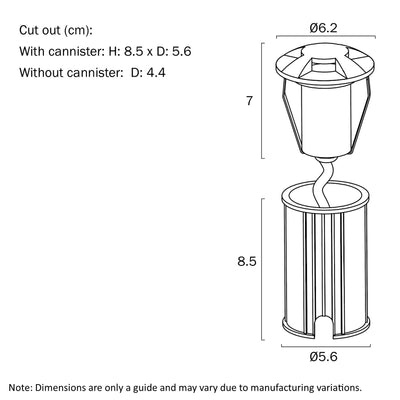

The cut-out is recorded — 56 mm

Worth noting, because several fittings in this range do not publish one: a 56 mm hole for a ø62 mm fitting, 85 mm deep. You can set out the run before the fittings arrive.

IP65 — and drainage still matters

Dust tight and protected against water jets. But IP65 is not immersion protection, and this goes in the ground: set it in free-draining ground or a gravel bed, proud of any low point. That single decision does more for its life than the rating does.

Low voltage, with a driver

24 V, Class III — under 54 volts past the driver, which is not included. In ground that gets dug and edged for years, low voltage is the right way to do it. Cable tail 1,000 mm. Ask us and we will supply the driver sized to the run.

Where it works
  • Path and driveway edges, in a run.
  • Step and stair delineation.
  • Garden bed borders.
  • ⚠ Free-draining ground only.
Specifying it

ø62 mm fitting, 56 mm cut-out, 85 mm deep, cable 1,000 mm, 0.22 kg, in aluminium and glass. Integrated 3 W LED at 3000 K, included, CRI >95, four-way distribution. Not dimmable. 24 V — driver required, not included, Class III — low voltage, IP65 — dust tight and water-jet protected, NOT immersion. Warranty is three years, as a replacement warranty.

Supplied and supported by Lights For You.

Questions
How much light does it give?

Very little — both our sources record 18 lumens. It is a marker: it shows where the path is, where the step starts. It will not illuminate them. Ask us if you need the output confirmed before specifying a run.

What does four-way mean?

Light leaves through four windows around the fitting rather than straight up, drawing four small pools around itself. A line of them reads as a continuous edge, and nothing shines into anyone's eyes. 1-way and 2-way versions are also made.

What size hole does it need?

56 mm, for a ø62 mm fitting, 85 mm deep — so you can set out the run before the fittings arrive.

Do I need anything else?

Yes — a 24 V driver, not included. Ask us and we will supply one sized to the run.

Where can I install it?

Free-draining ground or a gravel bed, proud of any low point. IP65 is water-jet protection, not immersion — and this goes in the ground.

What does CRI above 95 do?

It is near-perfect colour rendering, higher than almost anything else in this catalogue. On the paving, timber and planting it grazes, that is exactly where it shows.

Can I dim it?

No.

Product Specifications
Product Specifications
x

Specifications

BrandTelbix Lighting
Model / SKURAKER G43-BK324
TypeInground marker — 4 way distribution
FinishesBlack
Input Voltage24V — DRIVER REQUIRED, not included
Wattage3W integrated LED — included
Lumen Output18lm as recorded — a marker, not a light. Ask us
Colour Temperature3000K warm white
CRI> 95 — near perfect
DimmingNo
IP RatingIP65 — dust tight, water jets. NOT immersion
Electrical ProtectionCLASS III — LOW VOLTAGE, under 54V
Diameterø62mm
Cut-out56mm
Height85mm
Cable Length1000mm
MaterialAluminium · glass
Warranty3 Years — replacement warranty

Variant specifications

Order codeWaysDiameterCut-outCRIIP
RAKER G43-BK3244ø62mm56mm>95IP65
