A suggestion, not a specification. A calculator can get it wrong — have a licensed electrician confirm the driver, the total load and the wiring before you order.
Find the right driver for this fitting
Product Description
xThe Raker G23 is a 62 mm two-way inground light in black — 24 V, 3 W giving 14 lm at 3000 K, CRI above 95, IP65.
⚠ Two things to settle before you specify it.
- No load rating is recorded. Nothing in any source says whether the Raker can be walked on or driven over — which on a light set flush into the ground is the first question. Assume it is a garden-bed and edge fitting, not a driveway one, and ask us before putting it anywhere a car or a wheelbarrow goes. We are asking Telbix.
- It is IP65, not IP67. IP65 is rated against water jets; IP67 adds temporary immersion. An inground fitting sits exactly where water pools after rain, so this matters more here than anywhere else. Set it where the ground drains — not in a hollow, not at the bottom of a slope.

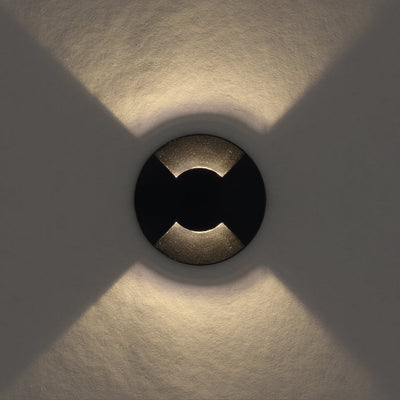

Two-way — and what that means for the output
The Raker throws light through two opposed slots rather than one, which is why it gives 14 lm where the one-way version gives 8. That near-doubling is the two sizes confirming each other: the aperture count sets the output, and the figures behave exactly as they should.
14 lumens is very small, and that is deliberate. The Raker is a marker and a grazing light, not an illuminator. Set into a path edge, a step, or against a wall, the two-way version washes light in both directions along the surface — which is how you light a path without floodlighting a garden. Anyone expecting an uplight for a tree wants a spike, not an inground marker: ask us about the Rilto.
CRI above 95 — and nothing said so
Equal highest in this catalogue, with the Rilto spike and the Malabo bollard. Grazing a brick wall, a stone step or a timber deck at close range is exactly where colour rendering shows: at CRI 80 the material goes flat and grey; at 95 the texture and the colour of the surface come back. On a fitting whose whole job is to graze a surface, that is the specification that matters.
24 volts — a transformer is required and is not supplied. The transformer must sit somewhere dry, be sized for the whole run and be wired by an electrician. We stock a 24 V 60 W and a 200 W outdoor unit; at 3 W each the 60 W drives a long run of Rakers. Tell us your layout and we will size it.
Class III low voltage also means the cable running through your beds is low voltage — far safer around spades and roots than mains, and much easier to extend later.

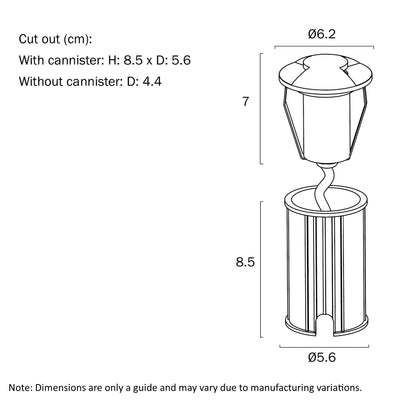

62 mm across, 56 mm cutout, 1 metre of cable
62 mm wide and 85 mm deep, into a 56 mm cutout, at 0.22 kg.
The cutout is recorded, which is worth noting — several recessed fittings in this catalogue do not record theirs. The 1,000 mm cable is what decides how far the joint can be, and on an inground fitting that joint has to be in a dry, accessible housing. Plan it before the paving or the mulch goes down.
One of three distributions
Raker comes as one-way, two-way and four-way. The one-way throws in a single direction — against a wall or a riser. This two-way washes along a path or a step from a single point. The four-way throws in all directions, for an open position where the fitting is the centre of the effect.
It is not dimmable, and the LED is integrated and included — nothing to buy and nothing to replace. A licensed electrician wires the transformer.

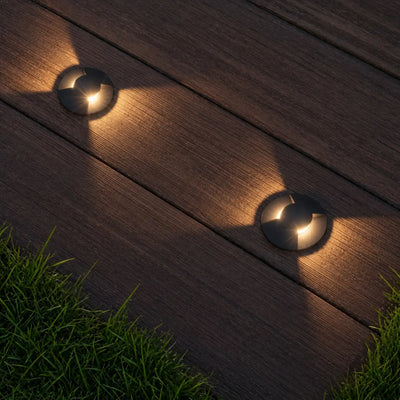

Where it works
- Path edges and step treads — washing light along the surface.
- Against walls, decks and stone, where CRI 95 shows the texture.
- Garden beds and mulch, in runs on one transformer.
- ⚠ Ground that drains — IP65 is jet-rated, not immersion-rated.
- ⚠ No load rating recorded. Ask us before a driveway or a trafficked path.
Specifying it
62 mm across by 85 mm deep, cutout 56 mm, cable 1,000 mm, 0.22 kg, in aluminium and glass, black. Integrated 3 W LED giving 14 lm at 3000 K through two opposed apertures, included, CRI >95, not dimmable. 24 V — a transformer is REQUIRED and is not supplied; we stock 60 W and 200 W. Class III low voltage, IP65 — jet-rated, NOT immersion-rated; set it where the ground drains. Load rating not recorded — ask us. Warranty is three years, as a replacement warranty.
Supplied and supported by Lights For You.
Questions
Can I walk on it or drive over it?
No source records a load rating, which on a light set flush into the ground is the first question. Assume it is a garden-bed and edge fitting rather than a driveway one, and ask us before putting it anywhere a car or a wheelbarrow goes. We are asking Telbix.
Is IP65 enough for an inground light?
It is rated against water jets but not against immersion — IP67 adds that. An inground fitting sits exactly where water pools after rain, so set it where the ground drains: not in a hollow, not at the bottom of a slope.
Why only 14 lumens?
Because it is a marker and a grazing light, not an illuminator. Set into a path edge, a step or against a wall, the two-way version washes light in both directions along the surface — which is how you light a path without floodlighting a garden. If you want to uplight a tree you want a spike; ask us about the Rilto.
What is the difference between one-way, two-way and four-way?
One-way throws in a single direction, against a wall or a riser. Two-way washes along a path or step from one point. Four-way throws in all directions, for an open position where the fitting is the centre of the effect. The output follows the apertures: 8 lm one-way, 14 lm two-way.
Why does CRI matter on a light this small?
Because its whole job is to graze a surface at close range. At CRI 80 brick, stone and timber go flat and grey; at 95 — equal highest in this catalogue — the texture and colour come back.
Do I need a transformer?
Yes, and none is supplied. It must sit somewhere dry, be sized for the run and be wired by an electrician. We stock a 24 V 60 W and a 200 W outdoor unit; at 3 W each the 60 W drives a long run. Tell us your layout.
What size hole does it need?
A 56 mm cutout, for a 62 mm fitting 85 mm deep. The cable is 1 metre, and the joint must sit in a dry accessible housing — plan that before the paving or mulch goes down.
Product Specifications
xSpecifications
| Brand | Telbix Lighting |
|---|---|
| Model / SKU | RAKER G23-BK324 (Black) — TWO-WAY |
| Type | Inground marker — 24V low voltage, two opposed apertures |
| Input Voltage | 24V — a TRANSFORMER IS REQUIRED and is NOT supplied |
| Transformers we stock | 24V 60W · 24V 200W outdoor — ask us to size the run |
| Wattage | 3W integrated LED — included |
| Lumen Output | 14lm — a marker and grazing light. The one-way gives 8lm |
| CRI | > 95 — EQUAL HIGHEST in this catalogue |
| Colour Temperature | 3000K warm white |
| Dimming | NO |
| IP Rating | IP65 — JET-rated, NOT immersion. Set it where the ground DRAINS |
| ⚠ Load rating | NOT RECORDED — ask us before a driveway or trafficked path |
| Electrical Protection | CLASS III — LOW VOLTAGE, under 54V |
| Width | 62mm |
| Depth | 85mm |
| Cutout | 56mm |
| Cable Length | 1000mm — the joint needs a dry, accessible housing |
| Weight | 0.22kg |
| Material | Aluminium and glass |
| Warranty | 3 Years — replacement warranty |
Variant specifications
| Order code | Apertures | Output | Throws light | Best for |
|---|---|---|---|---|
| RAKER G13-BK324 | One-way | 8lm | In one direction | Against a wall or riser |
| RAKER G23-BK324 | Two-way | 14lm | Both ways along a surface | Path edges and step treads |
| RAKER four-way | Four-way | Ask us | All directions | Open positions |
