A suggestion, not a specification. A calculator can get it wrong — have a licensed electrician confirm the driver, the total load and the wiring before you order.
Find the right driver for this fitting
Product Description
xThe Raker G13 is a 62 mm one-way inground light in black — 24 V, 3 W giving 8 lm at 3000 K, CRI above 95, IP65.
⚠ Two things to settle before you specify it.
- No load rating is recorded. Nothing in any source says whether the Raker can be walked on or driven over — the first question about a light set flush into the ground. Treat it as a garden-bed and edge fitting, and ask us before putting it in a trafficked path or a driveway. We are asking Telbix.
- It is IP65, not IP67. Jet-rated, not immersion-rated — and an inground fitting sits exactly where water pools after rain. Set it where the ground drains.
One-way — a directional grazing light
The G13 throws through a single aperture, so all of its light goes one way. That makes it the version for lighting a wall, a step riser, a fence or a tree trunk from below, where a two-way or four-way fitting would throw half its output into empty air.
8 lumens, and that is deliberate. The two-way version gives 14 lm from the same 3 W — almost exactly double for double the apertures, which is the two fittings confirming each other. The aperture count sets the output; the LED is the same.
This is a grazing light: set close to a surface it rakes across texture and makes brick, stone and timber read as material. Set out in the open it will do very little. If you want to uplight a tree properly, you want a spike — ask us about the Rilto.
CRI above 95 — and on this fitting it is the whole point
Equal highest in this catalogue. A grazing light's entire job is to reveal the surface it is aimed at, at close range, and colour rendering is what decides whether it succeeds: at CRI 80 brick goes brown-grey and sandstone goes flat; at 95 the material looks like itself.
Nothing on our page mentioned it — on a fitting where it is the specification that matters most.
24 volts — a transformer is required and is not supplied. It must sit somewhere dry, be sized for the whole run and be wired by an electrician. We stock a 24 V 60 W and a 200 W outdoor unit; at 3 W each, the 60 W drives a long run. Tell us your layout and we will size it.
62 mm across, 56 mm cutout
62 mm wide, 85 mm deep, into a 56 mm cutout, at 0.22 kg, with 1,000 mm of cable. The cutout is recorded — worth noting, because several recessed fittings in this catalogue do not record theirs. The joint must sit in a dry, accessible housing within a metre; plan that before the paving or the mulch goes down.
One of three distributions
One-way (this), two-way and four-way. Choose by where the light needs to go, not by brightness: they all draw 3 W and the output simply follows the number of apertures.
Not dimmable, LED integrated and included. Class III low voltage, so the cable through your beds is low voltage — safer around spades and roots, and easy to extend later.
Where it works

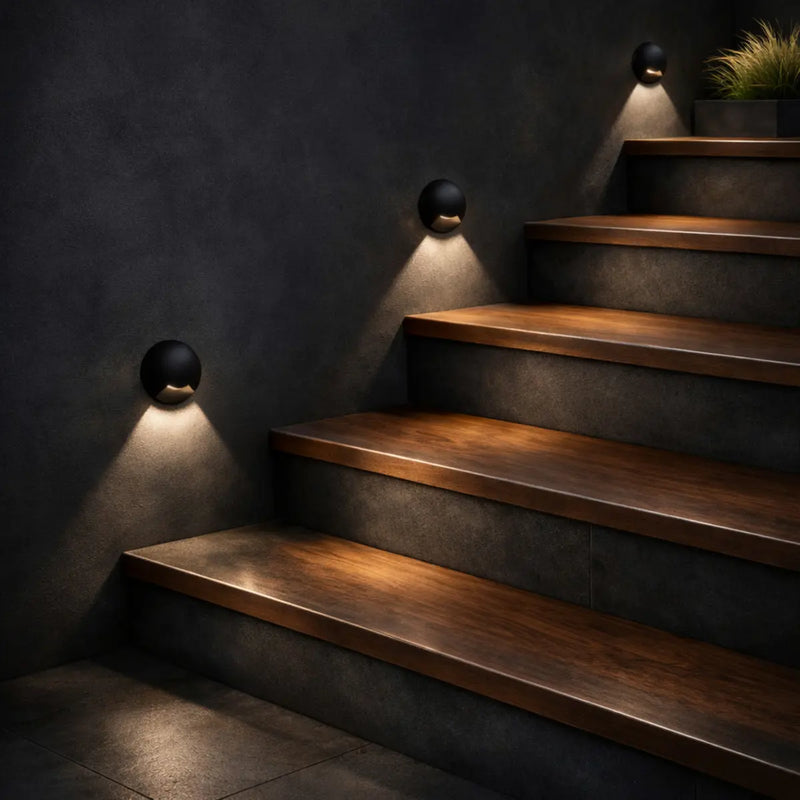

- Grazing walls, fences, step risers and tree trunks from below.
- Close to a surface, where CRI 95 reveals texture.
- Garden beds, in runs on one transformer.
- ⚠ Ground that drains — IP65 is not immersion-rated.
- ⚠ No load rating recorded. Ask us before a trafficked path.
Specifying it
62 mm across by 85 mm deep, cutout 56 mm, cable 1,000 mm, 0.22 kg, in aluminium and glass, black. Integrated 3 W LED giving 8 lm at 3000 K through a single aperture, included, CRI >95, not dimmable. 24 V — a transformer is REQUIRED and is not supplied. Class III low voltage, IP65 — jet-rated, NOT immersion-rated; set it where the ground drains. Load rating not recorded — ask us. Warranty is three years, as a replacement warranty.
Supplied and supported by Lights For You.
Questions
Can I walk on it or drive over it?
No source records a load rating, which on a flush inground fitting is the first question. Treat it as a garden-bed and edge fitting and ask us before putting it in a trafficked path or a driveway. We are asking Telbix.
Is IP65 enough for an inground light?
It is jet-rated but not immersion-rated — IP67 adds that — and an inground fitting sits exactly where water pools after rain. Set it where the ground drains.
Why only 8 lumens?
Because it is a grazing light, not an illuminator, and it throws through a single aperture. The two-way version gives 14 lm from the same 3 W — almost exactly double for double the apertures. Set close to a surface it rakes across texture and makes brick, stone and timber read as material; out in the open it will do very little.
One-way, two-way or four-way?

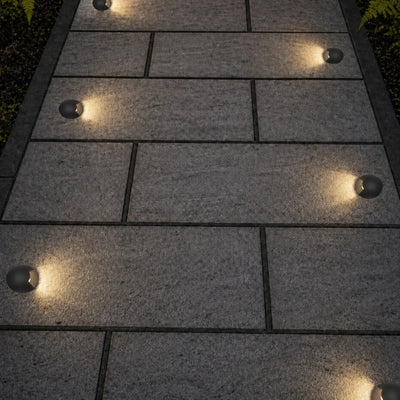

Choose by where the light needs to go, not by brightness — they all draw 3 W and the output simply follows the aperture count. One-way for a wall, a riser, a fence or a trunk; two-way to wash along a path; four-way for an open position.
Why does CRI matter here?
Because a grazing light’s whole job is to reveal the surface it is aimed at, close up. At CRI 80 brick goes brown-grey and sandstone goes flat; at 95 — equal highest in this catalogue — the material looks like itself.
Do I need a transformer?
Yes, and none is supplied. We stock a 24 V 60 W and a 200 W outdoor unit; at 3 W each the 60 W drives a long run. Tell us your layout and we will size it.
What size hole does it need?
A 56 mm cutout for a 62 mm fitting 85 mm deep, with 1 metre of cable. The joint must sit in a dry, accessible housing — plan it before the paving or mulch goes down.
Product Specifications
xSpecifications
| Brand | Telbix Lighting |
|---|---|
| Model / SKU | RAKER G13-BK324 (Black) — ONE-WAY |
| Type | Inground grazing light — 24V low voltage, single aperture |
| Input Voltage | 24V — a TRANSFORMER IS REQUIRED and is NOT supplied |
| Wattage | 3W integrated LED — included |
| Lumen Output | 8lm — a grazing light. The two-way gives 14lm from the same 3W |
| CRI | > 95 — EQUAL HIGHEST in this catalogue, and the point of the fitting |
| Colour Temperature | 3000K warm white |
| Dimming | NO |
| IP Rating | IP65 — JET-rated, NOT immersion. Set it where the ground DRAINS |
| ⚠ Load rating | NOT RECORDED — ask us before a trafficked path |
| Electrical Protection | CLASS III — LOW VOLTAGE, under 54V |
| Width | 62mm |
| Depth | 85mm |
| Cutout | 56mm |
| Cable Length | 1000mm |
| Weight | 0.22kg |
| Material | Aluminium and glass |
| Warranty | 3 Years — replacement warranty |
Variant specifications
| Order code | Apertures | Output | Throws light | Best for |
|---|---|---|---|---|
| RAKER G13-BK324 | One-way | 8lm | In one direction | Walls, risers, fences, trunks |
| RAKER G23-BK324 | Two-way | 14lm | Both ways along a surface | Path edges and step treads |
| RAKER four-way | Four-way | Ask us | All directions | Open positions |
