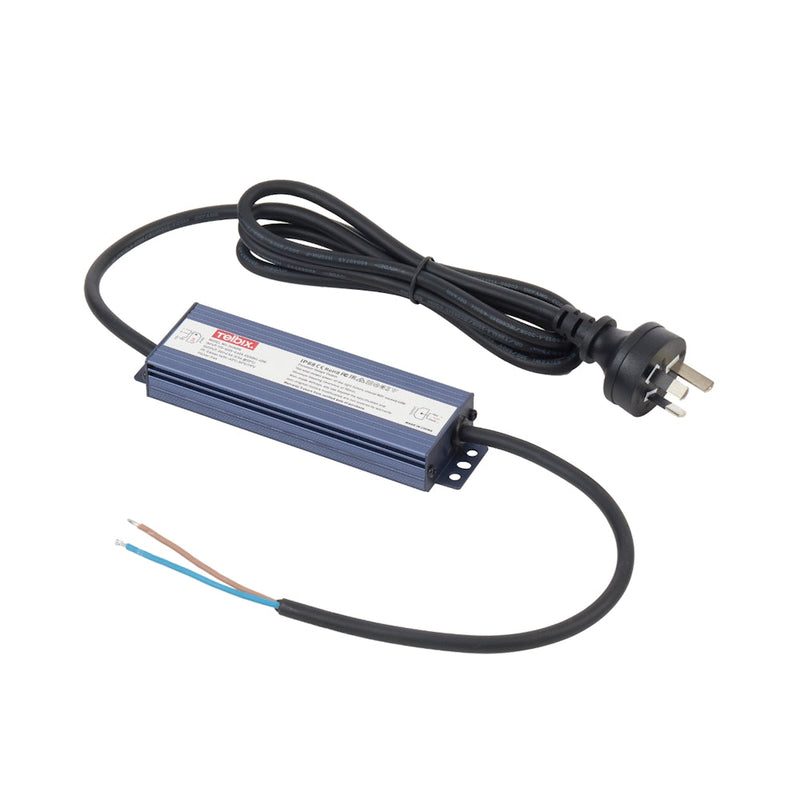

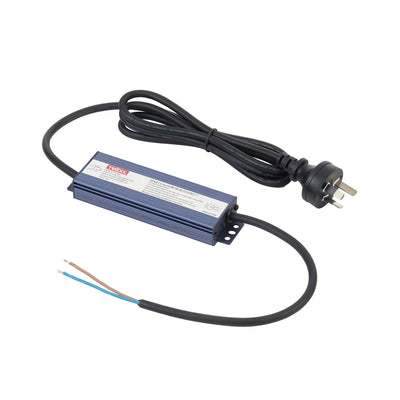

A 60 W outdoor transformer — 240 V mains in, 24 V DC out — for low-voltage garden and landscape lighting.

This is the part most people forget. Every 24 V fitting in the Telbix range — the Terin and Elgin wall and step lights, the Manus, Clovis and Rilto spikes, the Enoki set, the Raker inground — needs one of these. None of them include a transformer, and none of their pages say so.

Sizing it: 60 watts, and leave headroom

Add up the wattage of every fitting on the circuit and stay comfortably under 60 W — the usual advice is to load a transformer to about 80% of its rating, so treat this as roughly 48 W of fittings. In practice that is generous: at 3 W each, it will run a dozen or more garden lights.

One transformer, many lights

That is the point of low voltage. Rather than a driver per fitting, you run one transformer feeding a whole circuit — simpler to install, one thing to service, and everything on it switches together. Tell us your fitting list and we will size it, or step up to the 200 W version for a larger scheme.

Why 24 volts is worth the extra box

Everything past the transformer runs at extra-low voltage — Class III. In a garden, where cable gets dug up, caught by an edger and sits in wet ground for years, that is a genuine safety margin rather than a technicality.

It lives outdoors

Published as IP67 — the lower of our two figures; the record says IP68. Either way it is rated for burial-adjacent, wet positions, not just a sheltered box. A 155 × 44 mm housing tucks behind planting, under a deck or into a garden bed, on a 1,500 mm mains tail.

Double insulated

Class II — no earth required on the mains side. It must still be wired in by a licensed electrician.

Where it works
  • Any 24 V Telbix garden circuit.
  • Small to medium schemes — up to about a dozen 3 W fittings.
  • Buried, decked or planted positions.
  • ⚠ Step up to the 200 W unit for larger runs.
Specifying it

155 × 44 mm, mains tail 1,500 mm. 240 V AC in, 24 V DC out, 60 W capacity. Not dimmable. Class II — double insulated, no earth required, published as IP67 — the record says IP68. Warranty is three years, as a replacement warranty. ⚠ No height or weight is published — our sources have those figures transposed with the 200 W unit.

Supplied and supported by Lights For You.

Questions
Do I need one of these?

If you are buying any 24 V Telbix fitting — Terin, Elgin, Manus, Clovis, Rilto, Enoki or Raker — yes. None of them include a transformer and none of their pages say so.

How many lights will it run?

Load it to about 80% of its rating, so roughly 48 W of fittings. At 3 W each that is a dozen or more garden lights.

Do I need one per light?

No — that is the point of low voltage. One transformer feeds a whole circuit: simpler to install, one thing to service, everything switches together.

What if my scheme is bigger?

Step up to the 200 W version. Tell us your fitting list and we will size it for you.

Can it be buried or get wet?

It is rated for wet positions — we publish IP67, and our record says IP68. It tucks behind planting, under a deck or into a garden bed.

Can I install it myself?

No. It is wired to 240 V mains and needs a licensed electrician, even though the low-voltage side is safe.

Why is no size given?

The housing is 155 × 44 mm. We are not publishing a height or weight because our sources have those figures transposed with the 200 W unit.

Product Specifications
Product Specifications
x

Specifications

BrandTelbix Lighting
Model / SKUC TR060.24V
TypeOutdoor transformer — low-voltage driver
Input Voltage240V AC
Output Voltage24V DC
Capacity60W — load to about 48W of fittings
DimmingNo
IP RatingIP67 published — record says IP68
Electrical ProtectionCLASS II — double insulated, no earth required
Length155mm
Width44mm
HeightNOT PUBLISHED — sources transposed with the 200W unit
Cable Length1500mm
Required byTERIN · ELGIN · MANUS · CLOVIS · RILTO · ENOKI · RAKER
Warranty3 Years — replacement warranty

Variant specifications

Order codeCapacityOutputSizeCableIP
C TR060.24V60W24V DC155 × 44mm1500mmIP67
