Product Description

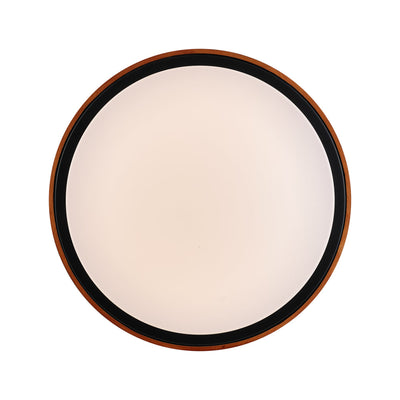

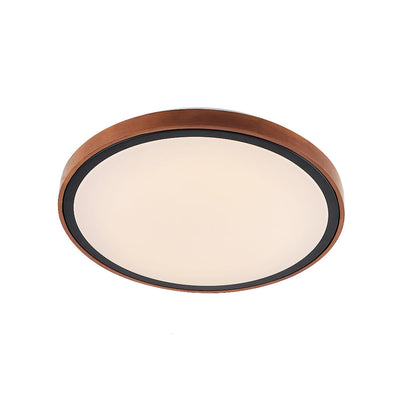

xThe Orlin OY30 is a 300 mm oyster ceiling light with a walnut-toned wood rim — 12 W giving 640 lm, with switchable 3000 K / 4000 K / 6000 K and three-step dimming from the wall switch you already have.
It dims from an ordinary wall switch. No dimmer, no new wiring. This is what our page was cut off before explaining, and it is the best thing about the Orlin. Flick the switch off and straight back on and the light steps down:
- First on — 100%
- Off and on again — 50%
- Again — 20%
Then back to full. Our record says only “Dimmable: Yes”, which sounds like it needs a dimmer. It does not. For a retrofit — replacing an old oyster in a hallway, a robe or a small bedroom — that means dimming without touching the switch plate, the wiring or the wall.
Small, and correctly sized for what it is
300 mm across, at 0.6 kg — the smallest of three Orlins, and light enough for any ceiling fixing.
640 lm is a modest output, and it suits the size: this is a fitting for a hallway, a walk-in robe, a laundry, a small bedroom, a landing or a porch. It will not light a living room — the 420 mm Orlin gives 1,270 lm and is the one for a larger space.
Three colour temperatures, and this one reaches daylight
3000 K, 4000 K, 6000 K, set on a slide switch at installation. None of them appear in our record, which carries a colour-changing flag and no temperatures at all.
The 6000 K is worth noting: most switchable fittings in this catalogue stop at 4000 K. True daylight in a walk-in robe is exactly what you want when choosing clothes — it is the setting where navy and black stop looking the same. In a hallway, 3000 K is the one.
The wood rim — and what it costs
A walnut-toned wood rim around a polycarbonate diffuser on a metal body. It is why you would choose an Orlin over the white plastic oyster it replaces: it reads warm even when the light is off, which matters on something that sits in the middle of a ceiling all day.
⚠ 640 lm from 12 W is 53 lm/W, which is low for an oyster — the Eltz at the same class of fitting gives 118. The rim and the diffuser absorb the difference. That is the trade, and it is a fair one if you want the look — but size the fitting on the 640 lm, not on the 12 watts.
The 420 mm Orlin runs at the same 53 lm/W, which confirms the figure across the family.
Class I — earth required, CRI above 80, and IP20 — indoor and dry locations only, so not in a bathroom. A licensed electrician installs it.
Where it works
- Hallways, landings, robes, laundries and small bedrooms.
- Retrofits, on existing wiring — step-dim from the switch you have.

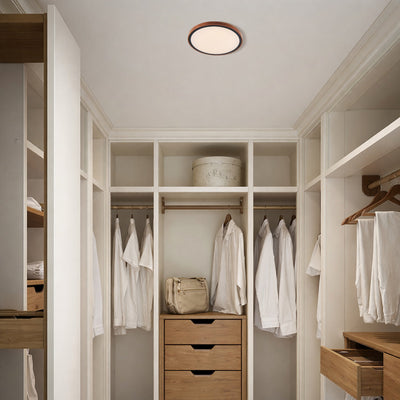

- Walk-in robes, at 6000 K.
- ⚠ 640 lm — not a living-room light. Use the 420 mm.
- ⚠ IP20 — not for a bathroom.
Specifying it
300 mm across, 0.6 kg, in wood, polycarbonate and metal — walnut tones and satin. Integrated 12 W LED giving 640 lm, included, with slide-switch 3000 K / 4000 K / 6000 K, CRI >80, and three-step dimming operated from an ordinary wall switch — 100% / 50% / 20%, no dimmer required. 240 V, Class I — earth required, IP20 — indoor and dry locations only. Warranty is three years, as a replacement warranty.
Supplied and supported by Lights For You.
Questions
Do I need a dimmer to dim it?
No. Flick your ordinary wall switch off and straight back on and the light steps down: 100%, then 50%, then 20%, then back to full. No dimmer, no new wiring, no change to the switch plate. Our record said only “Dimmable: Yes”, which makes it sound like it needs one.
Is 640 lumens enough?
For a hallway, walk-in robe, laundry, small bedroom, landing or porch, yes. It will not light a living room — the 420 mm Orlin gives 1,270 lm and is the one for a larger space.
What colour temperatures does it have?
3000 K, 4000 K and 6000 K on a slide switch — and none of them appear in our record, which carries a colour-changing flag and no temperatures at all. The 6000 K is true daylight, exactly what you want in a walk-in robe: the setting where navy and black stop looking the same.
Why is it only 53 lumens per watt?
The wood rim and the diffuser absorb the difference — the Eltz, a plain oyster, gives 118. That is the trade for the look, and it is a fair one; just size the fitting on the 640 lm rather than on the 12 watts. The 420 mm Orlin runs at the same 53, which confirms it across the family.
Will it fit my existing ceiling rose?
Almost certainly — 0.6 kg goes onto any fixing, and it is designed as a retrofit for an old oyster on existing wiring.
Can it go in a bathroom?
No — IP20, indoor and dry locations only.
What is the rim made of?
Real wood in walnut tones, around a polycarbonate diffuser on a metal body. It reads warm even when the light is off, which matters on something in the middle of a ceiling all day.
Product Specifications
xSpecifications
| Brand | Telbix Lighting |
|---|---|
| Model / SKU | ORLIN OY30-WD3C (Wood / Black) — the smallest of three |
| Type | LED oyster — WOOD rim, three-step switch dimming |
| Finish | Walnut wood tones and satin |
| Input Voltage | 240V |
| Wattage | 12W integrated LED — included |
| Lumen Output | 640lm — hallways and robes, not living rooms |
| Efficacy | 53 lm/W — the rim and diffuser absorb the rest |
| Colour Temperature | SLIDE SWITCH 3000K / 4000K / 6000K — the record lists none |
| CRI | > 80 |
| Dimming | THREE-STEP from an ORDINARY WALL SWITCH — 100% / 50% / 20% |
| IP Rating | IP20 — indoor and dry locations only. NOT a bathroom |
| Electrical Protection | CLASS I — EARTH REQUIRED |
| Width | 300mm |
| Weight | 0.6kg — any ceiling fixing |
| Material | Wood, polycarbonate and metal |
| Warranty | 3 Years — replacement warranty |
Variant specifications
| Order code | Width | Wattage | Output | Suits |
|---|---|---|---|---|
| ORLIN OY30-WD3C | 300mm | 12W | 640lm | Hallways, robes, small bedrooms |
| ORLIN OY42-WD3C | 420mm | 24W | 1270lm | Bedrooms and small living rooms |
