Havit Lighting
SKU: HV5802T-WHT-12V

Nella White 7w Surface Mounted LED Downlight

3 Years Warranty
3 Years Warranty
IP54 – dust and splashproof
IP54 – dust and splashproof
Color Temprature Changing Technology
Color Temprature Changing Technology
Medium brightness
525 lm Learn More!!
Beam angle for focused or wide lighting
120° Beam angle for focused or wide lighting
$128.72
$173.95
$128.72
Product Description
Product Description
x

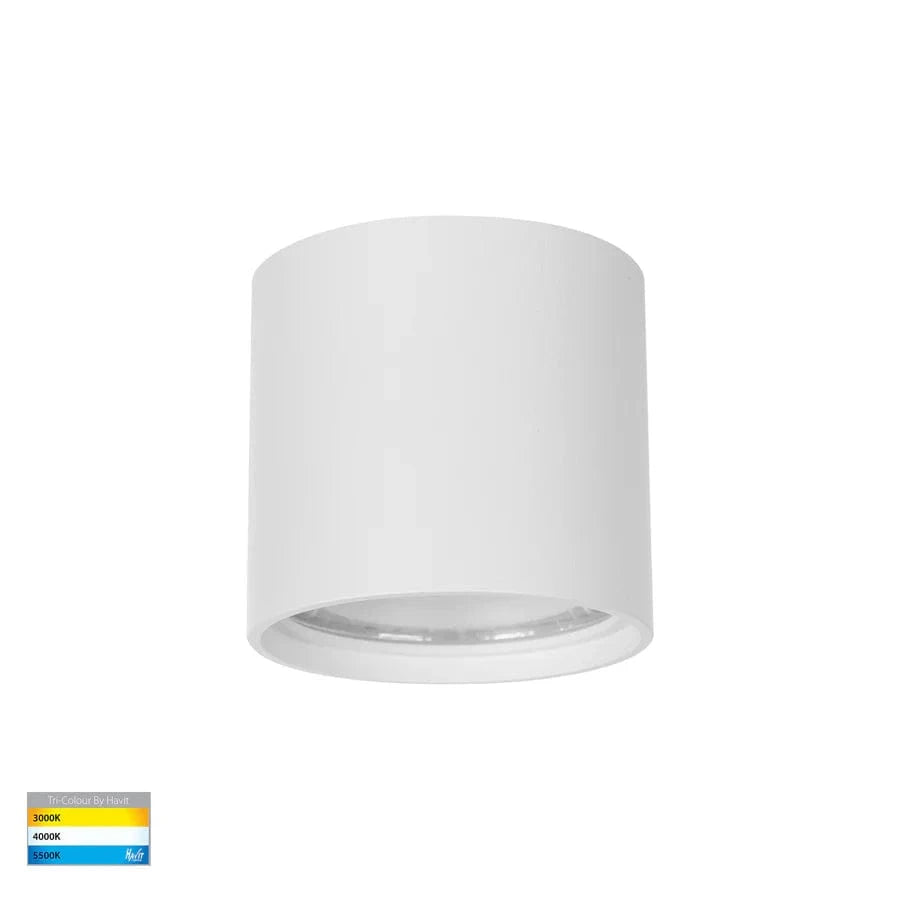

This is the smallest Nella in the surface-mounted family and the one to reach for when there is no ceiling cavity to recess into — a concrete slab, a rammed-earth soffit, a boat or a caravan roof, or any lining too thin to take a spring-clip fitting. The body is a plain aluminium cylinder Ø75 mm across and 69 mm deep, powder coated white, and it sits proud of the ceiling rather than in it.

Two body lengths on this page

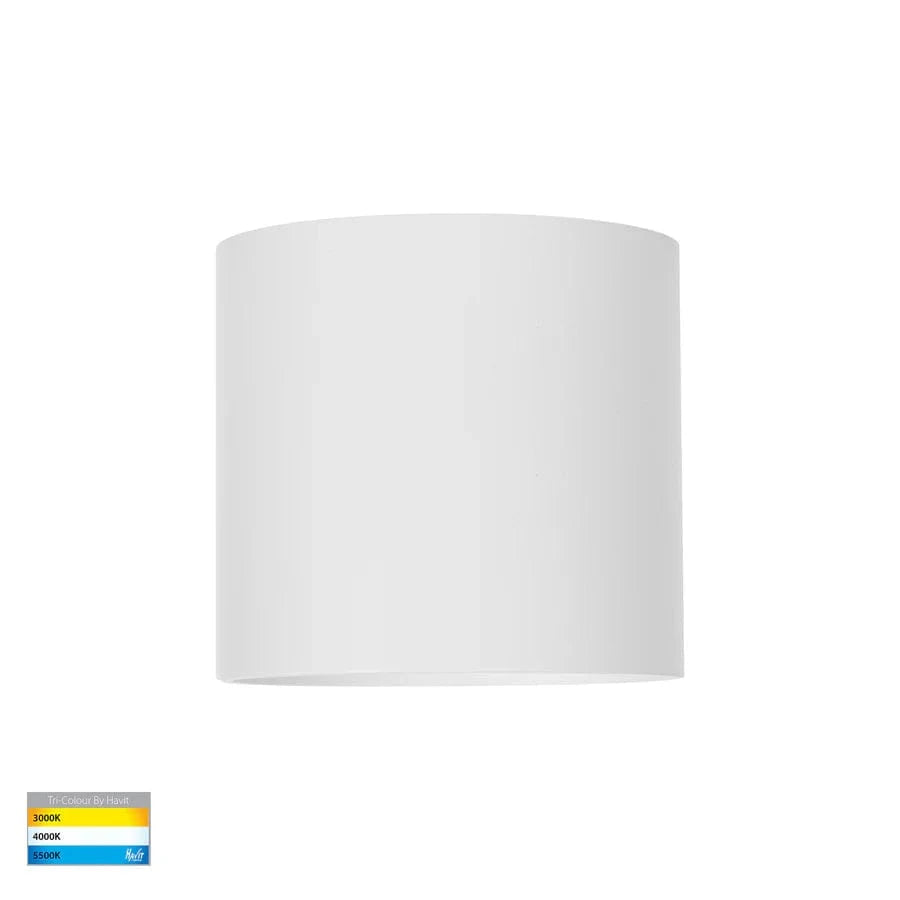

Both SKUs are the same 7 W light engine in the same Ø75 mm shell. The standard body is 69 mm deep; the extension body is 134 mm deep, near enough double, and reads as a short barrel rather than a puck. Choose the extension when you want the fitting to be seen as an object, or when you need the light source pushed further down away from a deep bulkhead. Optically nothing changes — same output, same beam.

Output, and which setting is brightest

Havit's ordering row gives 525 lm at 3000K, 560 lm at 4000K and 540 lm at 5500K. Read that again, because it is the opposite of what most people assume: the middle setting is the brightest, and going to the coolest setting costs you about 4% of the light rather than gaining any. Pick the colour on how you want the room to read, not on brightness. The beam is a wide 120°, so this is a general-wash fitting and not a spot. Colour rendering is CRI >80.

Wiring — extra-low voltage only

Both SKUs here are the 12 V DC models. They need an appropriate constant-voltage LED driver, they must be wired in parallel if more than one is on the same run, and Havit prints the limit in capitals on the installation sheet: do not connect the light fitting directly to 240 V. Because the fitting itself is extra-low voltage it is Protection Class 3 — no earth is required at the fitting, which is exactly why this version exists. Havit specifies the 12 V models as not dimmable; Triac dimming applies to the directly-wired version of the same body only, so dimming here has to be done at the driver if at all.

Installing it

The base plate comes off with an anti-clockwise twist, fixes to the ceiling through two Ø4 mm holes on a Ø69 mm plate, and the fitting unplugs from its driver so the plate can be mounted first. The colour switch is inside the fitting and preset to 3000K — set it before you twist the body home, not afterwards. It is rated IP54 and IK07 with a semi-frosted glass lens, and Havit excludes aluminium fittings from sites within 5 km of salt water. Lamp expectancy is >30,000 hrs and the warranty is 3 years replacement. Lights For You lists this body in three wattages and both finishes, so a whole ceiling can be done in one look.

Questions
Does this one need a transformer or driver?

Yes. Both part numbers on this page are the 12 V DC models and need an appropriate constant-voltage LED driver, sized above the total connected load. The fitting plugs into the driver rather than being hard-wired to it.

Which colour temperature gives the most light?

4000K, at 560 lm. 3000K gives 525 lm and 5500K gives 540 lm — so the coolest setting is not the brightest on this model. The difference across the three is small enough that you should choose on appearance.

What is the difference between the two options?

Only the depth of the body. The standard is Ø75 × 69 mm and the extension is Ø75 × 134 mm. Same 7 W engine, same 525/560/540 lm, same 120° beam.

Can it be dimmed?

Havit specifies the 12 V DC models as not dimmable. Any dimming would have to happen at the driver, using a driver designed for it — the fitting has no dimming circuit of its own.

Does it need an earth?

No. As an extra-low-voltage fitting it is Protection Class 3, so no earth is required at the fitting itself. The directly-wired version of the same body is Class 1 and does require one, which is why the two are not interchangeable.

Can I use it in a bathroom or outside under cover?

It is IP54 — protected against dust and splashing water from any direction. That covers a covered alfresco ceiling or a bathroom outside the immediate shower zone. Havit also excludes aluminium fittings from sites within 5 km of salt water.

How do I change the colour temperature after installation?

The slide switch is inside the fitting, and it ships preset to 3000K. Twist the body off the base plate, move the switch, and twist it back — so it is worth setting every fitting on a run before any of them go up.

Product Specifications
Product Specifications
x

Specifications

RangeNella
TypeSurface-mounted downlight (no cut-out required)
MaterialAluminium, powder coated
FinishWhite
DiffuserSemi frosted glass
Installation typeCeiling — surface mounted
Lamp baseBuilt-in LED
Power7 W
Colour temperatureTri colour — 3000K, 4000K, 5500K (slide switch inside the fitting, preset to 3000K)
Lumen output525 lm / 560 lm / 540 lm (3000K / 4000K / 5500K) — brightest at 4000K
Beam angle120°
CRI>80
IP ratingIP54
IK ratingIK07
Input voltage12 V DC — constant-voltage LED driver required
Protection classClass 3 (extra-low voltage — no earth required)
DimmableNo (Havit specifies Triac dimming for the directly-wired models only)
WiringParallel
TiltNo
Lamp expectancy>30,000 hrs

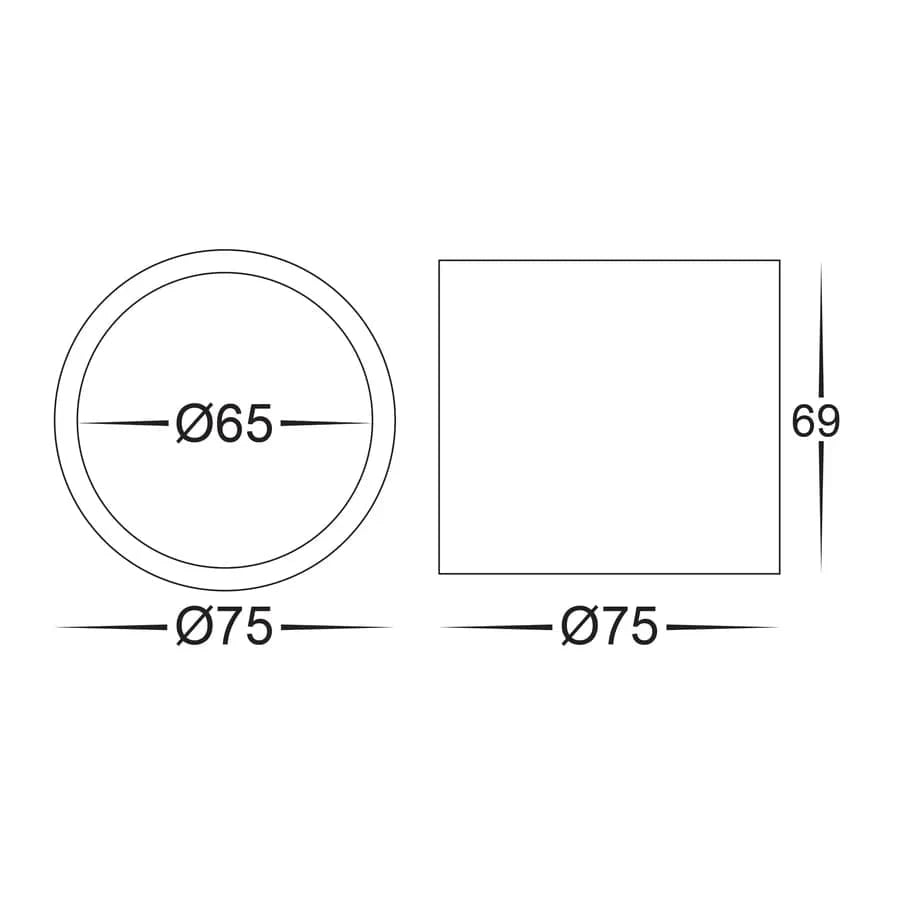

Dimensions — standard bodyØ75 mm × 69 mm
Dimensions — extension bodyØ75 mm × 134 mm
Mounting baseØ69 mm, 28 mm deep, 2 × Ø4 mm fixing holes; twist-lock
Siting restrictionNot within 5 km of a salt-water environment (Havit)
Warranty3 Years Replacement*

Variant specifications

Part numberFinishBodyColour temperatureLumensPowerBeam angleSupplySizeBarcode
HV5802T-WHT-12VWhiteStandard3000K / 4000K / 5500K525lm / 560lm / 540lm7 W120°12 V DC — constant-voltage driver requiredØ75 × 69 mm9350418033178
HV5802T-WHT-EXT-12VWhiteExtension3000K / 4000K / 5500K525lm / 560lm / 540lm7 W120°12 V DC — constant-voltage driver requiredØ75 × 134 mm9350418033376
