Nella White 18w Surface Mounted LED Downlight with Extension

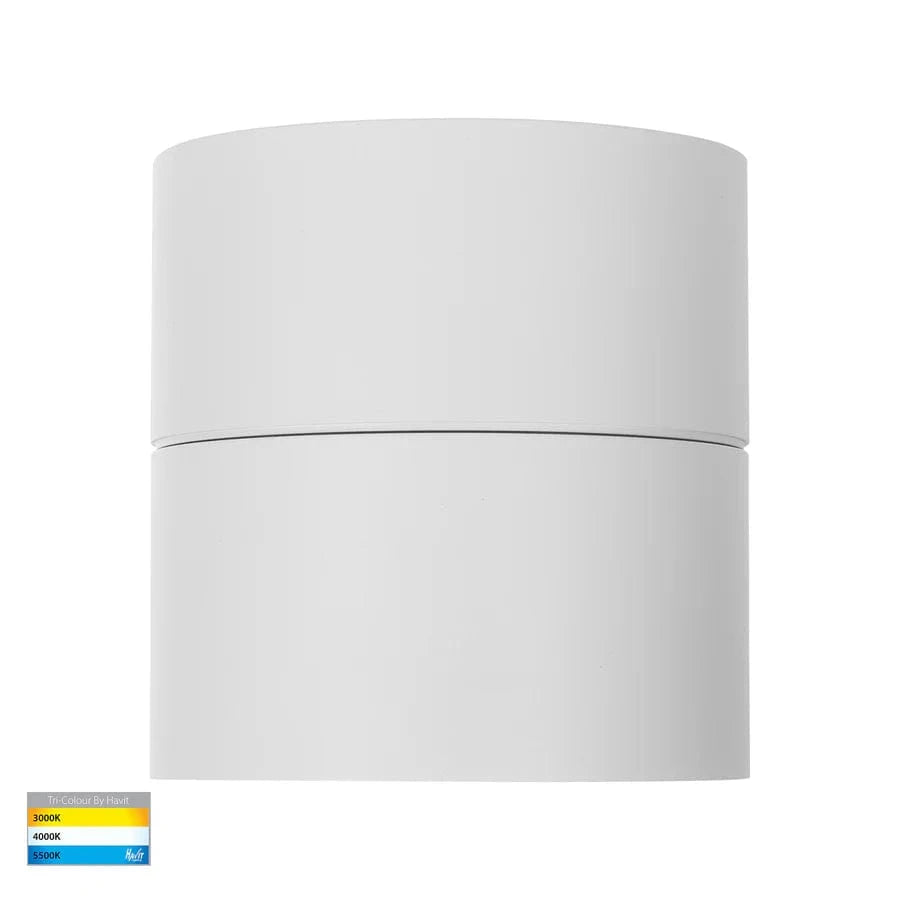

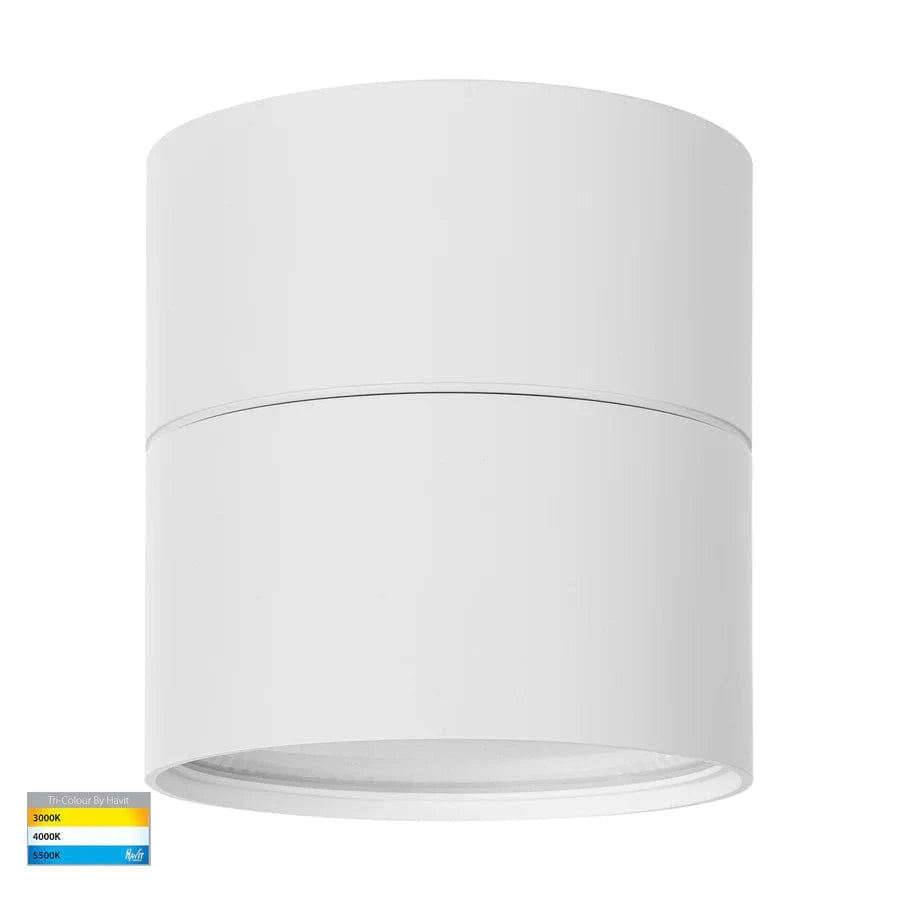

The 18 W Nella in white — the biggest body in the surface-mounted family at Ø157 mm, and in white the one that disappears best against a plasterboard ceiling despite its size. Both the standard body and the longer extension body are sold from this page, so check the part number against the size column below before you order.

What IP54 means in practice

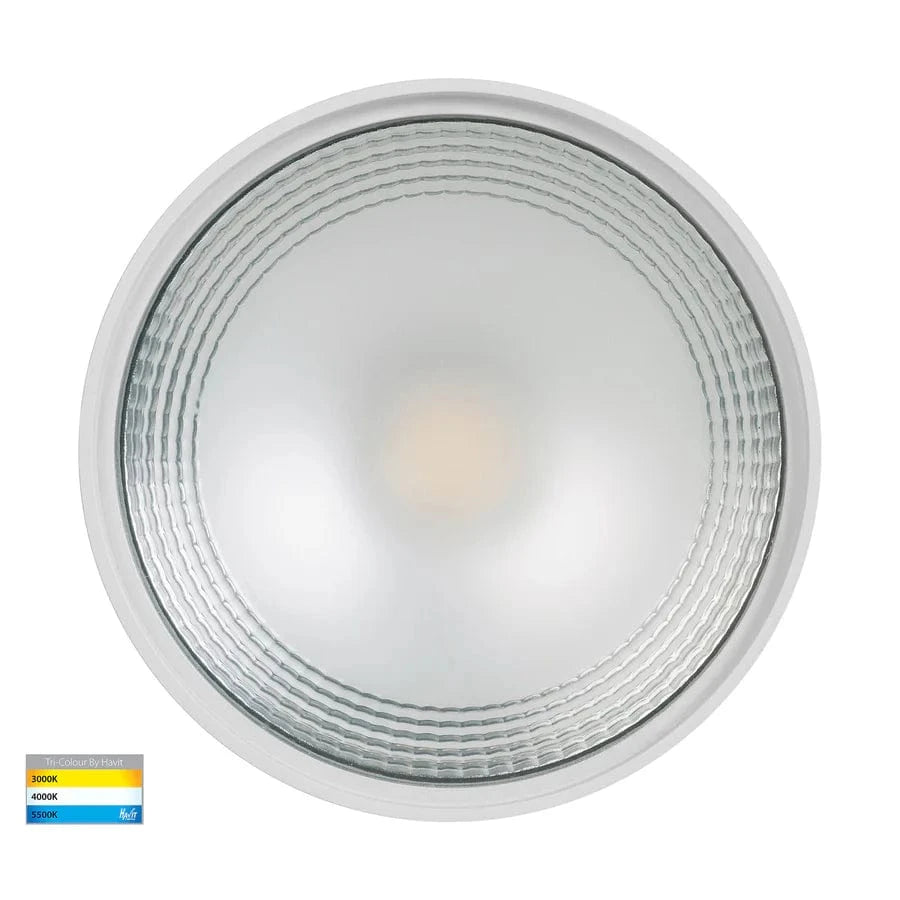

The rating is IP54: sealed against dust in harmful quantity and against water splashed from any direction. That is a genuinely useful rating and it has clear edges. It covers a covered alfresco ceiling, a carport soffit, a laundry, a bathroom outside the shower enclosure, and a garage where a car comes in wet. It does not cover a directly exposed soffit taking driven rain, or anything that gets hosed. The lens is semi-frosted glass and the body is IK07 for impact.

The siting restriction worth reading

Havit's installation sheet carries a line that is easy to skip and expensive to ignore: aluminium and 304 stainless fittings must not be installed within 5 km of a salt-water environment. That is a warranty condition, not a suggestion, and it rules this fitting out of most beachfront and estuary jobs regardless of how sheltered the ceiling looks.

Output and supply

Both SKUs give 1,380 lm at 3000K, 1,430 lm at 4000K and 1,305 lm at 5500K through a 120° beam, at CRI >80. The brightest setting is 4000K — the coolest is the dimmest here. Both run on 12 V DC from a constant-voltage LED driver, wired in parallel, drawing 1.5 A each, and Havit prints the boundary in capitals: do not connect the light fitting directly to 240 V. The fitting is Protection Class 3 and needs no earth, and Havit lists the 12 V models as not dimmable.

Sizes, and one figure we will not guess

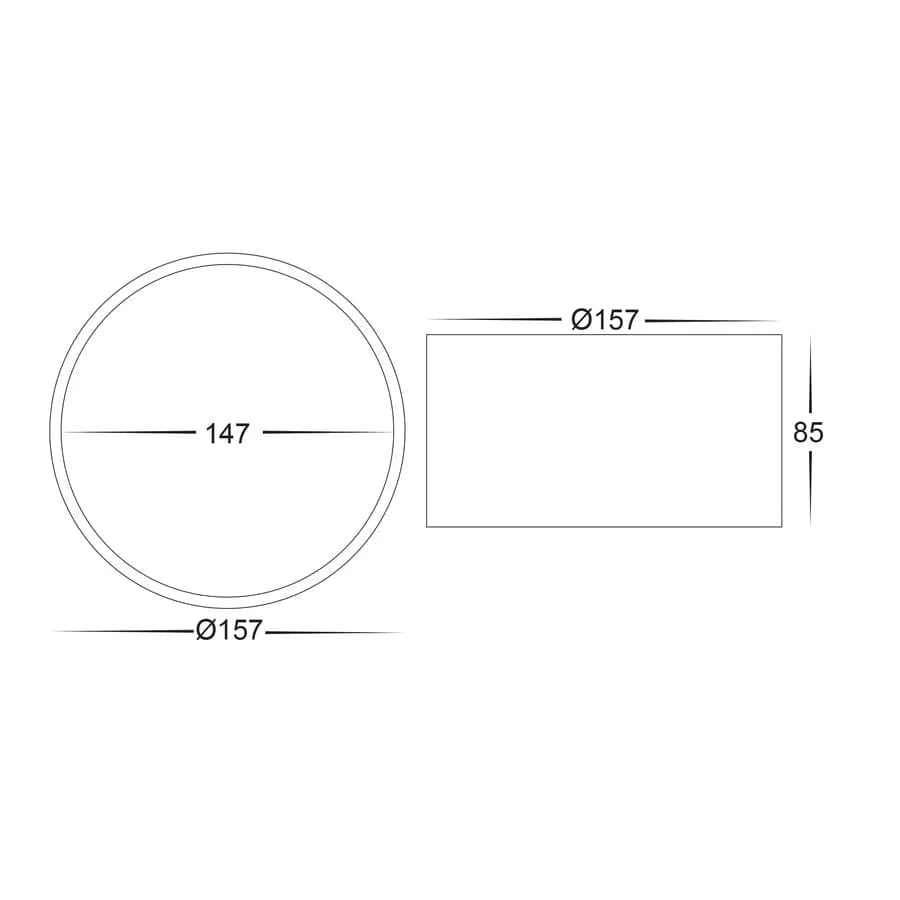

The standard body is Ø157 × 85 mm on a Ø153 mm plate with three 4 × 10 mm slots and one Ø4 mm hole. For the extension body, Havit publishes no overall height in the sheets supplied with this product — the drawing block exists but carries no readable figure, and the supplier's own page for the extension model publishes no data sheet at all. We have left that row blank rather than scale it from the 7 W and 12 W models, which extend by 65 mm and 67 mm respectively; the pattern is suggestive and it is not a measurement. Ask us and we will get the number from Havit. Lamp expectancy is >30,000 hrs, the colour switch is inside the housing preset to 3000K, and the warranty is 3 years replacement. Lights For You carries the black version and the two smaller bodies alongside it.
