A suggestion, not a specification. A calculator can get it wrong — have a licensed electrician confirm the driver, the total load and the wiring before you order.
Find the right driver for this fitting
Product Description

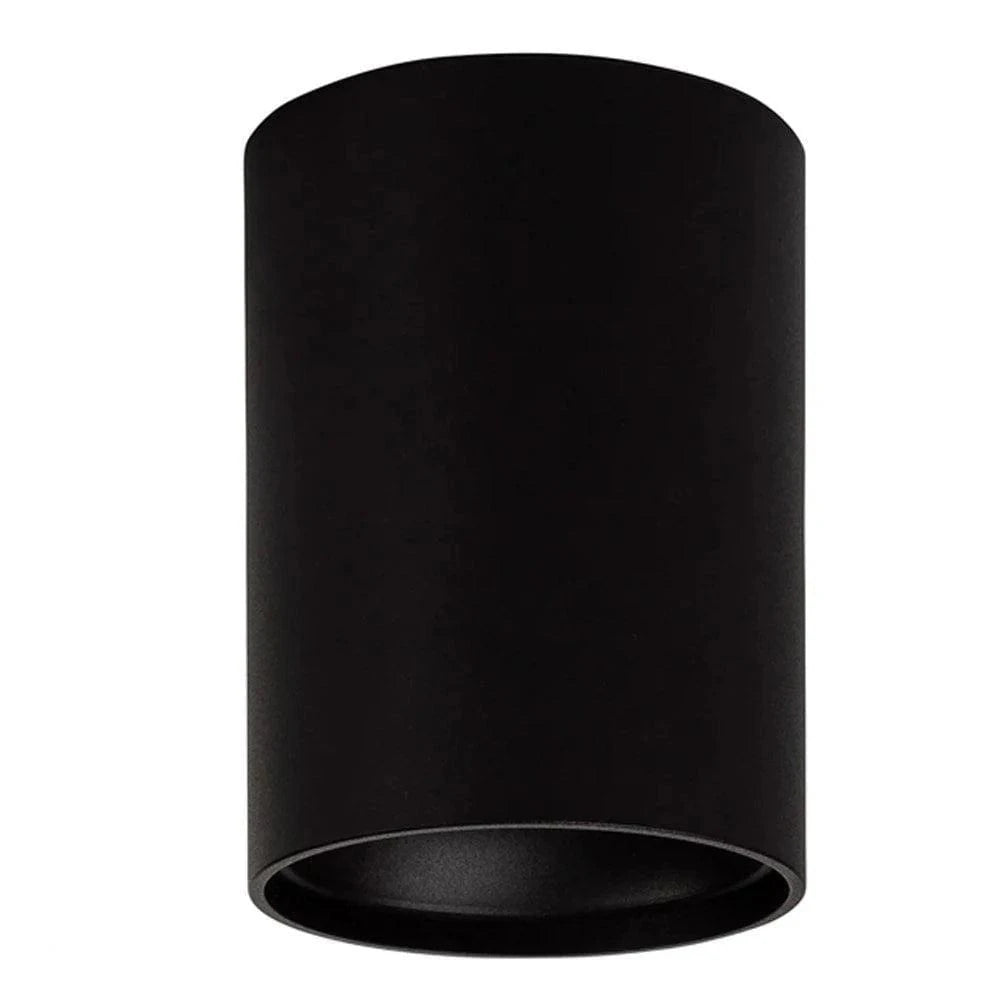

xThis is the 12 V DC Nella surface-mounted downlight — a 7 W fitting that sits on the ceiling rather than recessing into it, so it needs no cut-out and suits a concrete slab, a rented property or any ceiling you cannot cut. It is supplied with a honeycomb lens, which is the detail worth understanding before you buy.
This listing is the 12 V version, and it needs a driver
Order codes HV5841S-BLK-12V and HV5841S-WHT-12V run on
12 V DC only and require a 12 V DC LED driver sized for every fitting on the
run. They must never be connected directly to 240 V — doing so destroys the
fitting immediately and is not a warranty claim. A separate 240 V version of the same fitting exists
under its own order codes; if you want to wire straight to mains, that is the one to buy.

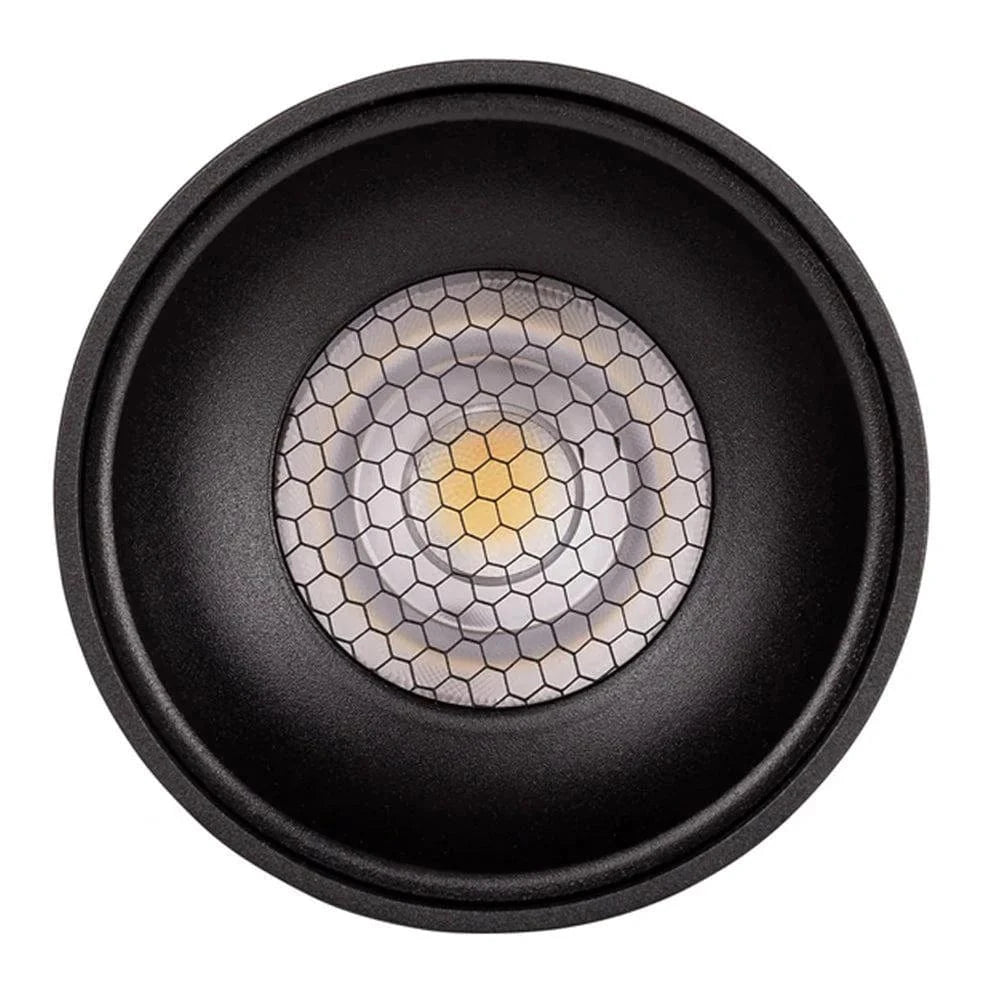

What the honeycomb lens does
The lens is a fine black grid over the LED. It cuts the glare you would otherwise see looking up at a surface-mounted fitting, so the light reads as a pool on the floor rather than a bright dot on the ceiling. The cost is a little output; the gain is that the fitting is comfortable to sit under.
Where it works
- Concrete-slab and rendered ceilings where a recessed cut-out is not possible.
- Low-voltage runs of several fittings from one central driver, with no earth needed at each.
- Living areas and bedrooms where glare from a surface fitting would otherwise be noticeable.
- Retrofit onto an existing ceiling without patching or painting.
Specifying it
The 7 W LED is built in — no globe, no socket. Five colour temperatures are selectable at installation: 2700 K, 3000 K, 4000 K, 5000 K and 5700 K, giving 499–601 lm across the range. The beam is 60°, CRI is above 90, and it is Triac dimmable subject to a dimmable driver. IP54 and aluminium powder coated in black or white.
Supplied and supported by Lights For You. Size the driver for the whole run and order it at the same time — the most common problem on a 12 V listing is the right fittings arriving with no driver.
Questions
Can I wire this to 240 V?
No. This listing is the 12 V DC version and requires a 12 V DC LED driver. Connecting it to 240 V destroys it and is not covered. A separate 240 V version exists under its own order codes.
Does it need a cut-out?
No. It is surface mounted, so it fixes to the face of the ceiling with no hole required.
What does the honeycomb lens do?
It is a fine grid over the LED that cuts glare, so you see a pool of light on the floor rather than a bright dot on the ceiling.
How many colour temperatures?
Five, selectable at installation: 2700 K, 3000 K, 4000 K, 5000 K and 5700 K.
Is it dimmable?
It is Triac dimmable, provided the 12 V driver you pair with it is also dimmable.
Is there a globe to replace?
No. The 7 W LED is built in.
What is the warranty?
Three years, as a replacement warranty.
Product Specifications
xSpecifications
| Brand | Havit Lighting |
|---|---|
| Model / SKUs | HV5841S-BLK-12V · HV5841S-WHT-12V |
| Type | LED downlight — surface mounted |
| Finishes | Black · White |
| Input Voltage | 12V DC — 12V DC LED driver required |
| Wattage | 7W |
| Lumen Output | 499–601 lm across the five colour-temperature settings |
| Colour Temperature | 5 Colour: 2700K / 3000K / 4000K / 5000K / 5700K, selected at installation |
| Beam Angle | 60° |
| IP Rating | IP54 |
| Lamp Base | Built-in LED — no globe required or replaceable |
| Dimming | Triac dimmable — requires a dimmable 12V driver |
| CRI | > 90 |
| Diffuser Type | Honeycomb lens supplied |
| Material | Aluminium, powder coated |
| Installation Type | Ceiling — surface mounted, no cut-out |
| Warranty | 3-Year replacement |
Variant specifications
| Order code | Finish | Input | Driver | Colour temp | Lumens |
|---|---|---|---|---|---|
| HV5841S-BLK-12V | Black | 12V DC | 12V DC LED driver REQUIRED | 2700K–5700K, 5 settings | 499–601 lm |
| HV5841S-WHT-12V | White | 12V DC | 12V DC LED driver REQUIRED | 2700K–5700K, 5 settings | 499–601 lm |
