A suggestion, not a specification. A calculator can get it wrong — have a licensed electrician confirm the driver, the total load and the wiring before you order.
Find the right driver for this fitting
Product Description

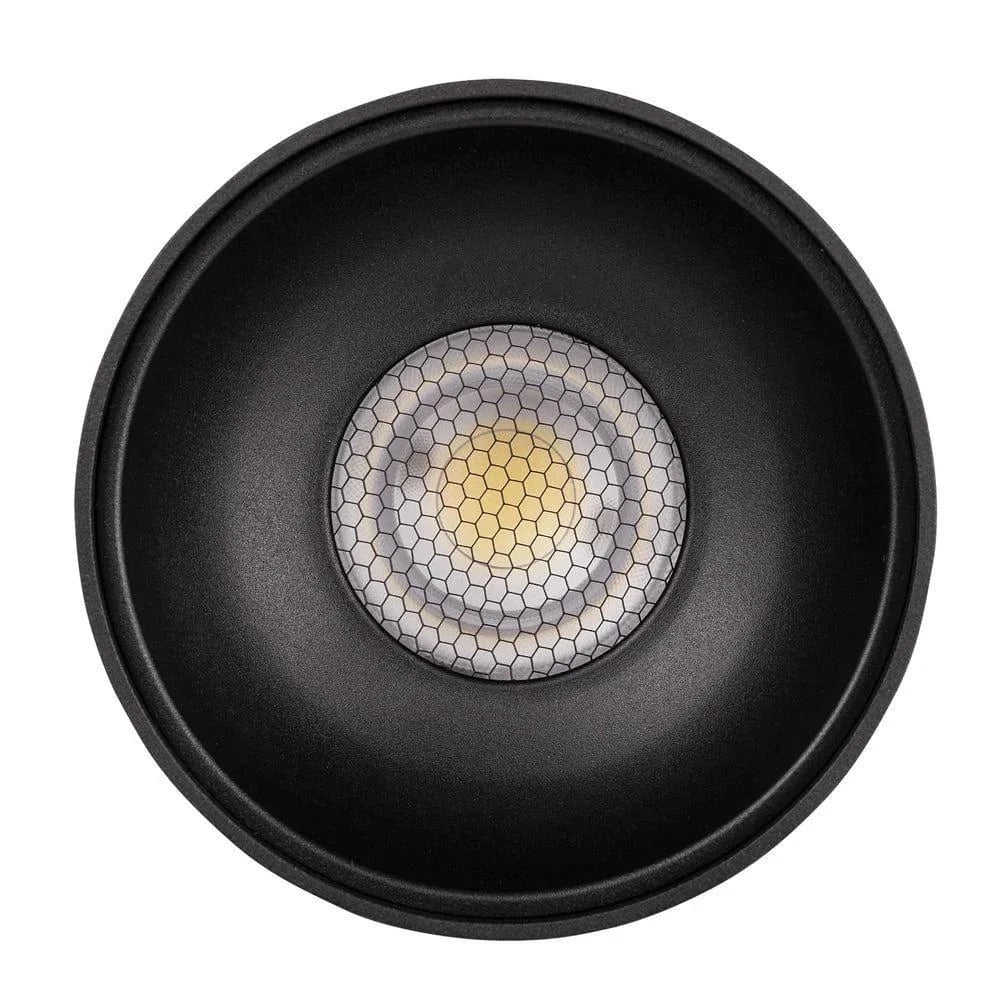

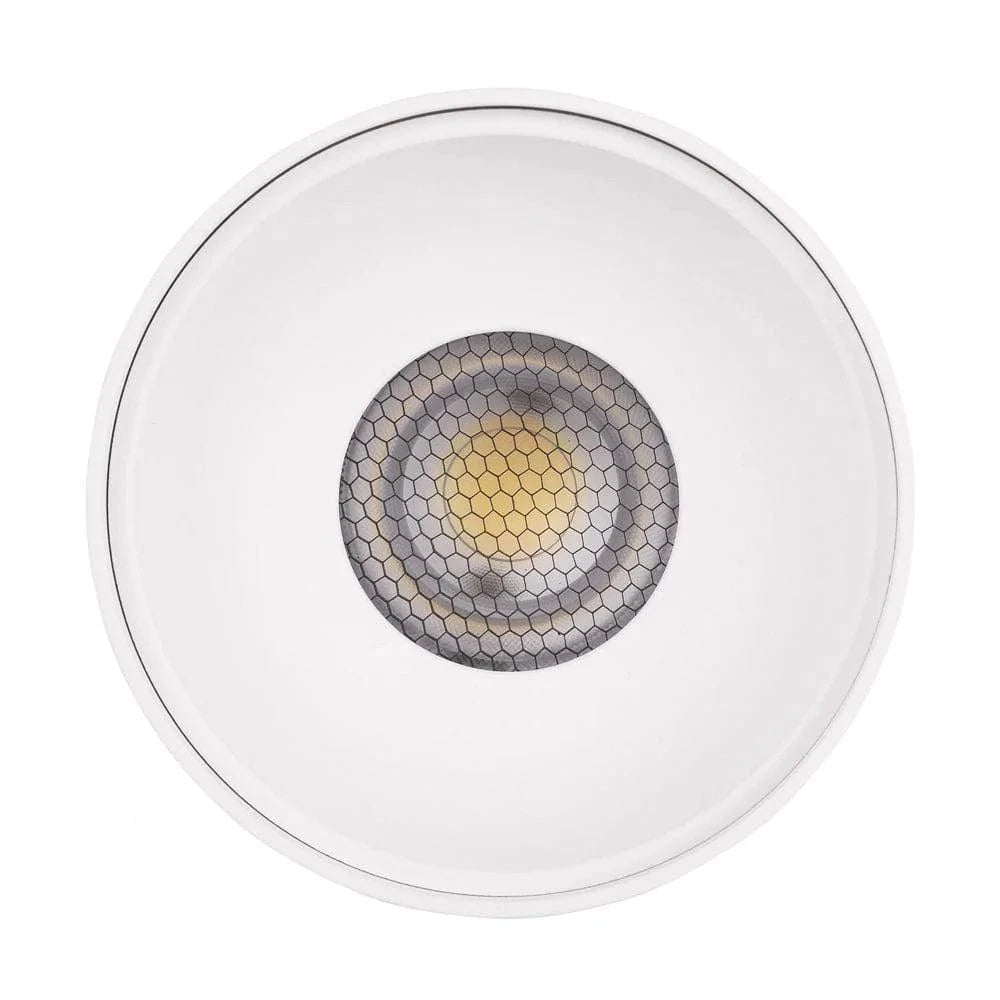

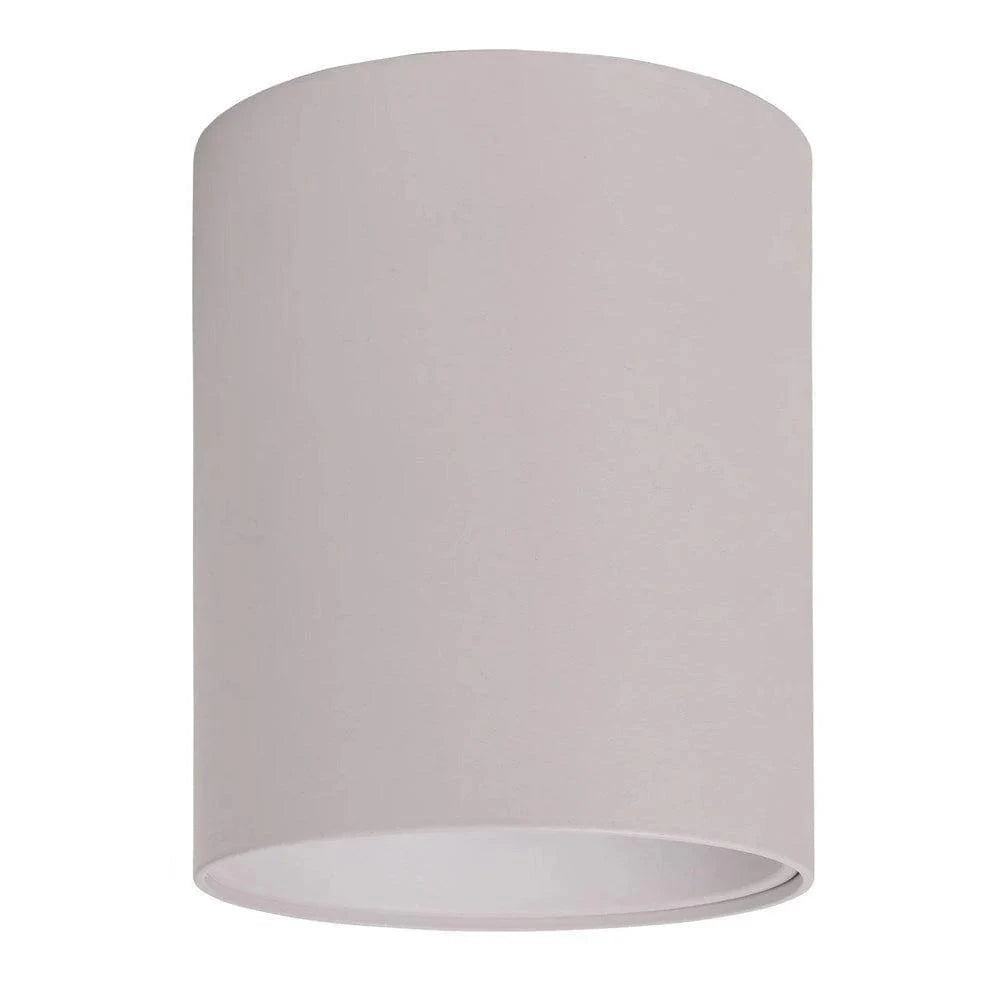

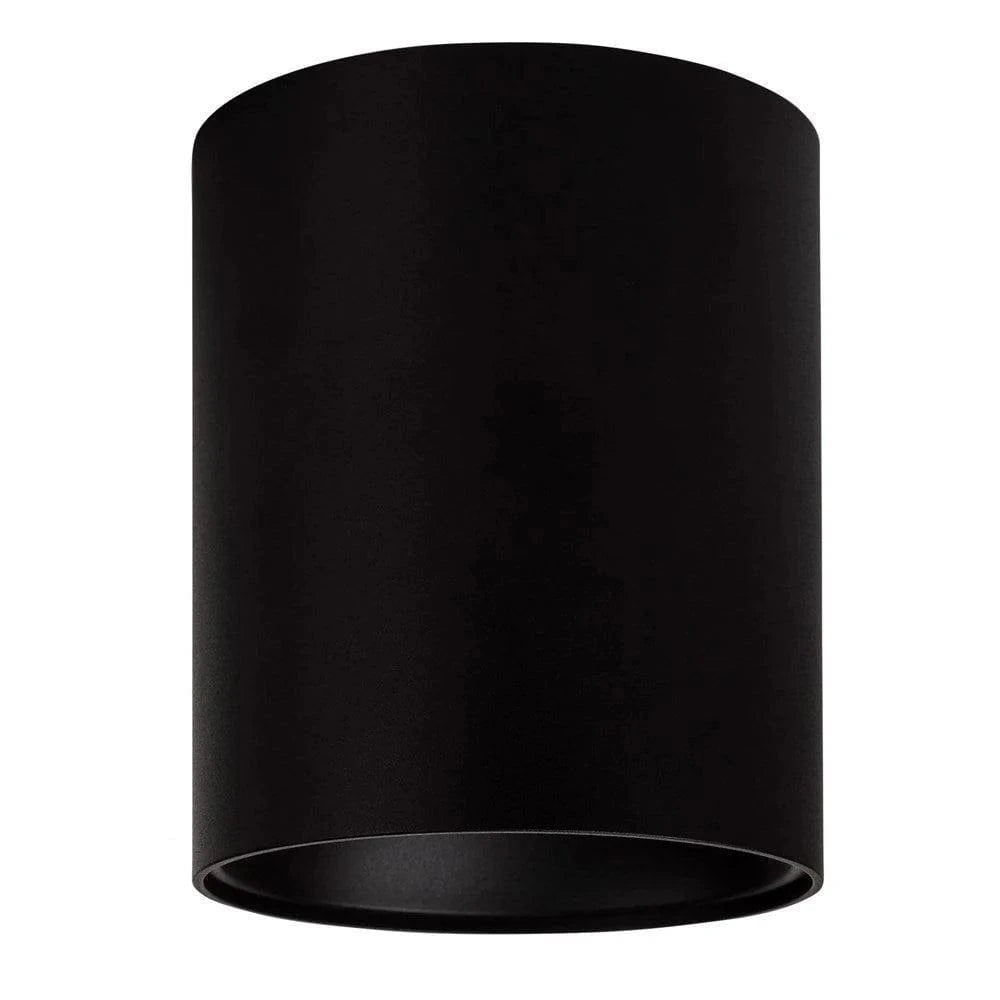

xThis is the largest of the 12 V DC Nella surface-mounted downlights at 24 W — no cut-out, honeycomb lens included, five selectable colour temperatures. Specify it by ceiling height rather than room size.
This listing is 12V DC and requires a driver
Order codes HV5844S-BLK-12V and HV5844S-WHT-12V run on 12 V DC
only and require a 12 V DC LED driver rated for the whole run. They must never be
connected directly to 240 V. A 240 V version of the same fitting is sold under its own
order codes.
Height decides it
A 24 W surface fitting on a 2.4 m ceiling sits close to eye level and will be felt as glare even behind a honeycomb lens. On a 3 m ceiling, a void or a stairwell it is the right choice, because the smaller fittings lose their throw before the light reaches the floor.
Where it works
- High ceilings, voids and stairwells on a slab where no cut-out is possible.
- Retail, display and commercial interiors needing output without recessing.
- Alfresco and covered outdoor ceilings — IP54 covers rain and splashing.
- Low-voltage runs from one central dimmable driver.
Specifying it
The 24 W LED is built in — no globe, no socket. Five colour temperatures are selectable at installation across 2700 K–5700 K, giving roughly 1,554–1,968 lm depending on the setting, on a 60° beam. Triac dimmable with a dimmable 12 V driver, IP54, powder-coated aluminium in black or white.
Supplied and supported by Lights For You. On a high ceiling, mock one fitting up before committing to the grid — throw at 3 m behaves very differently from the same fitting at 2.4 m.
Questions
Can I wire it to 240 V?
No. This is the 12 V DC version and requires a 12 V DC LED driver. A 240 V version exists under its own order codes.
Is 24 W too much for a normal ceiling?
On a 2.4 m ceiling it will read as glare. It suits 3 m-plus ceilings, voids and stairwells.
Does it need a cut-out?
No. It is surface mounted.
How many colour temperatures?
Five, selectable at installation across 2700 K to 5700 K.
Is it dimmable?
Triac dimmable, provided the 12 V driver is also dimmable.
How bright is it?
Roughly 1,554–1,968 lm depending on the colour-temperature setting.
What is the warranty?
Three years, as a replacement warranty.
Product Specifications
xSpecifications
| Brand | Havit Lighting |
|---|---|
| Model / SKUs | HV5844S-BLK-12V · HV5844S-WHT-12V |
| Type | LED downlight — surface mounted |
| Finishes | Black · White |
| Input Voltage | 12V DC — 12V DC LED driver required |
| Wattage | 24W |
| Lumen Output | approx. 1,554–1,968 lm depending on the colour-temperature setting |
| Colour Temperature | 5 Colour, selectable at installation across 2700K–5700K |
| Beam Angle | 60° |
| IP Rating | IP54 |
| Lamp Base | Built-in LED — no globe required or replaceable |
| Dimming | Triac dimmable — requires a dimmable 12V driver |
| Diffuser Type | Honeycomb lens supplied |
| Material | Aluminium, powder coated |
| Installation Type | Ceiling — surface mounted, no cut-out |
| Warranty | 3-Year replacement |
Variant specifications
| Order code | Finish | Input | Driver | Colour temp | Lumens |
|---|---|---|---|---|---|
| HV5844S-BLK-12V | Black | 12V DC | REQUIRED | 5 Colour, 2700K–5700K | ≈1,554–1,968 lm |
| HV5844S-WHT-12V | White | 12V DC | REQUIRED | 5 Colour, 2700K–5700K | ≈1,554–1,968 lm |
