A suggestion, not a specification. A calculator can get it wrong — have a licensed electrician confirm the driver, the total load and the wiring before you order.
Find the right driver for this fitting
Product Description

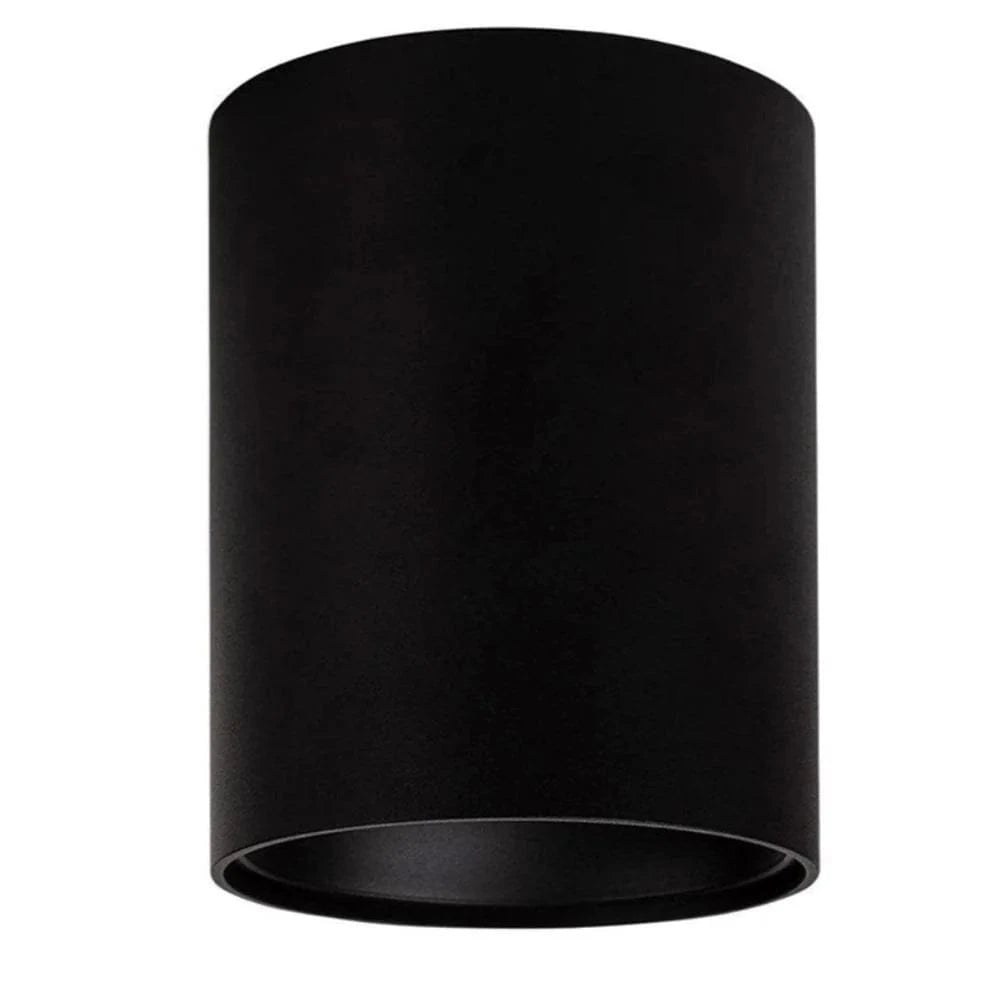

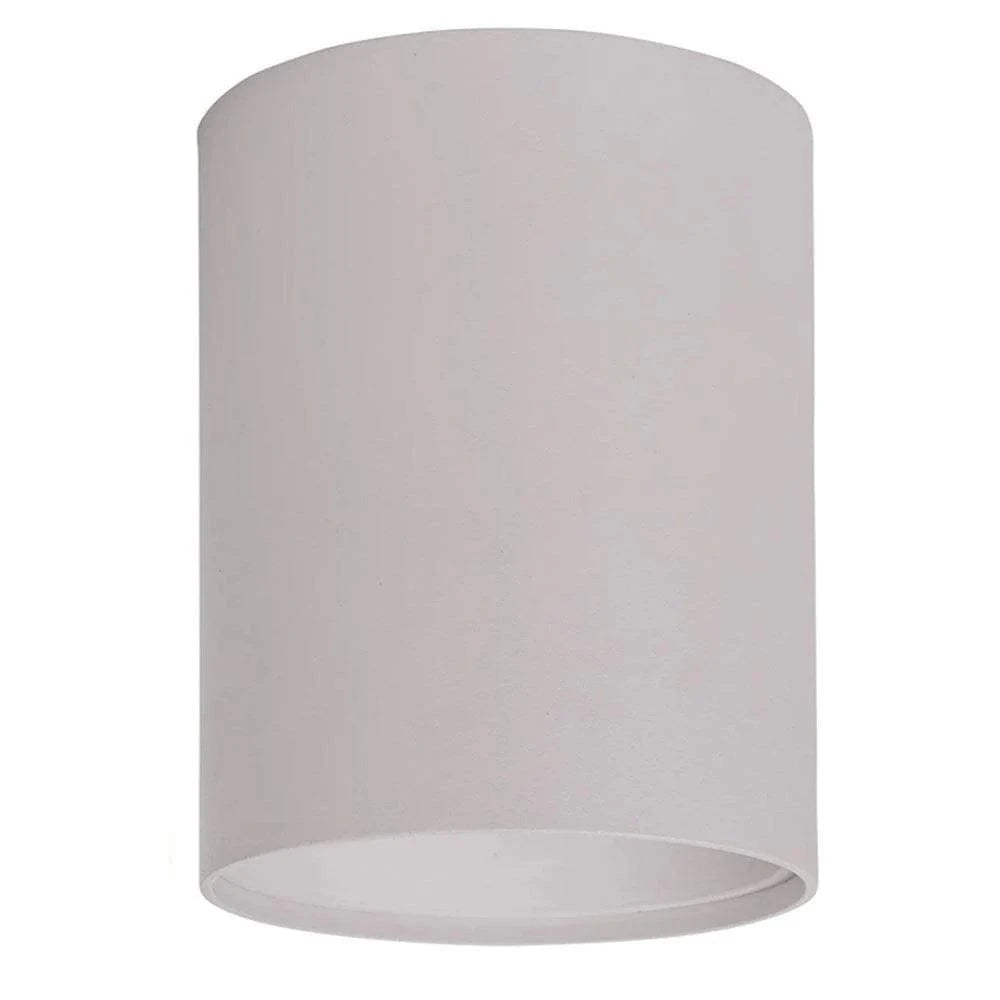

xThis is the 12 V DC Nella surface-mounted downlight at 18 W — no cut-out, a honeycomb lens included, and five selectable colour temperatures. It is the size to choose when 12 W leaves a larger room feeling under-lit.
This listing is 12V DC and requires a driver
Order codes HV5843S-BLK-12V and HV5843S-WHT-12V run on 12 V DC
only and require a 12 V DC LED driver sized for every fitting on the run. They must
never be connected directly to 240 V. A 240 V version of the same fitting is
sold under its own order codes.
Why a surface-mounted fitting at all
A surface-mounted downlight fixes to the face of the ceiling, so there is no hole, no patching and no insulation clearance to worry about. That makes it the answer for a concrete slab, a rented property, or a ceiling you simply cannot cut — and the honeycomb lens keeps it comfortable to sit under despite sitting proud.
Where it works
- Slab and rendered ceilings across living areas and kitchens.
- Rentals and apartments where cutting the ceiling is not an option.
- Alfresco and covered outdoor ceilings — IP54 covers rain and splashing.
- Low-voltage runs from one central driver, no earth needed at the fitting.
Specifying it
The 18 W LED is built in — no globe, no socket. Five colour temperatures are selectable at installation across 2700 K–5700 K, giving roughly 1,371–1,617 lm depending on the setting, on a 60° beam. Triac dimmable with a dimmable 12 V driver, IP54, powder-coated aluminium in black or white.
Supplied and supported by Lights For You. If you are mixing 12 W and 18 W Nellas across an open plan, keep each ceiling plane to one wattage — mixed outputs on the same plane read as a fault.
Questions
Can I wire it to 240 V?
No. This is the 12 V DC version and requires a 12 V DC LED driver. A 240 V version exists under its own order codes.
Does it need a cut-out?
No. It fixes to the face of the ceiling.
How many colour temperatures?
Five, selectable at installation across 2700 K to 5700 K.
How bright is it?
Roughly 1,371–1,617 lm depending on the colour-temperature setting.
Is it dimmable?
Triac dimmable, provided the 12 V driver is also dimmable.
Can it go under an alfresco roof?
Yes. IP54 covers rain and splashing.
What is the warranty?
Three years, as a replacement warranty.
Product Specifications
xSpecifications
| Brand | Havit Lighting |
|---|---|
| Model / SKUs | HV5843S-BLK-12V · HV5843S-WHT-12V |
| Type | LED downlight — surface mounted |
| Finishes | Black · White |
| Input Voltage | 12V DC — 12V DC LED driver required |
| Wattage | 18W |
| Lumen Output | approx. 1,371–1,617 lm depending on the colour-temperature setting |
| Colour Temperature | 5 Colour, selectable at installation across 2700K–5700K |
| Beam Angle | 60° |
| IP Rating | IP54 |
| Lamp Base | Built-in LED — no globe required or replaceable |
| Dimming | Triac dimmable — requires a dimmable 12V driver |

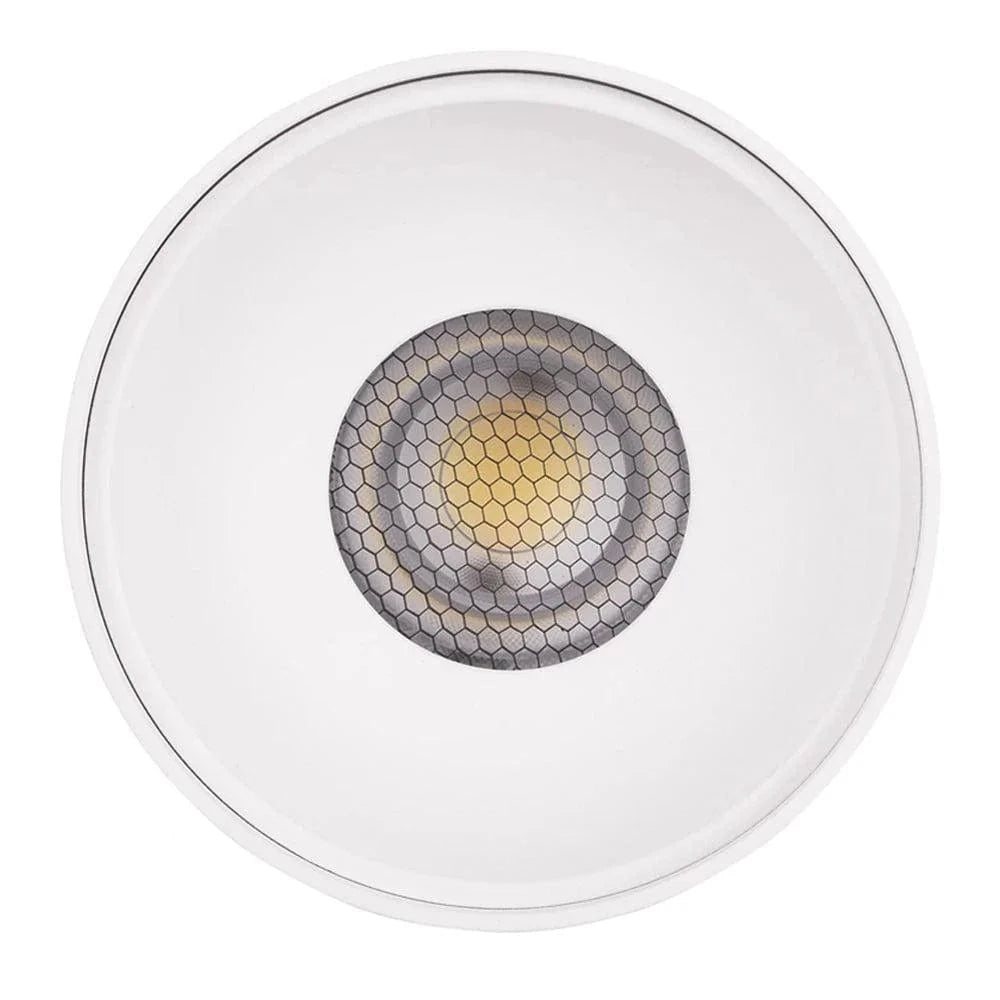

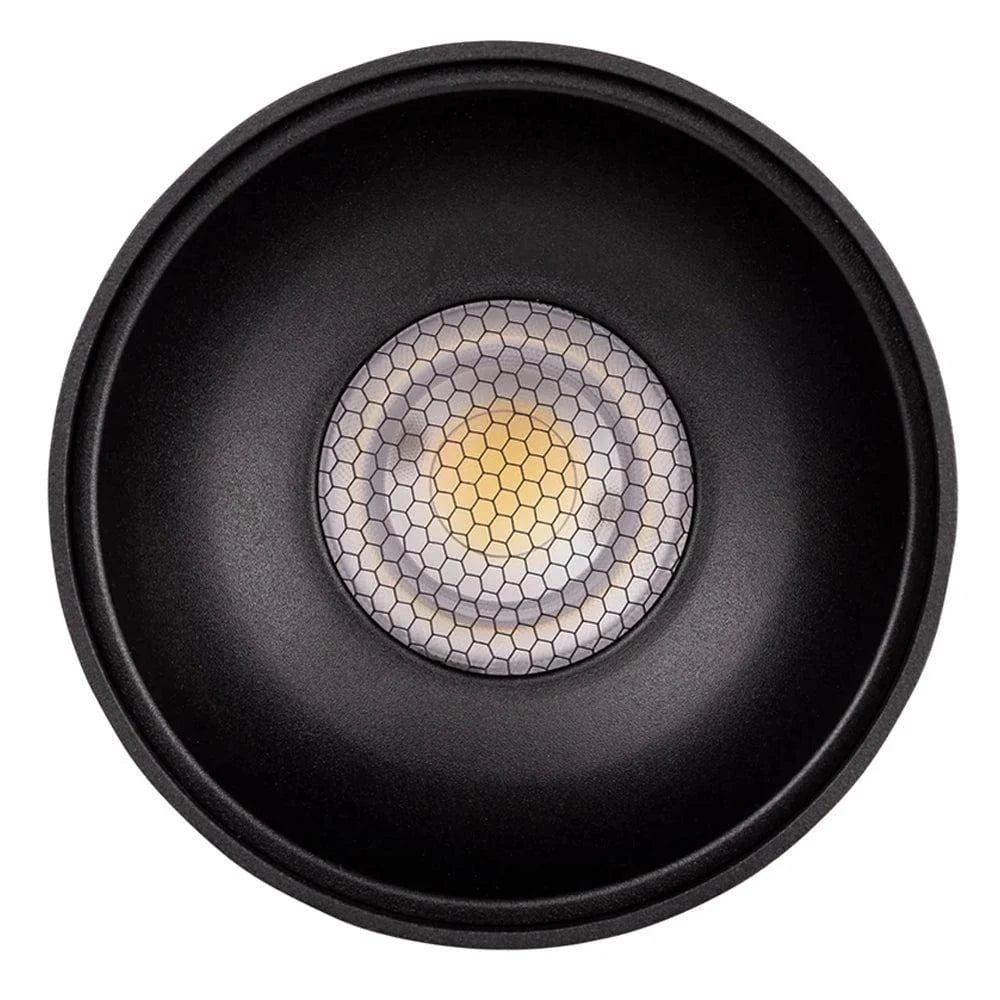

| Diffuser Type | Honeycomb lens supplied |
| Material | Aluminium, powder coated |
| Installation Type | Ceiling — surface mounted, no cut-out |
| Warranty | 3-Year replacement |
Variant specifications
| Order code | Finish | Input | Driver | Colour temp | Lumens |
|---|---|---|---|---|---|
| HV5843S-BLK-12V | Black | 12V DC | REQUIRED | 5 Colour, 2700K–5700K | ≈1,371–1,617 lm |
| HV5843S-WHT-12V | White | 12V DC | REQUIRED | 5 Colour, 2700K–5700K | ≈1,371–1,617 lm |
