A suggestion, not a specification. A calculator can get it wrong — have a licensed electrician confirm the driver, the total load and the wiring before you order.
Find the right driver for this fitting
Product Description

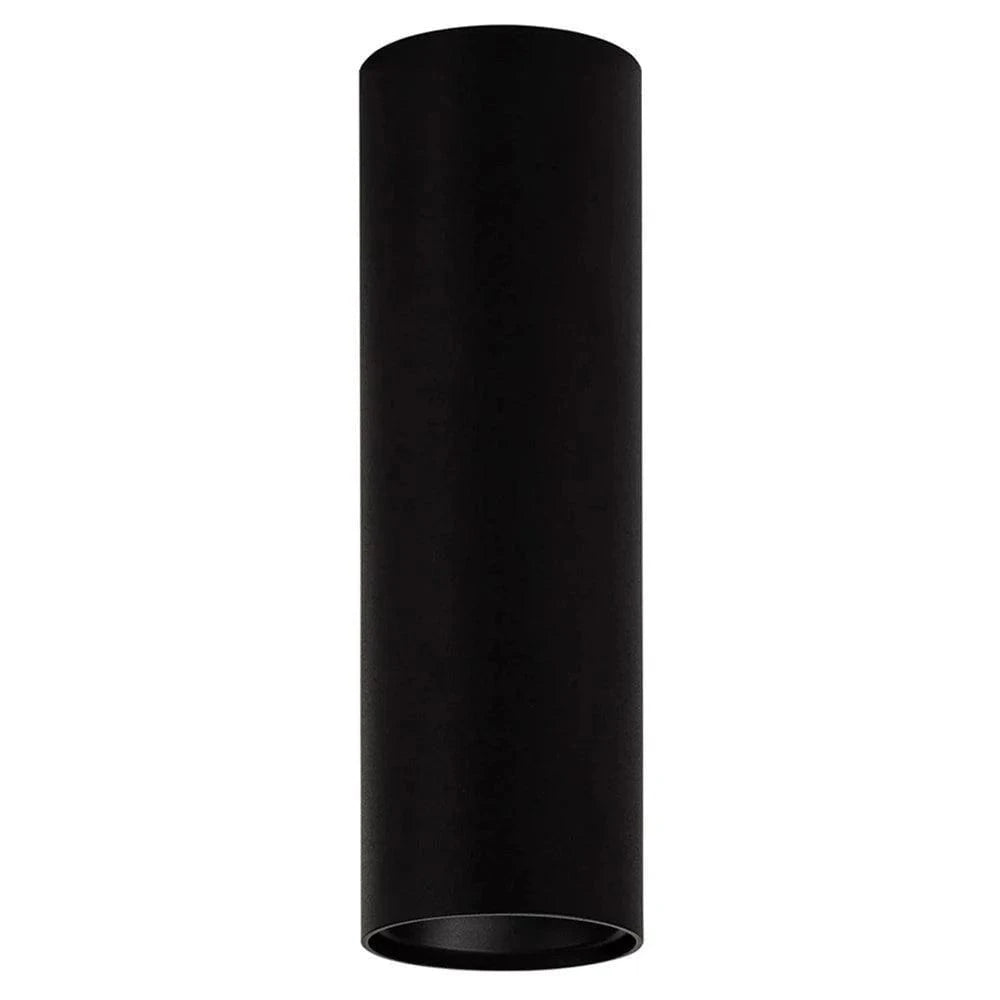

xThis is the 12 V DC Nella surface-mounted downlight at 12 W, in the extension body — a deeper housing that stands further off the ceiling than the standard version. It ships with a honeycomb lens and five selectable colour temperatures.
This listing is 12V DC and requires a driver
Order codes HV5842S-BLK-EXT-12V and HV5842S-WHT-EXT-12V run on
12 V DC only and require a 12 V DC LED driver sized for the whole run. They
must never be connected directly to 240 V. A 240 V version of the same fitting
is sold under its own order codes.
The extension body, and the honeycomb lens
The extension housing gives the LED more depth, which pushes the source further back from the aperture and cuts the angle at which you can see it directly. The honeycomb lens — a fine grid across the face — does the same job optically. Together they make a surface-mounted fitting comfortable to sit under, at the cost of a little output and a slightly more prominent body.
Where it works
- Concrete and rendered ceilings with no possibility of a cut-out.
- Living areas and bedrooms where glare from a surface fitting would be noticeable.
- Alfresco and covered outdoor ceilings — IP54 covers rain and splashing.
- Low-voltage runs of several fittings from one driver.
Specifying it
The 12 W LED is built in — no globe, no socket. Five colour temperatures are selectable at installation across the 2700 K–5700 K range, giving roughly 688–1,004 lm depending on the setting, on a 60° beam. Triac dimmable subject to a dimmable 12 V driver, IP54, and the body is powder-coated aluminium in black or white.
Supplied and supported by Lights For You. Set every fitting in one room to the same colour temperature before the ceiling is finished — a five-position selector makes a mismatch very easy to create and impossible to hide.
Questions
Can I wire it to 240 V?
No. This is the 12 V DC version and requires a 12 V DC LED driver. A 240 V version exists under its own order codes.
What is the extension body for?
It is a deeper housing that sets the LED further back from the aperture, reducing the angle at which you see the source directly.
What does the honeycomb lens do?
It is a fine grid across the face that cuts glare, so you see light on the floor rather than a bright dot on the ceiling.
How many colour temperatures?
Five, selectable at installation across the 2700 K to 5700 K range.
Is it dimmable?
Triac dimmable, provided the 12 V driver is also dimmable.
Does it need a cut-out?
No. It is surface mounted.
What is the warranty?
Three years, as a replacement warranty.
Product Specifications
xSpecifications
| Brand | Havit Lighting |
|---|---|
| Model / SKUs | HV5842S-BLK-EXT-12V · HV5842S-WHT-EXT-12V |
| Type | LED downlight — surface mounted, extension body |
| Finishes | Black · White |
| Input Voltage | 12V DC — 12V DC LED driver required |
| Wattage | 12W |
| Lumen Output | approx. 688–1,004 lm depending on the colour-temperature setting |
| Colour Temperature | 5 Colour, selectable at installation across 2700K–5700K |
| Beam Angle | 60° |
| IP Rating | IP54 |
| Lamp Base | Built-in LED — no globe required or replaceable |
| Dimming | Triac dimmable — requires a dimmable 12V driver |
| Diffuser Type | Honeycomb lens supplied |
| Material | Aluminium, powder coated |
| Installation Type | Ceiling — surface mounted, extension body, no cut-out |
| Warranty | 3-Year replacement |
Variant specifications
| Order code | Finish | Body | Input | Driver | Colour temp |
|---|---|---|---|---|---|
| HV5842S-BLK-EXT-12V | Black | Extension | 12V DC | REQUIRED | 5 Colour, 2700K–5700K |
| HV5842S-WHT-EXT-12V | White | Extension | 12V DC | REQUIRED | 5 Colour, 2700K–5700K |
