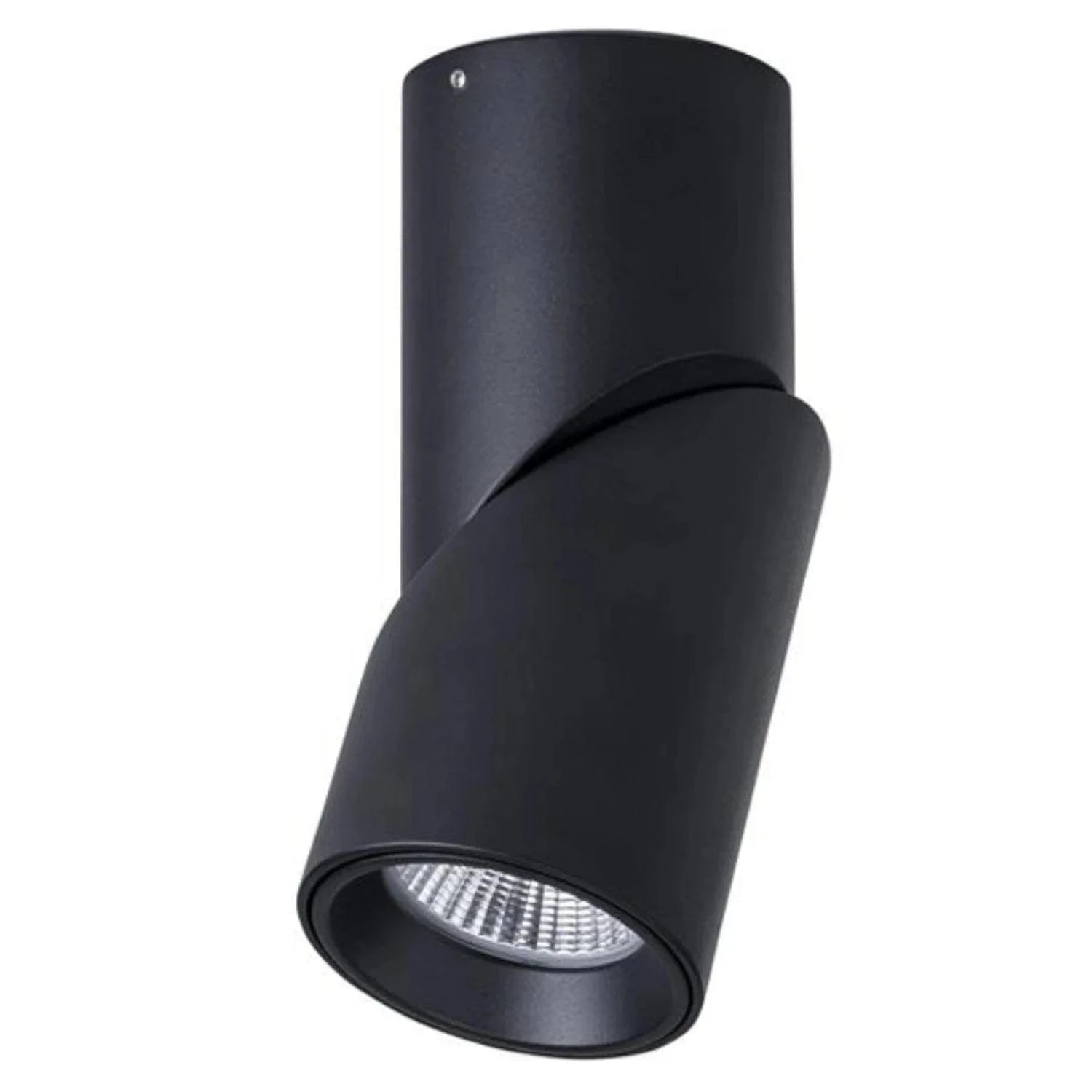

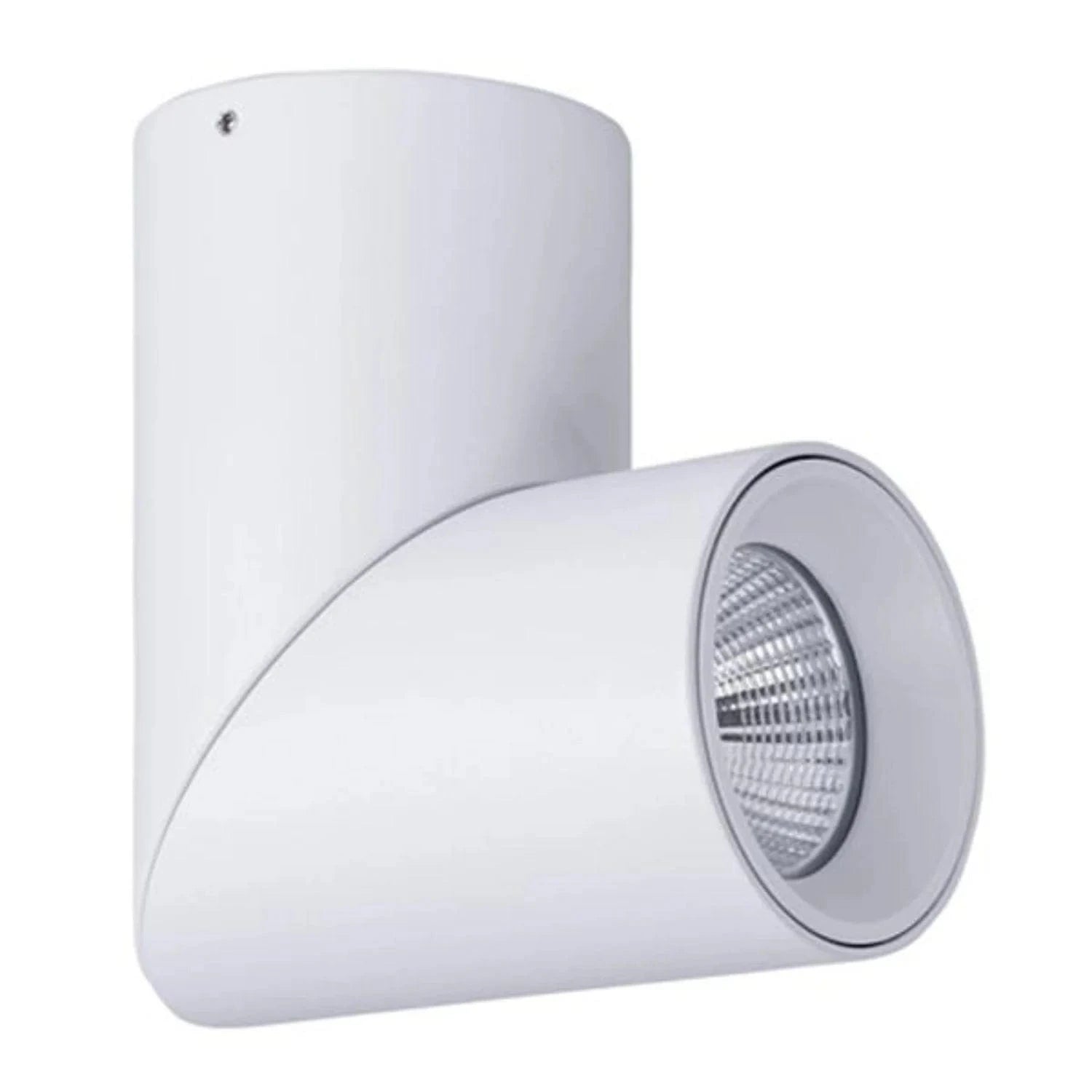

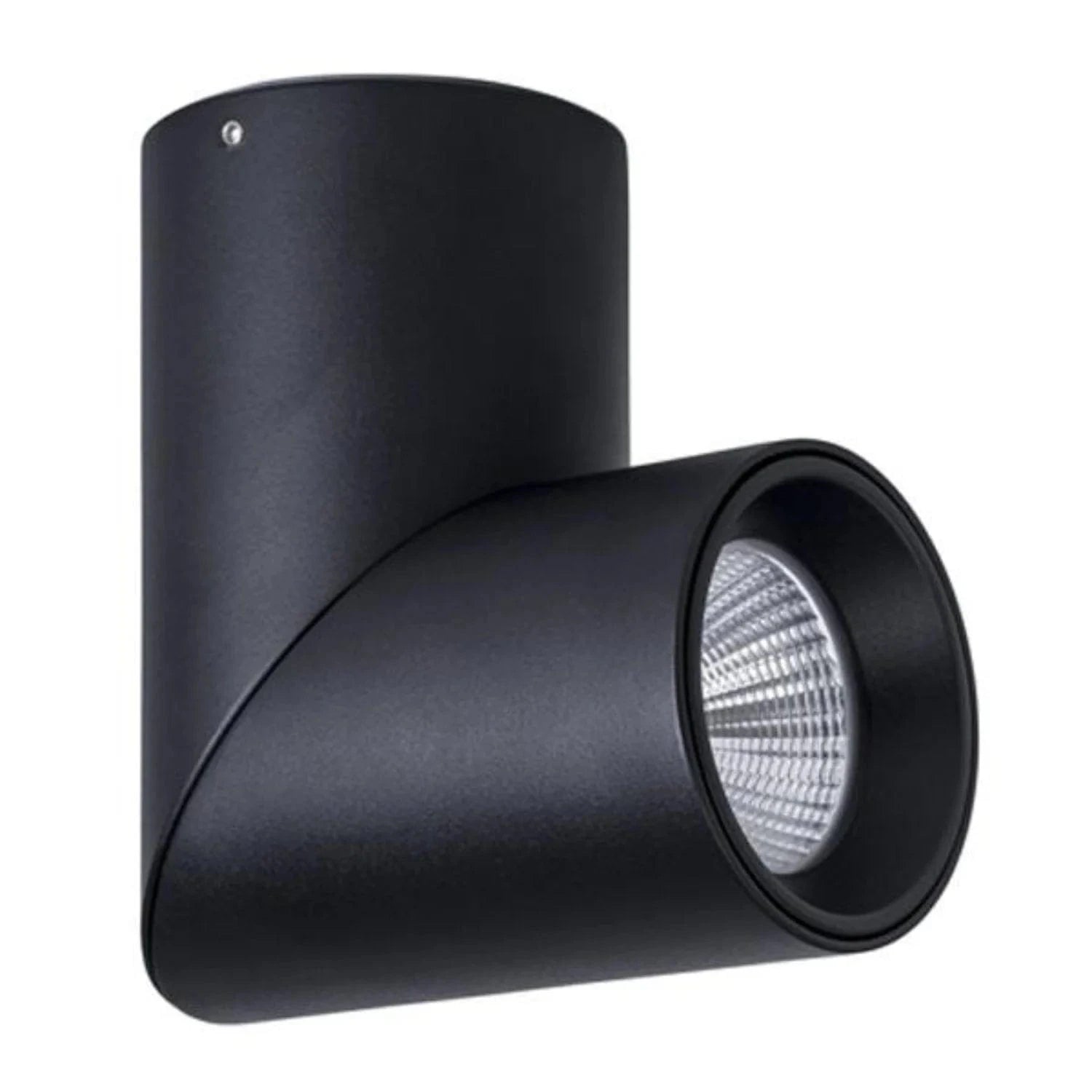

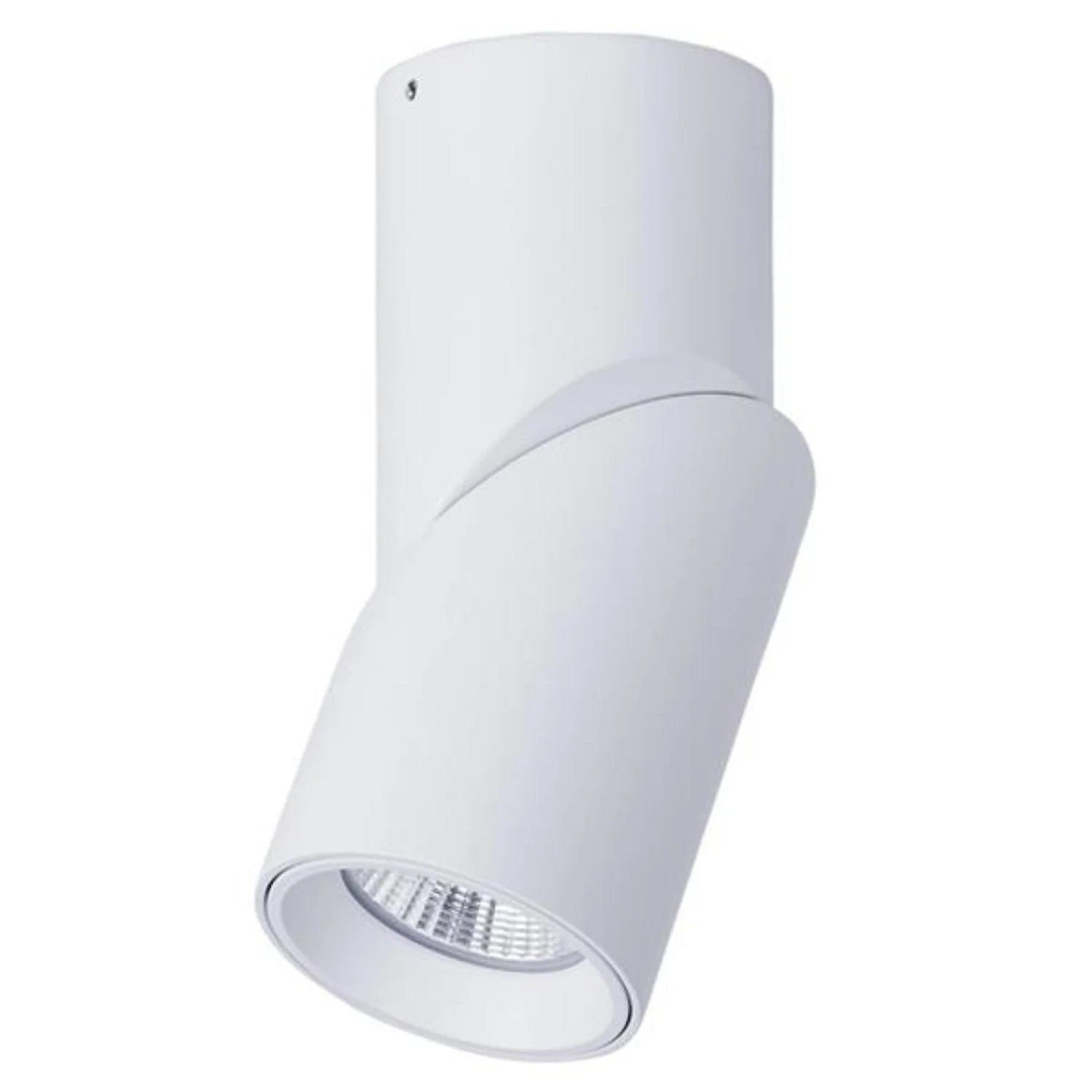

Nella LED Downlight 12w Black, White CCT HV5823T Havit Lighting

The Nella rotatable at 12 W is the middle size of the surface-mounted family, and the one to choose when 7 W leaves a room feeling under-lit but 18 W would be glaring on a normal ceiling. This listing is the 12 V DC version.

This listing is the 12 V version, and it needs a driver

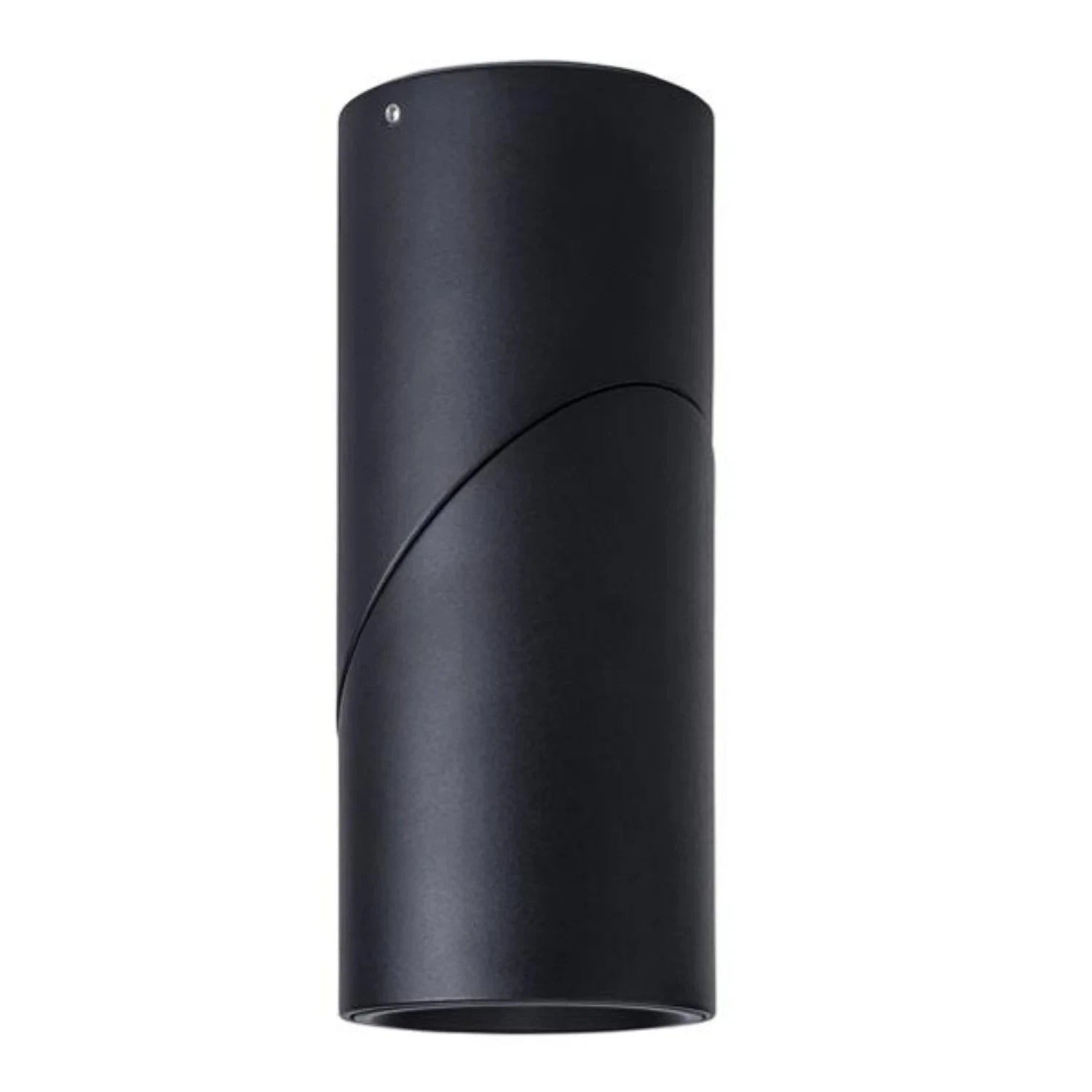

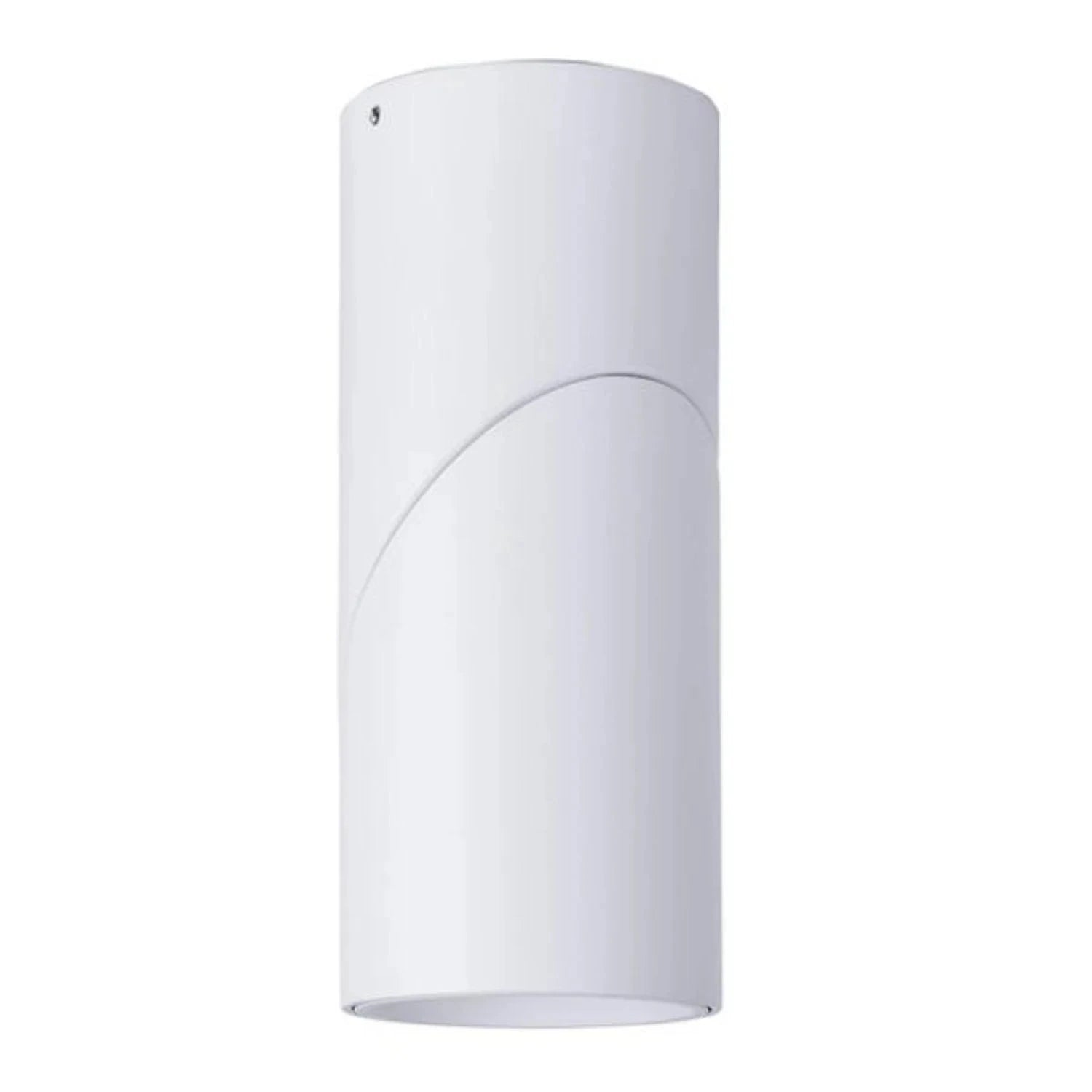

Order codes HV5823T-BLK-12V and HV5823T-WHT-12V run on 12 V DC only and require a 12 V DC LED driver sized for every fitting on the circuit. They must never be connected directly to 240 V. The same fitting is sold in a 240 V version under its own order codes.

Choosing the wattage

At 960–1,080 lm this sits roughly double the 7 W fitting. On a 2.4 m ceiling that supports a wider grid — fewer fittings for the same light — but it also means a single fitting over a seating area will read as bright. Space by the effect you want rather than by wattage alone.

Where it works

• Living and dining areas on a concrete ceiling, spaced wider than the 7 W version allows.
• Kitchens as general light, with the head turned toward the bench rather than the cupboard fronts.
• Low-voltage runs from one central driver, no earth needed at the fitting.
• Retrofit where no cut-out is possible and 7 W would need too many fittings.

Specifying it

The 12 W LED is built in — no globe, no socket. Tri-colour switching covers 3000 K, 4000 K and 5500 K, giving 960–1,080 lm across the three settings, on a 60° beam. Triac dimmable subject to a dimmable 12 V driver, CRI above 80, IP54, aluminium powder coated in black or white, and the head rotates within the housing.

Supplied and supported by Lights For You. If you are mixing 7 W and 12 W Nellas in one open-plan space, keep each zone to one wattage — mixed outputs on a single ceiling plane read as a fault rather than as zoning.

Coastal siting — Havit’s condition

Havit’s installation instructions for this fitting state that aluminium and 304 stainless steel fittings must not be installed within 5 km of any salt water environment. That is a condition on where the fitting may go, and it sits beside the IP rating rather than inside it: a fitting can be rated for direct rain and still fall outside this rule, because the issue is salt carried in the air rather than water landing on the surface. If your site is inside that zone, talk to us before you specify it — Lights For You can point you at a fitting whose material Havit does not name here.
