Maro Up and Down LED Wall Light CCT 4x 1w in Black or White Havit Lighting - HV3695T

3 Years Warranty
3 Years Warranty
IP54 – dust and splashproof
IP54 – dust and splashproof
Color Temprature Changing Technology
Color Temprature Changing Technology
Soft ambient light
85 lm Learn More!!
$70.34
$94.95
$70.34
Product Description
Product Description
x

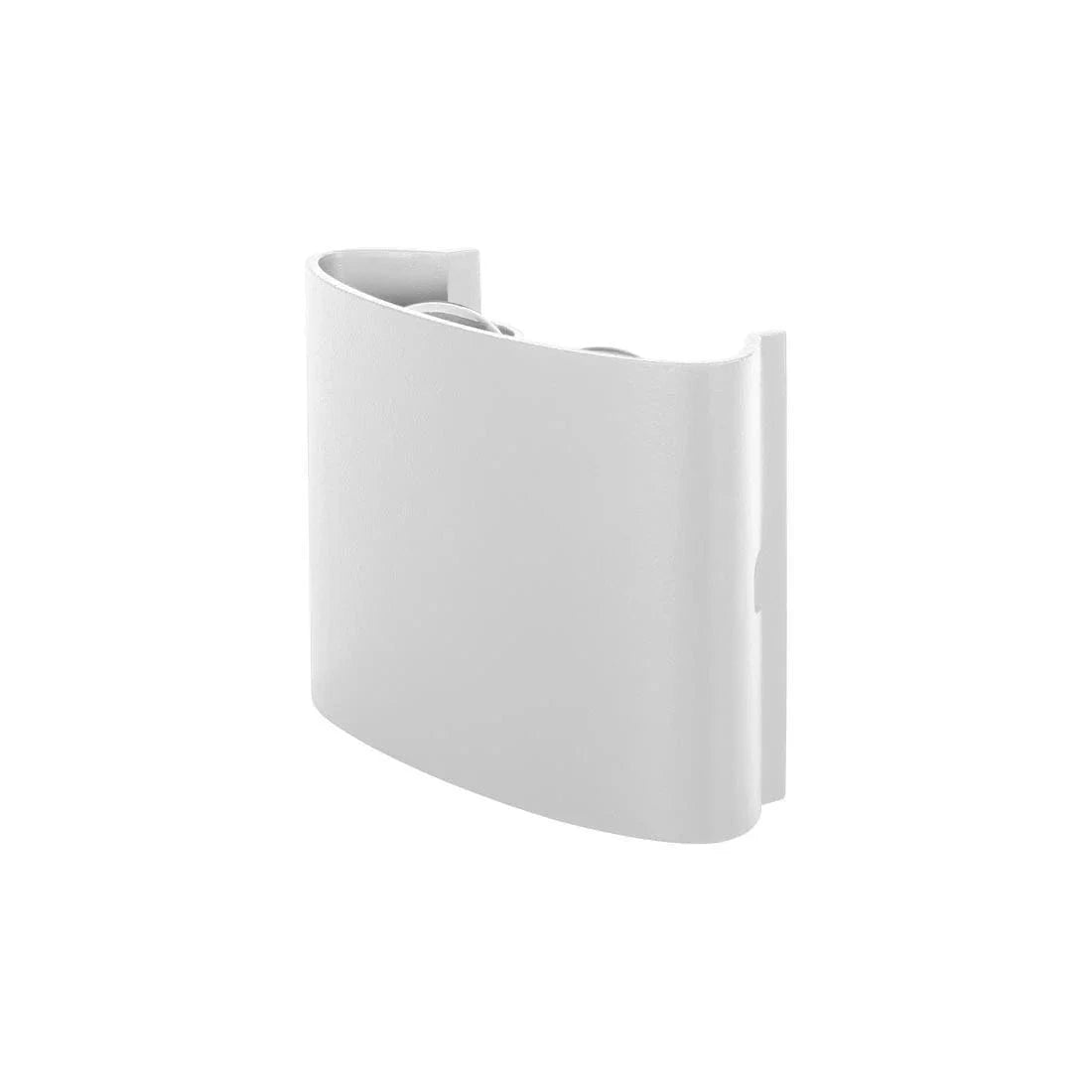

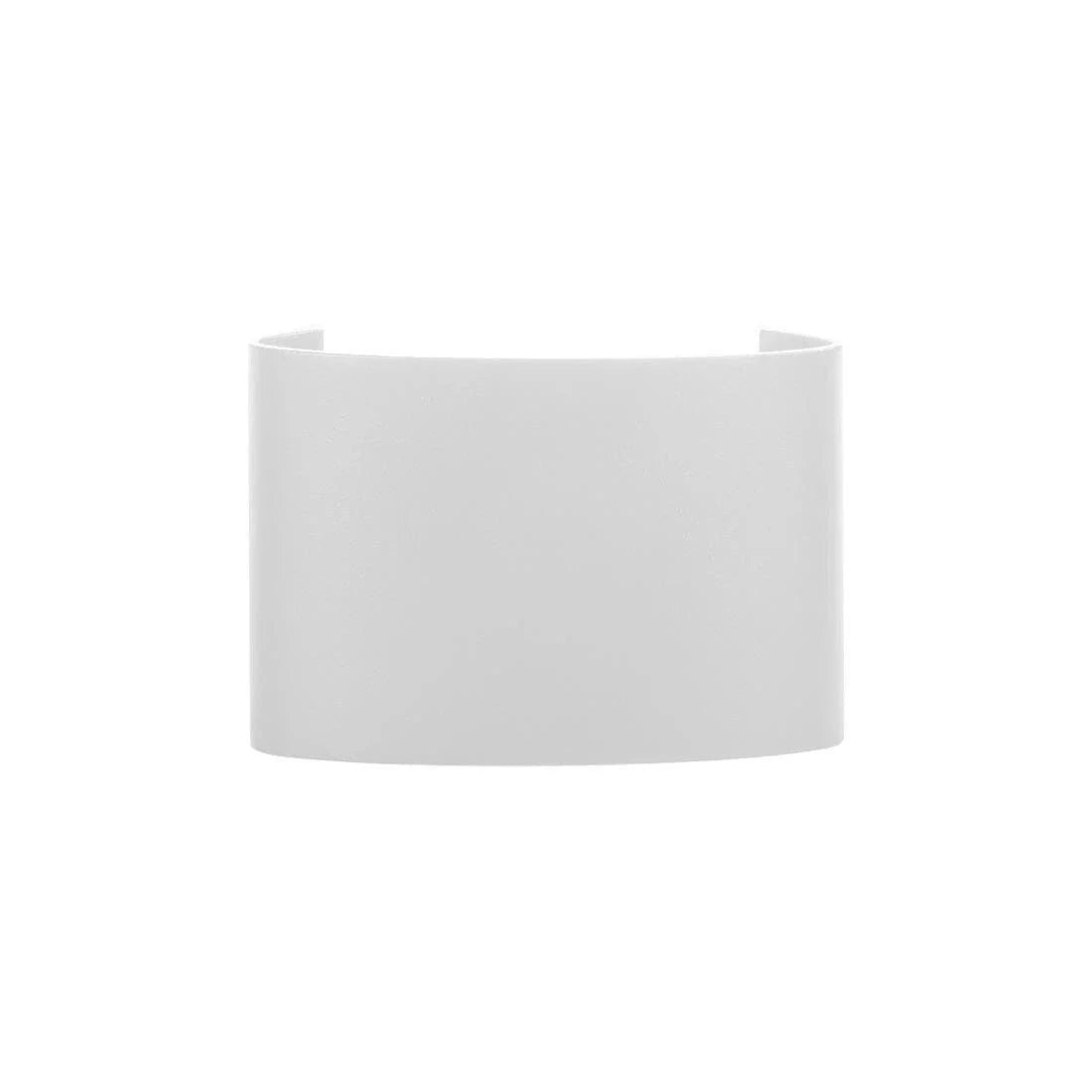

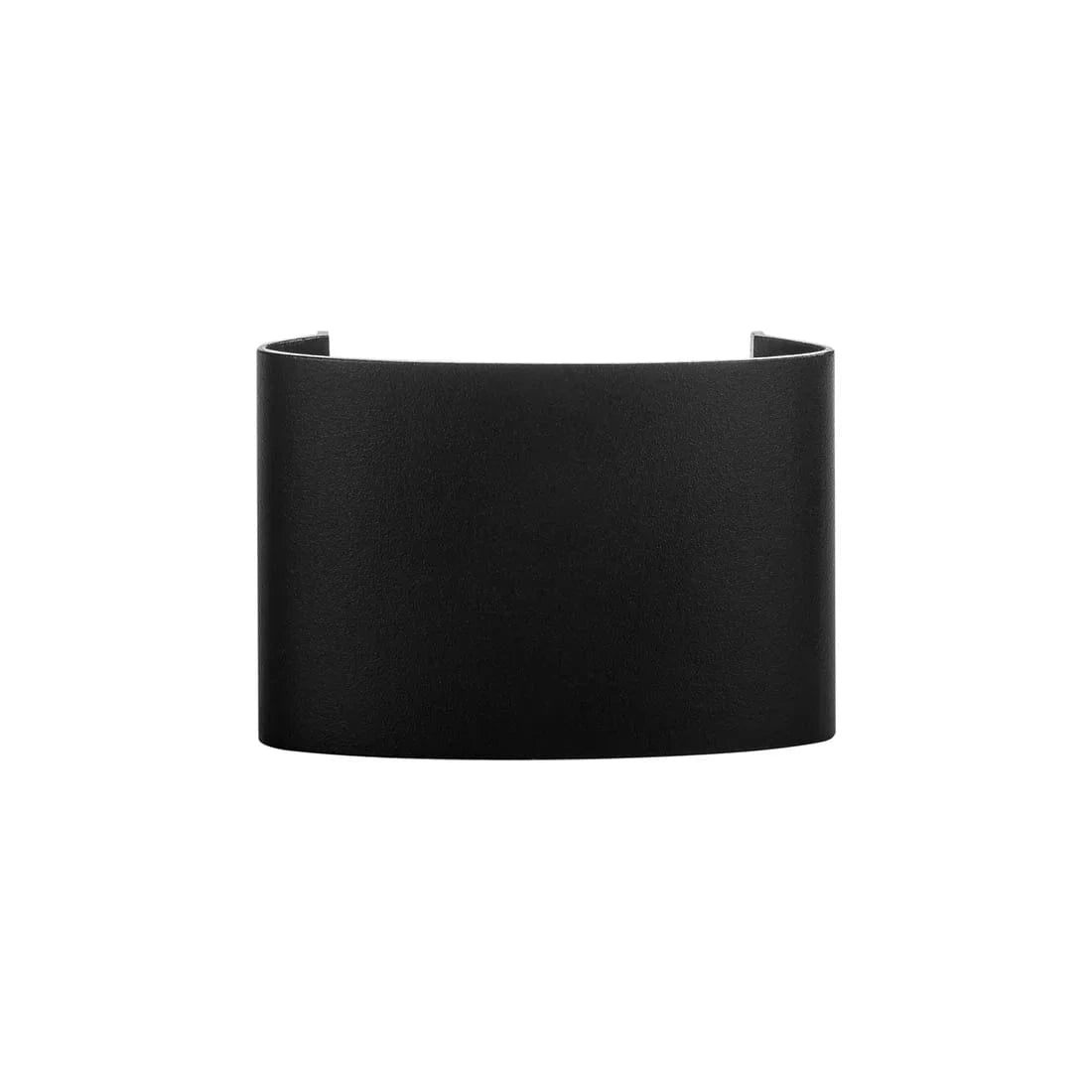

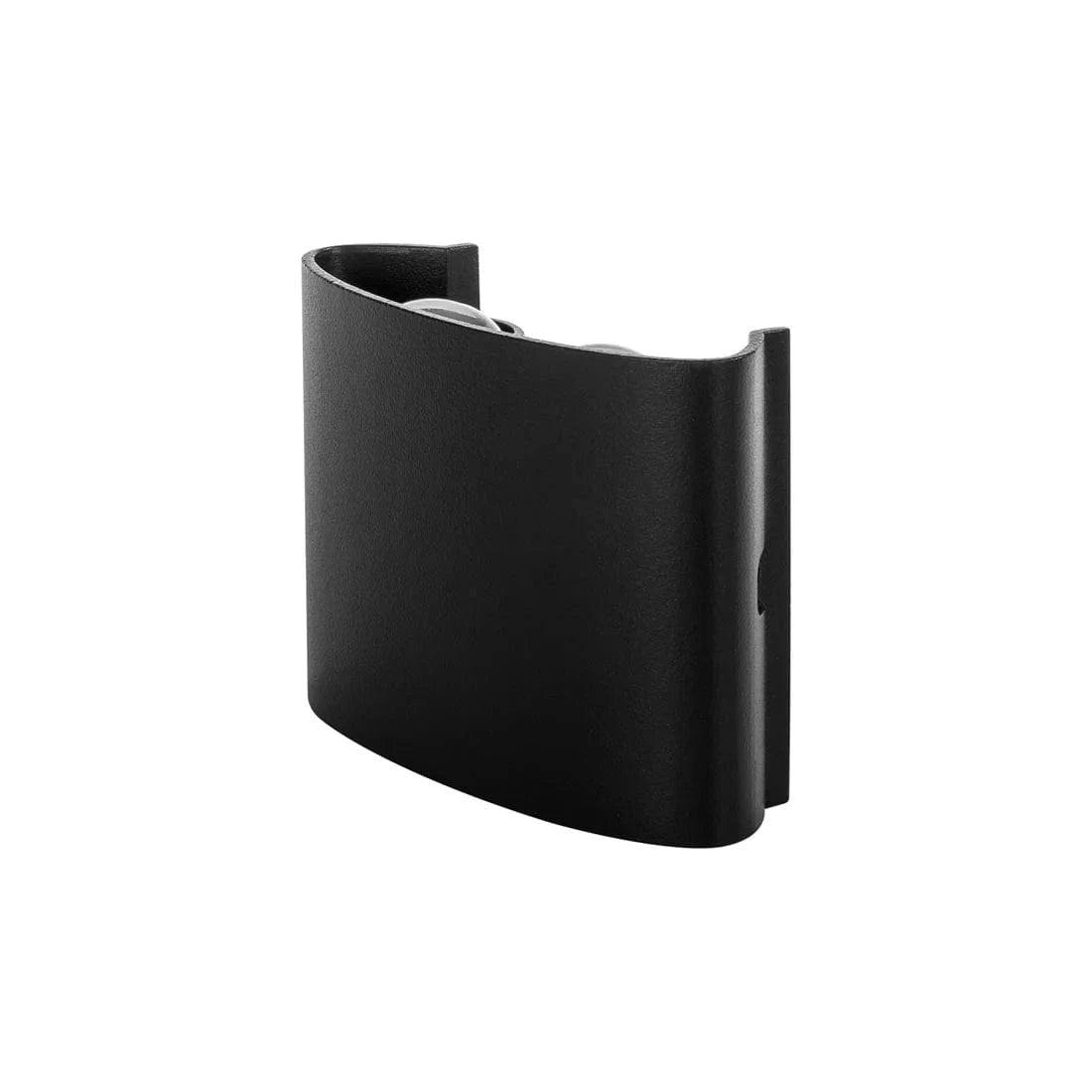

Maro up and down LED wall light — four emitters

The Maro is a very small up/down wall light — 88.5mm tall and 20mm wide — carrying four 1W emitters, two facing up and two facing down. It is sold in black and white, in both 240V mains and 12V low-voltage versions.

Its size is the point. Most up/down wall lights are objects on a wall; the Maro is closer to a detail. On a narrow pier, a door reveal, a fence post or a run of columns where a conventional fitting would be too big, it produces the same pair of cones at a scale that does not dominate the surface.

Four emitters, 4W total

The fitting carries four 1W emitters, so it draws 4W in total. Havit rates the output as two at 85lm and two at 90lm across the colour settings, giving a total of 170lm at 3000K and 180lm at the 4000K and 5500K settings.

Each emitter throws a 60° beam. Four tight beams rather than two wide ones is what gives this fitting its character: instead of a soft wash, it puts distinct narrow cones on the wall above and below, which reads as deliberate on a smooth surface and picks out texture sharply on a rough one.

Colour temperature

The Maro is tri-colour, with 3000K, 4000K or 5500K selected on the fitting at installation rather than fixed at manufacture. Colour rendering is above 80 CRI. The fitting is not dimmable.

On a run of several fittings, set every one at the same time. Because the selection is made per fitting, a single unit left on a different setting is immediately visible in a row — and on a fitting this small, getting back into it after installation is fiddly.

Mains or low voltage — four part numbers

This listing carries four SKUs. HV3695T-BLK-240V and HV3695T-WHT-240V run directly on 240V AC mains, need no driver, and are Class 1 so they require an earth. HV3695T-BLK-12V and HV3695T-WHT-12V run on 12V DC, are Class 3 so no earth is needed at the fitting, and do require a 12V driver on the circuit which is not supplied.

Given how small this fitting is, it is often installed in numbers — along a fence, up a stair, across a facade. In that case the 12V version usually makes more sense, because one driver serves the whole run. Check the driver capacity against the total load before ordering.

Rating and installation

The Maro is rated IP54 for dust and splashing water and IK08 for impact. IP54 is a sheltered-exterior rating, so it suits a wall under an eave, a covered entry or a protected facade rather than one taking driven rain head on. Havit states that aluminium and 304 stainless fittings must not be installed within 5km of any salt water environment. Installation is work for a licensed electrician.

Frequently asked questions
How much light does it give?

170lm at 3000K, or 180lm at 4000K and 5500K — four 1W emitters totalling 4W.

Which versions need a driver?

The two 12V SKUs. The 240V versions wire directly to mains.

How big is it?

88.5mm tall and 20mm wide.

Can it go on a fully exposed wall?

It is rated IP54, so a sheltered position is appropriate rather than one taking driven rain directly.

Can it be dimmed?

No.

Product Specifications
Product Specifications
x

Specifications

RangeMaro
TypeWall light — up and down
MaterialAluminium
FinishesBlack, White
Installation typeWall — surface mounted
Lamp baseBuilt-in LED
Power4 W total (4 × 1 W)
Colour temperatureTri colour — 3000K, 4000K, 5500K (selected at installation)
Lumen output170 lm at 3000K / 180 lm at 4000K and 5500K total
Beam angle60° per emitter (4 emitters)
CRI>80
IP ratingIP54
IK ratingIK08
Input voltage240 V AC or 12 V DC (see variants)
Protection class240 V — Class 1 (earth required); 12 V DC — Class 3 (no earth required)
DimmableNo
Dimensions88.5 mm × 20 mm
SitingNot to be installed within 5 km of a salt water environment
Warranty3 Years Replacement*

Variant specifications

Part numberFinishSupplyDriverProtection classPower
HV3695T-BLK-240VBlack240 V ACNot requiredClass 1 — earth required4 W (4 × 1 W)
HV3695T-WHT-240VWhite240 V ACNot requiredClass 1 — earth required4 W (4 × 1 W)
HV3695T-BLK-12VBlack12 V DC12 V driver required, not suppliedClass 3 — no earth required4 W (4 × 1 W)
HV3695T-WHT-12VWhite12 V DC12 V driver required, not suppliedClass 3 — no earth required4 W (4 × 1 W)
