Find the right driver for this fitting
Product Description
xThe Lunos OY23 is a 230 mm square LED oyster only 25 mm deep, in black or white — 18 W giving 1,550 lm, with switchable 3000 K / 4000 K / 5000 K, TRIAC dimmable, IP44.
1,550 lumens from a 230 mm fitting. That is a great deal of light for the size — more than several 400 mm oysters elsewhere in this catalogue manage — which makes the small Lunos the answer for a room you do not want a large fitting in: a hallway, a walk-in robe, a laundry, a porch, a small bedroom.
IP44 — and that is the real reason to choose it at this size. Our page said “Usage: Indoor”; our own record says Outdoor and Garden. The rating is the answer: protected against splashing water from any direction.
At 230 mm the positions that need exactly this are small wet or covered spaces — a bathroom outside the shower zone, a laundry, a porch, a carport, a covered entry. The IP20 oysters in this catalogue cannot go in any of them. Not a fully exposed soffit taking driving rain.
25 mm deep — nine to one
As slim as any ceiling fitting in this catalogue — the Legero is 29 mm, the Eltz 80. On a porch or carport ceiling, or under a bulkhead, that means the fitting is barely there until it is switched on.
Square, and small enough to repeat
Almost every oyster here is round. A 230 mm square aligns with the room and is small enough to be repeated along a hallway or a carport as a run — which at 0.61 kg each is a straightforward install on standard fixings.
Three colour settings, and it dims
3000 K warm, 4000 K neutral, 5000 K cool, chosen at installation — plus TRIAC dimming. In a laundry or robe the 5000 K is what you want; in a hallway, 3000 K.
Class II — double insulated, no earth required, which simplifies the wiring and is unusual for a ceiling fitting here. Cable 600 mm, CRI above 80.
The smallest of three
Lunos also comes at 300 mm (24 W, 2,150 lm — the most efficient) and 400 mm (30 W, 2,480 lm). All three are 25 mm deep and IP44.
Where it works

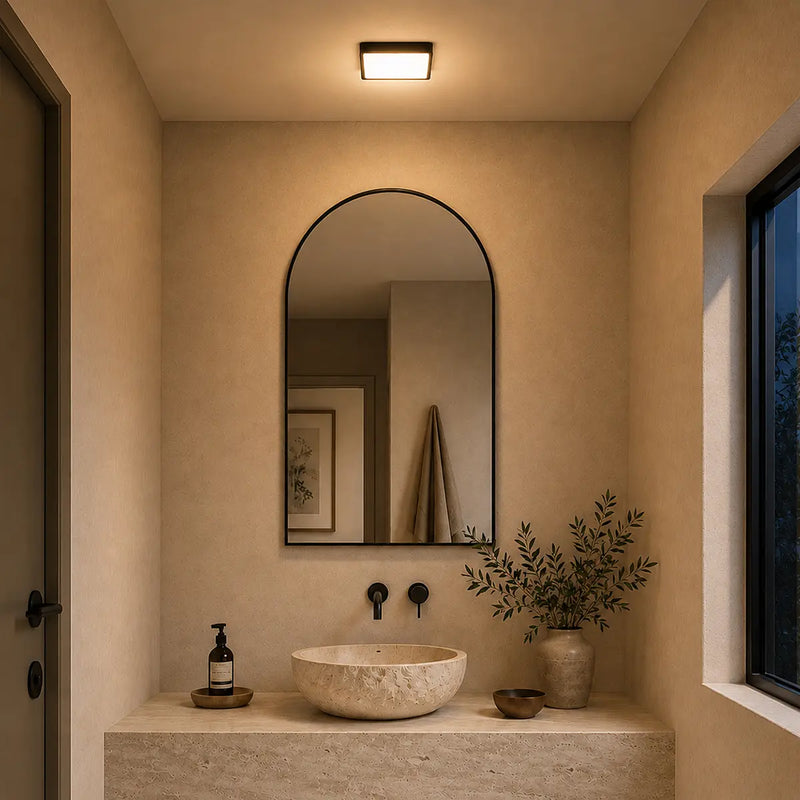

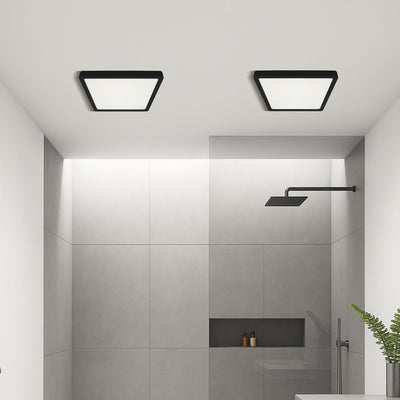

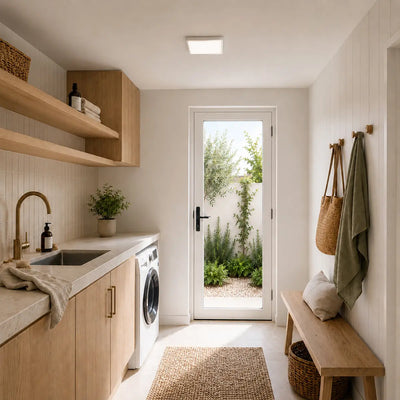

- Bathrooms outside the shower zone, laundries and robes — IP44 at a small size.
- Porches, carports and covered entries.

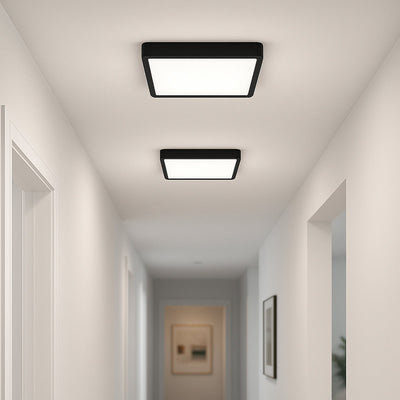

- Hallways, in a repeated run — 0.61 kg each.
- ⚠ Not a fully exposed soffit taking driving rain.
- ⚠ Set it out square to the walls.
Specifying it
230 by 230 mm, 25 mm deep, cable 600 mm, 0.61 kg, in polycarbonate and metal, satin black or white. Integrated 18 W LED giving 1,550 lm, included, with switchable 3000 K / 4000 K / 5000 K, CRI >80, TRIAC dimmable. 240 V, Class II — double insulated, no earth required, IP44 — splashing from any direction. Warranty is three years, as a replacement warranty.
Supplied and supported by Lights For You.
Questions
Is 1,550 lumens a lot for 230mm?
Yes — more than several 400 mm oysters elsewhere in this catalogue manage. That makes it the answer for a room you do not want a large fitting in: a hallway, walk-in robe, laundry, porch or small bedroom.
Can it go in a bathroom or a carport?
IP44 means protected against splashing from any direction, so yes to a bathroom outside the shower zone, a laundry, a porch, a carport or a covered entry. The IP20 oysters here cannot go in any of them. Not a fully exposed soffit.
How slim is it?
25 mm — as slim as any ceiling fitting in this catalogue, against the Legero’s 29 mm and the Eltz’s 80. On a porch or carport ceiling it is barely there until it is switched on.
Can I run several along a hallway?
Easily — 0.61 kg each on standard fixings, and a 230 mm square is small enough to repeat without dominating.
Can I dim it?
Yes — TRIAC, on an ordinary wall dimmer, alongside the three colour settings.
Do I need an earth?
No — Class II, double insulated, which simplifies the wiring and is unusual for a ceiling fitting here.
Which colour setting for a laundry or robe?
5000 K — the cool setting, where you can judge what colour something actually is. In a hallway, 3000 K.
Product Specifications
xSpecifications
| Brand | Telbix Lighting |
|---|---|
| Model / SKUs | LUNOS OY23.3C-BK (Black) · OY23.3C-WH (White) — the smallest |
| Type | SQUARE LED oyster — 25mm deep, IP44 |
| Input Voltage | 240V |
| Wattage | 18W integrated LED — included |
| Lumen Output | 1550lm — more than several 400mm oysters here |
| Efficacy | 86 lm/W |
| Colour Temperature | SWITCHABLE 3000K / 4000K / 5000K, set at installation |
| CRI | > 80 |
| Dimming | YES — TRIAC |
| IP Rating | IP44 — bathrooms outside the shower zone, laundries, porches, carports |
| Electrical Protection | CLASS II — DOUBLE INSULATED, no earth required |
| Size | 230 x 230mm |
| Projection | 25mm |
| Cable Length | 600mm |
| Weight | 0.61kg — easy to repeat in a run |
| Material | Polycarbonate and metal |
| Warranty | 3 Years — replacement warranty |
Variant specifications
| Order code | Size | Wattage | Output | Weight |
|---|---|---|---|---|
| LUNOS OY23.3C | 230 x 230mm | 18W | 1550lm | 0.61kg |
| LUNOS OY30.3C | 300 x 300mm | 24W | 2150lm | 0.88kg |
| LUNOS OY40.3C | 400 x 400mm | 30W | 2480lm | 1.6kg |
