Liueg Aluminium Black Bollard Light with Spike

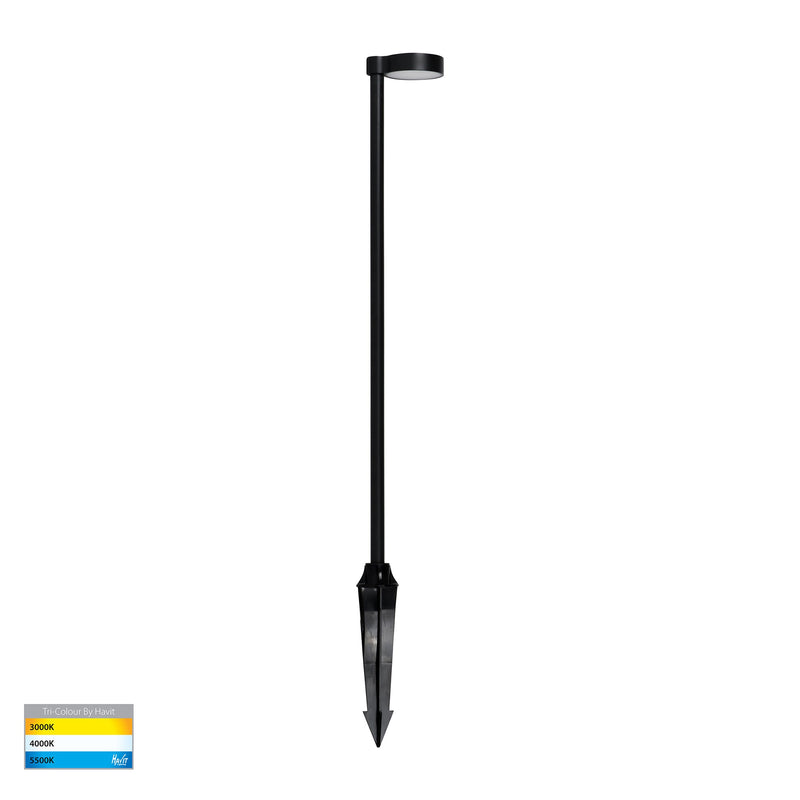

This is the 5 W Liueg, a 590 mm spike-mounted garden bollard in poly powder-coated black aluminium, with a sealed built-in LED behind a Perspex diffuser. It is the middle rung of three: enough light to make a path genuinely usable after dark, without the reach of the largest size.

Low voltage, and it needs a driver

It runs on 24 V DC from a suitable 24 V DC LED driver. Do not connect it directly to 240 V. Havit rates it Protection Class 3 — low voltage, no earth required — so the only wiring that reaches the garden is extra-low-voltage cable, and the driver lives somewhere dry. 1000 mm of cable is supplied with the fitting.

Output, and which setting is the brightest

The tri-colour LED offers 3000K, 4000K and 5500K, and Havit pairs them with 330 lm, 355 lm and 335 lm. ⚠ 4000K is the brightest of the three, not the coolest setting — worth knowing, because the instinct is usually the other way round. The beam is 120°, colour rendering is CRI >80, and lamp expectancy is >30,000hrs. At 5 W this puts out roughly three times the light of the smallest fitting in the same range.

Weather and knocks: IP65 and IK08

The body is IP65 against rain and hose spray, and IK08 is a solid impact class for something standing in a garden bed where a mower or a wheelbarrow passes. It is not dimmable, so plan a switched circuit.

Mounting, and what Havit does and does not publish

It comes for ground spike mounting. For a hard surface, this model's own data sheet lists the HV151-BLK-BASE surface mounting base, which we stock and whose description covers this fitting. ⚠ One thing to be aware of when you are planning a run of these: Havit publishes no installation sheet for this model — a data sheet only. The neighbouring 24 V spike range does have one, and it attaches warranty conditions about how far a fitting may sit from its driver and how connections must be sealed. Those conditions are not stated for this fitting, so ask us rather than assuming they carry across. Every figure on this page was taken by Lights For You from Havit's own data sheet for HV1522T and from its product page for this part number, which states a 3 Years Replacement warranty.
