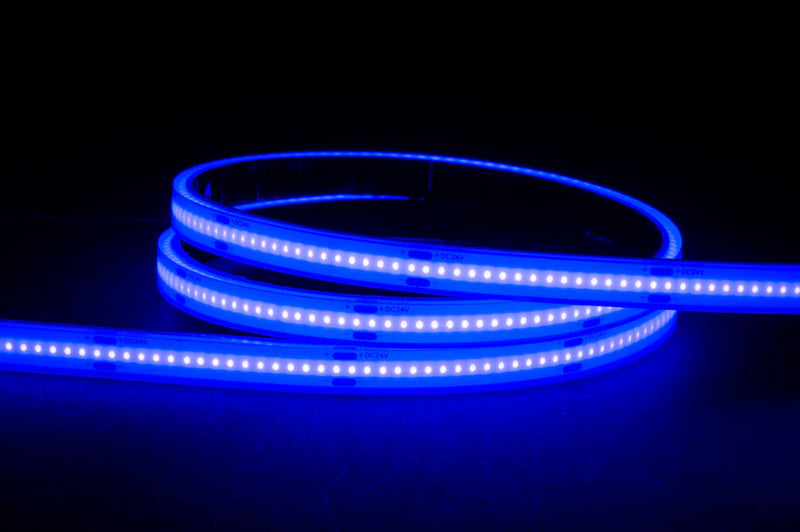

HV9761-IP67-320-B - 9.6w IP67 24v DC Blue COB Dotless LED Strip
HV9761-IP67-320-B - 9.6w IP67 24v DC Blue COB Dotless LED Strip
HV9761-IP67-320-B - 9.6w IP67 24v DC Blue COB Dotless LED Strip
HV9761-IP67-320-B - 9.6w IP67 24v DC Blue COB Dotless LED Strip
Loading... + Add to wishlist - Remove from wishlist
Havit Lighting
SKU: HV9761-IP67-320-B

HV9761-IP67-320-B - 9.6w IP67 24v DC Blue COB Dotless LED Strip

3 Years Warranty
3 Years Warranty
IP67 – waterproof to 1m depth
IP67 – waterproof to 1m depth
Soft ambient light
60 lm Learn More!!
Beam angle for focused or wide lighting
120° Beam angle for focused or wide lighting
$33.50
$45.95
$33.50
Product Description
Product Description
x
9.6w IP67 24v DC Blue COB Dotless LED Strip

This is a general-purpose LED strip, the density most jobs actually want. It is bright enough to work under a cabinet or along a stair, and restrained enough to sit in a cove without turning it into a light box.

It is also the density that makes a diffuser worthwhile rather than optional. Bright enough that individual LEDs read as dots when uncovered, not so bright that a diffuser wastes what it produces.

Output and colour

This strip draws 9.6W per metre, producing 60lm per metre.

⚠ Both figures are per metre, not per reel. A long run multiplies them, and that is the number that decides the driver.

Colour rendering is CRI>90 CRI, which describes how faithfully colours appear under the light. It matters most where the lighting falls on food, skin, timber or fabric.

The beam spread is 120°.

Where it can be installed

At IP67 this is rated for wet or exposed positions - outdoors, in bathrooms, or anywhere it will be splashed or rained on.

The rating protects the strip itself. The cut ends and the joints are the vulnerable part of any run, so they have to be sealed properly if the protection is to mean anything in practice.

Powering it

This strip runs at 24V DC, so it needs an LED driver between it and the mains. It cannot be connected to mains directly.

Size the driver from the run, not the reel: multiply the wattage per metre by the metres you are actually installing, then choose a driver comfortably above that total. A supply working at its limit runs hot, and heat shortens both the driver and the strip.

⚠ The driver's output voltage has to match the strip. Connecting 24V strip to the wrong supply either leaves it dark or destroys it, and that is not a warranty claim.

Cutting and installing it

Strip is cut to length at the marked cutting points only. Cutting between them severs the circuit and kills everything past the cut, so plan the run to the nearest marked point rather than to the exact millimetre.

Run it in an aluminium profile. The aluminium draws heat away, which is the single biggest factor in how long a strip holds its brightness, and the diffuser turns the line of separate LEDs into a continuous one.

Test the run before committing it. Adhesive backing does not survive being lifted and re-laid well, and a fault found after the diffuser and end caps are on means taking the whole run apart.

Frequently asked questions
Does it come with a driver?

No. The strip is supplied on its own and needs a 24V DC driver sized to your run.

Is the wattage per metre or per reel?

Per metre. 9.6W is what one metre draws, so multiply by the length of your run before sizing a driver.

Can I cut it to length?

Yes, but only at the marked cutting points. Cutting between them kills the section past the cut.

Can it go outside?

Yes - it is rated IP67. Seal the cut ends and joints properly, as those are the vulnerable points on any run.

Do I need an electrician?

For the mains connection to the driver, yes. That is licensed electrical work in Australia.

What warranty does it carry?

3 Years*

Product Specifications
Product Specifications
x

Specifications

TypeLED strip
Power per metre9.6W
Lumens per metre60lm
CRICRI>90
Beam angle120°
Strip voltage24V DC
IP ratingIP67 - suitable for wet or exposed positions
LED typeCOB
Warranty3 Years*

Variant specifications

Part numberColourPowerLengthIP rating
HV9761-IP67-320-B9.6WIP67
HV9761-IP67-320-B-10M9.6W10 mIP67
