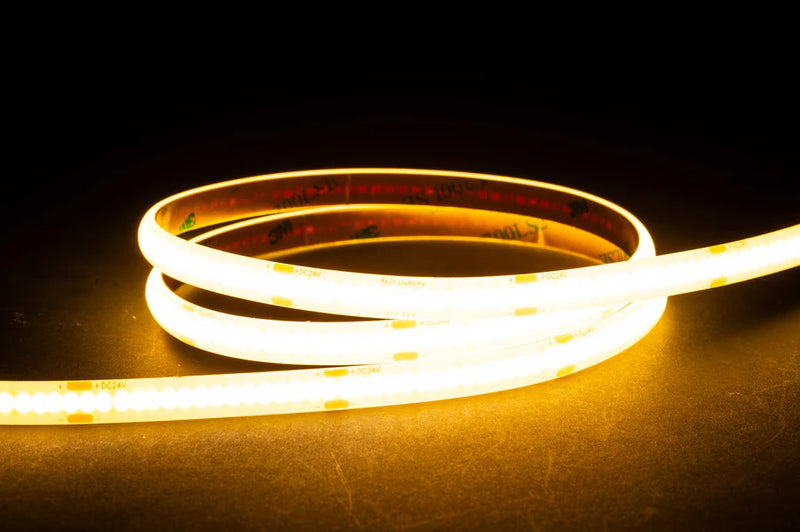

HV9760-IP54-320-3K - 4.8w IP54 24v DC 3000K COB Dotless LED Strip

4.8w IP54 24v DC 3000K COB Dotless LED Strip

This is a low-density LED strip - the kind used where light should be felt rather than seen. It is the strip for a cove, a shadow line, a plinth or the underside of a handrail, adding a glow to a surface without becoming the thing that lights the room.

Low-density strip is the forgiving choice. Fewer LEDs per metre means less heat, a longer life in a confined channel, and a softer line if the diffuser sits close to the strip - the three things that most often go wrong on a decorative run.

Output and colour

This strip draws 4.8W per metre, producing 400lm per metre.

⚠ Both figures are per metre, not per reel. A long run multiplies them, and that is the number that decides the driver.

It is a 3000K product - one fixed colour temperature.

At this colour temperature the light is warm - closer to a filament lamp than to daylight. It flatters timber, brick, brass and skin, and it is what makes a living room, a bedroom or a restaurant feel settled rather than clinical.

⚠ Warm light and white surfaces can fight each other. Against a cool white benchtop or grey tile, a warm strip can read as yellow rather than warm - worth testing a short length before committing to a long run.

Colour rendering is > 80 OR >90 CRI, which describes how faithfully colours appear under the light. It matters most where the lighting falls on food, skin, timber or fabric.

The beam spread is 120°.

Where it can be installed

This strip is rated IP54. Check that against where it is going before ordering.

Powering it

This strip runs at 24V DC, so it needs an LED driver between it and the mains. It cannot be connected to mains directly.

Size the driver from the run rather than the reel: multiply the wattage per metre by the metres you are actually installing. Low-density strip is easy on a supply, so the usual mistake here is the opposite one - buying far more driver than the run needs.

⚠ Check the driver's output voltage against the strip before connecting anything. 24V strip on the wrong supply either stays dark or is destroyed by it.

Cutting and installing it

Strip is cut to length at the marked cutting points only. Cutting between them severs the circuit and kills everything past the cut, so plan the run to the nearest marked point rather than to the exact millimetre.

Run it in an aluminium profile where you can. At this density heat is not the pressing concern, but the channel gives the run a straight line and the diffuser turns a row of points into a continuous one, which is the whole point of a decorative run.

Test the run before the diffuser goes on. Adhesive backing does not survive being lifted and re-laid, so a fault found afterwards means new strip rather than a repair.
