Havit Lighting
SKU: HV5805T-BLK-12V

HV5805T-BLK | HV5805T-BLK-12V - Nella Black 18w Surface Mounted LED Downlight

3 Years Warranty
3 Years Warranty
IP54 – dust and splashproof
IP54 – dust and splashproof
Color Temprature Changing Technology
Color Temprature Changing Technology
Bright for task lighting
1380 lm Learn More!!
Beam angle for focused or wide lighting
120° Beam angle for focused or wide lighting
$208.63
$281.95
$208.63
Product Description
Product Description
x

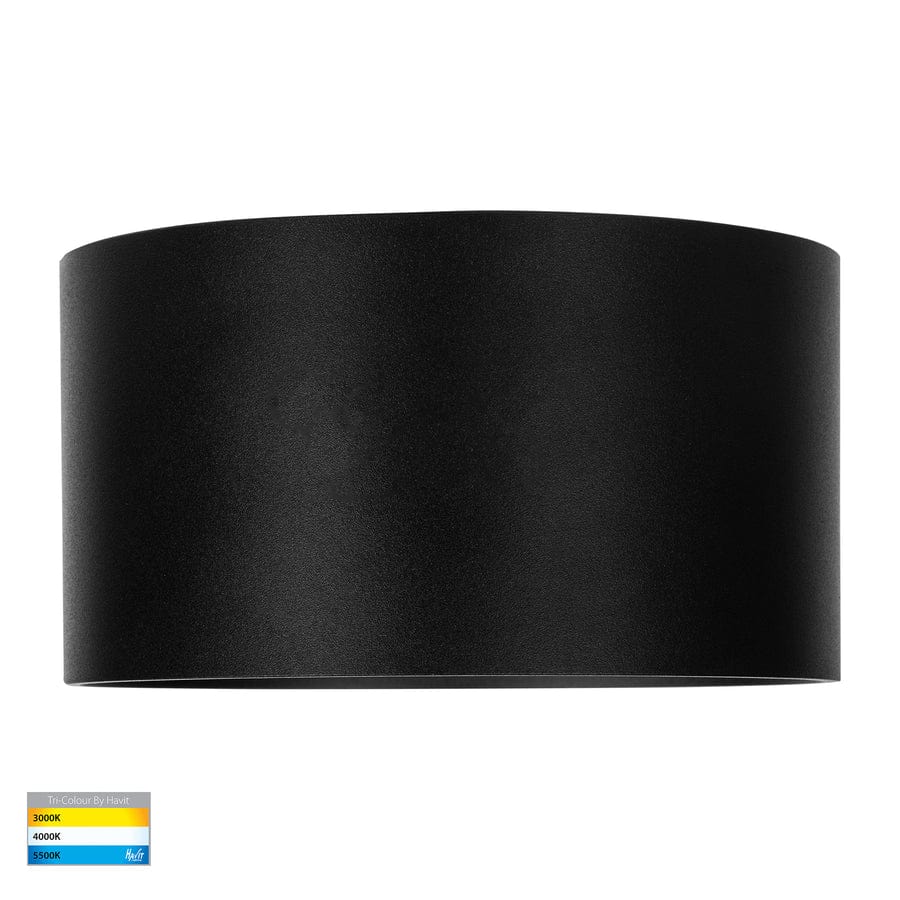

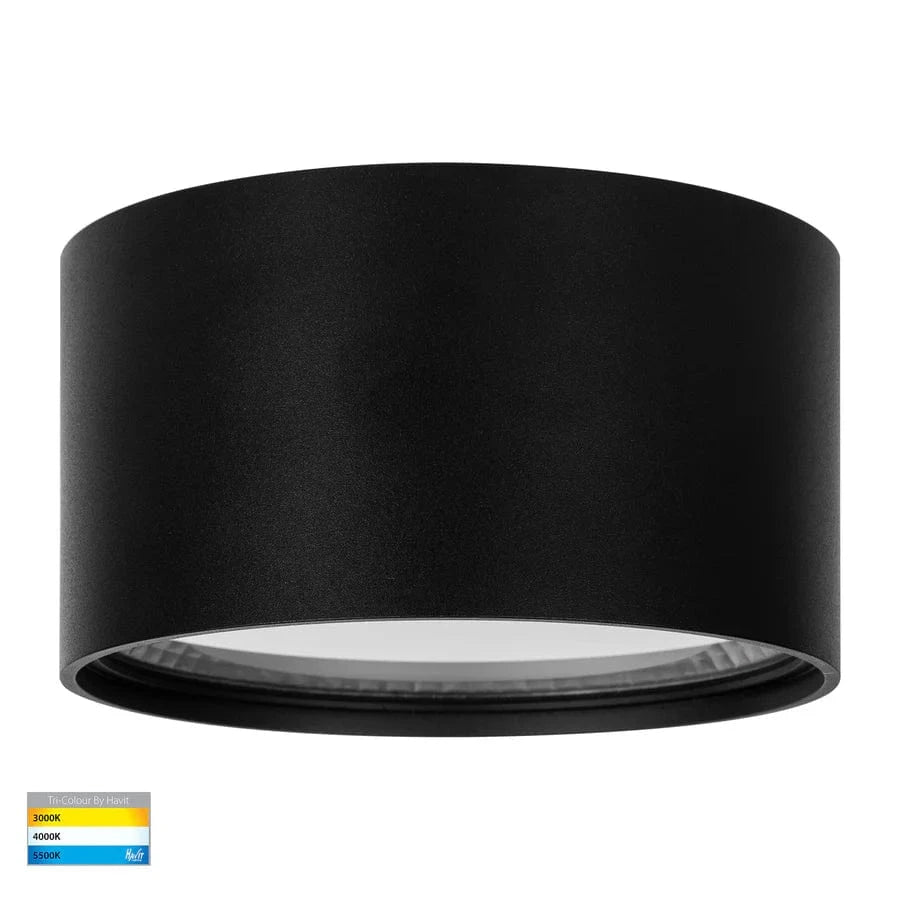

The largest of the surface-mounted Nella bodies: Ø157 mm across and 85 mm deep, in black, running 18 W. At this diameter it stops being trim and becomes a fixture you will notice, which is the right trade in a high room, over a stairwell, or anywhere a smaller disc would look lost. Two of these will light a double garage properly; four will do a warehouse office.

Output

Havit's row gives 1,380 lm at 3000K, 1,430 lm at 4000K and 1,305 lm at 5500K — so once again the peak is at 4000K, and the coolest setting is the dimmest of the three by about 9%. That is a bigger spread than on the 7 W and 12 W bodies, so it is worth being deliberate here: if you want the light cool and bright, this fitting will not give you both, and 4000K is the setting that gets closest. The beam is 120° and colour rendering is CRI >80.

The current this one draws, and why it changes the wiring

Both part numbers on this page are 12 V DC. Eighteen watts at twelve volts is 1.5 A per fitting, which is more than twice what the 7 W model pulls, and at extra-low voltage current is what governs the cable rather than the wattage. Four of these on one driver is 72 W and 6 A on the low-voltage side, so keep the driver close to the fittings, keep the runs short and generously sized, and wire in parallel. Havit's own instruction is unambiguous: do not connect the light fitting directly to 240 V. The fitting is Protection Class 3 and takes no earth.

Fixing, and the extension body

The base plate is Ø153 mm with three 4 × 10 mm slots and a single Ø4 mm hole; the body twists on. The second option on this page is the extension body, which is the same Ø157 mm shell in a longer housing — Havit does not publish an overall height for it in any sheet supplied with this product, so we have not quoted one. If the exact projection matters to your ceiling, ask us before you order and we will get the figure from Havit rather than estimate it.

Rating and warranty

It is IP54, IK07, behind a semi-frosted glass lens, with >30,000 hrs rated life and 3 years replacement warranty. Havit specifies the 12 V models as not dimmable, and excludes aluminium fittings from sites within 5 km of salt water. The colour switch is inside the body, preset to 3000K. Lights For You stocks this fitting in white as well as black and in 7 W and 12 W bodies for the smaller spans.

Questions
How much light does it actually give?

1,380 lm at 3000K, 1,430 lm at 4000K and 1,305 lm at 5500K. That is roughly two and a half times the 7 W body and about a quarter more than the 12 W.

Which setting is brightest?

4000K. The spread is wider on this model than the smaller two — the coolest setting is about 9% down on the peak — so choose the setting knowing that cool and bright are not the same choice here.

How much current does it draw?

18 W at 12 V is 1.5 A per fitting. Current, not wattage, is what sizes the low-voltage cable, so keep the driver close to the fittings and the runs short and generously sized.

How big is the extension version?

It is the same Ø157 mm shell in a longer housing. Havit does not publish an overall height for it in the sheets supplied with this product, so we have deliberately not quoted a figure — ask us and we will get it from Havit.

Does it need an earth?

No. It runs at extra-low voltage and is Protection Class 3, so no earth is landed at the fitting.

Can it be dimmed?

Havit specifies the 12 V DC models as non-dimmable. Dimming would have to be handled by a driver designed for it.

What is the mounting pattern?

A Ø153 mm base plate with three 4 × 10 mm slots and one Ø4 mm hole, fixed first; the fitting then plugs into its driver and twists onto the plate.

Product Specifications
Product Specifications
x

Specifications

RangeNella
TypeSurface-mounted downlight (no cut-out required)
MaterialAluminium, powder coated
FinishBlack

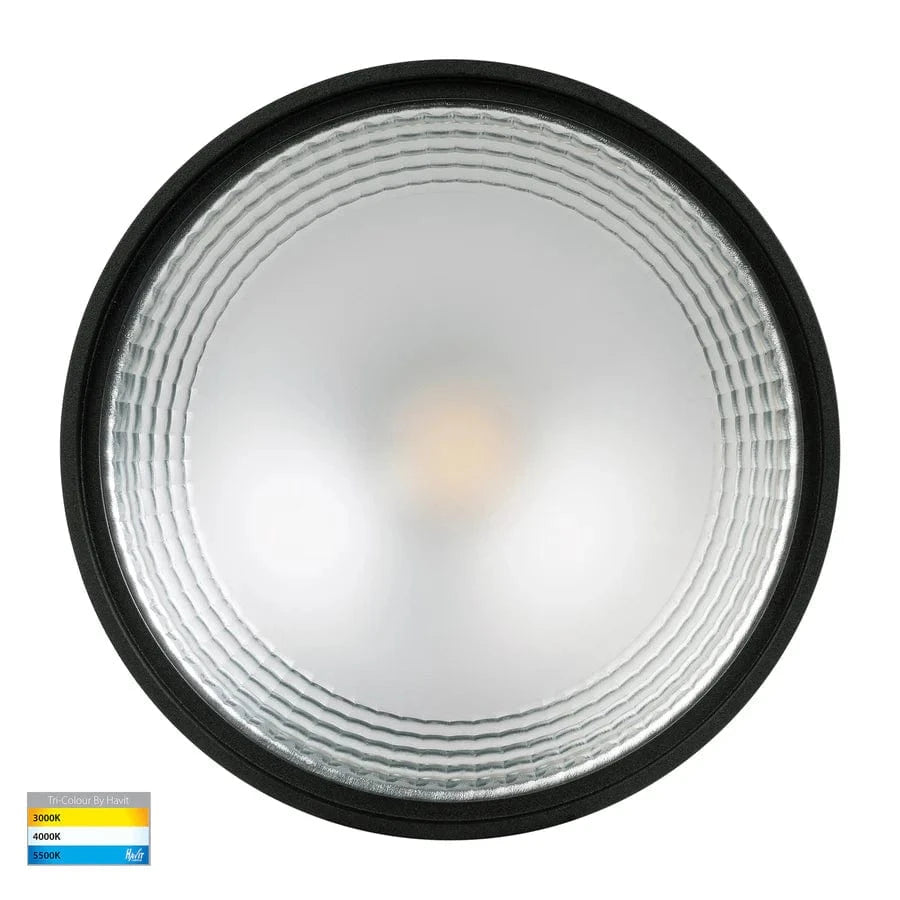

DiffuserSemi frosted glass
Installation typeCeiling — surface mounted
Lamp baseBuilt-in LED
Power18 W
Colour temperatureTri colour — 3000K, 4000K, 5500K (switch inside the fitting, preset to 3000K)
Lumen output1,380 lm / 1,430 lm / 1,305 lm (3000K / 4000K / 5500K) — brightest at 4000K
Beam angle120°
CRI>80
IP ratingIP54
IK ratingIK07
Input voltage12 V DC — constant-voltage LED driver required
Current draw1.5 A per fitting at 12 V
Protection classClass 3 (extra-low voltage — no earth required)
DimmableNo (Havit specifies Triac dimming for the directly-wired models only)
WiringParallel
TiltNo
Lamp expectancy>30,000 hrs

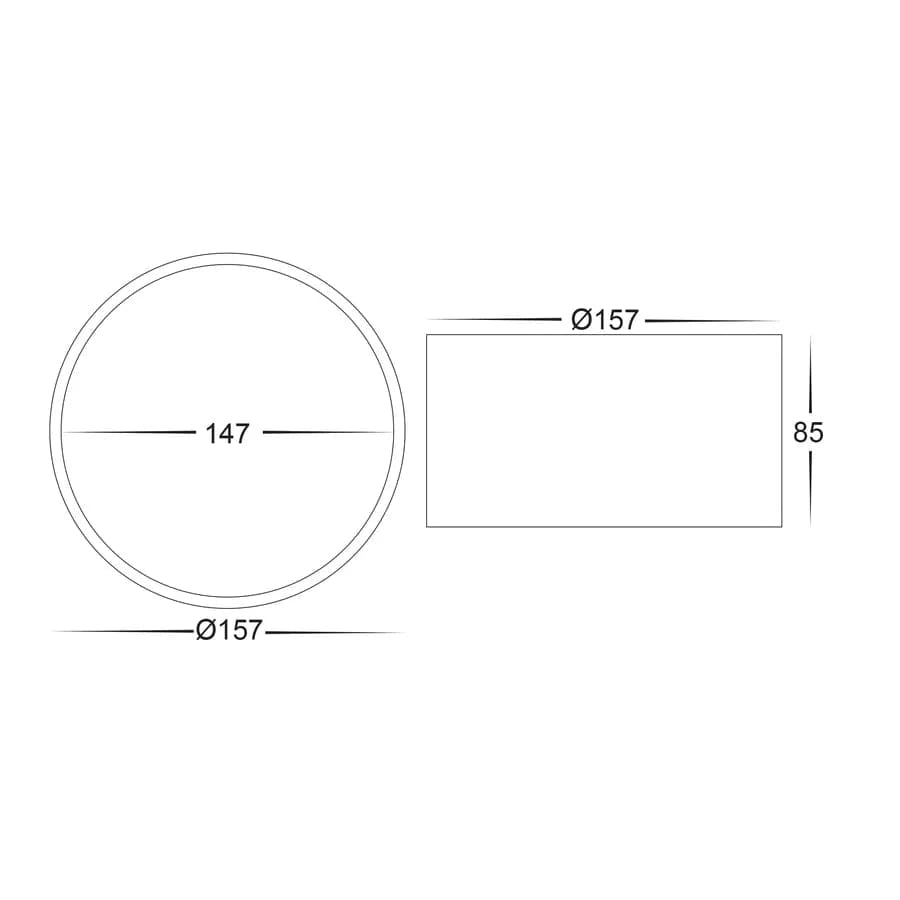

Dimensions — standard bodyØ157 mm × 85 mm
Dimensions — extension bodyØ157 mm — overall height not published by Havit
Mounting baseØ153 mm, 3 × 4 × 10 mm slots + 1 × Ø4 mm hole; twist-lock
Siting restrictionNot within 5 km of a salt-water environment (Havit)
Warranty3 Years Replacement*

Variant specifications

Part numberFinishBodyColour temperatureLumensPowerBeam angleSupplySizeBarcode
HV5805T-BLK-12VBlackStandard3000K / 4000K / 5500K1380lm / 1430lm / 1305lm18 W120°12 V DC — constant-voltage driver requiredØ157 × 85 mm9350418032959
HV5805T-BLK-EXT-12VBlackExtension3000K / 4000K / 5500K1380lm / 1430lm / 1305lm18 W120°12 V DC — constant-voltage driver requiredØ157 — height not published9350418032966
