GT-504 Siena Sphere Exterior Pillar Mount

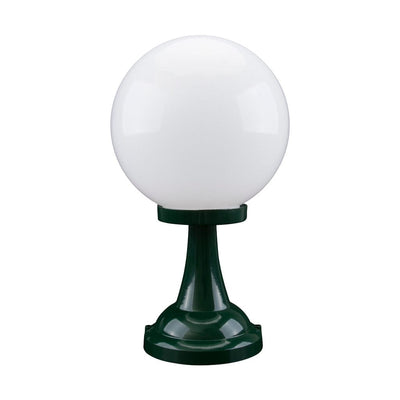

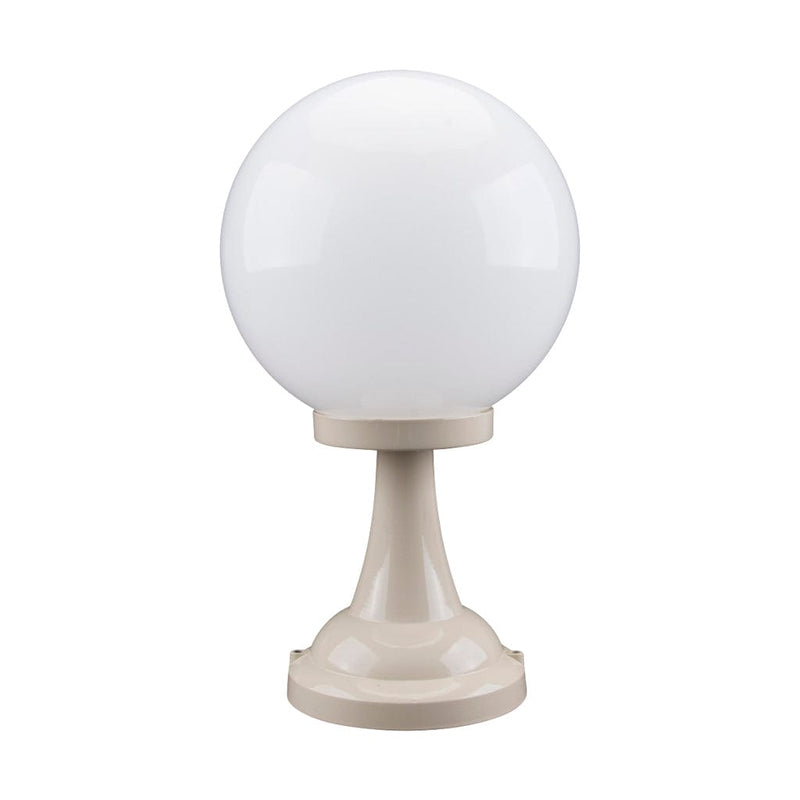

The Domus GT-504 Siena sphere pillar mount is a pier-top exterior light — Ø170 mm sphere on a 430 mm high mount, 300 mm wide, E27, 240 V, IP43, in five colours.

⭐ A sphere reads the same from every direction — which is the point on a pier

• ⭐⭐ A GATE PIER IS APPROACHED FROM SEVERAL ANGLES: from the road, from the drive, from the footpath and from inside the property.
• ⭐ A LANTERN HAS A FRONT, SIDES AND A BACK, so it is composed for one viewpoint and is compromised from the others. ⭐ A sphere has no orientation at all — it presents the identical silhouette from every approach.
• ⭐ THAT ALSO REMOVES A DECISION AT INSTALLATION. ⭐ There is no “which way should it face”, and no chance of the pair on two piers being rotated differently from each other — which on lanterns is a small error that is very visible once you notice it.
• ⭐ IT IS ALSO THE MORE MODERN READING. ⭐ A sphere suits rendered, masonry or contemporary piers where a period lantern would look applied.

⭐ Pillar mounting is the cheapest exterior position on a property that has a pier

• ⭐⭐ EVERY OTHER EXTERIOR ARRANGEMENT NEEDS SOMETHING BUILT. ⭐ A post needs a footing dug and poured; a wall bracket needs a wall in the right place; a bollard needs a footing and a trench. ⭐ A pillar mount needs a pier that is already there.
• ⚠ WHAT IT STILL NEEDS IS A CABLE ROUTE. ⭐ Getting a supply to the top of a solid masonry pier is straightforward if a conduit was built in and a real problem if it was not. ⭐ Check before specifying — surface conduit up a pier is conspicuous.
• ⭐ AND CHECK THE PIER TOP. ⭐ The mount is 300 mm wide, so the pier top must be larger than that and flat. ⭐ A brick-and-a-half pier at about 350 mm suits it; ⚠ a single-brick pier at 230 mm does not. ⚠ A capped pier with a moulded or pitched top needs the cap worked or a spreader plate, which is masonry work rather than electrical.
• ⭐ PROPORTION MATTERS AS MUCH AS FIT. ⭐ A 430 mm mount on a 1.2 m pier adds a third again to its height, which reads as generous; on a 2 m pier it looks modest.

⚠ IP43 on the most exposed position in the range

• ⭐ IP4X keeps out objects over 1 mm — wires and most insects. IPX3 covers spraying water to 60° from vertical. ⛔ Not driving rain, hosing or sprinklers.
• ⭐⭐ A PIER TOP IS THE MOST EXPOSED POSITION ANY OF THESE ARRANGEMENTS OCCUPIES. ⭐ No eave, no wall, nothing around it to break the wind — so wind-driven rain reaches it from every direction and the fitting's own body is its only shelter.
• ⭐ THE SPHERE HELPS HERE TOO: a curved surface sheds water in every direction rather than holding it in a horizontal seam, which is where a lantern usually lets water in.
• ⭐ SEAL THE BASE TO THE PIER PROPERLY AT INSTALLATION. ⚠ Water sitting between the fitting and the masonry is what corrodes the fixing, and it is the point nobody inspects.

⭐ E27, no lamp, and opal is the only sensible choice

⭐ The lamp is not included. ⭐⭐ IN A SPHERE THE LAMP IS VISIBLE FROM EVERY ANGLE AND THERE IS NOWHERE FOR IT TO HIDE, so a clear or filament lamp is a bright point at the entrance — glary from a car, from the footpath and from neighbouring properties. ⭐ An opal E27 fills the sphere and turns it into a single glowing object, which is the entire effect this fitting exists for. ⚠ A globe-shaped lamp sized to fill the Ø170 mm sphere works better than a compact one sitting low, which lights the bottom half and leaves the top dim. ⭐ Warm rather than cool: at an entrance, cool white reads as institutional.

⭐ In pairs, almost always

⭐ Gate piers come in pairs, and so should the spheres. ⭐⭐ THAT MEANS TWO LAMPS THAT MUST MATCH: bought from one batch and replaced together, because the two piers are seen side by side and a difference in colour or brightness between them is unmissable. ⭐ It also means two cable routes, which is worth confirming before specifying rather than after. ⭐ The sheet names related references — GT-502 and GT-503 wall brackets, and the GT-544/545 — so the Siena shape can carry across a property.

⛔ Made to order

Allow up to 10 business days for production. ⭐ Published, which is unusual in this catalogue — five colours in a made-to-order range means the finish is applied to your order.

✅ What is published

Where it works

• ⭐⭐ Masonry gate piers — ⭐ nothing to build.
• ⭐ Rendered and contemporary piers — ⭐ where a lantern looks applied.
• ⭐ Approached from several angles — ⭐ no front or back.
• ⚠ Not on a single-brick pier — ⭐ 300 mm needs 350.
• ⚠ Not without a cable route — ⭐ surface conduit is conspicuous.

Specifying it

Pier-top exterior sphere light. Ø170 mm sphere, 430 mm high, 300 mm wide. E27, lamp not included. 220–240 V. IP43. Aluminium. Five colours. Made to order, up to 10 business days. 1-year warranty. ⭐ A SPHERE READS THE SAME FROM EVERY DIRECTION, WHICH IS THE POINT ON A PIER: a gate pier is approached from the road, the drive, the footpath and from inside the property, and a lantern has a front, sides and a back so it is composed for one viewpoint and compromised from the others. It also removes a decision at installation — no "which way should it face", and no chance of the pair on two piers being rotated differently from each other. ⭐⭐ AND PILLAR MOUNTING IS THE CHEAPEST EXTERIOR POSITION ON A PROPERTY THAT ALREADY HAS PIERS, because every other arrangement needs something built. ⚠ WHAT IT STILL NEEDS IS A CABLE ROUTE.

Supplied and supported by Lights For You.
