3 Years Warranty
Find the right driver for this fitting
Product Description

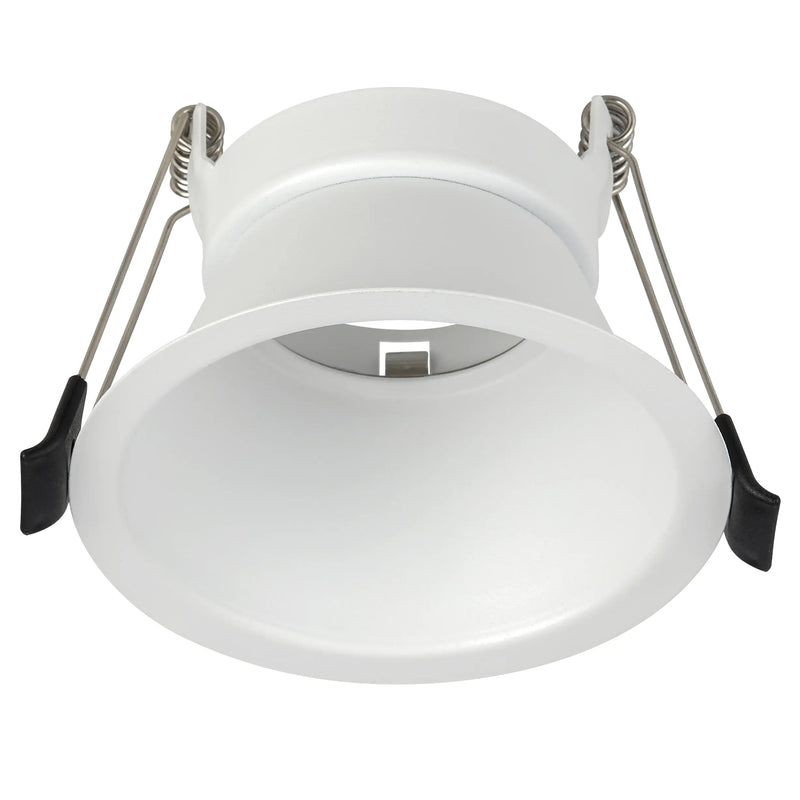

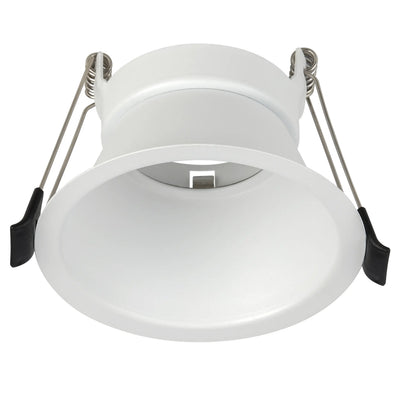

xThe Elia 90 is a white downlight frame — frame only, into a 76 mm cut-out. It contains no light source.
There is no LED in this product. It is the trim; the light comes from a compatible module bought separately. Tell us what you are lighting and we will match one — wattage, colour temperature and beam angle come from that choice, not from this frame.
⛔ This one is IP20 — NOT for bathrooms. Unlike the 601 and 703 frames in the same range, which are IP44, the Elia has no splash protection. It is for dry rooms only. If it is going in a bathroom, laundry or anywhere near water, ask us for one of the IP44 frames instead.
Flush and clean-lined
The Elia is the plainest of the frames — a simple white trim with no gimble, no adjustment and no visible detail, giving a neat flush finish against a white ceiling. Where the 703 tilts and the 601 comes in nickel, this one is designed to disappear entirely. In a room with a dozen downlights that is often exactly what you want.
Featherweight
0.01 kg — ten grams, in aluminium. It puts no load on a ceiling at all.
Why buy a frame separately
You choose the module, and can change it later for a different wattage or colour without touching the ceiling. And when a module eventually fails, you swap the module rather than cutting an integrated downlight out of the plasterboard — which on a ceiling with twelve of them is the difference between an afternoon and a repaint.
A 76 mm cut-out
61.5 mm deep into a 76 mm hole. Note that this is not the common 90 mm Australian cut-out, and it is also different from the 601’s 70 mm and the 703’s 90 mm — the three frames in this range all take different holes. Confirm the cut-out before anyone drills.
Warranty is three years. Our datasheet says five and the record says three. We publish the shorter — and the same five-year sheet figure appears on every downlight frame in this range without support from any other source, so it is worth settling once with Telbix.
Where it works
- Dry rooms — living areas, bedrooms, hallways.
- White ceilings, where the trim should disappear.
- Installations where modules will be upgraded later.
- ⛔ Not bathrooms or laundries — ask us for an IP44 frame.
Specifying it
76 mm cut-out, 61.5 mm deep, 0.01 kg, in aluminium, white. No LED module included — sold separately. IP20 — dry rooms only, NOT bathrooms. Installation by a licensed electrician. Warranty published as three years — the sheet says five; ask us.
Supplied and supported by Lights For You.
Questions
Does it come with an LED?
No — it is the trim only. The light comes from a compatible module bought separately. Tell us what you are lighting and we will match one.
Can it go in a bathroom?
No. This frame is IP20 with no splash protection, unlike the 601 and 703 frames in the same range, which are IP44. Ask us for one of those instead.
What size hole does it need?
76 mm, 61.5 mm deep. Note that the three frames in this range all take different cut-outs — 70 mm, 76 mm and 90 mm. Confirm before anyone drills.
How is it different from the other frames?
It is the plainest — no gimble, no adjustment, no visible detail. Where the 703 tilts and the 601 comes in nickel, this one is designed to disappear entirely.
Why buy a frame and module separately?
You choose the module and can change it later without touching the ceiling. When one fails you swap the module rather than cutting an integrated downlight out of the plasterboard.
How heavy is it?
Ten grams. It puts no load on a ceiling at all.
What is the warranty?
We publish three years. The datasheet says five, unsupported by any other source — the same pattern appears on every frame in this range. Ask us and we will settle it.
Product Specifications
xSpecifications
| Brand | Telbix Lighting |
|---|---|
| Model / SKU | MDL-ELIA-090-WH |
| Type | Downlight frame — FRAME ONLY, no LED |
| Finishes | White |
| Light source | NOT INCLUDED — LED module sold separately |
| IP Rating | ⛔ IP20 — dry rooms only. NOT bathrooms |
| Cut-out | 76mm — differs from the 601 (70mm) and 703 (90mm) |
| Depth | 61.5mm |
| Weight | 0.01kg |
| Material | Aluminium |
| Warranty | 3 Years published — the sheet says 5 Years; ask us |
Variant specifications
| Order code | Finish | Cut-out | Depth | IP | LED module |
|---|---|---|---|---|---|
| MDL-ELIA-090-WH | White | 76mm | 61.5mm | IP20 — dry only | Sold separately |
