3 Years Warranty
Find the right driver for this fitting
Product Description

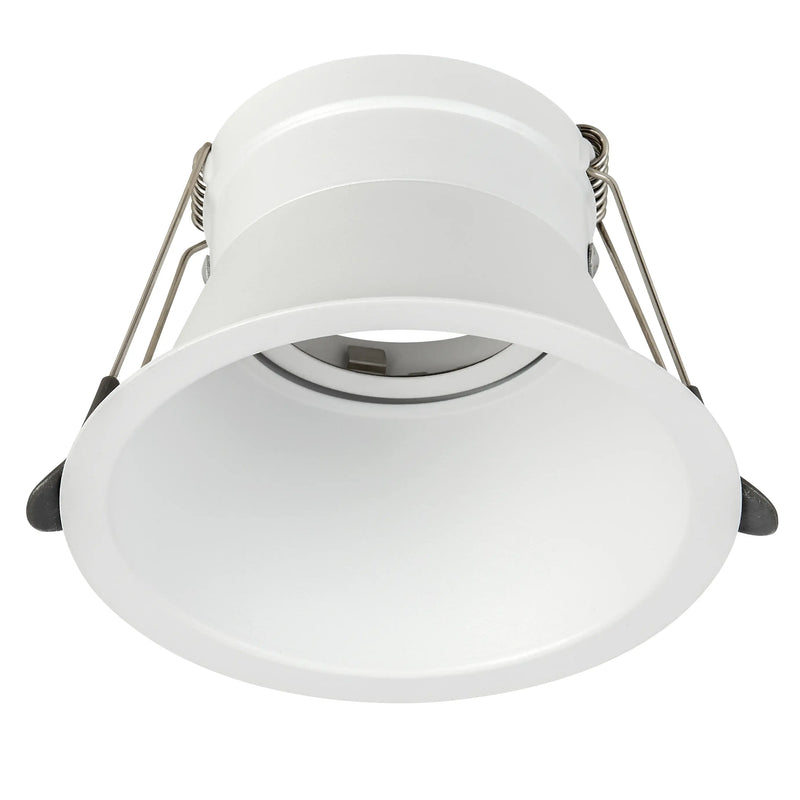

xThe Elia 105 is a white downlight frame — frame only, into a 90 mm cut-out. It contains no light source.
There is no LED in this product. It is the trim; the light comes from a compatible module bought separately. Tell us what you are lighting and we will match one — wattage, colour temperature and beam angle come from that choice, not from this frame.
This one takes the standard 90 mm hole
The single most useful thing about it. 90 mm is the common Australian downlight cut-out, so the Elia 105 drops straight into most existing ceilings with no new cutting — unlike the 601 (70 mm) and the Elia 90 (76 mm), which do not.
⚠ The four frames in this range take four different holes. 601 = 70 mm, Elia 90 = 76 mm, Elia 105 = 90 mm, 703 = 90 mm. They are not interchangeable, and the names do not tell you which is which. Confirm the cut-out before anyone drills.
⛔ IP20 — NOT for bathrooms. Unlike the 601 and 703 frames, which are IP44, the Elia has no splash protection. Dry rooms only. If it is going in a bathroom or laundry, ask us for one of the IP44 frames instead.
Plain, and meant to disappear
A minimalist white trim with no gimble, no adjustment and no visible detail, giving a crisp flush finish against a white ceiling. Where the 703 tilts and the 601 comes in nickel, this one is designed to vanish — which in a room with a dozen downlights is usually what you want.
Why buy a frame separately
You choose the module, and can change it later for a different wattage or colour without touching the ceiling. And when a module fails, you swap the module rather than cutting an integrated downlight out of the plasterboard — which across twelve fittings is the difference between an afternoon and a repaint.
Shallow
67 mm deep, in aluminium. Fits most ceiling voids without difficulty.
Warranty is three years. Our datasheet says five and the record says three. We publish the shorter — and the same unsupported five-year figure appears on all four downlight frames in this range, so it is worth settling once with Telbix.
Where it works
- Retrofits into an existing 90 mm hole.
- Dry rooms — living areas, bedrooms, hallways.
- White ceilings, where the trim should disappear.
- ⛔ Not bathrooms or laundries — ask us for an IP44 frame.
Specifying it
90 mm cut-out, 67 mm deep, in aluminium, white. No LED module included — sold separately. IP20 — dry rooms only, NOT bathrooms. Installation by a licensed electrician. Warranty published as three years — the sheet says five; ask us.
Supplied and supported by Lights For You.
Questions
Does it come with an LED?
No — it is the trim only. The light comes from a compatible module bought separately. Tell us what you are lighting and we will match one.
Will it fit my existing downlight holes?
Probably — it takes the standard 90 mm Australian cut-out, so it drops into most existing ceilings with no new cutting. The 601 (70 mm) and Elia 90 (76 mm) do not.
Are the frames in this range interchangeable?
No. The four take four different holes — 70, 76, 90 and 90 mm — and the names do not tell you which is which. Confirm the cut-out before anyone drills.
Can it go in a bathroom?
No. This frame is IP20 with no splash protection, unlike the 601 and 703 which are IP44. Ask us for one of those instead.
How is it different from the other frames?
It is the plainest — no gimble, no adjustment, no visible detail. Where the 703 tilts and the 601 comes in nickel, this one is designed to vanish.
Why buy a frame and module separately?
You choose the module and can change it later without touching the ceiling. When one fails you swap the module rather than cutting an integrated downlight out of the plasterboard.
What is the warranty?
We publish three years. The datasheet says five, unsupported by any other source — and the same figure appears on all four frames in this range. Ask us and we will settle it.
Product Specifications
xSpecifications
| Brand | Telbix Lighting |
|---|---|
| Model / SKU | MDL-ELIA-105-WH |
| Type | Downlight frame — FRAME ONLY, no LED |
| Finishes | White |
| Light source | NOT INCLUDED — LED module sold separately |
| IP Rating | ⛔ IP20 — dry rooms only. NOT bathrooms |
| Cut-out | 90mm — the STANDARD Australian hole |
| Depth | 67mm |
| Material | Aluminium |
| ⚠ Note | The four frames take four different cut-outs: 70 / 76 / 90 / 90mm |
| Warranty | 3 Years published — the sheet says 5 Years; ask us |
Variant specifications
| Order code | Finish | Cut-out | Depth | IP | LED module |
|---|---|---|---|---|---|
| MDL-ELIA-105-WH | White | 90mm — standard | 67mm | IP20 — dry only | Sold separately |
