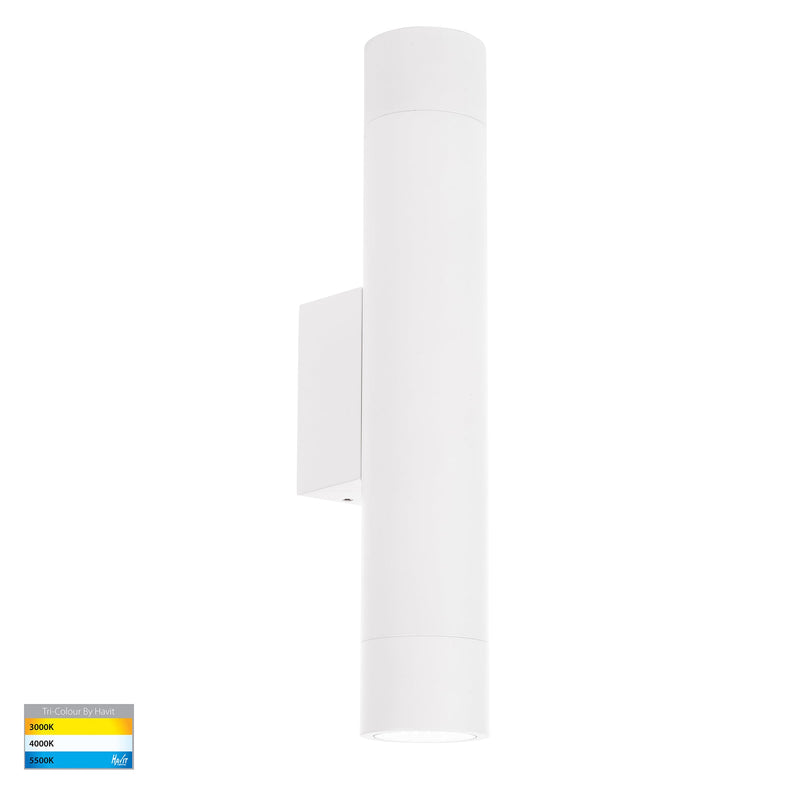

Dugo Up & Down Wall Pillar Light White

Same 280 mm column as the smaller Dugo, opened out to a Ø50 mm body carrying two 5 W LEDs. The step up is not subtle: it produces roughly double the light of the Ø40 mm model, which is the difference between an accent on a low garden wall and a fitting that will actually light the front of a two-storey house.

Output, and where it belongs

Havit quotes it per head — 2 × 530 lm, 2 × 625 lm or 2 × 600 lm by colour setting, so around 1,060–1,250 lm leaving the fitting in total. At that level a pair either side of a front door is a complete entry lighting scheme, and a run of three along a long façade will be plenty. On a single low pillar it will be more than most people want; the 3 W Dugo is the better proportion there.

Which setting is brightest

4000K is the brightest at 2 × 625 lm, with 5500K at 2 × 600 lm and 3000K at 2 × 530 lm. The peak is in the middle, not at the coolest end — worth knowing, because the assumption that cooler means brighter is wrong on this model, and it is also wrong in the other direction on its 3 W sibling, where the two cooler settings are level. Set the switch once, at installation, and set every fitting on a façade the same way.

The beam

A 36° beam up and 36° down: two defined cones rather than a broad wash. On a flat rendered wall the higher output makes those cones read strongly, and at this wattage the upward beam will carry a long way — so leave it room, or the light lands on a soffit rather than on the wall.

Wiring, rating and installation

It runs on 240 V with no separate driver, and is Protection Class 1, so an earth is required at the fitting. Havit specifies it as not dimmable. It is IP65 and IK08, with a clear glass lens, CRI >80, UGR <25 and >30,000 hrs lamp expectancy. A matching backing plate and stainless grub screws are supplied; the plate is the drilling template for the Ø4.8 mm fixings and the cable entry. It is rated indoor or outdoor but for wall mounting only. Warranty is 3 years replacement. Lights For You lists this model in black as well, on its own page, so a mixed-finish elevation can be built from one range.

Coastal siting — Havit’s condition

Havit’s installation instructions for this fitting state that aluminium fittings should not be installed within 5 km of any salt water environment. That is a condition on where the fitting may go, and it sits beside the IP rating rather than inside it: a fitting can be rated for direct rain and still fall outside this rule, because the issue is salt carried in the air rather than water landing on the surface. If your site is inside that zone, talk to us before you specify it — Lights For You can point you at a fitting whose material Havit does not name here.

Download Datasheet (PDF)
