Havit Lighting
SKU: HV10295T

Dugo Up & Down Wall Pillar Light Black

3 Years Warranty
3 Years Warranty
IP65 – suitable for outdoors
IP65 – suitable for outdoors
Color Temprature Changing Technology
Color Temprature Changing Technology
Soft ambient light
170 lm Learn More!!
$60.29
$81.95
$60.29
Product Description
Product Description
x

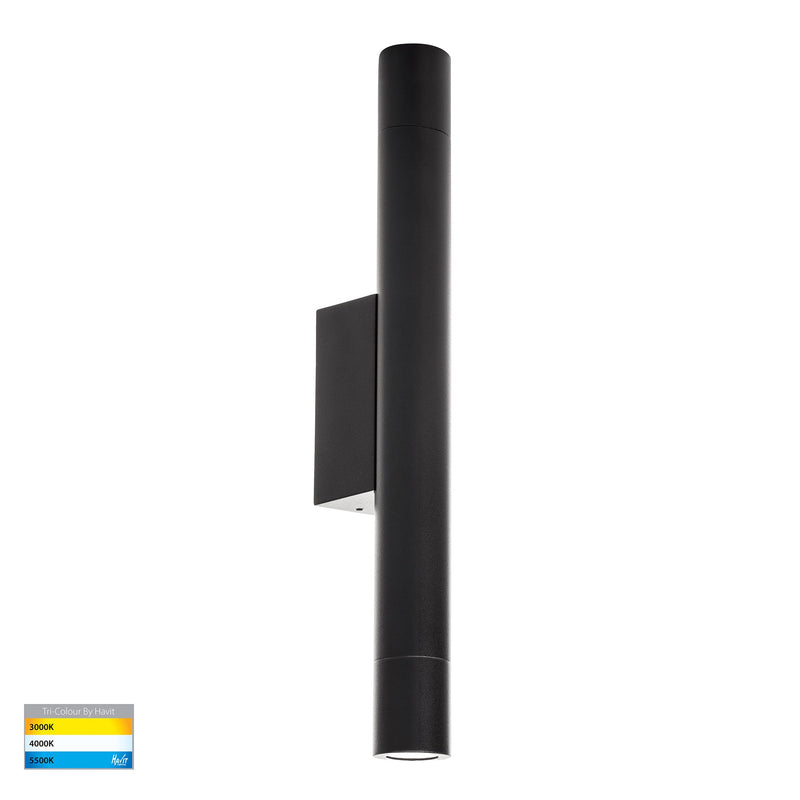

The black 1.5 W Dugo is the discreet end of the range: a Ø25 mm aluminium column, 281 mm tall, powder-coated black, with a small LED firing up and another down. Against dark brick, charcoal render or stained timber the fitting itself all but vanishes by day, which is the usual reason to choose black here — what you are buying is the pair of light marks, not the object making them.

Extra-low voltage, and what that means for the install

This one runs at 24 V DC and Havit is specific about the control gear: use only a suitable 24 V DC constant-voltage LED driver. The driver takes the 240 V supply and steps it down; the fitting itself must only ever see 24 V DC. Size the driver above the combined load of the run — each fitting is 3 W in total — and have the cable sized for the length as well, because voltage drop over a long low-voltage run makes the last fitting look dimmer than the first.

What it puts out

Per head: 2 × 85 lm at 3000K, 2 × 95 lm at 4000K and 2 × 90 lm at 5500K — so 4000K is the brightest, by a small margin. The 36° beam turns that into two tight cones rather than a glow. Treat it as a repeated element: several along a fence line, a garden wall or a set of piers, at roughly 2–3 m centres. A single one on a large wall will not do much.

Earthing, and where the range is inconsistent

Because it is extra-low-voltage, it is Protection Class 3 and needs no earth at the fitting. That is worth checking against what is already installed: the 3 W and 5 W Dugo are Class 1 and do require an earth, so the two halves of this range are not interchangeable and cannot share a circuit. Confirm which version is on the wall before extending an existing run.

Rating and fixings

It is IP65 against dust and water jets and IK08 for impact. Havit specifies it as not dimmable. A matching backing plate and stainless grub screws are supplied, and the plate doubles as the drilling template. It is rated indoor or outdoor, wall mounting only — not in-ground and not submerged. Warranty is 3 years replacement. Lights For You carries every Dugo output step in both finishes, so a garden run and an entry pair can be specified from one family without guessing at the match.

Questions
Do I need a driver, and which one?

Yes — a 24 V DC constant-voltage LED driver, which is the type Havit names. Add up the load of every fitting on the run (3 W each) and choose a driver comfortably above that figure rather than one sized exactly to it.

Does it need an earth?

No. It is Protection Class 3, so no earth is required at the fitting. Be aware that the 3 W and 5 W Dugo in the same range are Class 1 and do need one.

Which colour setting is brightest?

4000K, at 2 × 95 lm. 5500K gives 2 × 90 lm and 3000K gives 2 × 85 lm. Set every fitting in a run identically — a mismatched setting along a fence is much more noticeable than the small output difference.

How many will I need?

Think in terms of a run rather than a fitting. At 2 × 85–95 lm each, spacing them 2–3 m apart along a wall or fence gives an even rhythm. One on its own is a marker, not a light source.

Does the black finish change anything technically?

No. Same body, same 2 × 1.5 W engine, same 36° beam and the same ratings as the white version. The difference is how visible the fitting is against your wall in daylight.

Can I put it on a dimmer?

No. Havit specifies it as non-dimmable, and a dimmer placed between the driver and the fittings will not control them correctly in any case.

Can it go in the ground or in a pond?

No. It is rated for wall mounting only. IP65 covers dust and water jets, not immersion or burial.

Product Specifications
Product Specifications
x

Specifications

RangeDugo
TypeWall pillar light — up and down
MaterialAluminium, poly powder coated
FinishBlack
Installation typeWall — surface mounted (wall mounting only)
Lamp baseBuilt-in LED
Power2 × 1.5 W (3 W total)
Colour temperatureTri colour — 3000K, 4000K, 5500K (switch-selected at installation)
Lumen output2 × 85 lm / 2 × 95 lm / 2 × 90 lm (3000K / 4000K / 5500K)
Beam angle36°
Beam directionUp and down
UGR<25
IP ratingIP65
IK ratingIK08
Input voltage24 V DC — a 24 V DC constant-voltage LED driver is required
Protection classClass 3 (no earth required)
DimmableNo
DimensionsØ25 mm × 281 mm high
FixingsMatching backing plate supplied, stainless grub screws
SuitabilityIndoor or outdoor, wall mounting only
Warranty3 Years Replacement*

Variant specifications

Part numberFinishColour temperatureLumensPowerBeam angleSupplySizeBarcode
HV10295TBlack3000K / 4000K / 5500K2x 85lm / 2x 95lm / 2x 90lm2 × 1.5 W36°24 V DC — 24 V DC constant-voltage LED driver requiredØ25 × 281 mm9350418042682
