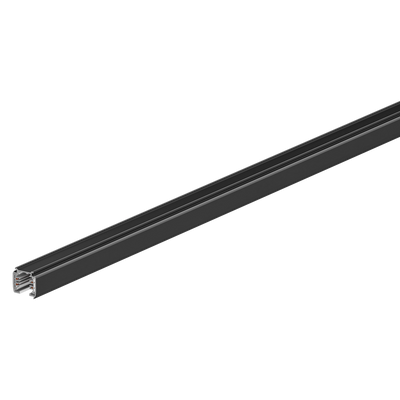

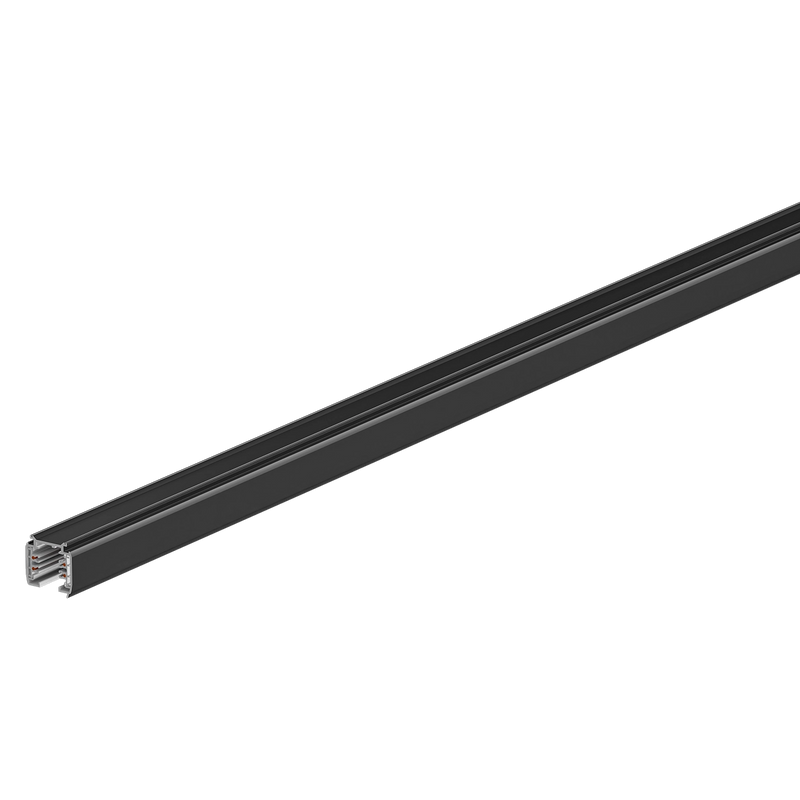

Domus TRAK 3 Circuit Track Sm 240V 3m

The Domus TRAK 3-Circuit Track is a 3 metre surface-mounted track — 3 circuits on 4 wires, 240 V, in black or white.

⭐⭐ Three circuits on four wires — and what that actually buys

• ⭐ The track carries three live conductors and one neutral. ⭐ Each head is set to one of the three circuits when it is fitted, by a switch or orientation on the adaptor.
• ⭐⭐ SO ONE RUN OF TRACK CAN DO THREE INDEPENDENT THINGS:
  • ⭐ The heads that stay on through trading hours.
  • ⭐ Feature and window lighting, switched separately for after hours.
  • ⭐ Cleaning or stocking light, on only when needed.
• ⭐ IN A SHOP THAT TRADES TWELVE HOURS AND IS LIT SIXTEEN, THAT SPLIT SAVES REAL ENERGY — ⭐ and it lets a window stay lit after closing while the sales floor goes dark.
• ⛔⛔ BUT IT HAS TO BE WIRED AND SWITCHED FOR AT FITOUT. ⭐ A 3-circuit track fed from a single switch is an expensive single-circuit track: the capability is bought at the track and lost at the switchboard. ⭐ This is the most common way the money is wasted.
• ⭐ Tell us how you want the space controlled and we will confirm the switching before anything is ordered.

⭐ 3 metres, and how track lengths actually work

• ⭐ Track is sold in fixed lengths and joined with connectors to make a run. ⭐ A 3 metre section is the common module.
• ⭐⭐ PLAN THE RUN IN WHOLE SECTIONS WHERE YOU CAN. ⭐ Track can be cut, but a cut end needs an end cap and the cut has to be clean and square or the heads will not seat properly along it. ⭐ A 9 metre run from three sections is simpler than an 8.5 metre run from two and a cut piece.
• ⭐ THE JOINS ARE VISIBLE, so their positions are a design decision. ⭐ Set them out symmetrically or align them with something in the space rather than letting them fall wherever the sections end.
• ⭐ Connectors, feeds, end caps and suspension are all separate items — ⭐ a track run is a system rather than a product, and the commonest ordering mistake is buying the track and forgetting the rest. ⭐ Tell us the run and we will list what it needs.

⭐ Surface mounted — ceiling or wall

⭐ The family description notes the system is designed for easy ceiling or wall mounting. ⭐⭐ WALL-MOUNTED TRACK IS UNDERUSED AND WORTH CONSIDERING. ⭐ A track run along a wall above a display, with heads aimed outward, lights the merchandise from the front rather than from above — which for shelving is often better, because overhead light leaves the lower shelves in shadow. ⭐ It also puts the fittings within reach for re-aiming. ⚠ The trade is that the track and heads are at eye level and firmly visible, so the finish matters more.

⭐ Capable of high power loads — which is the constraint to check

• ⭐ The description says the system is “capable of high power loads”. ⛔ No figure is published on this listing.
• ⭐⭐ THAT IS THE ONE NUMBER A TRACK RUN IS ACTUALLY LIMITED BY. ⭐ Each circuit has a maximum current, and a run of twelve 32 W heads all set to circuit 1 will reach it long before the same twelve spread across three circuits.
• ⭐ SO THE CIRCUIT ASSIGNMENT IS A LOAD DECISION AS WELL AS A CONTROL ONE. ⭐ Spreading heads across the three circuits is how a long run stays within rating.
• ⭐ Tell us the head count and wattage and we will confirm the run is within the circuit rating before you order.

⛔ What is not published

⛔ No datasheet is attached, and no current rating, conductor size, weight or head-load limit is published. ⭐ For a track system those are the specifications. ⚠ The related accessories in this family hold a sheet flagged contradicted that describes the track generally. ⭐ The record's own voltage is corroborated by the title and the family description, and is what we have published. ⭐ Ask us for the ratings before specifying a long or heavily-loaded run.

✅ What is published

Where it works

• ⭐⭐ Retail that rearranges — ⭐ the lighting follows the merchandising.
• ⭐ Spaces wanting three switching layers.
• ⭐ Wall-mounted above shelving — ⭐ lights it from the front.
• ⛔ Not on a single switch — ⭐ it wastes the system.
• ⚠ Not ordered alone — ⭐ connectors and feeds are separate.

Specifying it

3-circuit 4-wire surface-mounted track, 3 metres, 240 V. Black or white. Ceiling or wall mounting. Connectors, feeds, end caps and suspension sold separately. ⛔⛔ A 3-CIRCUIT TRACK FED FROM A SINGLE SWITCH IS AN EXPENSIVE SINGLE-CIRCUIT TRACK — the capability is bought at the track and lost at the switchboard, and it is the most common way the money is wasted. ⭐ WHAT IT BUYS PROPERLY WIRED: trading light, feature and window lighting switched separately for after hours, and cleaning light on only when needed. ⭐ THE CIRCUIT ASSIGNMENT IS ALSO A LOAD DECISION — spreading heads across the three circuits is how a long run stays within rating, and no current rating is published on this listing.

Supplied and supported by Lights For You.
