Domus Lighting
SKU: 22158

DOMUS TRAK 3 CIRCUIT 240V LIVE LEFT END

3 Years Warranty
3 Years Warranty
Color: Black
$21.00
$27.59
$21.00
Product Description
Product Description
x

The Domus TRAK 3-circuit live left end is the component that brings mains power into a track run at its left-hand end. 40 × 110 × 40 mm, 240 V, IP20, in black or white.

⛔ This is one of a pair, and the two are not interchangeable. The right-hand version has identical recorded dimensions and identical recorded specifications — the only thing that distinguishes them on our catalogue is the word in the title.

What actually decides it: a 3-circuit track carries three live conductors in a fixed order along its length. The feed must enter at the end where your supply cable arrives and present those conductors the right way round, so that the fitting you set to “circuit 1” is on the circuit your electrician wired as 1.

⚠ Getting it wrong does not break anything. The track works; your three switches simply control the wrong groups of lights. It is found at fit-off and fixed by swapping the feed — which is a second trip.

Tell us which end the supply arrives at and which way the track faces, and we will confirm the hand before you order.

⛔ The current rating is not recorded, and the feed is where it matters
  • Everything on the run draws through this component, so its ampere rating is the ceiling on the whole layout — not the track's rating, and not the sum of the fittings you would like to hang.
  • ⚠ No ampere rating appears in any source we hold, for this part or for the six other TRAK components in this catalogue. Domus's own prose calls the system “capable of high power loads” and gives no figure.
  • ⚠ The datasheet attached is the track's, and its parts list does not contain this component.
  • Tell us what you are hanging and how long the run is, and we will get the rating from Domus before the layout is fixed.
Where a left-hand feed is the right answer
  • ✅ Where the supply cable already arrives at that end — usually an existing ceiling point, or the wall the switch drop comes down.
  • ✅ Where the run is short enough that feeding from one end is not a constraint. For a long run, a centre feed halves the distance current travels and roughly doubles the practical length.
  • ⚠ Fix the feed position before the ceiling closes. Moving it afterwards means patching.

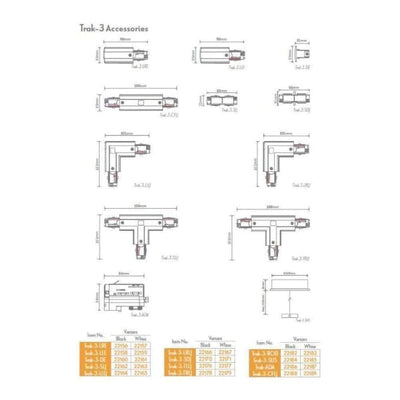

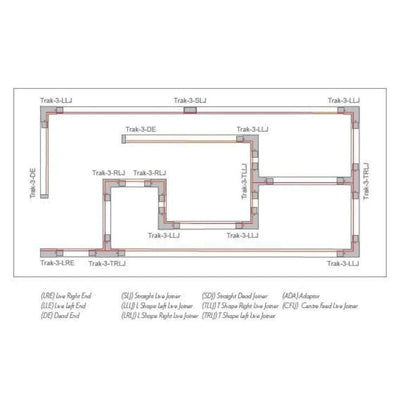

Planning the whole run
  • Track lengths — 1 m surface-mount and other sizes.
  • This live end (or the right-hand version, or a centre feed).
  • A dead end to close the far end.
  • Joiners at every junction — straight, mini straight or angled.
  • ✅ Tell us the length and the shape and we will list every piece, so nothing turns up missing.
Three circuits, three scenes
  • Three separately switched circuits share one physical track, and each fitting is set to one of them when it is clicked in.
  • ✅ Retail: window, general, feature. A kitchen island: task, pendants, accent.
  • ✅ Changing a fitting's circuit later is a hand job once the track is live — no electrician, no patching.
  • ⚠ Three switched supplies have to arrive at this feed. Plan the cabling at rough-in, not at fit-off.
Where it works
  • ✅ Feeding a track run from its left-hand end.
  • ✅ Short runs, and runs where the supply is already at that end.
  • ✅ Retail, galleries, studios and kitchens wanting three scenes from one run.
  • ⛔ Indoor only — IP20.
  • ⛔ Do not plan a load until we have the current rating from Domus.
  • ⚠ Confirm the hand with us before ordering.
Specifying it

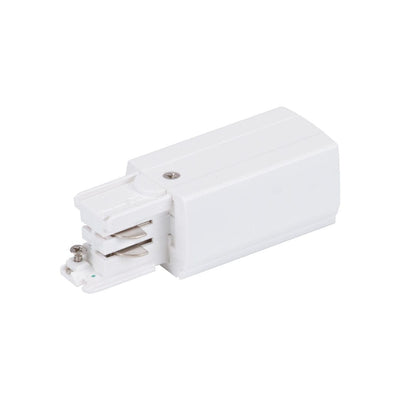

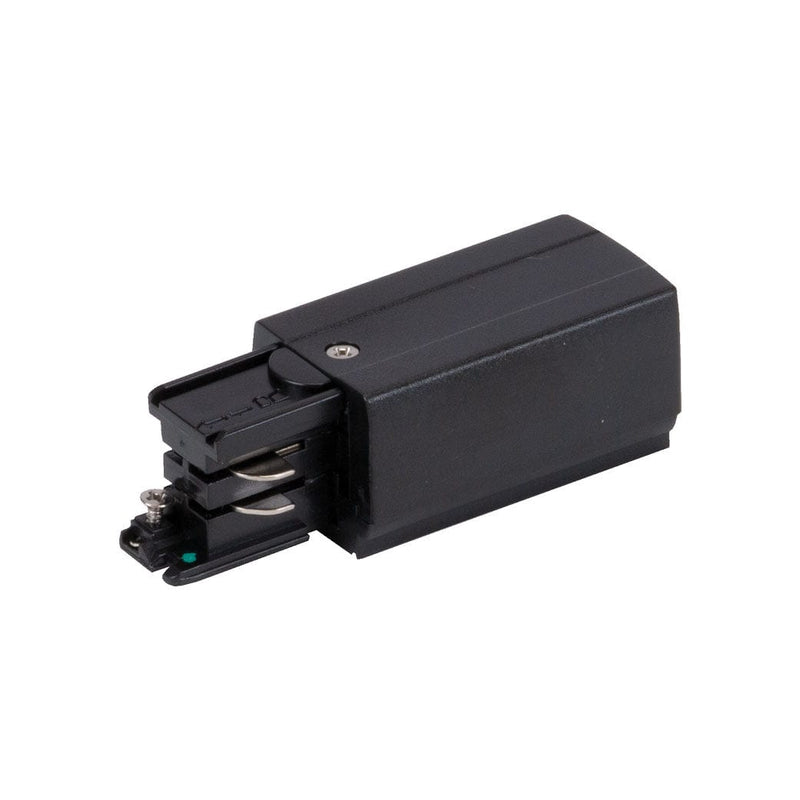

3-circuit live end feed, left hand. 40 × 110 × 40 mm, 240 V AC, IP20. Black (22158) or white (22159). Brings mains supply into a track run at its left-hand end. Part of the modular TRAK 3-circuit system.

⛔ Current rating, maximum load, conductor configuration and material are not recorded in any source we hold, and the datasheet attached is the track's, not this component's. ⚠ A right-hand version exists with identical recorded specifications; only the title distinguishes them. Tell us which end the supply arrives at, which way the track faces, and what you are hanging, and we will confirm both the hand and the rating with Domus before you order. Warranty 3 years.

Supplied and supported by Lights For You.

Questions
How do I know whether I need the left or the right end?

Ask us, and give us two things: which end of the run your supply cable arrives at, and which way the track faces. A 3-circuit track carries three live conductors in a fixed order, and the feed has to present them the right way round so that the fitting you set to "circuit 1" is on the circuit your electrician wired as 1. The two components have identical recorded dimensions and specifications — only the title distinguishes them on our catalogue.

What happens if I order the wrong hand?

Nothing breaks. The track works and the lights come on — but your three switches control the wrong groups of fittings. It is found at fit-off and fixed by swapping the feed, which means a second trip and a second part. That is why it is worth two minutes beforehand.

How many fittings can the run carry?

Not answerable from any source we hold. Everything on the run draws through this feed, so its ampere rating is the ceiling on the whole layout — not the track's rating, and not the sum of what you would like to hang. No figure exists for this or any of the other six TRAK components in this catalogue. Tell us what you are hanging and how long the run is, and we will get it from Domus before the layout is fixed.

Should I feed from an end or from the centre?

From an end where the supply already arrives there and the run is short. From the centre where the run is long — a centre feed halves the distance current travels and roughly doubles the practical run length for the same feed. It is also often the better choice when you are replacing an existing central pendant point with a track run.

What else does a run need?

Track lengths, a feed, a dead end to close the far end, and joiners at every junction. A track run is never just track and any one part missing stops the job. Tell us the total length and shape and we will list every piece before it ships.

Can I change which circuit a fitting is on later?

Yes, and that is one of the better reasons to use 3-circuit track. Once the track is live, setting a fitting to a different circuit is a hand job — no electrician, no patching, no new holes. What has to be planned in advance is the cabling: three switched supplies have to arrive at this feed, and that is a rough-in decision.

Can it go outdoors?

No. It is IP20, indoor dry areas only. Track carries exposed conductors by design, so this is not a rating to work around.

Product Specifications
Product Specifications
x

Specifications

BrandDomus Lighting
Model / SKUsTRAK 3-Circuit Live Left End — 22158 (Black) · 22159 (White)
TypeMains feed at the left-hand end of a 3-circuit track run
Dimensions40 × 110 × 40mm
Right-hand version⚠ Identical recorded specifications — only the title distinguishes them
Current rating⛔ Not recorded in any source — the governing figure for the run
Maximum load⛔ Not recorded
Conductor configuration⛔ Not recorded
Datasheet⚠ The attached sheet is the TRACK's; its parts list does not contain this component
Circuits3, independently switched — three supplies must arrive here
Voltage220–240V AC
IP RatingIP20 — indoor only
FinishesBlack · White
Warranty3 Years

Variant specifications

Tell usWhat it settlesWhy
Which end the supply arrives atLeft or right feedThe conductors have a fixed order
Which way the track facesThe hand of the feedWrong hand = wrong switch groups
What you are hanging, and the run lengthWhether the feed will carry itThe ampere rating is unpublished
