Domus Lighting LED Track Lights Domus THOR-PRO-32 Reflector
Domus Lighting LED Track Lights Domus THOR-PRO-32 Reflector
Loading... + Add to wishlist - Remove from wishlist
Domus Lighting
SKU: 52567

Domus THOR-PRO-32 Reflector

$8.95
$8.95
Product Description
Product Description
x

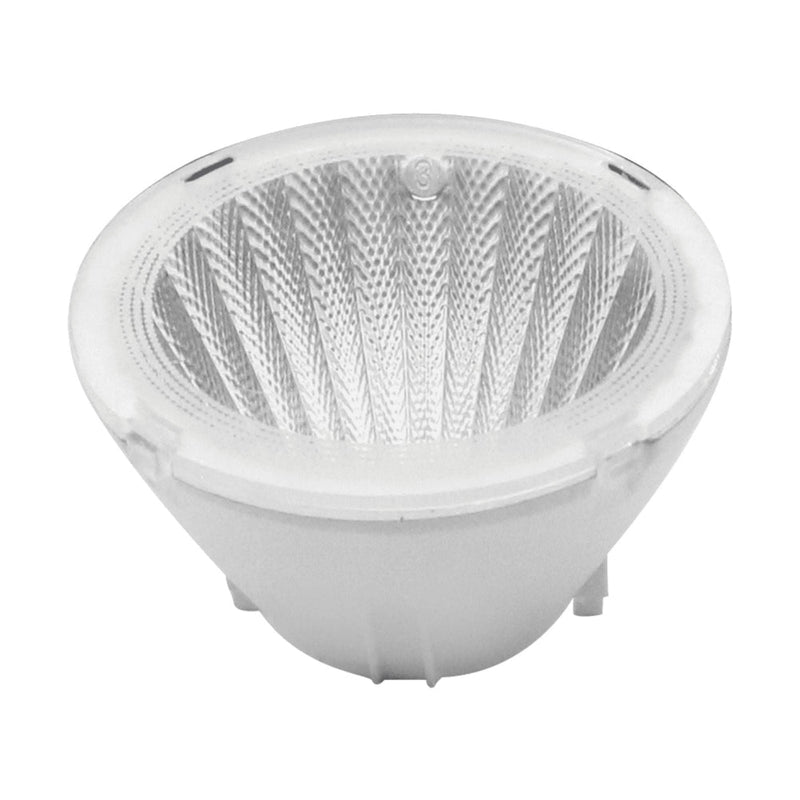

The Domus THOR-PRO-32 Reflector is a replaceable beam-shaping reflector for the 32 W THOR-PRO head — available at 15°, 24°, 45° and 60°.

⭐⭐ At 32 W the narrow reflectors are the ones that make sense
  • ⭐ The 32 W head is the largest in the family and belongs on high ceilings — double-height showrooms, atria, warehouse-conversion retail — or on large single objects.
  • ⭐⭐ AT THAT SIZE, A WIDE REFLECTOR UNDOES THE REASON FOR BUYING IT. ⭐ A 60° optic on a 32 W head spreads a great deal of light over a large area and produces general lighting at a display-lighting price. ⭐ If general lighting is what the area needs, a purpose-built wider fitting does it better and cheaper.
  • ⭐ THE COMBINATION THAT WORKS IS A NARROW ANGLE FROM A HIGH MOUNTING. ⭐ 15° or 24° from 5 or 6 metres throws a controlled pool onto a specific subject with enough intensity to separate it from a brightly lit background — which is exactly what a big atrium needs.
  • ⭐ FROM A 6 m MOUNTING TO A 1 m SURFACE — a 5 m throw:
    • ⭐ 15° — about 1.3 m across. ⭐ A sculpture, a vehicle detail.
    • ⭐ 24° — about 2.1 m. ⭐ A vehicle, a large artwork.
    • ⭐ 36° — about 3.2 m. ⭐ A display area.
    • ⚠ 60° — about 5.8 m. ⚠ General lighting.
⭐ At long throws, aim matters more than optic
  • ⭐⭐ A 15° BEAM FROM 6 METRES THAT IS 3° OFF MISSES ITS TARGET BY ABOUT 300 mm. ⭐ The same error at 2 metres is 100 mm and forgivable. ⭐ SO THE NARROW OPTICS DEMAND CARE IN PROPORTION TO THE MOUNTING HEIGHT.
  • ⭐ AIM THEM AT NIGHT OR WITH THE SPACE DARKENED, from the position people will actually view from — ⭐ not from directly beneath, and not at midday when nothing is visible.
  • ⭐ ON TRACK THAT IS RECOVERABLE — ⭐ the head slides and rotates — ⭐ but at 6 metres it means a lift, so getting it right in one visit is worth planning.
  • ⚠ AND CONSIDER THE VIEWING ANGLE. ⭐ A powerful narrow beam aimed down a long sightline puts a very bright source in somebody's eye-line somewhere. ⭐ Pair narrow optics with a black baffle as a matter of course at this wattage.
⭐ Ordering: the head plus the angle you actually need

⭐ The head ships with 36°, which at 32 W is rarely the angle you want. ⭐⭐ SO UNLIKE THE SMALLER HEADS, THIS IS THE ONE WHERE ORDERING A REFLECTOR ALONGSIDE EVERY HEAD IS USUALLY RIGHT — ⭐ most 32 W applications want 15° or 24°. ⭐ Tell us the mounting height and what you are lighting and we will specify the angle. ⭐ The supplied 36° reflectors then become the spares.

⛔ No datasheet, and no output figures for the head either

⭐ No sheet is attached to this listing, and the 32 W head itself publishes no lumen figures anywhere in the catalogue. ⭐⭐ SO NEITHER THE HEAD'S OUTPUT NOR THE REFLECTOR'S EFFECT ON IT CAN BE STATED, AND WE HAVE NOT ESTIMATED EITHER. ⭐ On a scheme designed to a lux target that is a call worth making before ordering. ⭐ The record also publishes bulb_type = Built-in LED on a shaped cone; ⭐ across the ten optical accessories here, all ten carry an electrical field.

✅ What is published
Specification Value
⭐ Angles available ⭐ 15° · 24° · 45° · 60° — ⭐ 36° ships with the head
⭐⭐ At 32 W prefer ⭐ 15° or 24° from a high mounting
⚠ Avoid ⚠ 60° on a 32 W head — ⭐ general lighting at a display price
⭐ Pool at a 5 m throw ⭐ 15° ≈ 1.3 m · 24° ≈ 2.1 m · 36° ≈ 3.2 m
⚠ Aim tolerance ⚠ 15° at 6 m: 3° off = ~300 mm miss
⭐ Aim when ⭐ At night, ⭐ from the actual viewing position
⭐ Pair with ⭐ A black baffle — ⭐ as a matter of course at this wattage
⭐ Ordering ⭐ A reflector with every head — ⚠ 36° is rarely wanted here
⛔ Head output ⛔ Not published anywhere — ⭐ and not estimated
⛔ Datasheet / material ⛔ Neither published
Where it works
  • ⭐⭐ Atria and double-height showrooms — ⭐ 15° or 24°.
  • ⭐ Vehicles, sculptures, large artworks.
  • ⭐ Warehouse-conversion retail.
  • ⚠ Not at 60° — ⭐ a wider fitting is cheaper and better.
  • ⛔ Not to a lux target without asking us for the head's output.
Specifying it

Replaceable beam-shaping reflector for THOR-PRO-32 heads. Available at 15°, 24°, 45° and 60°; 36° is supplied with the head. ⭐⭐ AT 32 W THE NARROW REFLECTORS ARE THE ONES THAT MAKE SENSE. A 60° optic on the largest head in the family spreads a great deal of light over a large area and produces general lighting at a display-lighting price — if that is what the area needs, a purpose-built wider fitting does it better and cheaper. ⚠ AND NARROW OPTICS DEMAND CARE IN PROPORTION TO MOUNTING HEIGHT: a 15° beam from 6 metres that is 3° off misses by about 300 mm, where the same error at 2 metres is 100 mm and forgivable. ⭐ Aim at night, from the actual viewing position, and pair narrow optics with a black baffle as a matter of course.

Supplied and supported by Lights For You.

Questions
Which angle should I use on a 32W head?

15 or 24 degrees, from a high mounting. The 32W head belongs on high ceilings or large single objects, and at that size a wide reflector undoes the reason for buying it — a 60 degree optic spreads a great deal of light over a large area and produces general lighting at a display-lighting price.

What if I need general lighting there?

Use a purpose-built wider fitting. It will do the job better and cheaper. The 32W head with a narrow optic is where the money is well spent — throwing a controlled pool onto a specific subject with enough intensity to separate it from a brightly lit background.

What pool size will I get?

From a 6m mounting to a 1m surface, which is a 5m throw: 15 degrees gives about 1.3m across, 24 about 2.1m, 36 about 3.2m and 60 about 5.8m.

How precise does the aim need to be?

Much more precise than on a low mounting. A 15 degree beam from 6 metres that is 3 degrees off misses its target by about 300mm, where the same error at 2 metres is 100mm and forgivable. Narrow optics demand care in proportion to the mounting height.

When should I aim them?

At night, or with the space darkened, and from the position people will actually view from — not from directly beneath, and not at midday when nothing is visible. On track it is recoverable because the head slides and rotates, but at 6 metres that means a lift, so getting it right in one visit is worth planning.

Anything else to consider at this wattage?

The viewing angle. A powerful narrow beam aimed down a long sightline puts a very bright source in somebody's eye-line somewhere. Pair narrow optics with a black baffle as a matter of course at 32W — it costs almost no light and solves a good deal of discomfort.

Should I order a reflector with every head?

On this size, usually yes — unlike the smaller heads. The head ships with 36 degrees, which at 32W is rarely the angle you want, and most applications want 15 or 24. Tell us the mounting height and what you are lighting and we will specify the angle; the supplied 36 degree reflectors then become the spares.

Product Specifications
Product Specifications
x

Specifications

BrandDomus Lighting
Model / SKUsTHOR-PRO-32 Reflector — 52567 60°, 52568 45°, 52569 24°, 52570 15°
⭐⭐ AT 32 W THE NARROW ANGLES MAKE SENSE⭐ 15° or 24° from a high mounting
⚠ A 60° optic on the largest head⚠ General lighting at a display-lighting price
⭐ If that is what the area needs⭐ A purpose-built wider fitting is better AND cheaper
⭐ Pool at a 5 m throw⭐ 15° ≈ 1.3 m · ⭐ 24° ≈ 2.1 m · 36° ≈ 3.2 m
⚠⚠ AIM TOLERANCE SCALES WITH HEIGHT⚠ 15° at 6 m: 3° off = ~300 mm miss
⭐ The same error at 2 m⭐ Is 100 mm and forgivable
⭐ Aim at NIGHT, from the VIEWING position⚠ Not from beneath, ⚠ not at midday
⭐ Recoverable on track⚠ But at 6 m that means a lift — ⭐ plan for one visit
⭐⭐ PAIR NARROW OPTICS WITH A BLACK BAFFLE⭐ As a matter of course at this wattage
⭐ Order a reflector WITH every head here⚠ 36° is rarely the angle wanted at 32 W
⛔ The head publishes no lumen figures at all⭐ So neither output nor its effect is stated — ⭐ ask us

Variant specifications

AnglePool at 5 m⭐ At 32 W
⭐ 15°≈ 1.3 m⭐ Right
⭐ 24°≈ 2.1 m⭐ Right
36° (supplied)≈ 3.2 m⚠ Often too wide
⚠ 60°≈ 5.8 m⛔ Wrong fitting
