Domus Lighting LED Track Lights Domus THOR-PRO-23 Reflector
Domus Lighting LED Track Lights Domus THOR-PRO-23 Reflector
Loading... + Add to wishlist - Remove from wishlist
Domus Lighting
SKU: 52543

Domus THOR-PRO-23 Reflector

$6.95
$6.95
Product Description
Product Description
x

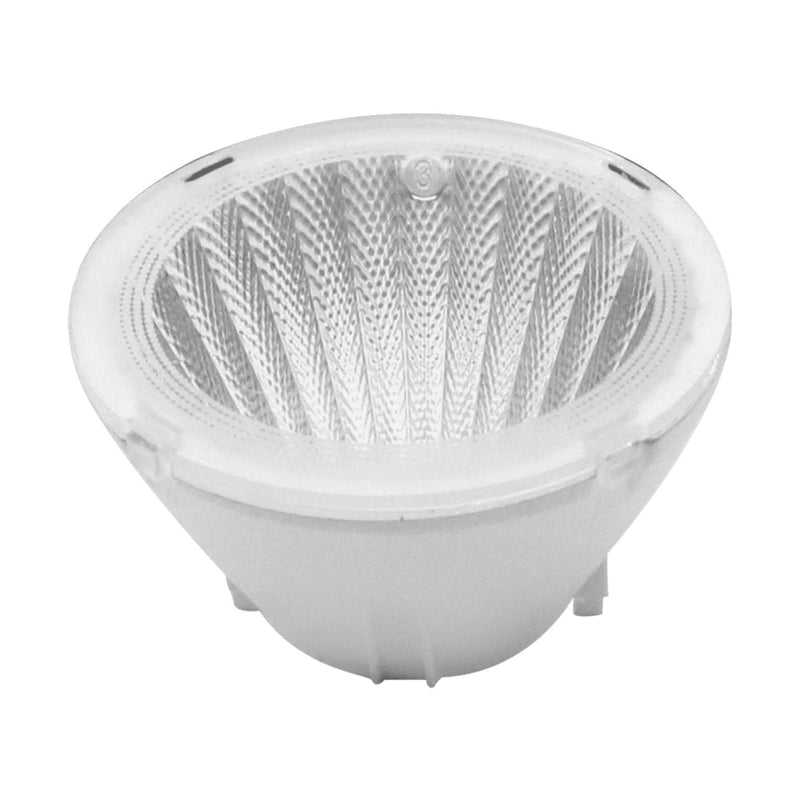

The Domus THOR-PRO-23 Reflector is a replaceable beam-shaping reflector for the 23 W THOR-PRO head — available at 15°, 24°, 45° and 60°.

⭐ The beam angle is changeable, and at 23 W it matters more
  • ⭐ The head ships with a 36° reflector; these are the alternatives. ⭐ Position, aim and optic are all adjustable after installation.
  • ⭐⭐ AT 23 W THE ANGLE CHOICE HAS MORE CONSEQUENCE THAN AT 15, BECAUSE THERE IS MORE LIGHT TO PLACE. ⭐ The same 2,100 lumens through 15° is a genuinely intense pool; through 60° it is a broad general wash. ⭐ Two entirely different lighting effects from one fitting.
  • ⭐ FROM A 4 m CEILING TO A 1 m SURFACE — a 3 m throw, which is where a 23 W head belongs:
    • ⭐ 15° — about 0.8 m across. ⭐ A single dramatic object.
    • ⭐ 24° — about 1.3 m. ⭐ A mannequin or a plinth.
    • ⭐ 36° — about 1.9 m. ⭐ A display bay.
    • ⭐ 60° — about 3.5 m. ⭐ General lighting.
  • ⚠ A 60° REFLECTOR ON A 23 W HEAD IS OFTEN THE WRONG COMBINATION — ⭐ it produces a lot of undifferentiated light and stops being display lighting. ⭐ If general lighting is what the area needs, a cheaper wider fitting usually does it better.
⭐ Buy the head at 36° and stock the angles you need

⭐⭐ BECAUSE THE OPTIC SWAPS, THERE IS NO REASON TO SPECIFY ANGLES PER POSITION AT FITOUT. ⭐ Take the heads as supplied and hold a small stock of 24° for feature positions. ⭐ On a retail floor the right angle for a position changes with the display, and a reflector kept on site is used where one that needs ordering is not. ⭐ Tell us the head count and how many feature positions the space has and we will suggest a spares mix.

⭐ What a reflector changes, and what it cannot
  • ⭐ IT REDISTRIBUTES LIGHT RATHER THAN REMOVING IT. ⭐ Unlike a lens or a honeycomb, a reflector costs essentially no output — the same lumens simply cover a different area. ⭐ Illuminance on the target rises as the angle narrows.
  • ⚠ IT CANNOT FIX A BAD POSITION. ⭐ Narrowing the beam makes a mis-aimed fitting miss more precisely, and at 23 W a missed narrow beam is conspicuous. ⭐ Aim first, then narrow.
  • ⚠ IT DOES NOT CONTROL GLARE. ⭐ That is the baffle's job, and then the honeycomb's. ⭐ A 15° reflector concentrates the source as well as the beam, so if anything it makes a visible fitting harder to look at.
⛔ It has no datasheet of its own

⭐ No sheet is attached to this listing. ⭐ The reflector's material, finish and physical dimensions are not published anywhere. ⭐ Its record publishes bulb_type = Built-in LED, which a shaped metal cone does not have — ⭐ across the ten optical accessories in this catalogue, all ten carry at least one electrical field. ⭐ Confirm with us that the reflector suits the head generation you have before ordering; an accessory that does not seat correctly is the one failure that is obvious immediately.

✅ What is published
Specification Value
⭐ Angles available ⭐ 15° · 24° · 45° · 60° — ⭐ 36° ships with the head
⭐ Suits ⭐ THOR-PRO-23 heads — ⭐ recessed, surface and track
⭐ What changes ⭐ Concentration, not lumens
⭐ Pool at a 3 m throw ⭐ 15° ≈ 0.8 m · 36° ≈ 1.9 m · 60° ≈ 3.5 m
⚠ 60° at 23 W ⚠ Often the wrong combination — ⭐ a wider fitting does it better
⭐ Output cost ⭐ Essentially none — ⭐ it redistributes
⚠ It does not control glare ⭐ That is the baffle, then the honeycomb
⭐ How to order ⭐ Heads at 36° + ⭐ a small stock of 24°
⛔ Datasheet / material ⛔ Neither published
⛔ Its record publishes ⛔ bulb_type — ⭐ it is a shaped cone
Where it works
  • ⭐ Feature positions on a 23 W head — ⭐ 24° or 15°.
  • ⭐ As on-site spares — ⭐ re-optic as displays move.
  • ⭐ High-ceilinged retail — ⭐ where 23 W belongs.
  • ⚠ Not at 60° on a 23 W head — ⭐ use a wider fitting.
  • ⚠ Not as a glare fix — ⭐ start with a black baffle.
Specifying it

Replaceable beam-shaping reflector for THOR-PRO-23 heads. Available at 15°, 24°, 45° and 60°; 36° is supplied with the head. ⭐ THE BEAM ANGLE IS CHANGEABLE, AND AT 23 W IT MATTERS MORE THAN AT 15, because there is more light to place: the same 2,100 lumens through 15° is a genuinely intense pool and through 60° a broad general wash — two entirely different lighting effects from one fitting. ⭐ A REFLECTOR COSTS ESSENTIALLY NO OUTPUT, unlike a lens or a honeycomb; it redistributes rather than removes. ⚠ IT CANNOT FIX A BAD POSITION though — narrowing the beam makes a mis-aimed fitting miss more precisely, and at 23 W a missed narrow beam is conspicuous. Aim first, then narrow.

Supplied and supported by Lights For You.

Questions
Can I change the beam angle after installation?

Yes. The head ships with a 36 degree reflector and these are the alternatives at 15, 24, 45 and 60 degrees. On track, position, aim and optic are all adjustable after installation.

Does the angle matter more at 23W than 15W?

It does, because there is more light to place. The same 2,100 lumens through 15 degrees is a genuinely intense pool and through 60 a broad general wash — two entirely different lighting effects from one fitting.

What pool size will I get?

From a 4m ceiling to a 1m surface, which is a 3m throw and where a 23W head belongs: 15 degrees gives about 0.8m across, 24 about 1.3m, 36 about 1.9m and 60 about 3.5m. Choose from the object rather than the room.

Is 60 degrees a sensible choice on a 23W head?

Often not. It produces a lot of undifferentiated light and stops being display lighting. If general lighting is what the area needs, a cheaper wider fitting usually does it better — the 23W head with a narrow optic is where the money is well spent.

Does a reflector cost me output?

Essentially none, unlike a lens or a honeycomb. It redistributes light rather than removing it — the same lumens simply cover a different area, and illuminance on the target rises as the angle narrows.

Will a narrower reflector help with glare?

No, if anything the reverse. A 15 degree reflector concentrates the source as well as the beam, so a visible fitting becomes harder to look at. Glare is the baffle's job first and the honeycomb lens's second — start with a black baffle, which costs almost no light.

How should I order them?

Take the heads at 36 degrees as supplied and hold a small stock of 24 degree reflectors for feature positions. Because the optic swaps, there is no reason to specify angles per position at fitout — the right angle changes with the display, and a reflector kept on site is used where one that needs ordering is not.

Product Specifications
Product Specifications
x

Specifications

BrandDomus Lighting
Model / SKUsTHOR-PRO-23 Reflector — 52543 60°, 52544 45°, 52545 24°, 52546 15°
⭐ Angles available⭐ 15° · 24° · 45° · 60° — ⭐ 36° ships with the head
⭐⭐ AT 23 W THE ANGLE MATTERS MORE⭐ There is more light to place
⭐ 2,100 lm through 15°⭐ A genuinely intense pool
⭐ The same through 60°⭐ A broad general wash — ⭐ two different effects, one fitting
⭐ Pool at a 3 m throw⭐ 15° ≈ 0.8 m · ⭐ 36° ≈ 1.9 m · ⭐ 60° ≈ 3.5 m
⚠ 60° on a 23 W head⚠ Often the wrong combination — ⭐ a wider fitting does it better
⭐ Output cost⭐ Essentially NONE — ⭐ it redistributes rather than removes
⚠ It cannot fix a bad position⭐ Narrowing makes a mis-aimed fitting miss more precisely
⚠ And it does not control glare⭐ If anything a 15° concentrates the SOURCE too
⭐ Glare order: baffle → aim → honeycomb⭐ Start with the black baffle
⛔ No datasheet, no material published⛔ And its record publishes bulb_type

Variant specifications

AnglePool at 3 m⭐ Use
⭐ 15°≈ 0.8 m⭐ One object
24°≈ 1.3 m⭐ A plinth
⭐ 36° (supplied)≈ 1.9 m⭐ A display bay
⚠ 60°≈ 3.5 m⚠ Use a wider fitting
