Domus THOR-PRO-23 Lens

The Domus THOR-PRO-23 Lens is a drop-in optical accessory for the 23 W THOR-PRO head — available as a honeycomb louvre or in purple, red, blue, green or yellow.

⭐⭐ At 23 W the honeycomb stops being optional

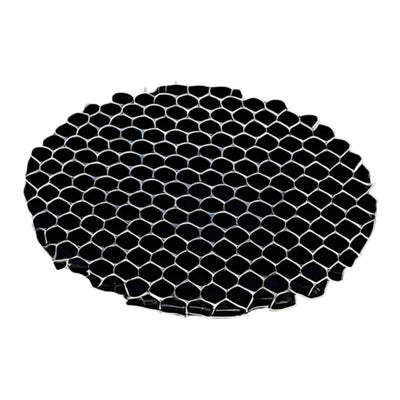

• ⭐ The honeycomb is an anti-glare louvre, not a coloured lens. ⭐ It is a grid of cells that blocks light leaving at wide angles while passing the central beam, so the fitting stops being visible as a bright source from across the room.
• ⭐⭐ AT 2,100 LUMENS FROM A 62 mm APERTURE, THE SOURCE IS GENUINELY UNCOMFORTABLE TO LOOK AT. ⭐ That is a small opening putting out a lot of light, and anyone whose sightline crosses it will notice. ⭐ On a 15 W head a honeycomb is a refinement; on a 23 W head in a space with seating, it is closer to a requirement.
• ⭐ THE POSITIONS THAT NEED IT: restaurants where diners look across the room, galleries where people stand and look up, receptions with low seating, and any track run aimed along a sightline rather than down.
• ⚠ IT COSTS OUTPUT and the figure is not published. ⭐ We have not estimated it. ⭐ Ask us before working to a lux target.

⭐ Work up the glare ladder, not down it

• ⭐⭐ EACH STEP COSTS MORE LIGHT THAN THE ONE BEFORE, so working up the list preserves the scheme. ⭐ A great many glare complaints are solved by a black baffle and a small change of aim, and the honeycomb is what you reach for when those are not enough.
• ⭐ ON A 23 W HEAD, DOING ALL THREE IS OFTEN CORRECT.

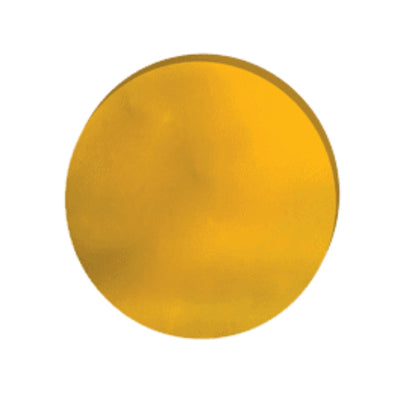

⭐ Coloured lenses at 23 W — more light to lose

⭐ A coloured lens works by absorbing every wavelength except the one it passes. ⭐ It does not convert white light to colour; it discards most of it. ⭐⭐ AT 23 W THAT IS A LARGER ABSOLUTE LOSS THAN ON A SMALLER HEAD, WHICH CUTS BOTH WAYS: ⭐ more light to start with means a deep red or blue is actually usable where a 15 W head filtered to red might be too dim — ⚠ but you are paying 23 W to produce the output of something far smaller. ⭐ For a permanent coloured feature, a coloured LED source is far more efficient; a lens is for temporary or occasional effect on fittings already installed. ⭐ Green and yellow lose least; red and blue lose most.

⛔ Nothing is published about the lenses themselves

⭐ No datasheet is attached. ⛔ No transmission figures, no output loss for the honeycomb or any colour, no material, and no cut-off angle for the louvre — which for a honeycomb is the specification that decides whether it solves your problem. ⭐ WE HAVE NOT ESTIMATED ANY OF IT. ⭐ Tell us the viewing position, the seated eye height and the throw and we will get the figures from Domus. ⭐ Its record publishes bulb_type = Built-in LED; ⭐ all ten optical accessories in this catalogue carry an electrical field.

✅ What is published

Where it works

• ⭐⭐ Restaurants and galleries with 23 W heads — ⭐ honeycomb.
• ⭐ Track runs aimed along a sightline.
• ⭐ Temporary colour on installed fittings.
• ⚠ Not as the first glare fix — ⭐ baffle and aim come first.
• ⚠ Not for permanent colour — ⭐ use a coloured source.

Specifying it

Drop-in optical accessory for THOR-PRO-23 heads. Honeycomb anti-glare louvre, or purple, red, blue, green or yellow lens. ⭐⭐ AT 23 W THE HONEYCOMB STOPS BEING OPTIONAL IN A SPACE WITH SEATING. 2,100 lumens from a 62 mm aperture is a small opening putting out a lot of light, and anyone whose sightline crosses it will notice — on a 15 W head a honeycomb is a refinement, here it is closer to a requirement. ⭐ BUT WORK UP THE GLARE LADDER, NOT DOWN IT: black baffle first (small light cost), then re-aim (none), then honeycomb (meaningful). ⛔ NO TRANSMISSION OR CUT-OFF FIGURES ARE PUBLISHED and we have not estimated them.

Supplied and supported by Lights For You.
