Domus Lighting LED Track Lights Domus THOR-PRO-15 Baffle
Domus THOR-PRO-15 Baffle
Domus Lighting LED Track Lights Domus THOR-PRO-15 Baffle
Domus THOR-PRO-15 Baffle
Loading... + Add to wishlist - Remove from wishlist
Domus Lighting
SKU: 52531

Domus THOR-PRO-15 Baffle

Colour: White
$10.95
$10.95
Product Description
Product Description
x

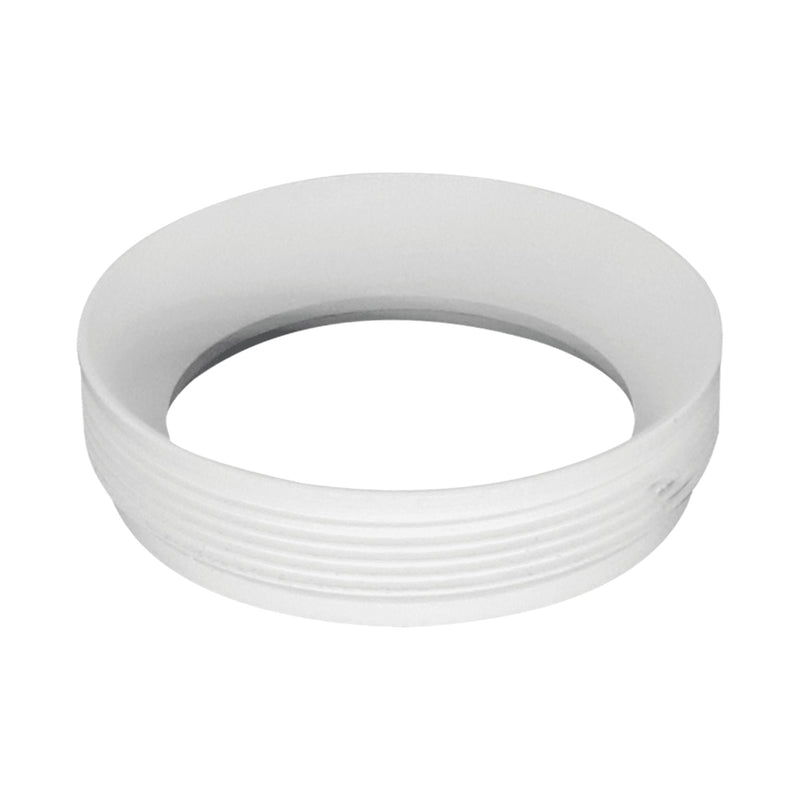

The Domus THOR-PRO-15 Baffle is a replaceable internal baffle for the 15 W THOR-PRO head — available in white or black.

⭐ What a baffle does, and why the colour is the whole point
  • ⭐ A baffle is a ring inside the fitting's aperture, between the LED and the opening. ⭐ It does not shape the beam — that is the reflector's job — it controls what you see when you look into the fitting.
  • ⭐⭐ A BLACK BAFFLE ABSORBS THE STRAY LIGHT THAT A WHITE ONE REFLECTS BACK OUT. ⭐ Look up at a fitting with a white baffle and you see a bright ring; with a black one you see a dark aperture with light coming from deep inside it.
  • ⭐⭐ THAT IS THE CHEAPEST GLARE CONTROL AVAILABLE IN THIS SYSTEM. ⭐ Before reaching for a honeycomb louvre, which costs real output, a black baffle solves a good deal of visual discomfort for almost nothing.
  • ⭐ THE TRADE-OFF IS SMALL BUT REAL: the absorbed light is light that does not reach the target. ⚠ The figure is not published and we have not estimated it.
⭐ Choosing white or black — and it is not about matching the fitting
  • ⭐ THE COMMON MISTAKE IS MATCHING THE BAFFLE TO THE FITTING'S BODY. ⭐ The baffle is inside; the body is outside. ⭐ They do different jobs and there is no reason for them to match.
  • ⭐ A WHITE FITTING WITH A BLACK BAFFLE IS A COMMON AND DELIBERATE COMBINATION — ⭐ the body disappears against a white ceiling and the aperture reads as a dark, glare-free recess. ⭐ It is what most high-end retail specifies.
  • ⭐ CHOOSE BLACK WHEN people look up, look across, or sit under the fitting — ⭐ restaurants, galleries, reception areas, anywhere with low seating.
  • ⭐ CHOOSE WHITE when maximum output matters more than comfort — ⭐ a stockroom, a back-of-house area, a high ceiling where nobody sees into the aperture.
⭐ How baffles, reflectors and lenses stack up
Accessory ⭐ What it controls Output cost
⭐ Baffle ⭐ What you see looking in ⭐ Small
Reflector ⭐ Beam angle ⭐ None — ⭐ it redistributes
Honeycomb lens ⭐ Wide-angle glare ⚠ Meaningful
Coloured lens Colour ⛔ Large
  • ⭐⭐ THE SENSIBLE ORDER OF ATTACK ON A GLARE PROBLEM IS BAFFLE FIRST, THEN AIM, THEN HONEYCOMB. ⭐ Each step costs more light than the one before it, so working up the list rather than down it is what preserves the scheme.
⛔ Its datasheet describes the head

⭐ The sheet attached to this listing publishes 15 W, 1,200–1,300 lumens and CRI ≥90 — figures that belong to the head, not to a baffle ring. ⭐ The record also publishes bulb_type = Built-in LED. ⭐ Measured across the ten optical accessories in this catalogue, all ten carry at least one electrical field. ⛔ What is not published is the baffle's own material and depth, ⭐ which is what actually determines how much cut-off it gives. ⭐ Ask us if the aperture appearance matters to the scheme.

✅ What is published
Specification Value
Options White (52531) · ⭐ Black (52532)
⭐ What it controls ⭐ What you see looking into the fitting
⭐ Black absorbs ⭐ The stray light a white baffle reflects out
⭐⭐ Why it matters ⭐ The cheapest glare control in the system
⭐ Order of attack on glare ⭐ Baffle → aim → honeycomb
⭐ Choose black when ⭐ People look up, look across, or sit beneath
⭐ Choose white when ⭐ Output beats comfort — ⭐ stockrooms, high ceilings
⚠ Do not match it to the body ⭐ White fitting + black baffle is deliberate
⛔ Material / depth ⛔ Not published — ⭐ it determines the cut-off
⛔ Its sheet describes ⛔ The HEAD — 15 W, lumens, CRI
Where it works
  • ⭐⭐ Restaurants, galleries, receptions — ⭐ black, for seated sightlines.
  • ⭐ High-end retail — ⭐ white body, black baffle.
  • ⭐ As the first fix for glare — ⭐ before a honeycomb.
  • ⭐ Stockrooms and high ceilings — ⭐ white, for output.
  • ⚠ Not matched to the body by default — ⭐ they do different jobs.
Specifying it

Replaceable internal baffle for THOR-PRO-15 heads. White or black. ⭐⭐ A BLACK BAFFLE ABSORBS THE STRAY LIGHT A WHITE ONE REFLECTS BACK OUT — look up at a fitting with a white baffle and you see a bright ring, with a black one a dark aperture with light coming from deep inside it. THAT IS THE CHEAPEST GLARE CONTROL IN THIS SYSTEM: before reaching for a honeycomb louvre, which costs real output, a black baffle solves a good deal of visual discomfort for almost nothing. ⭐ THE ORDER OF ATTACK ON A GLARE PROBLEM IS BAFFLE, THEN AIM, THEN HONEYCOMB — each step costs more light than the one before. ⚠ Do not match the baffle to the body: white fitting with black baffle is a deliberate and common combination.

Supplied and supported by Lights For You.

Questions
What does a baffle actually do?

It controls what you see when you look into the fitting. A baffle is a ring inside the aperture, between the LED and the opening — it does not shape the beam, which is the reflector's job. Look up at a fitting with a white baffle and you see a bright ring; with a black one you see a dark aperture with light coming from deep inside it.

Why is black the interesting option?

Because it absorbs the stray light a white baffle reflects back out, and that is the cheapest glare control available in this system. Before reaching for a honeycomb louvre, which costs real output, a black baffle solves a good deal of visual discomfort for almost nothing.

Should the baffle match the fitting body?

No, and that is the common mistake. The baffle is inside and the body is outside; they do different jobs and there is no reason for them to match. A white fitting with a black baffle is a common and deliberate combination — the body disappears against a white ceiling and the aperture reads as a dark, glare-free recess. It is what most high-end retail specifies.

When would I choose white?

When maximum output matters more than comfort — a stockroom, a back-of-house area, or a high ceiling where nobody sees into the aperture. The light a black baffle absorbs is light that does not reach the target, so where nobody is looking up, white is the better choice.

How do I tackle a glare problem?

Baffle first, then aim, then honeycomb. Each step costs more light than the one before it, so working up the list rather than down it is what preserves the scheme. A great many glare complaints are solved by a black baffle and a small change of aim.

Does a baffle change the beam angle?

No. That is the reflector's job, and reflectors are sold separately at 15, 24, 45 and 60 degrees. The baffle controls appearance from below; the reflector controls where the light goes. They are independent choices.

Why does the listing show wattage and lumens?

Because the attached datasheet is the head's — it publishes 15W, 1,200 to 1,300 lumens and CRI ≥90, and those belong to the head rather than to a baffle ring. What is not published is the baffle's own material and depth, which is what actually determines how much cut-off it gives. Ask us if the aperture appearance matters to the scheme.

Product Specifications
Product Specifications
x

Specifications

BrandDomus Lighting
Model / SKUsTHOR-PRO-15 Baffle — 52531 White, 52532 Black
⭐ What it controls⭐ What you SEE looking into the fitting
⭐ Not the beam⭐ That is the reflector's job
⭐⭐ BLACK ABSORBS WHAT WHITE REFLECTS OUT⭐ A dark aperture instead of a bright ring
⭐⭐ THE CHEAPEST GLARE CONTROL IN THE SYSTEM⭐ Before a honeycomb, which costs real output
⭐⭐ ORDER OF ATTACK ON GLARE⭐ Baffle → ⭐ aim → ⭐ honeycomb
⭐ Each step costs more light than the last⭐ So work UP the list, not down
⭐ Choose BLACK when⭐ People look up, look across, or sit beneath
⭐ Choose WHITE when⭐ Output beats comfort — ⭐ stockrooms, high ceilings
⚠ DO NOT MATCH IT TO THE BODY⭐ White fitting + black baffle is deliberate and common
⛔ Material and depth not published⭐ Which is what determines the cut-off
⛔ Its sheet describes the HEAD⛔ 15 W, lumens, CRI

Variant specifications

AccessoryControls⭐ Light cost
⭐ Baffle⭐ Appearance⭐ Small
ReflectorBeam angle⭐ None
HoneycombWide glare⚠ Meaningful
Coloured lensColour⛔ Large
Data Sheet & Manual
Data Sheet & Manual
x

This browser does not support PDFs. Please download the PDF to view it: Download PDF.

Download Datasheet (PDF)
