Domus PLEX-ULTRA 10W P/M COB Strip 24V CRI90 IP54 560LED/M 1m

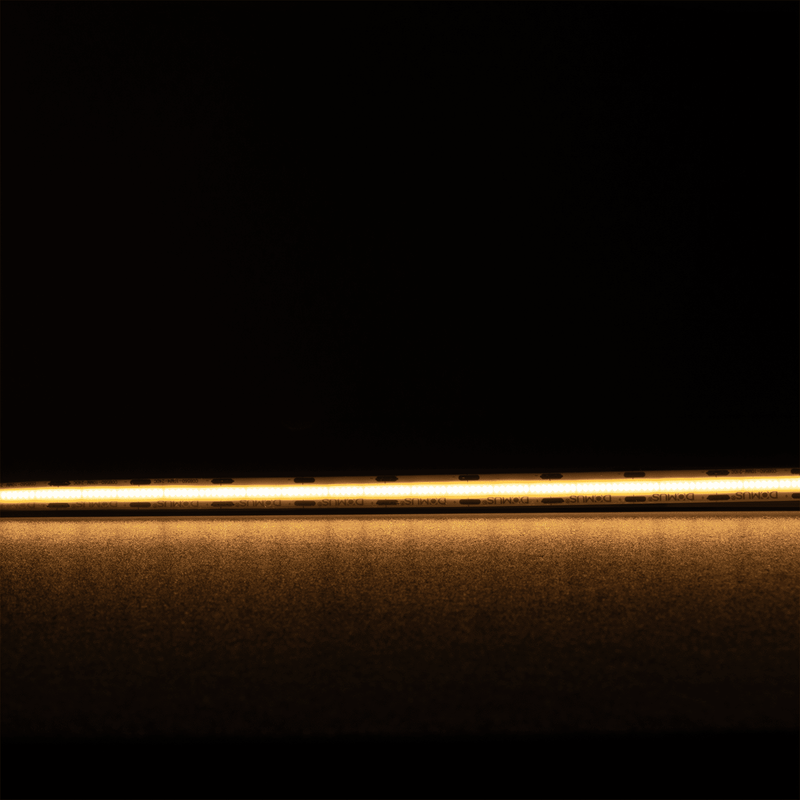

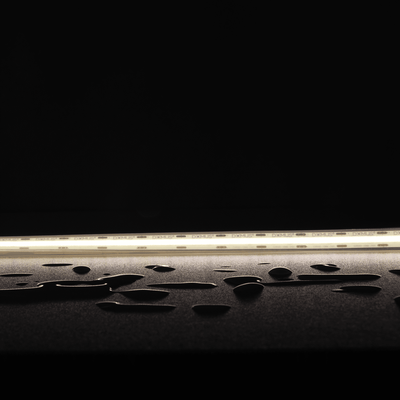

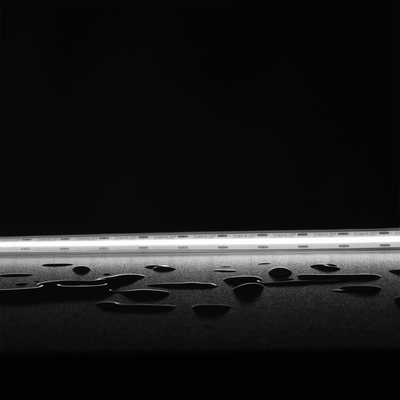

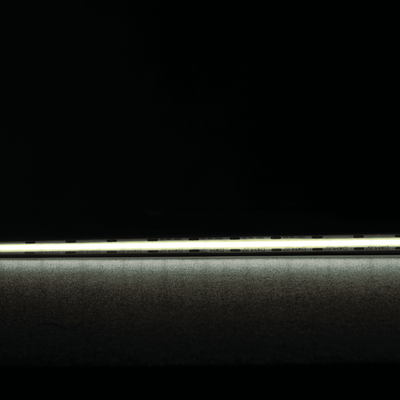

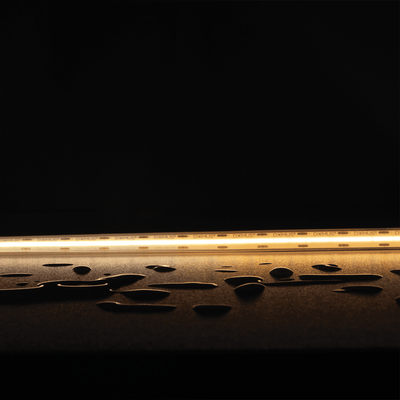

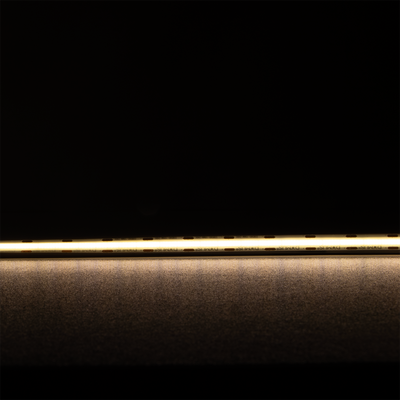

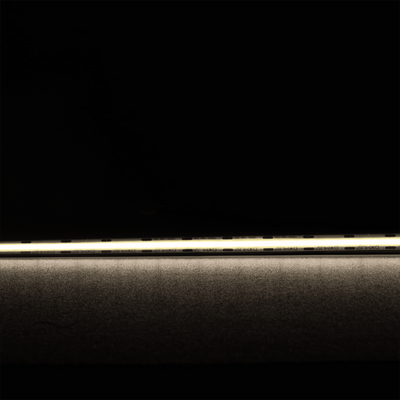

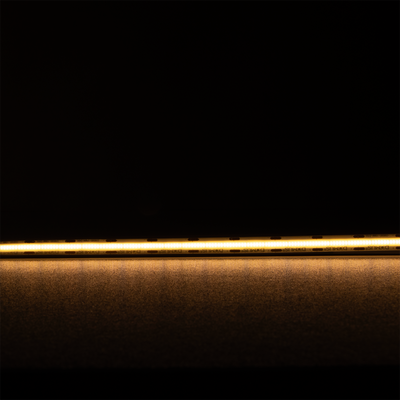

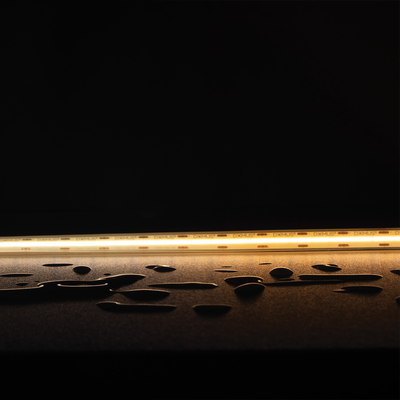

The Domus PLEX-ULTRA is a 24 V COB LED strip — 10 W per metre, 560 LEDs per metre, CRI ≥90, IP54, 1 m, at 770 / 790 / 810 lm per metre.

⭐⭐ It is the only dotless strip Domus sells that runs past five metres

• ⭐ Across the whole strip range, dotless appearance and long runs are opposed — ⭐ the dense boards that make a line look continuous leave no room for copper, and copper is what sets how far a run can go.
• ⭐⭐ PLEX-ULTRA IS THE ONE PRODUCT THAT PARTLY ESCAPES THAT.

• ⭐ Every other dotless strip stops at 5 m. This one goes 13, and 26 on a two-end feed. ⭐ Domus describes it as “specially designed… reduces heat and resistance, allowing for longer runs than other LED Strip designs” — ⭐ so the board itself is the difference, not the load.
• ⭐⭐ THAT MAKES IT THE ANSWER TO A COMMON PROBLEM: a long continuous cove or shadow gap that people will see, where the dots of an SMD strip would show and a PLEX-COB run would need a driver every five metres. ⭐ A 26 m two-end run of ULTRA replaces what would be five or six separate PLEX-COB runs.
• ⚠ Nothing in the catalogue positions it this way. ⭐ The 13 m figure sits inside a PDF and the comparison is not drawn anywhere.

⭐ And it is bright — 770 to 810 lumens per metre

⭐ From 10 W, that is 77 to 81 lumens per watt at CRI ≥90. ⭐ It sits between the PLEX-COB-5 and PLEX-COB-10 in output while running more than twice as far as either. ⭐ The efficiency is slightly behind the plain COB strips, which is the trade for the board design that buys the run length — ⭐ and on a long run the saving in drivers and cabling usually more than covers it.

⚠ Its sheet publishes a colour the product does not sell

• ⭐ The datasheet lists 2700 K at 670 lm per metre and names it in the colour-temperature field. ⛔ This listing sells 3000, 4000 and 5000 K only.
• ⭐ So an extra-warm PLEX-ULTRA exists as a specification and not as something you can add to a cart. ⭐ If you want 2700 K at this run length, ask us — ⭐ the figures are published, so the product plainly exists somewhere in the Domus range.
• ⚠ Two datasheets are attached to this record and one of them is flagged as contradicted. ⭐ Everything on this page comes from the verified one.

⛔⛔ Aluminium heat sink, mandatory

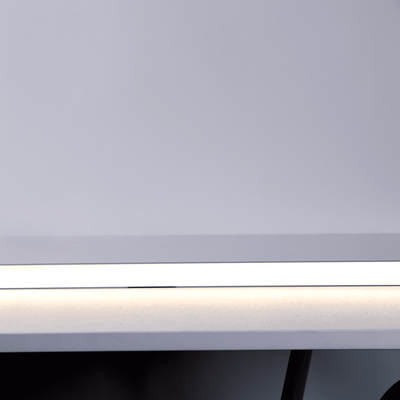

⭐ The sheet states it in capitals and voids the warranty without it. ⭐ On a strip whose selling point is long runs, that means long profiles too — ⭐ a 13 m run needs 13 m of extrusion, usually in jointed lengths. ⛔ No description says so and none of the catalogue's 47 profiles names this strip. ⭐ Ask us to quote both, and to check the joints fall where you want them.

✅ What is published

⛔ Made to order, cut to length

No lead time is published. Call our team to confirm. ⭐ We will.

Where it works

• ⭐⭐ Long visible coves and shadow gaps — ⭐ dotless AND far-running.
• ⭐ Where PLEX-COB would need a driver every five metres.
• ⭐ Perimeter lighting people actually look at.
• ⛔ Never loose or on plasterboard.
• ⚠ Not in 2700 K from this listing — ⭐ ask us.

Specifying it

COB LED strip, IP54, 1 m. 10 W per metre at 24 V DC. 770 lm at 3000 K, 790 at 4000 K, 810 at 5000 K. 560 LEDs per metre, dotless. CRI ≥90. 180° beam. 25 mm cutting increment. Continuous run 13 m one-end feed, 26 m two-end. Aluminium heat sink mandatory. 3-year warranty. ⭐⭐ IT IS THE ONLY DOTLESS STRIP DOMUS SELLS THAT RUNS PAST FIVE METRES. Across the range, dotless appearance and long runs are opposed — the dense boards that make a line look continuous leave no room for copper. Every other dotless strip stops at 5 m; this one goes 13, and 26 fed from both ends. ⭐ SO A 26 m RUN REPLACES WHAT WOULD BE FIVE OR SIX SEPARATE PLEX-COB RUNS, on a cove people will actually look at. ⚠ Nothing in the catalogue positions it this way.

Supplied and supported by Lights For You.
