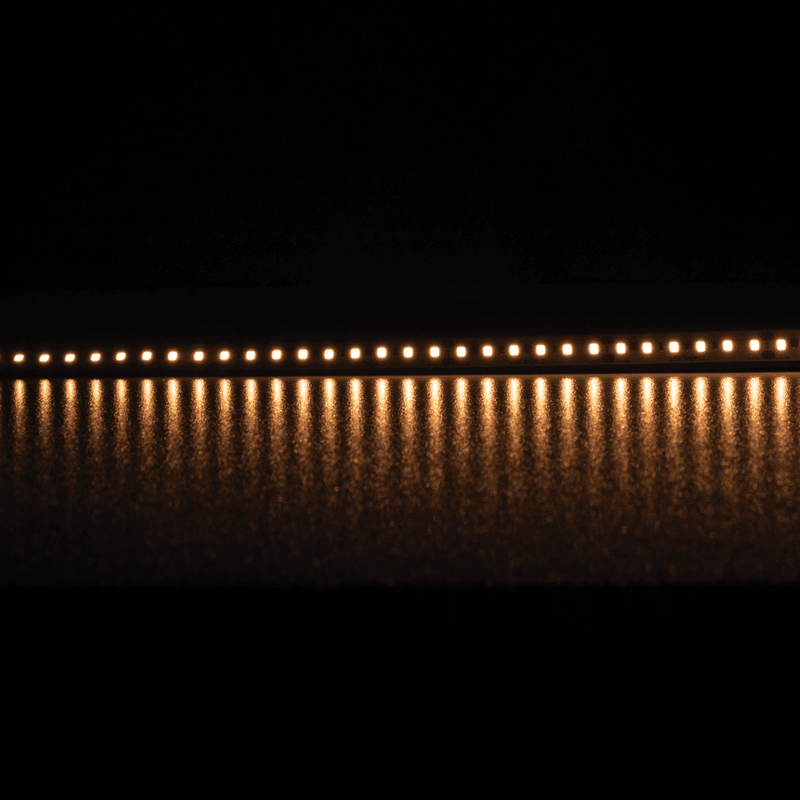

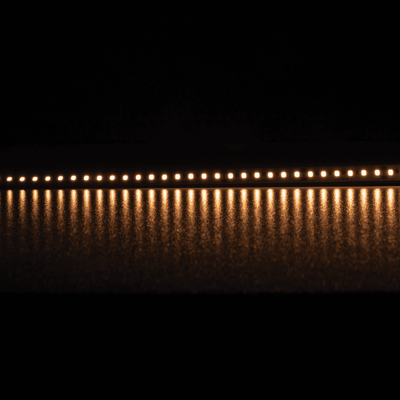

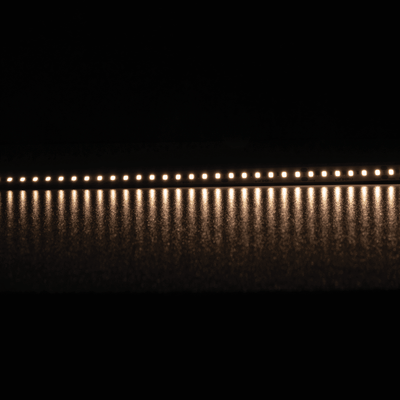

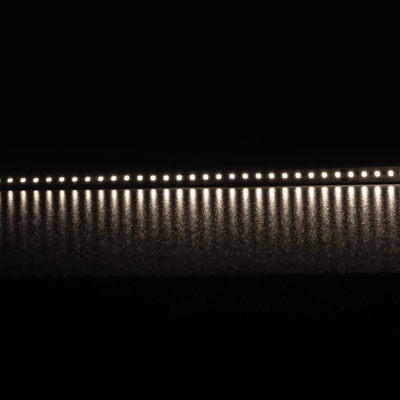

Domus PLEX-SMD 9W P/M Strip 24V CRI90 IP54 120LED/M 50M Pack

The Domus PLEX-SMD-9 is a 24 V SMD LED strip — 9 W per metre, 120 LEDs per metre, CRI ≥90, IP54, 50 m pack, at 765 / 810 / 855 lm per metre.

⭐ Two runs for fifty metres — and it is the brightest strip that can say that

• ⭐ The two-end feed limit is 40 m, so fifty metres is two runs, one cut and two drivers.
• ⭐ And it gives 765 to 855 lm per metre, against the single-run PLEX-SMD-5's 500 to 550. ⭐ So the choice at fifty metres is a real one rather than obvious:

• ⭐ THE MIDDLE OPTION BUYS 55% MORE LIGHT THAN THE FIRST FOR ONE EXTRA DRIVER — ⭐ which is usually a good trade. ⭐ Getting to the COB strip's output costs three more drivers on top of that, and gets you a dotless line in exchange.
• ⭐ SO THE QUESTION IS AGAIN WHETHER THE STRIP IS SEEN. ⭐ If it is concealed, this is the sensible middle. ⭐ If it is visible, pay the five drivers and take the COB.

⭐ 450 W and 42,750 lumens across the roll

⭐ Two drivers of about 270 W each on 25 m two-end runs. ⚠ Those are large units needing ventilated, accessible homes, ⭐ but two locations is a solvable problem where five is a design constraint. ⭐ 450 W total also means this wants its own circuit rather than a spare socket.

⭐ The finer cutting increment travels with it

⭐ 25 mm, four times finer than the PLEX-SMD-5's 100 mm. ⭐ Across fifty metres of continuous run that rarely matters — ⚠ but if the fifty metres is actually twelve separate joinery lengths rather than one long line, it matters a great deal. ⭐ Tell us how the metres are divided and we will say which strip suits.

⛔⛔ Aluminium heat sink, mandatory

⭐ Fifty metres of run means fifty metres of profile. ⭐ The sheet states the requirement in capitals and voids the warranty without it. ⛔ No description says so and none of the catalogue's 47 profiles names this strip. ⭐ At 9 W per metre the thermal argument is stronger than on the 5 W strips too — ⭐ nearly twice the heat to carry away.

⭐ One roll is one batch

⭐ Fifty metres is a single production run, so both lengths match and any joins between them are invisible. ⭐ Beyond fifty metres, ask us for consecutive rolls from one batch — free to request and impossible afterwards.

✅ What is published

⛔ Made to order, cut to length

No lead time is published. Call our team to confirm. ⭐ We will.

Where it works

• ⭐ Long concealed runs needing real output.
• ⭐ Fifty metres split into many joinery lengths — ⭐ 25 mm increment.
• ⭐ Commercial and retail perimeters.
• ⛔ Not where the strip is visible — ⭐ take the COB.
• ⚠ Not outdoors — ⭐ IP54.

Specifying it

SMD LED strip, IP54, 50 m pack. 9 W per metre at 24 V DC, 450 W total, ≈42,750 lm. 120 LEDs per metre. CRI ≥90. 120° beam. 25 mm cutting increment. Continuous run 20 m one-end, 40 m two-end. Aluminium heat sink mandatory. 3-year warranty. ⭐ THE SENSIBLE MIDDLE AT FIFTY METRES: two runs and two drivers, buying 55% more light than the single-run 5 W strip for one extra driver — usually a good trade. Getting to the COB strip's output costs three more drivers on top of that, and buys a dotless line in exchange. ⭐ SO THE QUESTION IS AGAIN WHETHER THE STRIP IS SEEN. ⭐ And the 25 mm cutting increment travels with it, which matters if the fifty metres is twelve joinery lengths rather than one long line.

Supplied and supported by Lights For You.
