Domus PLEX-SMD 9W P/M Strip 24V CRI90 IP54 120LED/M 1m

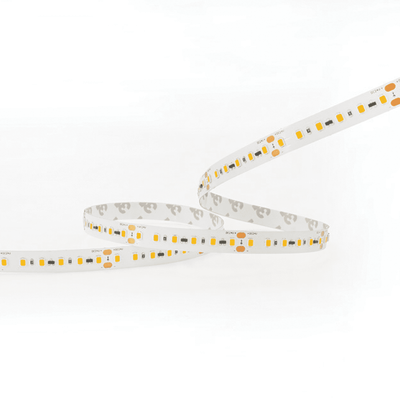

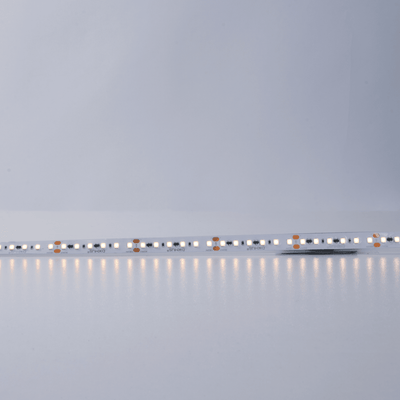

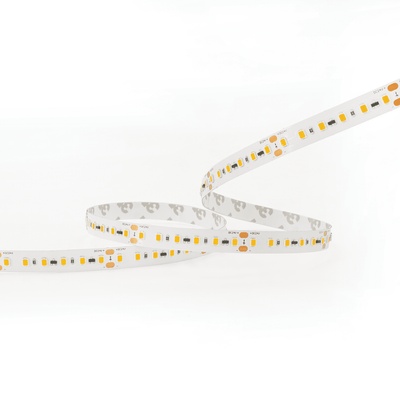

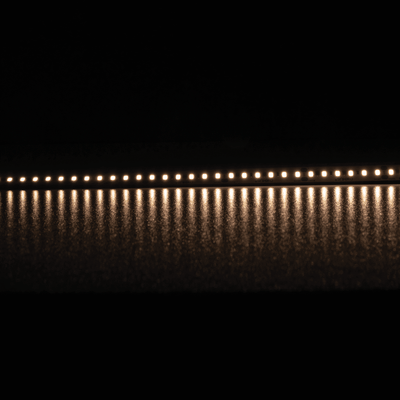

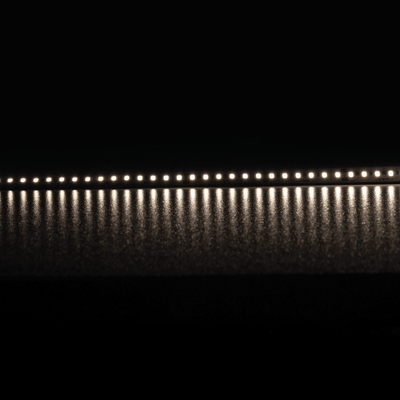

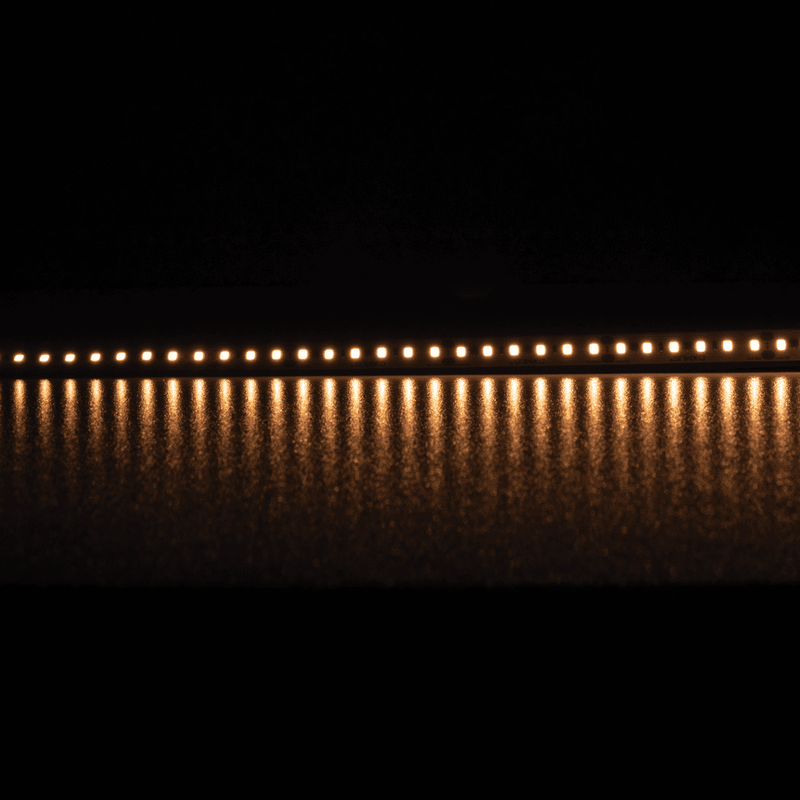

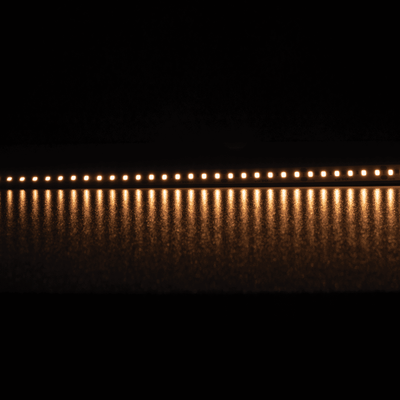

The Domus PLEX-SMD-9 is a 24 V SMD LED strip — 9 W per metre, 120 LEDs per metre, CRI ≥90, IP54, 1 m, at 765 / 810 / 855 lm per metre.

⭐ Twenty metres, and noticeably brighter than the strip that goes forty

• ⭐ “Continuous Run: 20 m Max (one end driver feed) 40 m (two end driver feed)” — ⭐ four times the PLEX-COB range, half the PLEX-SMD-5.
• ⭐ And it gives 765 to 855 lumens per metre against the 40 m strip's 500 to 550 — ⭐ about 55% more light.
• ⭐⭐ SO THE LADDER IS AN HONEST ONE: more light, shorter run.
  • ⭐ PLEX-SMD-5 — 550 lm/m, 40 m per feed, 70 LEDs/m
  • ⭐ PLEX-SMD-9 — 855 lm/m, 20 m per feed, 120 LEDs/m
• ⭐ Both are SMD and neither is dotless, ⭐ but 120 per metre is meaningfully tighter than 70 — ⭐ the dots are closer and disappear behind a diffuser more readily.

⭐ And the cutting increment is four times finer

⭐ This strip cuts every 25 mm; the PLEX-SMD-5 cuts every 100 mm. ⭐ That is a genuine practical difference that has nothing to do with light output. ⚠ A 1,340 mm shelf takes a 1,325 mm length of this strip and a 1,300 mm length of the other — ⭐ a 40 mm dark gap instead of a 15 mm one. ⭐ On joinery with fixed dimensions, the finer increment is worth more than the longer run.

⭐ IP54 here, and its IP67 twin's sheet is not to be trusted

• ⭐ This listing is IP54 — “indoor including wet areas”.
• ⚠ The record holds two datasheets, and only one is sound. ⭐ The IP54 sheet is verified against this product; the IP67 sheet attached alongside it is flagged as contradicted. ⭐ Everything on this page comes from the verified one.

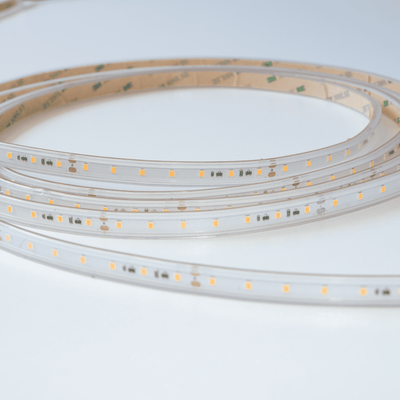

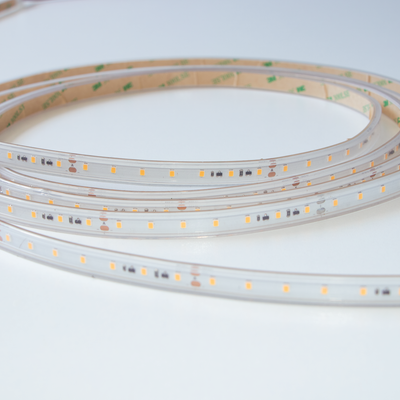

• ⭐ An IP67 version of this strip does exist — ⭐ ask us and we will confirm its figures directly with Domus rather than reading them off a sheet we know is mismatched.

⭐ 85 to 95 lumens per watt at CRI ≥90

⭐ Slightly behind the 5 W SMD strip's 100 to 110, ⭐ which is the usual pattern: driving a chip harder costs efficiency. ⭐ Against the COB strips at the same CRI it is comparable. ⭐ The reason to choose this one is the combination of a long run, a fine cutting increment and real output — ⭐ not efficiency, where the lower-wattage strip wins.

⛔⛔ Aluminium heat sink, mandatory

⭐ The sheet states it in capitals and voids the warranty without it. ⭐ Twenty metres of run means twenty metres of profile. ⛔ No description says so and none of the catalogue's 47 profiles names this strip. ⭐ Ask us to quote both together.

✅ What is published

⛔ Made to order, cut to length

No lead time is published. Call our team to confirm. ⭐ We will.

Where it works

• ⭐ Long runs that still need real output — ⭐ 855 lm/m.
• ⭐ Joinery with fixed dimensions — ⭐ 25 mm increment.
• ⭐ Concealed retail and commercial perimeters.
• ⛔ Not where the strip is visible — ⚠ not dotless.
• ⚠ Not outdoors — ⭐ IP54 is indoor wet areas.

Specifying it

SMD LED strip, IP54, 1 m. 9 W per metre at 24 V DC. 765 lm at 3000 K, 810 at 4000 K, 855 at 5000 K. 120 LEDs per metre. CRI ≥90. 120° beam. 25 mm cutting increment. Continuous run 20 m one-end feed, 40 m two-end. Aluminium heat sink mandatory. 3-year warranty. ⭐ THE MIDDLE OF AN HONEST LADDER: 55% more light than the 40 m strip, for half the run. ⭐ AND ITS CUTTING INCREMENT IS FOUR TIMES FINER — 25 mm against 100 — which on joinery with fixed dimensions is worth more than the longer run: a 1,340 mm shelf leaves a 15 mm dark gap here and a 40 mm one on the SMD-5. ⚠ THE RECORD HOLDS TWO DATASHEETS and the IP67 one is flagged contradicted; everything here comes from the verified IP54 sheet.

Supplied and supported by Lights For You.
