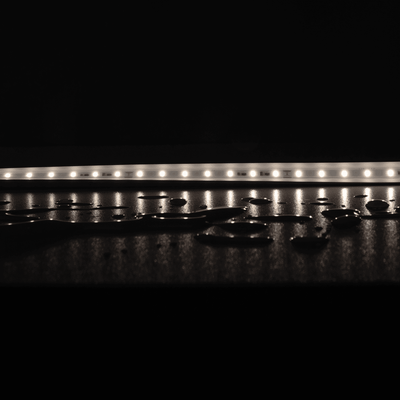

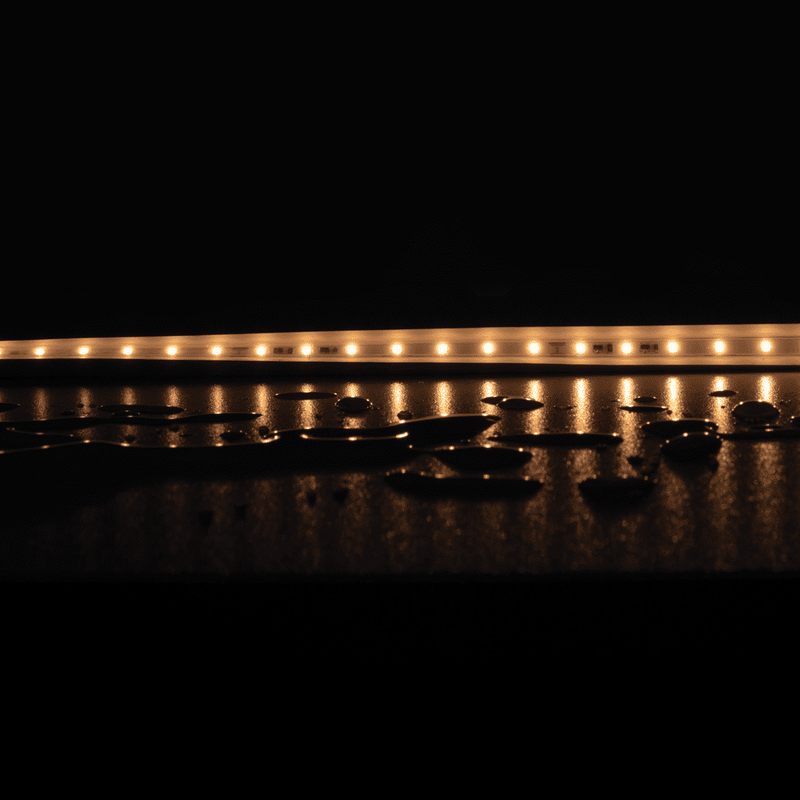

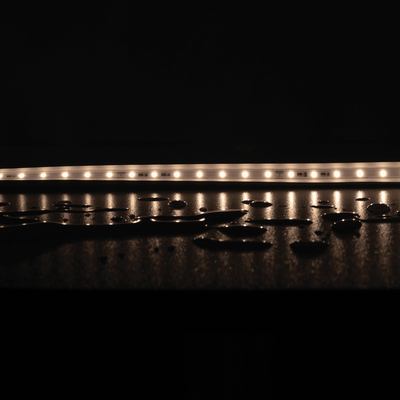

Domus PLEX-SMD 5W P/M Strip 24V CRI90 IP66 70LED/M 50M Pack

The Domus PLEX-SMD-5 is a 24 V SMD LED strip — 5 W per metre, 70 LEDs per metre, CRI ≥90, IP66, 50 m pack, at 500 / 525 / 550 lm per metre.

⭐⭐ Fifty metres. One run. One driver. Nothing else in the range can do this.

• ⭐ The two-end feed limit is 80 m, and this roll is 50. ⭐ So the whole roll is a single continuous run with no intermediate cut at all and one driver.
• ⭐ Every other strip in the range fragments a 50 m order:

• ⭐⭐ THE PRACTICAL DIFFERENCE IS LARGER THAN THE TABLE SUGGESTS. ⭐ One driver means one place to house it, one circuit, one dimming channel and one thing to fail. ⚠ Five drivers means five ventilated, accessible, dry locations found and cabled — and on a long external run those locations are the hardest part of the job.
• ⭐ 250 W on one driver is a substantial supply, ⭐ so it wants a 300 W unit with headroom, its own circuit, and real ventilation. ⭐ But it is ONE of them.

⭐ IP66 at fifty metres is the combination that has no alternative here

⭐ IP66 covers driving rain and hosing — Domus's own framing is “indoor or outdoor weatherproof”. ⭐ Combined with an 80 m two-end run, this is the only product in the range that will light a long external soffit, a fence line, a boundary wall or a garden path as a single unbroken line. ⭐ The IP67 strips are better sealed but run 5 m; the IP54 strips run further but cannot go outside. ⚠ Nothing in the catalogue points this out.

⚠ What you accept in exchange

• ⛔ It is not dotless. ⭐ 70 LEDs per metre against the COB strips' 640 — ⭐ fine behind a diffuser at distance, visible as points at close range or through a clear lens.
• ⚠ The cutting increment is 100 mm, ⭐ the coarsest in the range. ⭐ On a fifty metre external run that is irrelevant; on anything meeting a fixed dimension it is not.
• ⭐ Output is 500 to 550 lm per metre — ⭐ modest per metre, but 25,000 to 27,500 lumens across the roll.

⛔⛔ Aluminium heat sink, mandatory — and outdoors that means more

⭐ The sheet voids the warranty without one. ⭐ Fifty metres of run means fifty metres of profile, ⚠ and on an external installation the profile also has to survive the exposure — UV, thermal cycling, and in coastal positions salt. ⛔ None of the catalogue's 47 profiles states its suitability for outdoor use. ⭐ Ask us before ordering; this is the one detail most likely to be got wrong on a long external run.

✅ What is published

⛔ Made to order, cut to length

No lead time is published. Call our team to confirm. ⭐ We will.

Where it works

• ⭐⭐ Long external soffits, fence lines, boundary walls — ⭐ one unbroken line.
• ⭐ Garden paths and driveways.
• ⭐ Any concealed run where one driver beats five.
• ⛔ Not where the strip is visible — ⚠ 70 LEDs/m.
• ⛔ Not without an outdoor-suitable profile.

Specifying it

SMD LED strip, IP66, 50 m pack. 5 W per metre at 24 V DC, 250 W total, ≈27,500 lm. 70 LEDs per metre. CRI ≥90. 120° beam. 100 mm cutting increment. Continuous run 40 m one-end, 80 m two-end. Aluminium heat sink mandatory. 3-year warranty. ⭐⭐ FIFTY METRES. ONE RUN. ONE DRIVER. ZERO CUTS. Nothing else in the range can do this — the same fifty metres of PLEX-COB is five runs, four cuts and five drivers. ⭐ AND THE PRACTICAL DIFFERENCE IS LARGER THAN THE COUNT: one driver means one place to house it, one circuit, one dimming channel and one thing to fail, where five means five ventilated, accessible, dry locations found and cabled. ⭐ COMBINED WITH IP66, this is the only product here that lights a long external run as a single unbroken line.

Supplied and supported by Lights For You.
