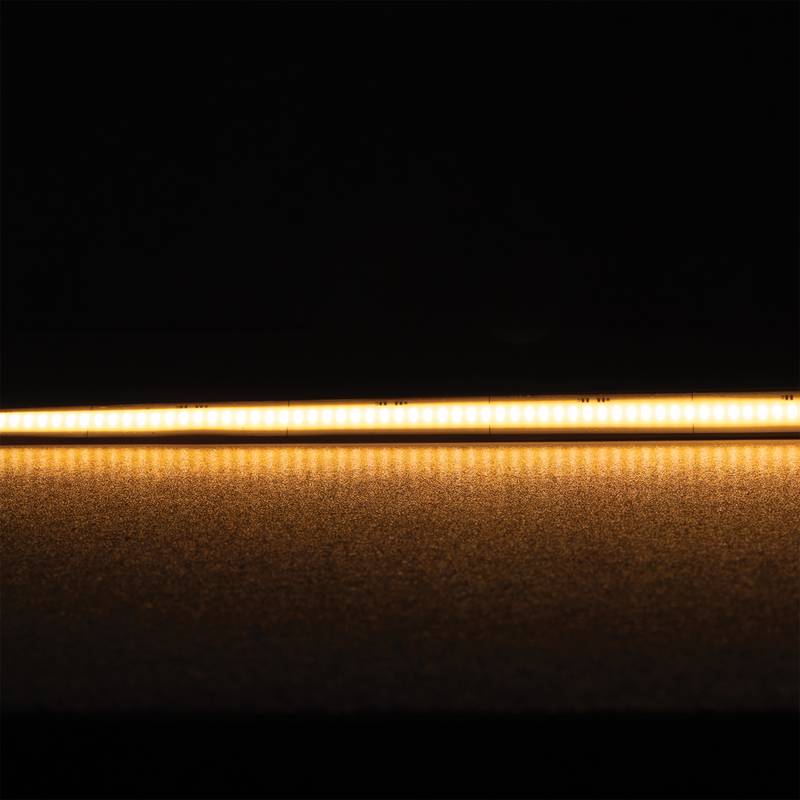

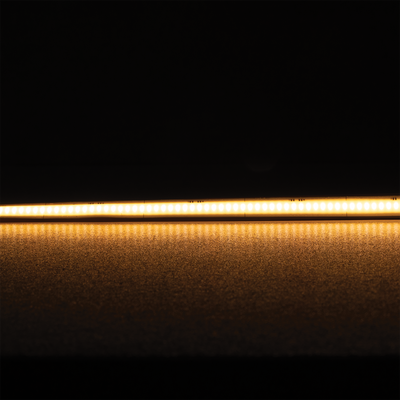

Domus PLEX-COB Tunable 20W P/M Strip 24V CRI90 IP54 840LED/M 50M Pack

The Domus PLEX-COB Tuneable is a 24 V tuneable-white COB LED strip — 20 W per metre, 840 LEDs per metre, 2700–6500 K, IP54, 50 m pack.

⭐ The highest load in the family means the shortest reach — and this is a 50 m pack

• ⭐ The PLEX-COB range publishes 5 m from a single feed and 10 m fed from both ends. ⚠ Those figures are stated on the 14 W RGB strip.
• ⭐ This strip draws 20 W per metre — the highest in the family. ⭐ Voltage drop is driven by current, and 20 W/m draws about 43% more than 14 — ⚠ so it will not carry as far. ⛔ No run limit is published for this wattage. ⭐ Ask us before laying out anything over about 4 m on a single feed.
• ⚠ Which makes a 50 m pack a large number of short runs. ⭐ At best ten 5 m runs; more likely twelve or more shorter ones. ⭐ Each needs a driver, a controller channel, and a feed point.
• ⭐ THE HONEST READING: this format suits a project where the tuneable detail repeats across many small runs — ⭐ a hotel corridor of alcoves, a retail fitout with shelf lines, a series of bathroom mirrors. ⚠ It does not suit one long continuous line, because this strip cannot make one.
• ⭐ If a long unbroken tuneable line is what you need, the answer is a lower-wattage strip or a different technology — tell us the length first.

⭐ Fifty metres of tuneable — the control question that comes with it

• ⭐ Every run needs a driver AND a controller channel. ⭐ Ten runs is ten drivers — ⚠ and unless they are all to behave identically, ten independently controlled zones.
• ⭐ THE QUESTION TO SETTLE FIRST: do all fifty metres change colour together, or separately?
  • ⭐ TOGETHER is simpler and cheaper — ⭐ one control, one scene, one thing for the client to learn.
  • ⭐ SEPARATELY is what a real building usually wants — ⚠ a north-facing room and a south-facing one do not want the same colour at the same time, ⭐ and that is the whole reason for buying tuneable.
• ⚠ That decision drives the controller count and the commissioning effort, ⭐ and it is much cheaper to make before the cable is run than after. ⛔ Nothing on the listing raises it.

⭐ 840 LEDs per metre — two emitter sets in one board

⭐ A tuneable strip carries warm and cool emitters interleaved along the same board, and mixes them to reach any point between 2700 and 6500 K. ⭐ 840 per metre is what makes that possible in a dotless strip — ⭐ against 640 on the single-colour versions, which carry one set. ⭐ The practical result is that a tuneable strip is dotless at every setting, not only at the extremes.

✅ What is published

⛔ Made to order, cut to length

No lead time is published. Call our team to confirm. ⭐ We will.

Where it works

• ⭐ Many short tuneable runs — ⭐ alcoves, shelf lines, mirrors.
• ⭐ Fitouts where each space wants its own colour.
• Wet areas — ⭐ IP54.
• ⛔ Not one long continuous line — ⚠ this strip cannot make one.
• ⚠ Not ordered before the zoning is decided.

Specifying it

Tuneable-white COB LED strip, 50 m pack. 20 W per metre at 24 V DC, 1000 W total. 840 LEDs per metre. CRI90. 2700–6500 K. IP54. Driver and controller required per run. ⭐ THE HIGHEST LOAD IN THE FAMILY MEANS THE SHORTEST REACH — the range publishes 5 m from one feed on the 14 W strip, and this draws 20 W/m, about 43% more current. ⛔ NO RUN LIMIT IS PUBLISHED AT THIS WATTAGE. ⚠ SO A 50 m PACK IS A LARGE NUMBER OF SHORT RUNS, each needing a driver, a controller channel and a feed point. ⭐ THE QUESTION TO SETTLE FIRST: does all fifty metres change colour together, or separately? That drives the controller count, and it is far cheaper to decide before the cable is run.

Supplied and supported by Lights For You.
