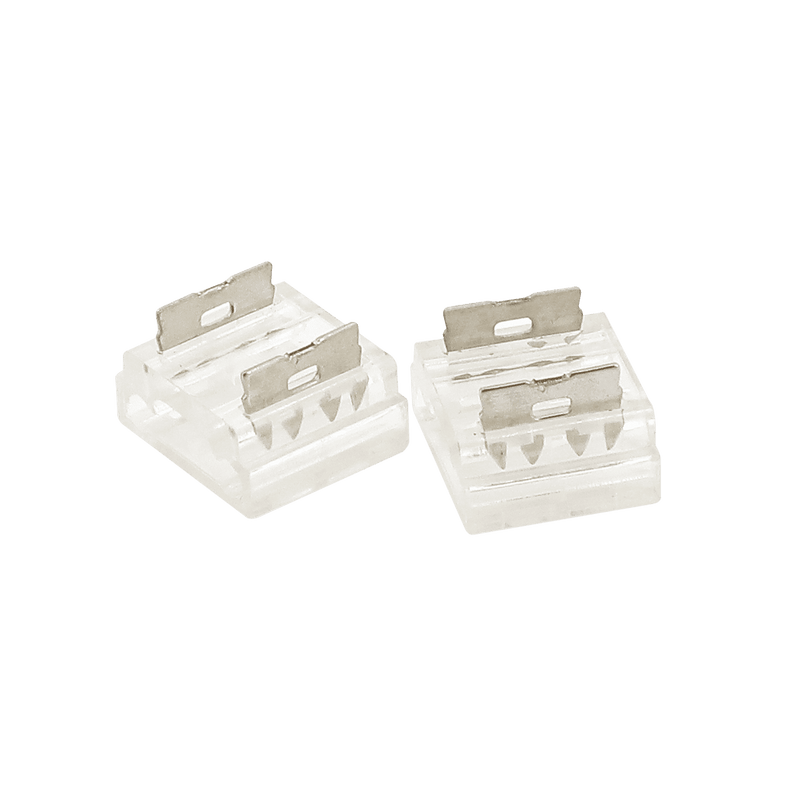

Domus PLEX-COB Straight Strip To Strip Connector 5 Pack

The Domus PLEX-COB Straight Strip-to-Strip Connector is a solderless joiner — 5 pack, for Micro, tuneable, RGB or RGBTW strip.

⭐ Four variants, because each strip type has a different number of conductors

• ⭐ This connector comes in four versions and they are NOT interchangeable. ⭐ The reason is electrical: an LED strip carries one conductor per channel plus a common, and the channel count differs by type.

• ⭐ So an RGB connector physically cannot serve an RGBTW strip — it is two conductors short. ⚠ And a connector with too many contacts on a simpler strip will not align with the pads.
• ⭐ THE ORDERING RULE: match the connector to the STRIP TYPE, not to the job. ⭐ Tell us which strip you are running and we will send the right variant.
• ⭐ This is also why the named controller has FIVE channels — ⭐ it is sized for RGBTW, the most demanding of the family, so one controller covers them all.

⭐⭐ Why a strip-to-strip connector matters more on COB than anywhere else

• ⭐ The PLEX COB strip has a published maximum run of 5 m from one feed. ⚠ Almost any real run is longer than that.
• ⭐ So joining is not an occasional repair on this product — it is the normal case. ⭐ A 12 m kitchen line is three sections and at least two joins.
• ⭐ Which makes two published facts about these connectors unusually valuable: ⭐ they need no soldering (a pair of pliers), and they FIT INSIDE THE PROFILE.
• ⭐ That second one is the reason a joined run can still read as one line. ⚠ A joiner that had to sit outside the channel would force a visible break at every 5 m — which on a dotless COB strip, chosen precisely for its continuity, would defeat the point.

⭐ Straight, and the shapes that are not

⭐ This is the STRAIGHT joiner: two lengths in line. ⭐ Domus also lists L-SHAPED and FLEXIBLE strip-to-strip connectors — ⚠ but its own description says those are for the SINGLE COLOUR COB strip only. ⭐ So on an RGB or tuneable run, a corner has to be made with a flylead cable rather than a rigid corner piece, ⚠ and that changes how a corner detail is built. ⭐ Worth knowing before the joinery is drawn.

⛔ Two record faults

⛔ It publishes a colour temperature of RGB — ⚠ on a listing whose whole point is that it comes in four types. ⛔ And it is flagged “cut to length”, which a connector cannot be.

✅ What is published

⛔ Made to order — and the "cut to length" part is not about this product

Domus flags this as made to order, so it is not held on a shelf. ⛔ No lead time is published. Call our team to confirm availability before ordering. ⭐ We will. ⚠ The flag also says "cut to length", which comes from a generic sentence about the STRIP — ⭐ a connector cannot be cut to length, and nothing about the lead time depends on that.

Where it works

• ⭐ Any COB run over 5 m — ⭐ joining is the normal case.
• ⭐ Inside the profile — ⭐ the join stays in the channel.
• Micro, tuneable, RGB or RGBTW strip — ⭐ matched variant.
• ⛔ Not a corner on RGB or tuneable — ⚠ L-shaped is single-colour only.
• ⚠ Not ordered without telling us the strip type.

Specifying it

Solderless straight strip-to-strip connector for PLEX-COB LED strip, 5 pack. Micro, tuneable, RGB or RGBTW. Attaches with pliers, no soldering. Pulling force 4.64 kgf. Fits inside the profile. ⭐ FOUR VARIANTS BECAUSE EACH STRIP TYPE CARRIES A DIFFERENT NUMBER OF CONDUCTORS — single colour needs two, tuneable three, RGB four, and RGBTW six. An RGB connector physically cannot serve an RGBTW strip. ⭐⭐ AND JOINING IS THE NORMAL CASE ON COB, NOT AN EXCEPTION: the strip's published run limit is 5 m from one feed, so a 12 m kitchen line is three sections and two joins. ⭐ That the connector fits INSIDE the profile is what lets a joined run still read as one line.

Supplied and supported by Lights For You.
