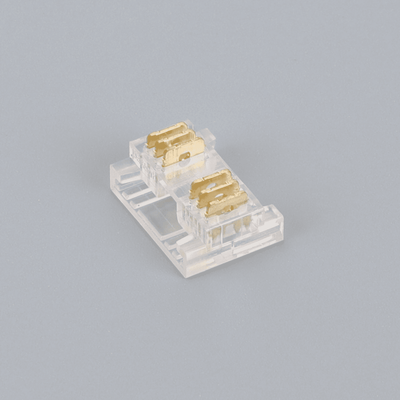

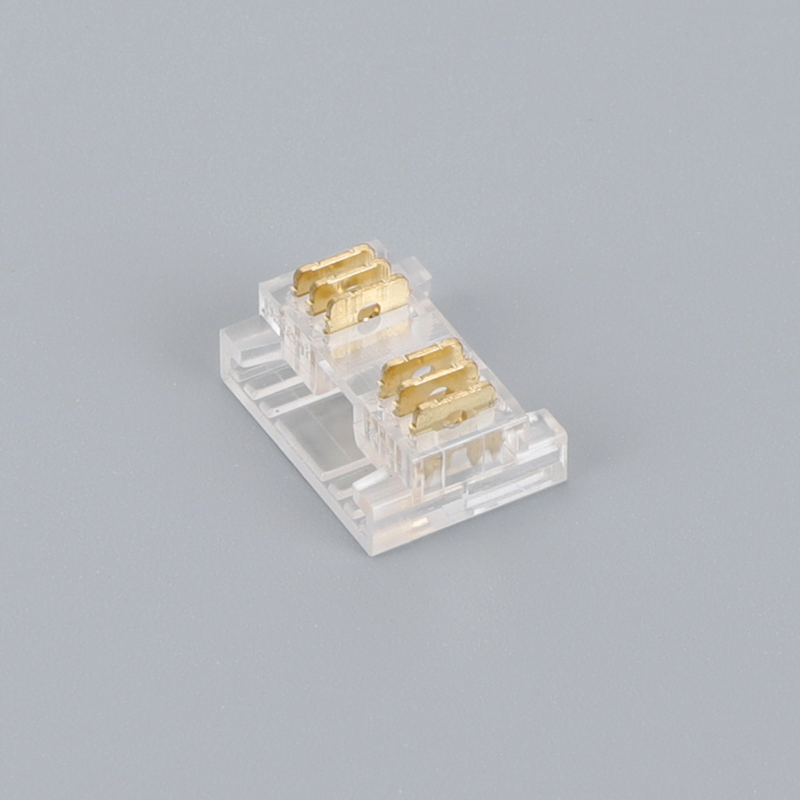

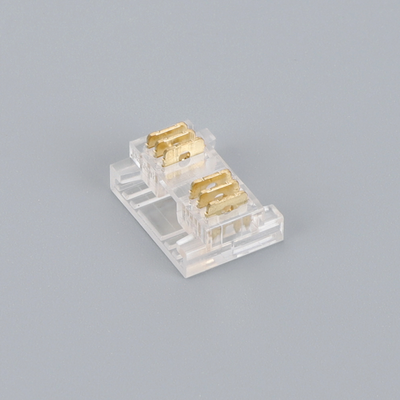

Domus PLEX-COB Rgb+tw IP20 Live Cable Connector 5 Pack

The Domus PLEX-COB RGB+TW IP20 Live Cable Connector is a solderless strip-to-driver connector for RGB plus tuneable-white strip — IP20, 500 mm or 2000 mm tail, 5 pack.

⭐ RGBTW — what it is, and why it needs the most of everything

• ⭐ RGB+TW is RGB colour AND tuneable white in one strip — ⭐ five channels: red, green, blue, warm white and cool white.
• ⭐ That is more than RGB alone, and the reason is a real limitation: RGB cannot make good white. ⭐ Mixing red, green and blue produces something the eye accepts as white but which renders colours poorly — skin, timber and fabric all look wrong under it.
• ⭐ RGBTW solves that by carrying dedicated white emitters alongside the colour ones. ⭐ So the same run can be a proper, accurate white for everyday use AND a saturated colour when wanted — ⚠ which is exactly what a hospitality or retail space usually needs, and what plain RGB fails at.
• ⭐ The cost is complexity at every stage:
  • ⭐ SIX conductors — ⭐ five channels plus a common, the most of the family.
  • ⭐ A five-channel controller — ⭐ which is why the named CHAM-BT-RF-5C has five.
  • ⭐ Type-specific accessories — ⚠ an RGB connector is two conductors short and physically cannot serve it.

⭐⭐ It is why the whole PLEX accessory range is structured the way it is

⭐ RGBTW at five channels sets the ceiling for the family. ⭐ The named controller has five channels because RGBTW needs five, not because RGB does — ⭐ which means one controller type covers single colour, tuneable, RGB and RGBTW across a mixed project. ⭐ And the connectors come in four or five variants because the conductor count runs from two to six. ⭐ Once you see RGBTW, the rest of the range's shape makes sense.

⛔ IP20 on a strip range sold as IP54 and IP67

⭐ This connector is IP20 — no water protection. ⚠ The strip is IP54 or IP67, and an assembly is rated at its weakest point. ⭐ So put the connection somewhere dry: a cabinet, above a ceiling, behind a sealed panel. ⛔ Nothing published addresses the combination.

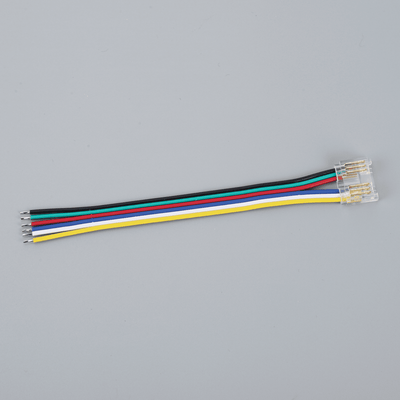

⭐ Take the 2000 mm tail

⭐ An RGBTW run needs a 24 V driver AND a five-channel controller. ⚠ That is two pieces of equipment, and 500 mm rarely reaches a position with room for both. ⭐ The longer tail is the sensible default on this strip type more than on any other.

✅ What is published

⛔ Made to order — and the "cut to length" part is not about this product

Domus flags this as made to order, so it is not held on a shelf. ⛔ No lead time is published. Call our team to confirm availability before ordering. ⭐ We will. ⚠ The flag also says "cut to length", which comes from a generic sentence about the STRIP — ⭐ a connector cannot be cut to length, and nothing about the lead time depends on that.

Where it works

• ⭐ Hospitality and retail — ⭐ proper white AND colour from one run.
• ⭐ Anywhere RGB white would be too poor — ⭐ RGBTW has real white emitters.
• ⭐ Dry termination positions — ⚠ IP20.
• ⛔ Not with an RGB connector — ⚠ two conductors short.
• ⚠ Not with a 500 mm tail if the driver and controller need room.

Specifying it

Solderless IP20 live cable connector for PLEX-COB RGB+TW LED strip, 5 pack. 500 mm or 2000 mm tail. Pliers only. Pulling force 4.64 kgf. Fits inside the profile. CHAM-BT-RF-5C 5-channel controller. ⭐ RGBTW IS RGB COLOUR AND TUNEABLE WHITE IN ONE STRIP — five channels — and it exists because RGB cannot make good white: mixing red, green and blue gives something the eye accepts as white but which renders skin, timber and fabric poorly. ⭐ RGBTW carries dedicated white emitters alongside the colour ones, so one run is a proper accurate white every day AND saturated colour when wanted. ⭐⭐ AT FIVE CHANNELS AND SIX CONDUCTORS IT SETS THE CEILING FOR THE WHOLE FAMILY — which is why the named controller has five channels and why the connectors are type-specific.

Supplied and supported by Lights For You.
