Domus PLEO-7.2W Neon Top View 24V CRI90 20M

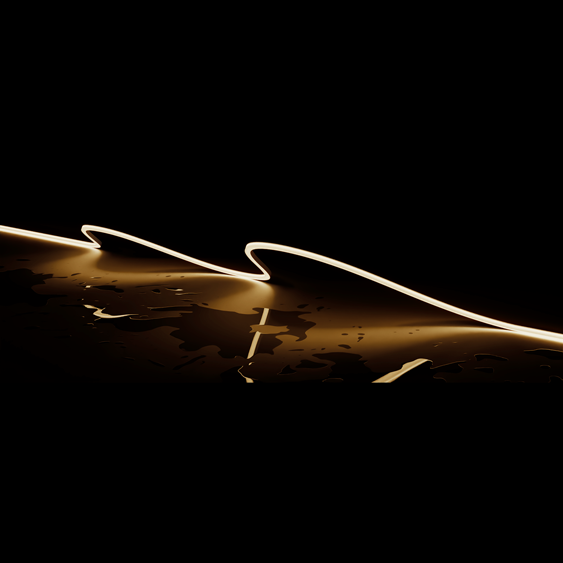

The Domus PLEO-7.2 Top View is a 24 V top-emitting LED neon flex — 7.2 W per metre, CRI90, IP67, 20 m reel, in 3000, 4000 or 5000 K.

⛔ It publishes no IP rating in a field — and its description says IP67

• ⭐ This listing's specification fields carry no ingress rating at all. ⭐ Its description states IP67.
• ⭐ We measured the scope: of 19 PLEO flex listings, 11 publish an IP rating in a field and EIGHT do not. ⭐ All eight describe IP67 products.
• ⭐ This is the pattern that has run through this entire enrichment programme. ⭐ The figure exists — in the prose. ⚠ A specification sheet built from structured fields alone would show these eight as unrated, ⭐ and a customer filtering by IP rating would lose them.
• ⭐ IP67 is a genuinely high rating: dust-tight, and protected against temporary immersion. ⭐ On a flexible product that is unusual, and it is one of the better reasons to choose flex for a floor cove, an outdoor soffit or anywhere that gets washed down. ⚠ Losing it to a blank field is a real cost.

⭐ This is the version with the published run limit

• ⭐ “Up to 20 metres of continuous light from a single driver feed at one end, or extend up to 40 metres when powered from both ends.” ⭐ That figure appears on the 7.2 W listings and nowhere else in the PLEO range.
• ⭐ It is the answer to the question every long low-voltage run raises. ⚠ Voltage drops along the length, and the visible result is a line that fades toward the far end — ⭐ which on a cove is exactly where the eye travels.
• ⭐ Feeding both ends doubles the run because current enters from two directions and the worst point moves to the middle. ⚠ It costs a second cable route, planned before the ceiling closes.
• ⭐ The driver: 7.2 W/m × 20 m = 144 W, so a 180 W driver with headroom. ⚠ That is not a small object and will not fit inside a cove detail — ⭐ it needs a cupboard or an access panel.

⭐ A 20 m reel — and why continuity matters here

⭐ A reel is one continuous piece. ⭐ A joint in a cove is visible for the whole length of the run, ⭐ so ordering the run from one reel removes it entirely. ⭐ At 20 m and a published 20 m single-feed limit, one reel and one driver is a complete, coherent installation — ⭐ which is a tidier proposition than most of this catalogue offers.

✅ What is published

⛔ Made to order, cut to length

No lead time is published. Call our team to confirm. ⭐ We will.

Where it works

• ⭐ Long ceiling and floor coves — ⭐ up to 40 m fed both ends.
• ⭐ Washdown and outdoor soffit positions — ⭐ IP67.
• ⭐ Where one reel and one driver does the whole job.
• ⛔ Not over 20 m on a single feed.
• ⛔ Not round a curve drawn on a plane — ⭐ take side view.

Specifying it

Top-emitting 24 V DC LED neon flex, 20 m reel. 7.2 W per metre. 140 SMD LEDs per metre, cut in 50 mm increments. CRI90. 3000 / 4000 / 5000 K. IP67. Up to 20 m from one feed, 40 m from both. ⛔ IT PUBLISHES NO IP RATING IN A FIELD AND ITS DESCRIPTION SAYS IP67 — and 8 of the 19 PLEO flex listings do the same. ⭐ A specification sheet built from structured fields alone would show all eight as unrated, and a customer filtering by IP would lose them. ⭐ IP67 IS DUST-TIGHT AND RATED FOR TEMPORARY IMMERSION, which on a flexible product is unusual and is one of the better reasons to choose flex for a floor cove or a washdown position.

Supplied and supported by Lights For You.
