Domus PLEO-7.2W Neon Side View 24V CRI90 20M

The Domus PLEO-7.2 Side View is a 24 V LED neon flex — 7.2 W per metre, CRI90, side-emitting, 20 m reels, in 3000 K or 4000 K.

⭐⭐ 20 metres from one end, 40 from both — and why that is the whole point

• ⭐ Domus states it plainly, and it is the most useful sentence in this range: ⭐ the PLEO-7.2 “allows for up to 20 metres of continuous light from a single driver feed at one end, or extend up to 40 metres when powered from both ends.”
• ⭐ That is a direct answer to the question every long strip run raises: how far before the far end goes dim? ⚠ Low-voltage runs lose voltage along their length, ⭐ and the visible result is a line that fades toward one end — ⭐ which on a cove or a window reveal is exactly where the eye travels.
• ⭐ Feeding from BOTH ENDS doubles the usable run, ⭐ because current enters from two directions and the worst point moves to the middle instead of the end. ⚠ It costs a second cable route, planned early.

⭐ Why a 7.2 W version exists at all

• ⭐ Because half the watts per metre buys roughly twice the run. ⭐ Voltage drop is driven by CURRENT, and current is set by the load per metre.
• ⭐ Worked: 7.2 W/m over 20 m is 144 W, or 6 A at 24 V. ⭐ The 14.4 W/m version over the same 20 m would be 288 W and 12 A — ⚠ double the current, so it will not carry the same distance.
• ⭐ So the choice between 7.2 and 14.4 W/m is not simply brightness — ⭐ it is brightness against reach. ⚠ Domus publishes the run figure only on the 7.2, so the 14.4's limit has to be asked for. ⭐ Ask us.
• ⭐ THE RULE OF THUMB: for a long architectural cove, take the 7.2 and feed both ends. ⭐ For a short bright accent, take the 14.4.

⛔ This listing publishes no IP rating — and its siblings publish IP67

⭐ Eleven PLEO listings publish IP67. ⛔ This one and one other publish none. ⭐ Nothing suggests the product differs — ⚠ it is the same polyurethane-encased flex in the same family. ⭐ Treat it as IP67 and confirm with us before using it anywhere the rating matters. ⭐ IP67 means dust-tight and rated for temporary immersion, which is well beyond what a cove or a window reveal needs.

⭐ Side view — and when it is the right one

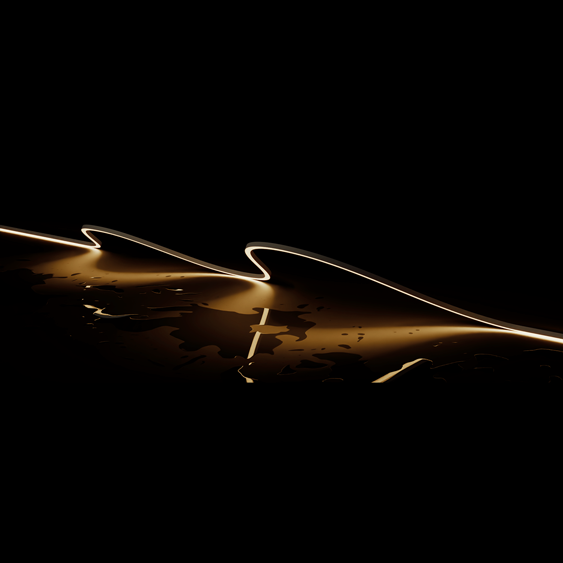

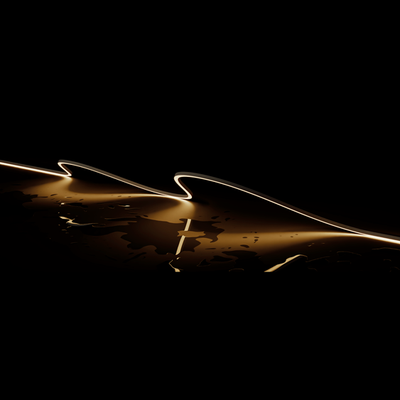

⭐ Side-emitting flex fires out of its EDGE rather than its face. ⭐ That matters when the flex has to bend the “hard” way — flat against a surface, curving in plan rather than in section. ⭐ A top-view flex bent that way twists; a side-view one follows the curve naturally. ⭐ So: side view for a curve you are laying out on a flat plane, top view for a straight run or a curve in section. ⭐ Domus's own words: front-facing and side-facing “to suit both horizontal and vertical illumination applications”.

✅ What is published

⛔ Made to order, cut to length

No lead time is published. Call our team to confirm. ⭐ We will.

Where it works

• ⭐ Long architectural coves — ⭐ 40 m fed from both ends.
• ⭐ Curves laid out on a flat plane — ⭐ side view follows them.
• Window reveals, floor coves, stair lines.
• ⛔ Not over 20 m from one feed — ⚠ the far end will dim.
• ⚠ Not where a rating is required until we confirm the IP.

Specifying it

24 V DC LED neon flex, side view. 7.2 W per metre. CRI90. Polyurethane enclosure, mounting clips included. 3000 K or 4000 K. 20 m reels, cut to length. ⭐⭐ 20 METRES OF CONTINUOUS LIGHT FROM ONE DRIVER FEED, OR 40 METRES POWERED FROM BOTH ENDS — Domus publishes this and it is the most useful sentence in the range. ⭐ IT IS ALSO WHY A 7.2 W VERSION EXISTS: half the watts per metre halves the current, and current is what drives voltage drop. 7.2 W/m over 20 m is 6 A; the 14.4 W/m version would be 12 A over the same distance. ⭐ SO THE CHOICE IS BRIGHTNESS AGAINST REACH — long cove, take the 7.2 and feed both ends.

Supplied and supported by Lights For You.
