Domus Lighting LED Neon Flex Domus Pleo 6.5X11MM Rigid Profile P/M
Domus Lighting LED Neon Flex Domus Pleo 6.5X11MM Rigid Profile P/M
Loading... + Add to wishlist - Remove from wishlist
Domus Lighting
SKU: 21922

Domus Pleo 6.5X11MM Rigid Profile P/M

$18.95
$18.95
Product Description
Product Description
x

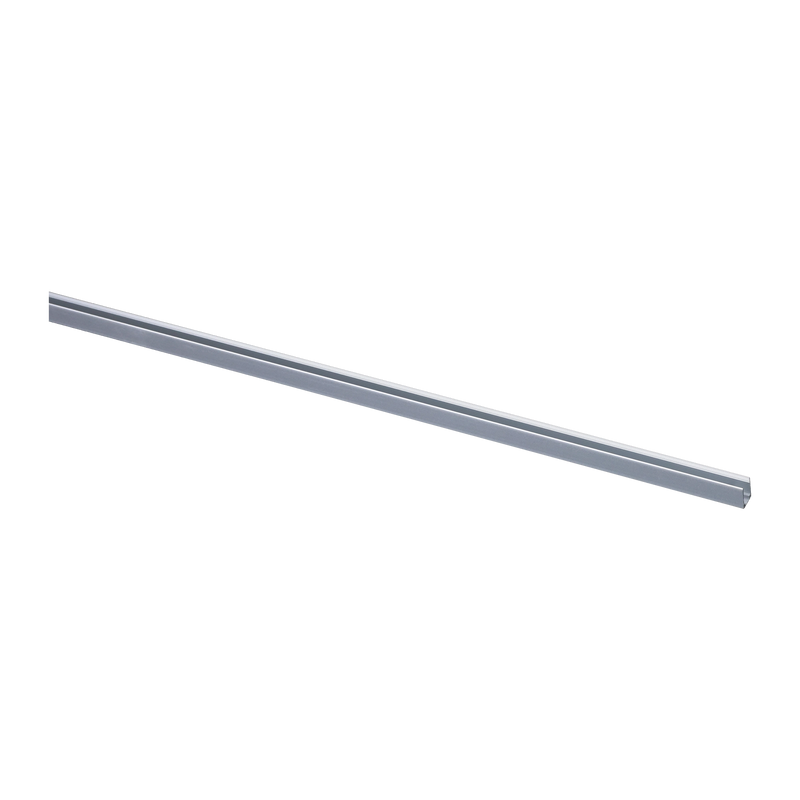

The Domus PLEO 6.5×11 mm Rigid Profile is an aluminium channel for PLEO neon flex and LED strip — sold per metre, with mounting clips, in polished aluminium.

⭐ A PLEO installation is four purchases, across three product categories
You need ⭐ Where it sits Included?
⭐ 1. The flex “LED Neon Flex” — ⚠ or “LED Strips” for two of them —
⭐ 2. A profile ⭐ “LED Neon Flex” — ⚠ the same category as the flex ⭐ Optional
⭐ 3. A 24 V DC driver A separate category ⛔ No
⭐ 4. A controller (RGB only) ⛔ Not named anywhere ⛔ No
  • ⛔ No listing assembles these. ⭐ A flex page does not name a profile, a driver or a controller; a profile page names none of the others. ⚠ So a first-time buyer can order a reel of flex and have nothing that lights.
  • ⚠ And the categories work against you. ⭐ Two of the flex products sit under “LED Strips” while eleven sit under “LED Neon Flex”, ⭐ and the profiles sit under “LED Neon Flex” alongside the flex itself — ⚠ so browsing one category shows a mixture of products and parts.
  • ⭐ THE SIMPLEST PATH: tell us the run and how you want to control it, and we will quote all four. ⭐ That is genuinely the difference between a working installation and a box of parts.
⭐ Sizing the driver — the number people get wrong
  • ⭐ Flex load is per METRE, so the driver is sized on run length. ⭐ 14.4 W/m × 8 m = 115 W, ⭐ so a 150 W driver with headroom. ⭐ 7.2 W/m × 8 m = 58 W, so a 75 W driver.
  • ⚠ Running a driver at its rated maximum shortens its life, ⭐ and the driver is the part that fails first in any low-voltage installation. ⭐ Allow about a fifth.
  • ⭐ And put it somewhere you can reach. ⚠ A 150 W driver is not a small object and will not fit inside a cove detail — ⭐ it needs a cupboard, a ceiling access panel or a plant space, decided before the ceiling closes.
⭐ Per metre — and what it buys on a profile

⭐ Both formats are cut to order, so this is about quoting rather than cutting. ⭐ Per metre suits several short runs — ⭐ you order the lengths you actually have. ⚠ What metreage does not tell us is the number of RUNS, ⭐ which is what sets end pieces and feed points. ⭐ Tell us both.

✅ What is published
Specification Value
Section 6.5 × 11 mm — ⭐ matches the 6.5 × 11 flex
Form Rigid, sold per metre
Mounting ⭐ Recessed OR surface — one part
Supplied with Mounting clips
Finish Polished aluminium — ⭐ powder coat on request
Lengths ⭐ Customisable
Order code LP-0611-RG
⛔ Compatible flex · driver · controller ⛔ None named on any listing
⛔ Max strip width · diffuser · IP · warranty ⛔ Not published
⛔ Flex / strip / driver ⛔ Not included
⛔ Made to order, cut to length

No lead time is published. Call our team to confirm. ⭐ We will.

Where it works
  • ⭐ Several short straight runs — ⭐ metreage matches the job.
  • ⭐ Reveals and recesses — ⭐ a crisp edge.
  • Low-level and knock-prone positions.
  • ⛔ Not ordered alone — ⭐ the flex and driver are separate.
  • ⛔ Not for a curve — ⭐ take the bendable version.
Specifying it

Rigid aluminium profile, 6.5 × 11 mm, sold per metre and cut to length. Recessed or surface mounted. Supplied with mounting clips. Polished aluminium, powder coat on request. Houses PLEO neon flex and compatible LED strip. Order code LP-0611-RG. ⭐ A PLEO INSTALLATION IS FOUR PURCHASES ACROSS THREE PRODUCT CATEGORIES — the flex, an optional profile, a 24 V DC driver, and for RGB a controller — AND NO LISTING ASSEMBLES THEM. ⚠ A first-time buyer can order a reel of flex and have nothing that lights. ⭐ SIZE THE DRIVER ON RUN LENGTH: 14.4 W/m × 8 m is 115 W, so a 150 W driver with headroom — and put it somewhere you can reach, because it will not fit inside a cove detail.

Supplied and supported by Lights For You.

Questions
What do I need to buy for a complete PLEO installation?

Four things across three product categories: the flex, an optional profile, a 24V DC driver, and for an RGB run a controller as well. No listing assembles these — a flex page does not name a profile, a driver or a controller, and a profile page names none of the others. So a first-time buyer can order a reel of flex and have nothing that lights.

Do the categories help?

Not really. Two of the flex products sit under "LED Strips" while eleven sit under "LED Neon Flex", and the profiles sit under "LED Neon Flex" alongside the flex itself. So browsing one category shows a mixture of finished products and component parts. The simplest path is to tell us the run and how you want to control it, and we will quote all four.

How do I size the driver?

On run length, because flex load is per metre. 14.4W/m over 8m is 115W, so a 150W driver with headroom. 7.2W/m over 8m is 58W, so a 75W driver. Allow about a fifth: running a driver at its rated maximum shortens its life, and the driver is the part that fails first in any low-voltage installation.

Where should the driver go?

Somewhere you can reach. A 150W driver is not a small object and will not fit inside a cove detail — it needs a cupboard, a ceiling access panel or a plant space, decided before the ceiling closes. Since it is the part most likely to fail, sealing it into a cavity is the mistake that costs most later.

Which flex does this profile take?

The 6.5 x 11mm PLEO flex — the sections share names. But no listing states the pairing on either side, so the match has to be made by reading the two numbers. Tell us the flex and we will confirm.

Do I need a profile at all?

Often not. PLEO flex is IP67 in a polyurethane enclosure with its own mounting clips, so it is self-supporting. A profile buys a straight line over imperfect joinery, a crisp shadow edge in a reveal, physical protection at low level, and a recess detail. What it does not buy is diffusion — the flex is already a line.

Why buy per metre?

Because it matches several short runs better than a stick does — you order the lengths you actually have. Both formats are cut to order, so it is about quoting rather than cutting. What metreage does not tell us is the number of runs, which sets end pieces and feed points, so tell us both.

Product Specifications
Product Specifications
x

Specifications

BrandDomus Lighting
Model / SKULP-0611-RG-1M — 21922 Aluminium
⭐ A PLEO INSTALLATION IS FOUR PURCHASESFlex · ⭐ optional profile · ⭐ 24 V driver · controller (RGB)
⛔ And NO listing assembles them⚠ A flex page names no profile, driver or controller
⚠ So a first-time buyerCan order a reel of flex and have NOTHING that lights
⚠ The categories work against you2 flex products under "LED Strips" · 11 under "LED Neon Flex"
⚠ And the PROFILES sit with the FLEX⭐ So one category mixes finished products and parts
⭐ SIZE THE DRIVER ON RUN LENGTH⭐ 14.4 W/m × 8 m = 115 W → ⭐ a 150 W driver
⭐ Or 7.2 W/m × 8 m58 W → ⭐ a 75 W driver
⚠ Allow about a fifth⭐ The driver is the part that FAILS FIRST in a low-voltage installation
⚠ And put it where you can REACH it⭐ A 150 W driver will not fit inside a cove detail
⭐ Per metre suits several short runs⚠ But metreage does not give the RUN COUNT — ⭐ tell us both
⛔ Compatible flex / driver / controllerNone named on ANY listing

Variant specifications

PartCategoryNamed on the flex page?
The flexLED Neon Flex / ⚠ LED Strips—
⭐ Profile⚠ LED Neon Flex⛔ No
⛔ 24 V driverElsewhere⛔ No
⛔ RGB controller⛔ Not listed⛔ No
