Domus Lighting LED Neon Flex Domus Pleo 6.5X11MM Bendable Profile P/M
Domus Lighting LED Neon Flex Domus Pleo 6.5X11MM Bendable Profile P/M
Loading... + Add to wishlist - Remove from wishlist
Domus Lighting
SKU: 21898

Domus Pleo 6.5X11MM Bendable Profile P/M

$18.95
$18.95
Product Description
Product Description
x

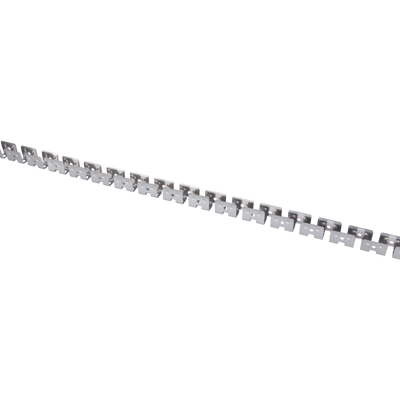

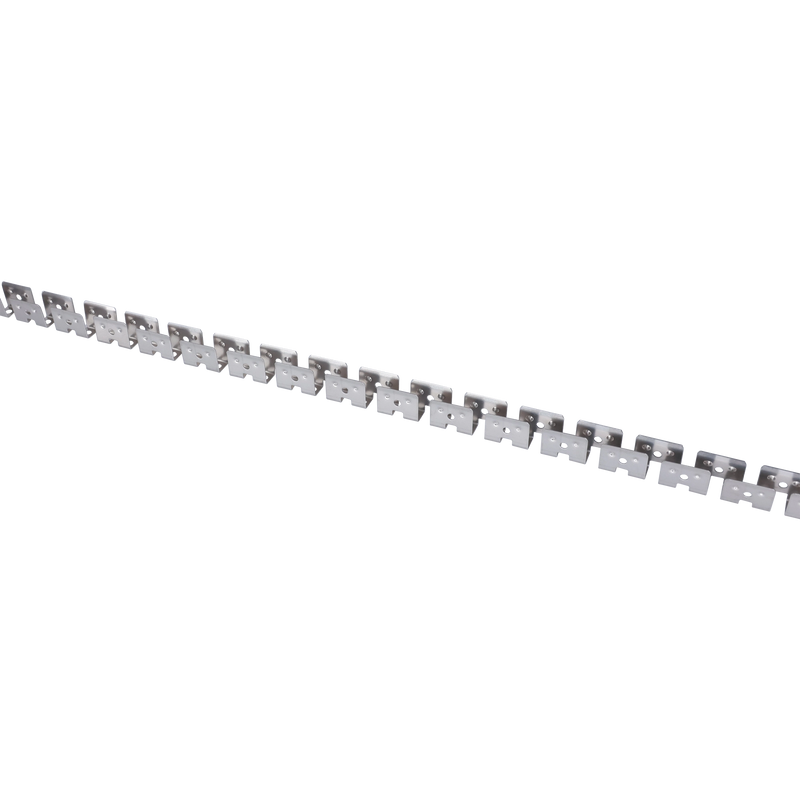

The Domus PLEO 6.5×11 mm Bendable Profile is a bendable aluminium channel for LED strip and neon flex — sold per metre, with mounting clips, in polished aluminium.

⭐ Bending it on site — what nothing published tells you
  • ⭐ A bendable profile is formed by hand or over a former, on site, to your curve. ⭐ That is its whole advantage. ⚠ It is also the part with no instructions.
  • ⭐ Four things decide whether it comes out well:
    • ⭐ 1. Form it BEFORE the strip goes in. ⚠ Bending a channel with flex already seated risks pinching it, ⭐ and a damaged flex inside a formed channel means starting again.
    • ⭐ 2. Bend gradually along the length, not sharply at a point. ⭐ An even curve comes from many small movements; ⚠ one firm pull produces a flat spot with a kink at each end.
    • ⭐ 3. Work to a template. ⭐ Trace the actual curve onto a board or the floor and form to that — ⚠ eyeballing a radius produces something that looks wrong beside the joinery it is meant to follow.
    • ⭐ 4. Allow extra length. ⭐ An arc is longer than the chord it spans, and it is easy to order the straight-line distance by mistake.
  • ⛔ And the figure that governs all of it — the minimum bend radius — is not published. ⭐ At 6.5 × 11 mm this section is deeper than the 4 × 8 and will resist a tight curve more. ⭐ Ask us, and buy a spare metre to test on.
⭐ 6.5 × 11 mm — the middle section, and the deepest relative to its width

⭐ Of the three Pleo sections this is the one that is clearly taller than it is wide — ⭐ 6.5 mm across, 11 mm deep. ⭐ That depth is useful if you are running BARE STRIP rather than flex, ⭐ because depth is what blends separate LEDs into a line. ⚠ But it also means the profile reads as a taller object when surface mounted, ⭐ and it looks different depending on which way it is turned — ⚠ unlike the square 10 × 10, which presents the same face however it is rotated. ⭐ On a run that changes plane, that matters.

⭐ Neon flex makes the depth moot

⭐ Neon flex is a continuous silicone-encased emitter, diffused along its whole length — ⭐ so it arrives as a line and does not need depth to become one. ⭐ Which is the point of this family: the profile is a housing and a shape, not an optical device. ⚠ If you plan to run bare strip instead, the depth question returns and this is a better section for it than the 4 × 8.

✅ What is published
Specification Value
Section 6.5 × 11 mm — ⭐ the deepest relative to width
⭐ Form ⭐ Bendable — formed on site
Sold Per metre, cut to length
Mounting ⭐ Recessed OR surface — one part
Supplied with Mounting clips
Finish Polished aluminium — ⭐ powder coat on request
Houses PLEO neon flex and compatible LED strip
⛔ MINIMUM BEND RADIUS ⛔ Not published
⛔ Forming instructions ⛔ None published — ⭐ see above
⛔ Strip / driver · IP · warranty ⛔ Not published or not included
⛔ Made to order, cut to length

No lead time is published. Call our team to confirm. ⭐ We will.

Where it works
  • ⭐ Curved runs formed to your own geometry.
  • ⭐ Bare strip on a curve — ⭐ the depth helps blending.
  • Rounded reveals, curved joinery, circular features.
  • ⛔ Not to a tight radius until we confirm the minimum.
  • ⚠ Not on a run that changes plane — ⭐ take the square 10 × 10.
Specifying it

Bendable aluminium LED profile, 6.5 × 11 mm, sold per metre and cut to length. Recessed or surface mounted. Supplied with mounting clips. Polished aluminium, powder coat on request. Houses PLEO neon flex and compatible LED strip. Order code LP-0611-BD. ⭐ FOUR THINGS DECIDE WHETHER A BENDABLE PROFILE COMES OUT WELL, AND NOTHING PUBLISHED COVERS THEM: form it BEFORE the strip goes in; bend gradually along the length rather than sharply at a point; work to a traced template rather than by eye; and allow extra length, because an arc is longer than the chord it spans. ⛔ AND THE MINIMUM BEND RADIUS IS NOT PUBLISHED — buy a spare metre to test on.

Supplied and supported by Lights For You.

Questions
How do I actually bend it?

By hand or over a former, on site, to your curve — that is its whole advantage, and also the part with no instructions. Four things decide whether it comes out well: form it before the strip goes in; bend gradually along the length rather than sharply at a point; work to a traced template rather than by eye; and allow extra length.

Why form it before the strip goes in?

Because bending a channel with flex already seated risks pinching it, and a damaged flex inside a formed channel means starting again. Form first, then seat the flex into the finished shape — it is the sequence that costs nothing and saves the most.

Why bend gradually?

Because an even curve comes from many small movements. One firm pull produces a flat spot with a kink at each end, which is immediately visible once the run is lit — a lit line shows every irregularity in the channel holding it.

Why a template?

Because eyeballing a radius produces something that looks wrong beside the joinery it is meant to follow. Trace the actual curve onto a board or the floor and form to that. The eye is very good at spotting a curve that nearly matches another curve, which is exactly the failure mode here.

How much extra length should I allow?

Enough for the arc rather than the chord — an arc is always longer than the straight line it spans, and it is easy to order the straight-line distance by mistake. On a gentle curve the difference is small; on a tight one it is substantial. Measure along the curve, not across it.

How tight can I bend it?

Not published, and it is the figure that governs all of the above. At 6.5 x 11mm this section is deeper than the 4 x 8 and will resist a tight curve more. Ask us, and buy a spare metre to test on before committing the whole run.

Is this the right section for bare LED strip?

Better than the 4 x 8, yes. At 11mm deep it gives more distance between the LEDs and the diffuser, and depth is what blends separate LEDs into a line. With neon flex the question does not arise at all — flex is a continuous diffused emitter and arrives as a line already.

Product Specifications
Product Specifications
x

Specifications

BrandDomus Lighting
Model / SKULP-0611-BD-1M — 21898 Aluminium
⭐ FORMING RULE 1Form it BEFORE the strip goes in — ⚠ bending with flex seated risks pinching it
⭐ FORMING RULE 2Bend GRADUALLY along the length — ⚠ one firm pull gives a flat spot and two kinks
⭐ FORMING RULE 3Work to a TRACED template — ⚠ eyeballing a radius looks wrong beside the joinery
⭐ FORMING RULE 4Allow EXTRA LENGTH — ⭐ an arc is longer than the chord it spans
⛔ Nothing published covers any of this⭐ Nor the minimum bend radius
⚠ And this section resists a tight curveMore than the 4 × 8 — ⭐ buy a spare metre to test on
⭐ 6.5 × 11mm — deepest relative to width⭐ Good for BARE STRIP; ⚠ reads taller when surface mounted
⚠ And it looks different rotated⭐ Unlike the square 10 × 10 — ⚠ matters on a run that changes plane
⭐ With NEON FLEX the depth is moot⭐ Flex arrives as a line — ⭐ the profile is a housing and a shape
⭐ Recessed OR surface from one part⭐ Powder coat on request · mounting clips included
⛔ Strip / driver · IP · warrantyNot published or not included

Variant specifications

Forming step⭐ Do⚠ Not
Sequence⭐ Form, then seat flex⚠ Bend with flex in
Technique⭐ Many small movements⚠ One firm pull
Accuracy⭐ A traced template⚠ By eye
⭐ Length⭐ Measure the ARC⚠ The chord
