Domus Lighting LED Neon Flex Domus PLEO-14.4 Neon Top View 24V IP67 CRI90 20M
Domus PLEO-14.4 Neon Top View 24V IP67 CRI90 20M
Domus PLEO-14.4 Neon Top View 24V IP67 CRI90 20M
Domus Lighting LED Neon Flex Domus PLEO-14.4 Neon Top View 24V IP67 CRI90 20M
Domus PLEO-14.4 Neon Top View 24V IP67 CRI90 20M
Domus PLEO-14.4 Neon Top View 24V IP67 CRI90 20M
Loading... + Add to wishlist - Remove from wishlist
Domus Lighting
SKU: 21402

Domus PLEO-14.4 Neon Top View 24V IP67 CRI90 20M

IP67 – waterproof to 1m depth
IP67 – waterproof to 1m depth
$1,585.95
$1,585.95
Product Description
Product Description
x

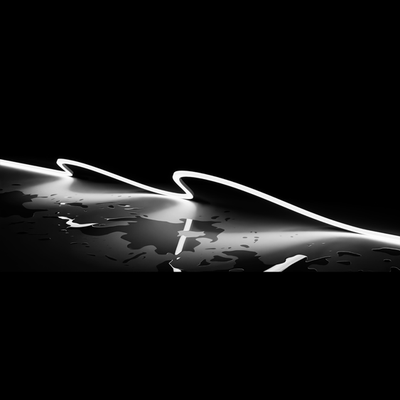

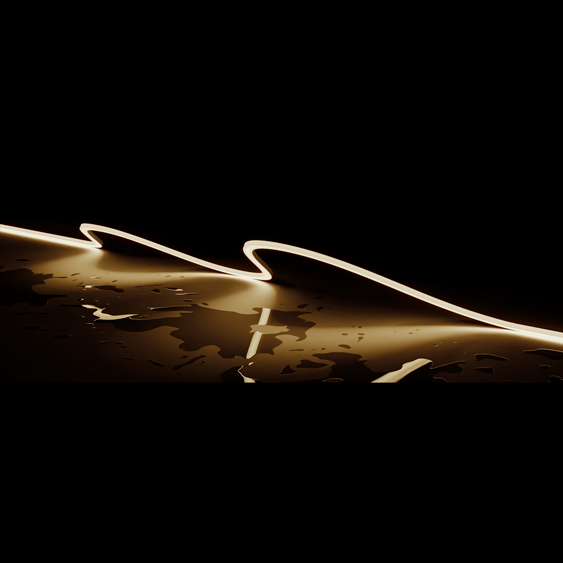

The Domus PLEO-14.4 Top View is a 24 V LED neon flex — 14.4 W per metre, CRI90, IP67, top-emitting, 20 m reels, in 3000, 4000 or 5000 K.

⭐ The three places flex goes, and what each actually needs
Application ⭐ What decides whether it works
⭐ Ceiling cove ⭐ The distance from flex to ceiling — ⚠ too close and you see a bright band with a dark edge above it
⭐ Floor cove / skirting ⭐ The IP rating — ⚠ it will be mopped; ⭐ IP67 here is ample
⭐ Window reveal ⚠ What you see from outside at night — ⭐ the flex itself, unless it is set back
  • ⭐ The ceiling cove point is the one that gets designed wrong. ⭐ A cove works by bouncing light off the ceiling, and the further the flex sits from the ceiling the wider and softer the wash. ⚠ Too close and you get a hard bright band with a shadow line above it — the opposite of the intended effect. ⭐ Around 150 mm of clearance is a common starting point, ⚠ and Domus publishes no guidance at all.
  • ⭐ The window reveal point is the one nobody thinks about. ⭐ At night a lit reveal is visible from the street, and if the flex is not set back behind a return you see the source rather than the effect. ⭐ Set it back and light the reveal, not the neighbourhood.
  • ⭐ All three want the flex CONTINUOUS. ⚠ A joint in a cove is visible for the whole length of the run, ⭐ which is why the 20 m reel matters — most rooms are one uninterrupted piece.
⭐ Top view, and the practical consequence for a cove

⭐ Top-emitting flex fires out of its face, so in a cove it is laid flat and points UP. ⭐ That is the correct orientation and the reason top view is the default. ⚠ Side view in a cove would fire at the wall behind rather than the ceiling above, ⭐ which is a different and usually unwanted effect. ⭐ Take side view only where the run curves flat on a plane and a top-view flex would twist.

⛔ The run limit is not published on this wattage

⭐ The 7.2 W version in this family states 20 m from one feed and 40 m from both. ⛔ Nothing equivalent is published for the 14.4. ⭐ Since voltage drop is driven by current, and 14.4 W/m draws double, it will not carry as far — ⚠ plausibly around half, though that is inference rather than a figure. ⭐ On a cove longer than about 10 m, ask us before committing to a single feed.

✅ What is published
Specification Value
Load 14.4 W per metre at 24 V DC
Colour rendering ⭐ CRI90
Colour temperature 3000 / 4000 / 5000 K
Emission ⭐ Top view — ⭐ the correct orientation for a cove
IP rating ⭐ IP67 — ⭐ ample for a mopped floor cove
Enclosure Polyurethane — mounting clips included
Format ⭐ 20 m reel — ⭐ most rooms are one continuous piece
Order code PLEO-14.4-T-20M
⛔ Maximum run · cove clearance guidance ⛔ Not published
⛔ Lumen output · driver · warranty ⛔ Not published on this listing
⛔ Made to order, cut to length

No lead time is published. Call our team to confirm. ⭐ We will.

Where it works
  • ⭐ Ceiling coves — ⭐ with clearance from the ceiling.
  • ⭐ Floor coves and skirting details — ⭐ IP67 survives mopping.
  • Window reveals — ⚠ set back from the glass.
  • ⛔ Not curved flat on a plane — ⭐ take side view.
  • ⛔ Not over ~10 m on one feed without asking us.
Specifying it

Top-emitting 24 V DC LED neon flex. 14.4 W per metre. CRI90. 3000 / 4000 / 5000 K. IP67. Polyurethane enclosure, mounting clips included. 20 m reels, cut to length. Order code PLEO-14.4-T-20M. ⭐ THE CEILING COVE IS THE APPLICATION THAT GETS DESIGNED WRONG: a cove works by bouncing light off the ceiling, and too little clearance gives a hard bright band with a shadow line above it — the opposite of the intended effect. ⚠ Domus publishes no guidance at all; around 150 mm is a common starting point. ⭐ AND THE WINDOW REVEAL IS THE ONE NOBODY THINKS ABOUT — at night a lit reveal is visible from the street, so set the flex back behind a return and light the reveal, not the neighbourhood.

Supplied and supported by Lights For You.

Questions
What decides whether a ceiling cove works?

The distance from the flex to the ceiling. A cove works by bouncing light off the ceiling, and the further the flex sits from it the wider and softer the wash. Too close and you get a hard bright band with a shadow line above it — the opposite of the intended effect. Around 150mm of clearance is a common starting point, and Domus publishes no guidance at all.

What about a floor cove?

The IP rating, because it will be mopped. IP67 here is ample — dust-tight and rated for temporary immersion, which is far beyond what a skirting detail needs but means a wet floor is simply not a consideration. That is one of the better reasons to choose flex over a strip for a floor-level run.

And a window reveal?

What you see from outside at night, which is the point nobody thinks about. A lit reveal is visible from the street, and if the flex is not set back behind a return you see the source rather than the effect. Set it back and light the reveal, not the neighbourhood.

Why does the 20m reel matter?

Because all three applications want the flex continuous. A joint in a cove is visible for the whole length of the run — it is a bright or dark interruption in a line that is meant to be uninterrupted. Most rooms come out of a single 20m piece, which is the main practical advantage of buying by the reel.

Why top view rather than side view in a cove?

Because a top-emitting flex is laid flat and points up, which is the correct orientation for bouncing light off the ceiling. Side view in a cove would fire at the wall behind rather than the ceiling above — a different and usually unwanted effect. Take side view only where the run curves flat on a plane and a top-view flex would twist.

How long a run can I have?

Not published on this wattage. The 7.2W version in this family states 20 metres from one feed and 40 from both. Since voltage drop is driven by current and 14.4W/m draws double, this will not carry as far — plausibly around half, though that is inference rather than a published figure. On a cove longer than about 10 metres, ask us before committing to a single feed.

What do I need besides the flex?

A 24V DC driver sized for the run, and a route for it that stays accessible. At 14.4W per metre a 10m run is 144W, so the driver is not a small object and it will not fit inside a cove detail. Tell us the run length and we will size it and suggest where it lives.

Product Specifications
Product Specifications
x

Specifications

BrandDomus Lighting
Model / SKUsPLEO-14.4-T-20M — 21402 3000K, 21403 4000K, 21404 5000K
⭐ CEILING COVE — what decides itThe DISTANCE from flex to ceiling
⚠ Too closeA hard bright BAND with a shadow line above — ⭐ the opposite of the intent
⭐ A common starting point≈150 mm clearance — ⛔ Domus publishes NO guidance
⭐ FLOOR COVE — what decides itThe IP rating — ⚠ it will be MOPPED; ⭐ IP67 is ample
⭐ WINDOW REVEAL — the one nobody thinks about⚠ At night the lit reveal is visible FROM THE STREET
⭐ So set it back behind a return⭐ Light the reveal, not the neighbourhood
⭐ All three want the flex CONTINUOUS⚠ A joint in a cove is visible for the whole run
⭐ Which is why the 20 m reel matters⭐ Most rooms are one uninterrupted piece
⭐ TOP VIEW is correct for a cove⭐ Laid flat, pointing UP — ⚠ side view would fire at the wall behind
⛔ Maximum run not published at 14.4 W⭐ The 7.2 W version states 20 m / 40 m
⚠ And 14.4 W/m draws DOUBLE the current⭐ So plausibly half the reach — ⭐ ask us beyond ~10 m

Variant specifications

Application⭐ The deciding factor
⭐ Ceiling cove⭐ Clearance to the ceiling
⭐ Floor cove⭐ IP rating — it gets mopped
⚠ Window reveal⭐ Set-back from the glass
⭐ All three⭐ A continuous, jointless run
