Domus Pleo 10X10MM Rigid Profile P/M

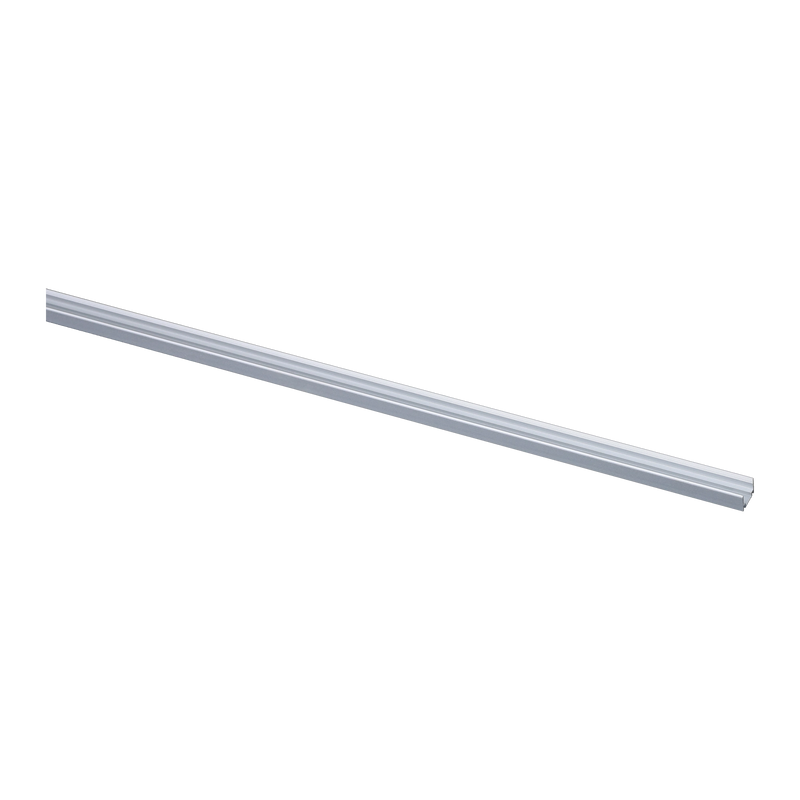

The Domus PLEO 10×10 mm Rigid Profile is an aluminium channel for LED strip and neon flex — sold per metre, with mounting clips, in polished aluminium.

⭐⭐ One part, recessed or surface — which nothing else here does

• ⭐ Domus states it plainly: this profile “can be used in both recessed and surface mounted applications”.
• ⚠ Every other Domus profile family sells the two separately — ⭐ Micro REC and Micro SM, Nova-17 REC and SM, Nova-20, Nova-24, each as a distinct product with distinct dimensions.
• ⭐ And that split is where the problems in those families came from. ⭐ A recessed profile carries a FLANGE and a surface one does not, so the two have different widths — ⛔ which is exactly what the NOVA-24 listings got wrong, publishing an identical 23.5 mm for both when they cannot be the same.
• ⭐ One part that does both has no flange question, no width divergence and no chance of buying the wrong half. ⭐ It is a simpler product to specify, and the simplicity is the feature.
• ⚠ What you give up: a profile designed for both is a compromise at each. ⭐ A dedicated recessed profile finishes flush with a flange that covers a rough groove edge; a dedicated surface one is as low as it can be. ⭐ This will do both competently rather than either perfectly, ⚠ and on a visible face that difference may show. ⭐ Ask us for the section detail if the finish is critical.

⭐ 10 × 10 mm — the largest Pleo, and a square section

⭐ Three sizes exist: 4 × 8, 6.5 × 11 and 10 × 10 mm. ⭐ This is the only SQUARE one — ⚠ the other two are taller than they are wide. ⭐ A square section matters when the profile turns a corner or changes plane, ⭐ because it presents the same face whichever way it is rotated — ⭐ so a run that goes from horizontal under a shelf to vertical up a return reads consistently. ⚠ A 6.5 × 11 profile rotated 90° looks like a different product.

⭐ What it houses, and why that decides the rest

• ⭐ Domus designs it for the PLEO neon flex range “and other compatible LED strip”.
• ⭐ With NEON FLEX the usual profile question — depth, and whether you will see individual LEDs — does not arise. ⭐ Flex is a continuous silicone-encased emitter, diffused along its whole length, so it is already a line.
• ⚠ With BARE STRIP the question returns, ⭐ and at 10 mm deep this is the best of the three Pleo sections for blending — ⭐ comparable to a Nova-20 or Nova-24.
• ⛔ No compatible-strip list, no maximum strip width and no diffuser detail are published. ⭐ Tell us the strip and we will confirm it seats.

✅ What is published

⛔ Made to order, cut to length

No lead time is published. Call our team to confirm. ⭐ We will.

Where it works

• ⭐ Runs that change plane — ⭐ the square section reads consistently.
• ⭐ Jobs mixing recessed and surface — ⭐ one part covers both.
• ⭐ Bare strip as well as flex — ⭐ 10 mm blends well.
• ⚠ Not where the finish is critical — ⭐ a dual-purpose profile compromises at each.
• ⛔ Not ordered without telling us the strip.

Specifying it

Rigid aluminium LED profile, 10 × 10 mm, sold per metre and cut to length. Recessed or surface mounted. Supplied with mounting clips. Polished aluminium, powder coat on request. Customisable lengths. Houses PLEO neon flex and compatible LED strip. Order code LP-1010-RG. ⭐⭐ ONE PART FOR BOTH RECESSED AND SURFACE — which nothing else in this catalogue does. Every other Domus family sells the two separately, and that split is exactly where the NOVA-24 width conflict came from: a recessed profile carries a flange and a surface one does not, so they cannot share a width. ⭐ ONE PART REMOVES THE QUESTION. ⚠ The trade is that it does both competently rather than either perfectly.

Supplied and supported by Lights For You.
