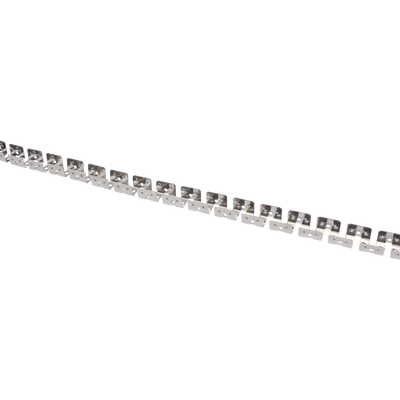

Domus Pleo 10X10MM Bendable Profile P/M

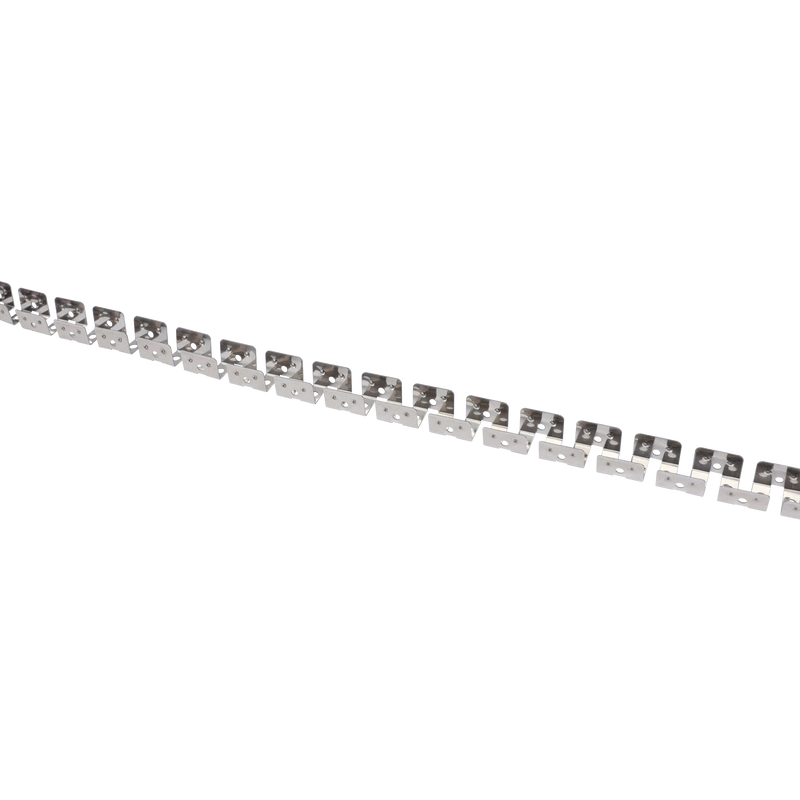

The Domus PLEO 10×10 mm Bendable Profile is a bendable aluminium channel for LED strip and neon flex — sold per metre, with mounting clips, in polished aluminium.

⭐ Bendable AND square — the only profile here that can do both things at once

• ⭐ Two properties combine here that appear nowhere else in this catalogue. ⭐ It BENDS, so it follows a curve you form yourself. ⭐ And its section is SQUARE, so it presents the same face however it is rotated.
• ⭐ Together those let one continuous run curve in plan AND turn through 90° into a different plane without ever looking like a different product. ⭐ A line that sweeps along a curved bar front, turns up the return and continues across the underside of a canopy is a single run of this profile.
• ⚠ With the 6.5 × 11 section the same run would change appearance at every turn, ⭐ because a rectangular section rotated 90° presents a different width to the eye. ⚠ With a rigid profile it would be several pieces with visible joints at each change of direction.
• ⭐ That is a genuinely capable thing, and nothing in the listing says it.

⭐ 10 mm deep — so it works with bare strip too

⭐ Neon flex needs no depth: it is a continuous diffused emitter and arrives as a line. ⭐ But at 10 mm this section also has enough depth for ORDINARY LED STRIP to blend into a line rather than showing as dots — ⭐ comparable to the Nova-20 and Nova-24 at 11 mm, and far better than the 8 mm Nova-17. ⭐ So it is the most flexible choice in the Pleo range: flex or strip, curved or straight, recessed or surface. ⛔ No LED density guidance is published, ⭐ so tell us the strip.

⛔ The bend radius, and forming it properly

• ⛔ The minimum bend radius is not published, ⭐ and at 10 × 10 mm this is the largest Pleo section, so it will resist a tight curve most of the three. ⭐ Ask us before committing to a radius.
• ⭐ Form it before the strip goes in; bend gradually along the length rather than sharply at a point; work to a traced template; and measure the ARC rather than the chord when ordering length. ⚠ None of that is published either.
• ⭐ Buy a spare metre to test on. ⭐ On a section this size that is the difference between a clean sweep and a kinked one.

✅ What is published

⛔ Made to order, cut to length

No lead time is published. Call our team to confirm. ⭐ We will.

Where it works

• ⭐ Runs that curve AND change plane — ⭐ the only profile here that does both.
• ⭐ Curved bar fronts, canopies, circular features.
• ⭐ Bare strip on a curve — ⭐ 10 mm blends it.
• ⛔ Not to a tight radius — ⚠ it is the stiffest of the three.
• ⛔ Not without a test piece on anything demanding.

Specifying it

Bendable aluminium LED profile, 10 × 10 mm square section, sold per metre and cut to length. Recessed or surface mounted. Supplied with mounting clips. Polished aluminium, powder coat on request. Customisable lengths. Houses PLEO neon flex and compatible LED strip. Order code LP-1010-BD. ⭐ BENDABLE AND SQUARE — two properties that combine nowhere else in this catalogue. It follows a curve you form yourself, and its square section presents the same face however it is rotated. ⭐ SO ONE CONTINUOUS RUN CAN CURVE IN PLAN AND TURN THROUGH 90° INTO A DIFFERENT PLANE without ever looking like a different product. ⛔ The minimum bend radius is not published, and this is the stiffest of the three sections — buy a spare metre to test on.

Supplied and supported by Lights For You.
