Domus Lighting
SKU: 17616

Domus PANEL LED Backlit Triac DIM

Color Temprature Changing Technology
Color Temprature Changing Technology
$100.95
$100.95
Product Description
Product Description
x

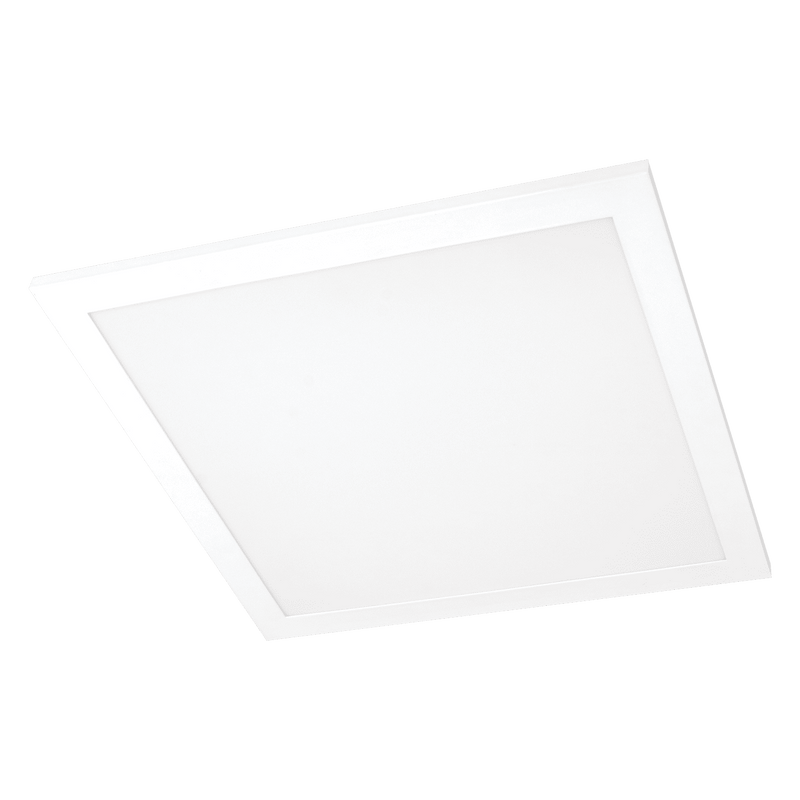

The Domus PANEL-BLT-DIM is a 10 W backlit LED panel — TRIAC dimmable, tri-colour switchable, with a harmonic filter for flicker-free operation, white frame and opal diffuser.

⭐ TRIAC — the reason this one is different
  • ⭐ The rest of this panel family dims by DALI or not at all. ⭐ This one dims by TRIAC — ⭐ which is the ordinary mains dimmer already on most walls.
  • ⭐ That is the practical difference between a commercial and a domestic installation. ⭐ DALI needs a control system, a control cable to each fitting and someone to commission it. ⭐ TRIAC needs a dimmer switch.
  • ⚠ The trap on a small load: 10 W is very little for a mains dimmer. ⭐ Many TRIAC dimmers specify a minimum load well above a single 10 W fitting, ⚠ and below it you get flicker, a dead band at the bottom of the range, or a fitting that will not strike at all. ⭐ Several panels on one dimmer solves it; one panel on its own is the case to check.
  • ⭐ Ask us for the dimmer you intend to use and we will confirm compatibility before you order — ⚠ TRIAC compatibility is genuinely brand-specific, and it is not something to discover after the ceiling is closed.
⭐ Two flicker questions, and they are not the same one
⭐ At full output ⚠ When dimmed
Cause Driver ripple / harmonic distortion ⚠ Dimmer and driver interaction
Addressed? ⭐ Yes — the harmonic filter ⛔ Not stated
Shows as ⭐ Rolling bands on camera ⚠ Visible pulsing, especially low

⭐ Domus's flicker-free claim addresses the first. ⚠ A dimmable fitting has a second flicker question that only appears at low levels, and nothing published addresses it. ⭐ On a fitting sold specifically for dimming, that is the gap worth naming.

⛔ What this listing does not publish

⛔ No lumen output, no dimensions, no IP rating and no warranty. ⭐ Its single variant is named “303”, which is the 300 × 300 mm module — ⚠ a size code used as a variant name, which is not obvious to a reader. ⭐ At the family's 88–94 lm/W, 10 W suggests roughly 880–940 lm. ⚠ An inference, not a published figure.

✅ What is published
Specification Value
Power 10 W
⭐ Dimming ⭐ TRIAC — ⭐ an ordinary mains dimmer
Colour temperature ⭐ Tri-colour switchable — DIP switch on the cable
Type ⭐ Backlit — LEDs across the whole back
Construction White frame, opal diffuser
⭐ Flicker ⭐ Harmonic filter at full output — ⛔ nothing stated for dimmed
Size ⭐ Variant “303” — ⭐ the 300 × 300 mm module
⛔ Lumens · dimensions · IP · warranty ⛔ Not published — ⭐ ≈880–940 lm inferred
Where it works
  • ⭐ Domestic and small-commercial ceilings — ⭐ where DALI is overkill.
  • Hallways, laundries and small offices — ⭐ the 300 mm module.
  • ⭐ Rooms used for video — ⭐ the flicker filter at full output.
  • ⚠ Not one panel alone on a mains dimmer without checking the minimum load.
  • ⛔ Not in wet areas — ⚠ no IP rating is published.
Specifying it

10 W backlit LED panel, 300 × 300 mm module. TRIAC dimmable. Tri-colour switchable by DIP switch on the cable. White frame, opal diffuser. Harmonic filter, flicker-free. ⭐ TRIAC IS WHY THIS ONE IS DIFFERENT — the rest of the family dims by DALI or not at all, and DALI needs a control system, a cable to each fitting and commissioning. ⭐ TRIAC needs a dimmer switch. ⚠ THE TRAP IS THE LOAD: 10W is very little for a mains dimmer, many of which specify a minimum well above a single fitting — below it you get flicker, a dead band, or no strike at all. ⭐ Tell us the dimmer and we will confirm compatibility first.

Supplied and supported by Lights For You.

Questions
What makes this one different from the other panels?

It dims by TRIAC. The rest of the family dims by DALI or not at all, and TRIAC is the ordinary mains dimmer already on most walls. That is the practical difference between a commercial and a domestic installation: DALI needs a control system, a control cable to each fitting and someone to commission it; TRIAC needs a dimmer switch.

Is there a catch?

The load. 10W is very little for a mains dimmer, and many TRIAC dimmers specify a minimum load well above a single 10W fitting — below it you get flicker, a dead band at the bottom of the range, or a fitting that will not strike at all. Several panels on one dimmer solves it; one panel on its own is the case to check.

How do I avoid that?

Tell us the dimmer you intend to use and we will confirm compatibility before you order. TRIAC compatibility is genuinely brand-specific, and it is not something to discover after the ceiling is closed. It is a two-minute conversation that prevents the most common fault on a dimmed LED install.

Does the flicker-free claim cover dimming?

Not as published, and the distinction is worth understanding. There are two flicker questions and they are not the same one. At full output, flicker comes from driver ripple and harmonic distortion — which the harmonic filter addresses, and that is what removes rolling bands on camera. When dimmed, flicker comes from the interaction between dimmer and driver, shows as visible pulsing especially at low levels, and nothing published addresses it. On a fitting sold specifically for dimming, that is the gap worth naming.

What size is it?

300 x 300mm — its single variant is named "303", which is the module size used as a variant name. That is not obvious to a reader, and no dimensions are published in the fields, so it is worth stating plainly.

How much light does it give?

No lumen figure is published. At the family's measured 88 to 94 lumens per watt, 10W suggests roughly 880 to 940 lumens. That is an inference from the 300 x 600 sibling rather than a published figure, so treat it as a guide and ask us if the number matters.

Can I use it in a bathroom?

No IP rating is published on this listing, which means we cannot say it is suitable. The other panels in the family are IP20, dry interior only, and it would be reasonable to assume the same here — but on a wet-area question an assumption is not good enough. Ask us and we will confirm with Domus.

Product Specifications
Product Specifications
x

Specifications

BrandDomus Lighting
Model / SKUPANEL-BLT-DIM — 17616 (variant "303")
⭐ TRIAC DIMMABLE⭐ An ordinary mains dimmer — ⭐ the rest of the family is DALI or nothing
⭐ Why that mattersDALI needs a control SYSTEM, a cable to each fitting and commissioning
⚠ THE TRAP — the load10W is very little for a mains dimmer
⚠ Below a dimmer's minimum loadFlicker · a dead band at the bottom · ⛔ or no strike at all
⭐ The fixSeveral panels on one dimmer — ⭐ or tell us the dimmer and we will check
⭐ TWO flicker questions, not one⭐ At full output vs ⚠ when DIMMED
⭐ At full output⭐ The harmonic filter addresses it — ⭐ removes rolling bands on camera
⛔ When dimmedNOTHING published — ⚠ and this fitting is SOLD for dimming
⭐ SizeVariant "303" = ⭐ the 300 × 300mm module — ⚠ a size code used as a variant name
⛔ Lumens / dimensions / IP / warrantyNone published — ⭐ ≈880–940lm inferred from the family

Variant specifications

FlickerAt full output⚠ Dimmed
CauseDriver ripple⚠ Dimmer/driver interaction
Addressed?⭐ Yes — harmonic filter⛔ Not stated
Shows asBands on camera⚠ Visible pulsing
