Domus Lighting LED Profiles Domus Omega-17 SM 17X15MM P/M C/W Opal Diff & Ec
Domus Omega-17 SM 17X15MM P/M C/W Opal Diff & Ec
Domus Omega-17 SM 17X15MM P/M C/W Opal Diff & Ec
Domus Lighting LED Profiles Domus Omega-17 SM 17X15MM P/M C/W Opal Diff & Ec
Domus Omega-17 SM 17X15MM P/M C/W Opal Diff & Ec
Domus Omega-17 SM 17X15MM P/M C/W Opal Diff & Ec
Loading... + Add to wishlist - Remove from wishlist
Domus Lighting
SKU: 22126

Domus Omega-17 SM 17X15MM P/M C/W Opal Diff & Ec

Colour: Aluminium
$20.95
$20.95
Product Description
Product Description
x

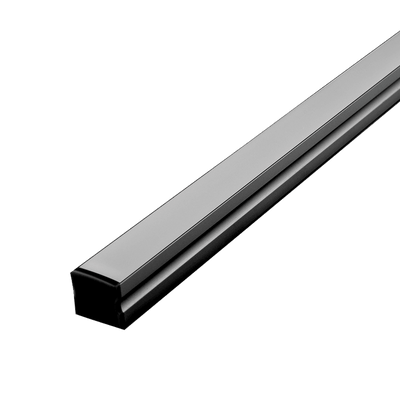

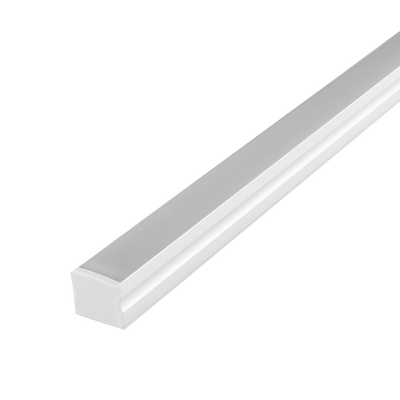

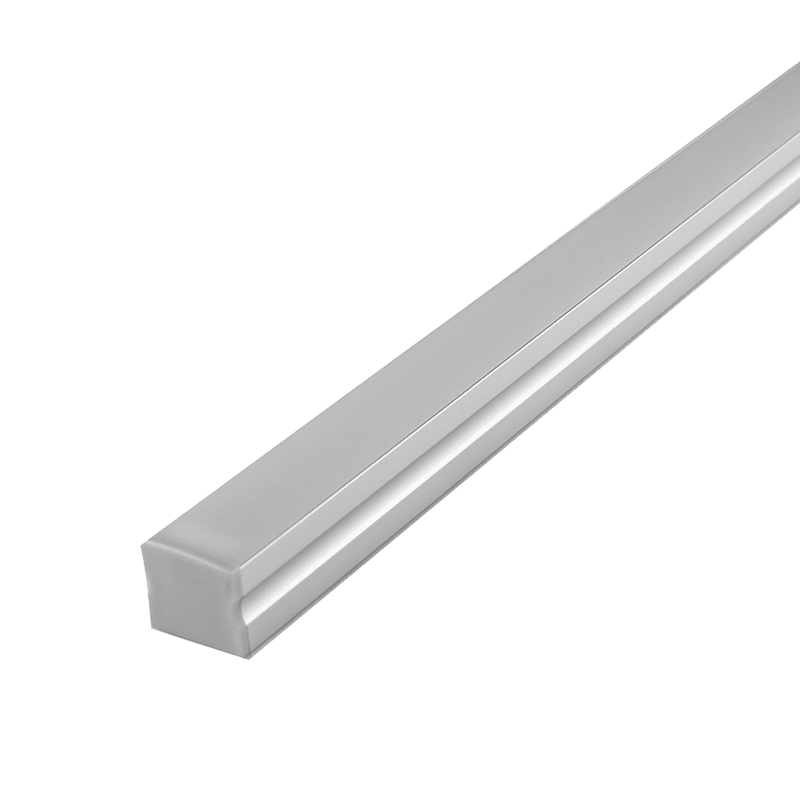

The Domus OMEGA-17 SM is a surface-mounted aluminium LED profile, sold per metre — 17 × 15 mm, with an OPAL PMMA diffuser and end caps, in three finishes.

⭐ One spare diffuser covers two ranges — which matters on a big job
  • ⭐ Omega-17 and Nova-17 share a 17 mm width and differ only in depth. ⭐ A diffuser slides into the channel across its WIDTH — ⭐ depth sits behind it and never touches it. ⭐ So a single diffuser part number fits both.
  • ⭐ On a fitout using both profiles — deep Omega where runs are seen, shallow Nova where the joinery is thin — that means ONE spare part rather than two.
  • ⭐ And the diffuser is the part most worth holding. ⭐ It is plastic, it is the exposed face, and it goes in before the remaining trades finish — ⚠ so it is the part that gets scratched, stood on, or cut short. ⭐ The aluminium extrusion behind it rarely needs replacing.
  • ⭐ One spare metre of opal diffuser is an unusually efficient thing to have on site, ⭐ because it can rescue a run in either profile.
⭐ Opal, per metre — and what per-metre actually buys you
  • ⭐ Both formats are cut to order, so per-metre is not about cutting — ⭐ it is about matching the order to the job. ⭐ Several short runs are quoted properly as metreage; one long run is quoted properly as a length.
  • ⚠ The one thing metreage does NOT tell us is the number of runs — ⭐ and that is what sets the end-cap count. ⭐ Two 1 m runs need four caps where a single 2 m run needs two. ⭐ Tell us both figures.
⭐ Opal at 15 mm — the combination for a lower-density strip

⭐ This is the deepest profile with the most diffusing face, ⭐ which makes it the most forgiving pairing Domus offers. ⭐ If budget is pushing you toward a lower-density strip, this is the profile that makes that survivable — ⚠ where a shallow profile with a cheap strip shows every LED. ⛔ Domus publishes no LED density guidance, ⭐ so tell us the strip and we will say whether it works.

⛔ Surface only

⛔ No recessed Omega-17 exists. ⭐ For flush, the Nova-20 or Nova-24 at 11 mm is the nearest.

✅ The specification
Specification Value
Installation ⭐ Surface mounted only, sold per metre
Section 17 × 15 mm — ⭐ the deepest Domus profile
Maximum continuous length 3 m
Diffuser ⭐ Flat OPAL PMMA — ⭐ the same part fits the Nova-17
Material / finish Extruded aluminium — aluminium, black or white
Supplied with End caps — ⛔ count not published
Order code LP-1715-SM-O-1M
⛔ Strip / driver ⛔ Neither included — Domus IP54 range
⛔ LED density guidance ⛔ Not published — ⭐ tell us the strip
⛔ Made to order, cut to length

No lead time is published. Call our team to confirm. ⭐ We will.

Where it works
  • ⭐ Fitouts using both Omega and Nova — ⭐ one spare diffuser covers both.
  • ⭐ With a lower-density strip — ⭐ the most forgiving pairing offered.
  • Several short surface runs.
  • ⛔ Not recessed.
  • ⚠ Not ordered without telling us the run COUNT.
Specifying it

Surface-mounted LED strip profile, sold per metre, 3 m maximum continuous length. 17 × 15 mm. Flat opal PMMA diffuser and end caps. Extruded aluminium in aluminium, black or white. For the Domus IP54 strip range. Order code LP-1715-SM-O-1M. ⭐ ONE SPARE DIFFUSER COVERS TWO RANGES — Omega-17 and Nova-17 share a 17mm width and differ only in depth, and a diffuser slides in across the width. ⭐ On a fitout using both, that is ONE spare part rather than two — and the diffuser is the part worth holding, since it is plastic, it is the exposed face, and it goes in before the other trades finish. ⭐ THIS IS ALSO THE MOST FORGIVING PAIRING DOMUS OFFERS: deepest profile, most diffusing face, so a lower-density strip survives it.

Supplied and supported by Lights For You.

Questions
Why does one diffuser fit two different profiles?

Because Omega-17 and Nova-17 share a 17mm width and differ only in depth. A diffuser slides into the channel across its width — the depth sits behind it and never touches it. So a single diffuser part number fits both ranges.

Why is that useful?

On a fitout using both profiles — deep Omega where runs are seen, shallow Nova where the joinery is thin — it means one spare part rather than two. And the diffuser is the part most worth holding: it is plastic, it is the exposed face, and it goes in before the remaining trades finish, so it is what gets scratched, stood on or cut short. The aluminium extrusion behind it rarely needs replacing.

What does buying per metre actually buy me?

Matching the order to the job rather than to a stick. Both formats are cut to order, so per-metre is not about cutting — it is about quoting. Several short runs are priced properly as metreage; one long run is priced properly as a length.

What do you need from me when I order?

The total metres and the number of separate runs. Metreage alone does not tell us the run count, and the run count is what sets the end-cap requirement — two 1m runs need four caps where a single 2m run needs two. Tell us both figures and nothing arrives short.

Can I use a cheaper strip with this?

This is the profile that makes that survivable. It is the deepest profile with the most diffusing face, which makes it the most forgiving pairing Domus offers — where a shallow profile with a low-density strip shows every LED. Domus publishes no LED density guidance, so tell us the strip and we will say whether it works.

Can I recess it?

No — there is no recessed Omega-17 in the catalogue. For a flush finish, the Nova-20 or Nova-24 at 11mm deep is the nearest option, and pairing it with a denser strip recovers some of the blending you give up.

How long can one piece be?

3m maximum continuous length. Longer runs use multiple pieces with a joint, and where that joint falls is worth deciding at design stage — over a cabinet division or at a corner rather than mid-span, since a joint on a lit line is what the eye finds.

Product Specifications
Product Specifications
x

Specifications

BrandDomus Lighting
Model / SKUsLP-1715-SM-O-1M — 22126 Aluminium, 22127 Black, 22128 White
⭐ ONE SPARE DIFFUSER COVERS TWO RANGESOmega-17 and Nova-17 share a 17mm WIDTH
⭐ WhyA diffuser slides in across the WIDTH — ⭐ depth sits behind and never touches it
⭐ On a fitout using bothONE spare part rather than two
⭐ And the diffuser is the part worth holdingPlastic · the exposed face · ⚠ in before the other trades finish
⭐ So it is what getsScratched, stood on, or cut short — ⭐ the extrusion rarely needs replacing
⭐ What per-metre buysMatching the ORDER to the job — ⭐ both formats are cut to order anyway
⚠ What metreage does NOT tell usThe number of RUNS — ⭐ and that sets the end-cap count
⭐ Tell us bothTotal metres AND run count
⭐ THE MOST FORGIVING PAIRING DOMUS OFFERSDeepest profile + most diffusing face
⭐ So a lower-density strip survives it⚠ Where a shallow profile shows every LED
⛔ Surface only · strip / driver not included⭐ Nearest flush option: Nova-20/24 at 11mm

Variant specifications

Spare partFitsWorth holding?
⭐ Opal diffuser⭐ Omega-17 AND Nova-17⭐ Yes — most damage-prone
End capsPer profile⭐ Yes — count by RUNS
The extrusionIts own range⚠ Rarely needed
