Domus Lighting LED Profiles Domus Omega-17 SM 17X15MM 3M C/W Black Diff & Ec
Domus Omega-17 SM 17X15MM 3M C/W Black Diff & Ec
Domus Omega-17 SM 17X15MM 3M C/W Black Diff & Ec
Domus Lighting LED Profiles Domus Omega-17 SM 17X15MM 3M C/W Black Diff & Ec
Domus Omega-17 SM 17X15MM 3M C/W Black Diff & Ec
Domus Omega-17 SM 17X15MM 3M C/W Black Diff & Ec
Loading... + Add to wishlist - Remove from wishlist
Domus Lighting
SKU: 21986

Domus Omega-17 SM 17X15MM 3M C/W Black Diff & Ec

Colour: Aluminium
$49.95
$49.95
Product Description
Product Description
x

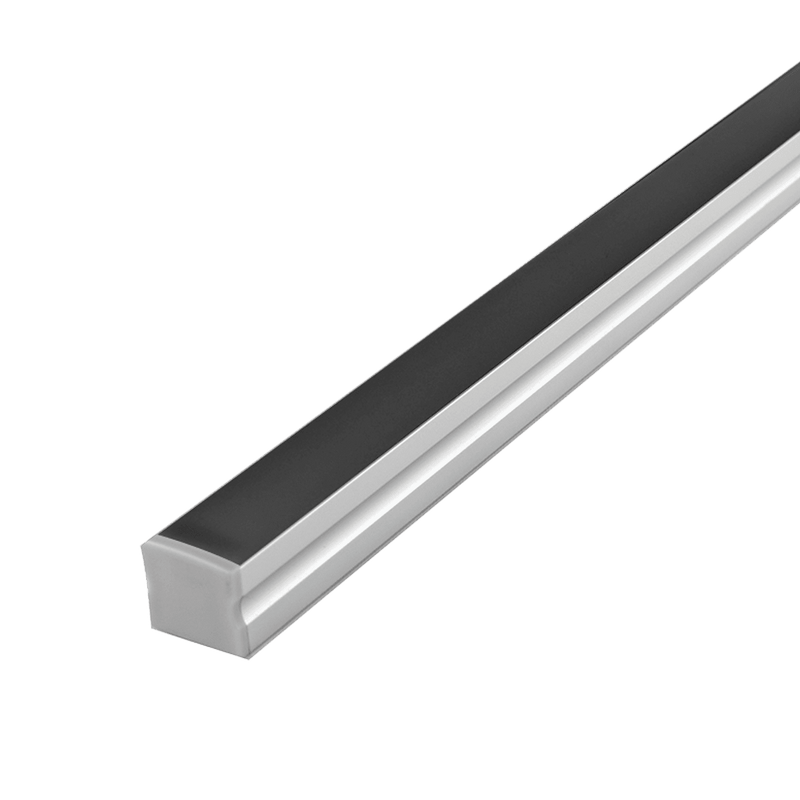

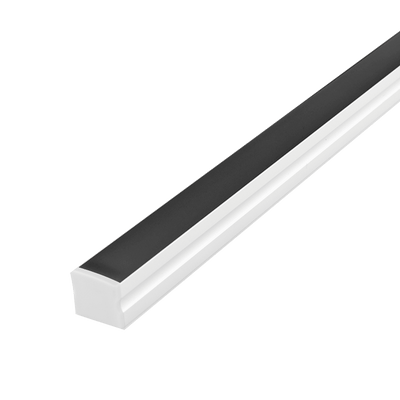

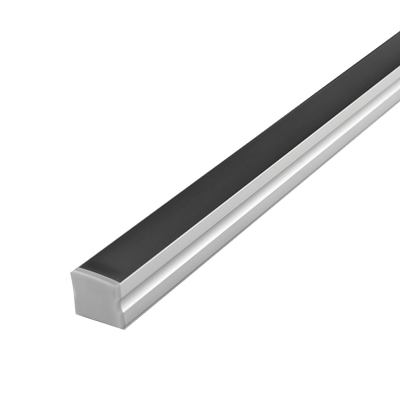

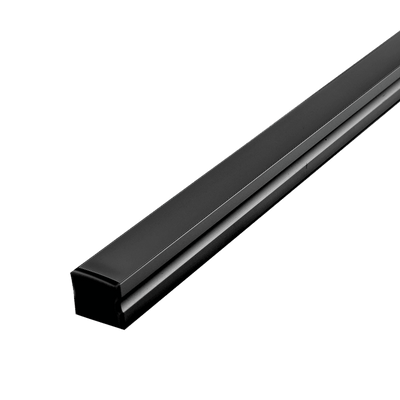

The Domus OMEGA-17 SM is a surface-mounted aluminium LED profile — 17 × 15 mm, 3 m, with a BLACK PMMA diffuser and end caps, in three finishes.

⭐ Same width as the Nova-17, twice the depth — and that is the whole point
  • ⭐ Omega-17 and Nova-17 are both 17 mm wide. ⭐ The Nova is 7 mm deep; the Omega is 15 mm. ⭐ Everything else about them is the same, including the diffuser, which is why one spare part fits both.
  • ⭐ So the choice between them is a single question: how much reveal can you accept in exchange for how even a line?
Nova-17 ⭐ Omega-17 (this)
Width 17 mm 17 mm — ⭐ identical
Depth 7 mm ⭐ 15 mm
Projection from the face ⭐ ≈8 mm — barely visible ⚠ Roughly twice that
Dot blending ⚠ Most prone in the range ⭐ Best in the range
Recessed version ✅ Yes ⛔ NONE
Diffuser part ⭐ The same one fits both
  • ⛔ The awkward part: the profile that blends best is the only one with no recessed version. ⭐ So “flush AND perfectly even” is not something this range offers.
  • ⭐ The practical compromise, in order of preference:
    • ⭐ 1. If the run can be surface-mounted, take the Omega-17. ⭐ Under a bench or inside a pelmet nobody measures the reveal.
    • ⭐ 2. If it must be flush, take a recessed Nova-20 or Nova-24 at 11 mm and pay for a DENSER strip. ⭐ More LEDs closer together blend at less depth.
    • ⚠ 3. Do not take a recessed Nova-17 at 7 mm with a cheap strip and expect an even line. ⭐ That is the combination that disappoints.
⭐ Black diffuser, 3 m lengths

⭐ Black reads as a dark line when off, where opal reads as a white stripe — ⭐ the right choice in a dark ceiling or a charcoal reveal. ⚠ It costs output and Domus does not publish how much, ⭐ but 15 mm of depth gives it more to work with than a shallow profile would. ⭐ 3 m is the longest continuous piece.

⛔ It does not light up on its own

⛔ No strip, no driver. ⭐ Domus IP54 strip range.

✅ The specification
Specification Value
Installation ⭐ Surface mounted only
Section ⭐ 17 × 15 mm — ⭐ same width as the Nova-17, twice the depth
Length 3 m
Diffuser Flat BLACK PMMA — ⭐ the same part fits the Nova-17
Material / finish Extruded aluminium — aluminium, black or white
Supplied with End caps
Order code LP-1715-SM-B-3M
⛔ Recessed version ⛔ Does not exist
⛔ Strip / driver ⛔ Neither included
⛔ Made to order, cut to length

No lead time is published. Call our team to confirm. ⭐ We will.

Where it works
  • ⭐ Under benches and inside pelmets — ⭐ where nobody measures the reveal.
  • Dark ceilings and charcoal reveals — ⭐ the black diffuser.
  • ⭐ Where an even line matters more than a flush one.
  • ⛔ Not recessed — ⛔ no version exists.
  • ⚠ Not on a visible face where 15 mm would read as applied.
Specifying it

Surface-mounted LED strip profile, 3 m. 17 × 15 mm. Flat black PMMA diffuser and end caps. Extruded aluminium in aluminium, black or white. For the Domus IP54 strip range. Order code LP-1715-SM-B-3M. ⭐ SAME WIDTH AS THE NOVA-17, TWICE THE DEPTH — and that is the whole point: 7mm against 15mm is the difference between the profile most prone to dotting and the one that blends best. ⛔ THE AWKWARD PART IS THAT THE BEST-BLENDING PROFILE HAS NO RECESSED VERSION, so "flush and perfectly even" is not something this range offers. ⭐ If you can surface-mount, take this. ⭐ If it must be flush, take a recessed Nova-20 or 24 and pay for a denser strip.

Supplied and supported by Lights For You.

Questions
How does it compare with the Nova-17?

Same width, twice the depth. Both are 17mm wide; the Nova is 7mm deep and the Omega is 15mm. Everything else about them is the same, including the diffuser — which is why one spare part fits both. So the choice between them is a single question: how much reveal can you accept in exchange for how even a line.

Why does depth make the line more even?

Because a strip is a row of separate points of light. Close behind a diffuser they read as dots; further back they blend into a continuous line. Depth buys that distance, which is why the Omega at 15mm blends best in the range and the Nova-17 at 7mm is the most prone to dotting.

Can I have flush and perfectly even?

Not from this range, and that is the awkward part. The profile that blends best is the only one with no recessed version — the Omega-17 is surface-mounted only. So those two wants point at different products.

What is the practical compromise?

In order of preference: if the run can be surface-mounted, take the Omega-17, because under a bench or inside a pelmet nobody measures the reveal. If it must be flush, take a recessed Nova-20 or Nova-24 at 11mm and pay for a denser strip, since more LEDs closer together blend at less depth. What not to do is take a recessed Nova-17 at 7mm with a cheap strip and expect an even line — that is the combination that disappoints.

How much does it project from the face?

Roughly twice what a Nova-17 does — the Nova sits about 8mm proud, this sits at around 15mm plus the mounting. Under a bench or inside a pelmet that is invisible. On a visible cabinet face it will read as applied rather than integral, which is the case where the shallower profile earns its keep.

Why the black diffuser?

For the off state — black reads as a dark line where opal reads as a white stripe, which in a dark ceiling or a charcoal reveal is the whole point. It costs output and Domus does not publish how much, but 15mm of depth gives it more to work with than a shallow profile would.

Does it include a strip?

No, and no driver. It is complete with the black diffuser and end caps, for the Domus IP54 strip range. Tell us the run lengths and the number of separate runs — the run count is what sets the end-cap requirement — and we will quote everything together.

Product Specifications
Product Specifications
x

Specifications

BrandDomus Lighting
Model / SKUsLP-1715-SM-B-3M — 21986 Aluminium, 21987 Black, 21988 White
⭐ SAME WIDTH AS THE NOVA-17Both 17mm — ⭐ twice the DEPTH (15mm vs 7mm)
⭐ And that is the whole pointThe difference between most prone to dotting and best blending
⭐ The same diffuser fits both⭐ Which is why one spare part serves two ranges
⛔ THE AWKWARD PARTThe best-blending profile has NO recessed version
⭐ So "flush AND perfectly even"Is not something this range offers
⭐ COMPROMISE 1If you can surface-mount — ⭐ take this; ⭐ under a bench nobody measures the reveal
⭐ COMPROMISE 2If it must be flush — ⭐ recessed Nova-20/24 at 11mm + ⭐ a DENSER strip
⚠ WHAT NOT TO DOA recessed Nova-17 at 7mm with a cheap strip — ⭐ that is what disappoints
⚠ ProjectionRoughly twice a Nova-17 — ⚠ reads as applied on a visible face
⭐ Black diffuser at 15mm⭐ Costs less here — more light to work with
⛔ Strip / driverNeither included — Domus IP54 range

Variant specifications

Nova-17⭐ Omega-17
Width17mm17mm — identical
⭐ Depth7mm⭐ 15mm
Blending⚠ Worst⭐ Best
⛔ Recessed?✅ Yes⛔ No
